非水系钠离子电池的电解质研究进展

马梦莹, 潘慧霖, 胡勇胜

Progress in electrolyte research for non-aqueous sodium ion batteries

Mengying MA, Huilin PAN, Yongsheng HU

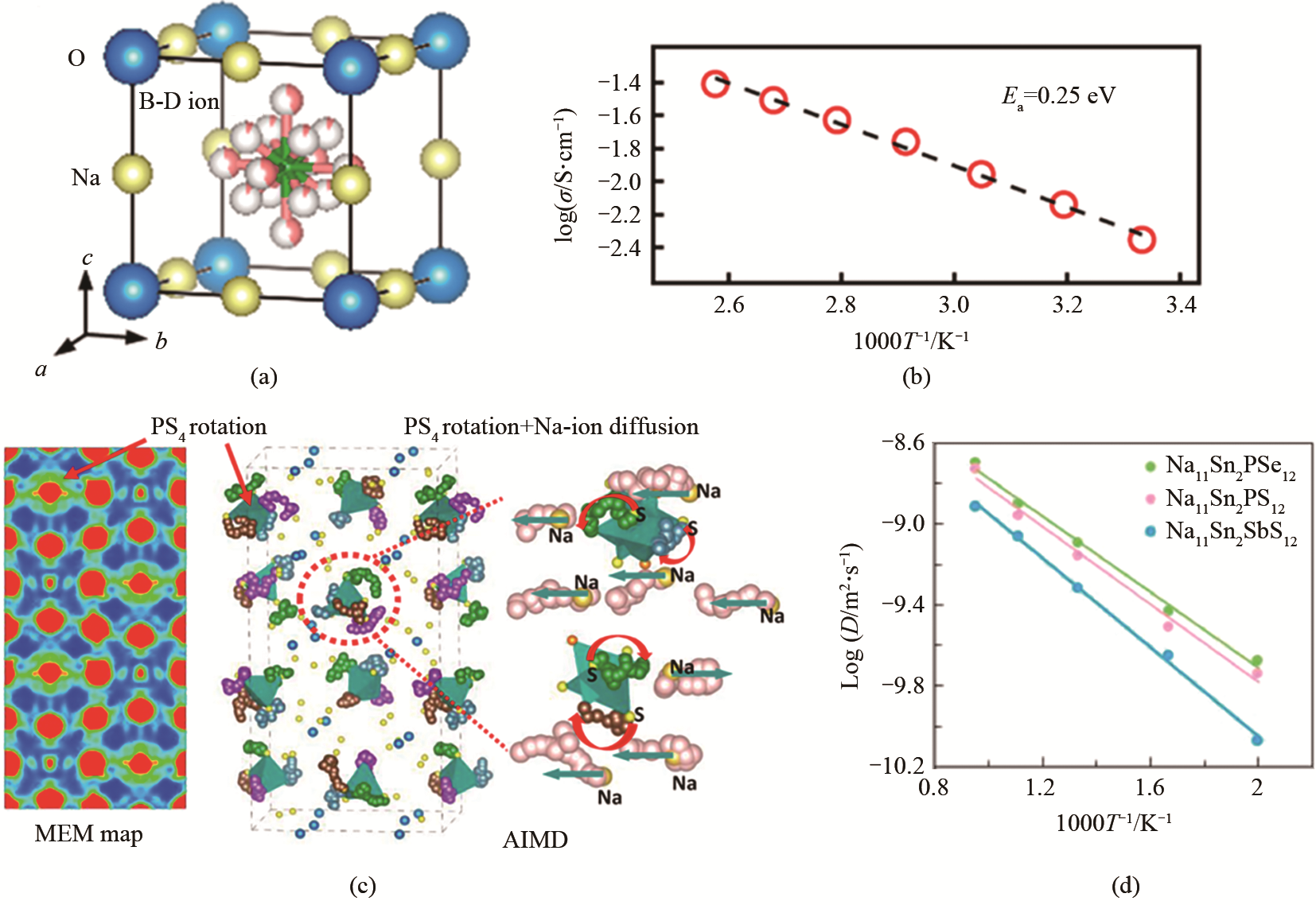

图10 Na3OBH4的(a) 晶体结构和(b) 电导率[97]；(c) Na+迁移与阴离子簇旋转的耦合机理；(d) 不同温度下[Na11Sn2]PSe12、[Na11Sn2]PS12和[Na11Sn2]SbS12的扩散系数[98]

Fig.10 (a) the framework and (b) Arrhenius plot of the conductivity of Na3OBH4[97]; (c) coupling mechanism of Na+ migration and anion cluster rotation；(d) the diffusivities [Na11Sn2]PSe12, [Na11Sn2]PS12 and [Na11Sn2]SbS12 atdifferent temperatures[98]
