锌镍单液流电池发展现状

杨朝霞, 娄景媛, 李雪菁, 王涵文, 王柯忠, 尤东江

Status and development of the zinc-nickel single flow battery

Zhaoxia YANG, Jingyuan LOU, Xuejing LI, Hanwen WANG, Kezhong WANG, Dongjiang YOU

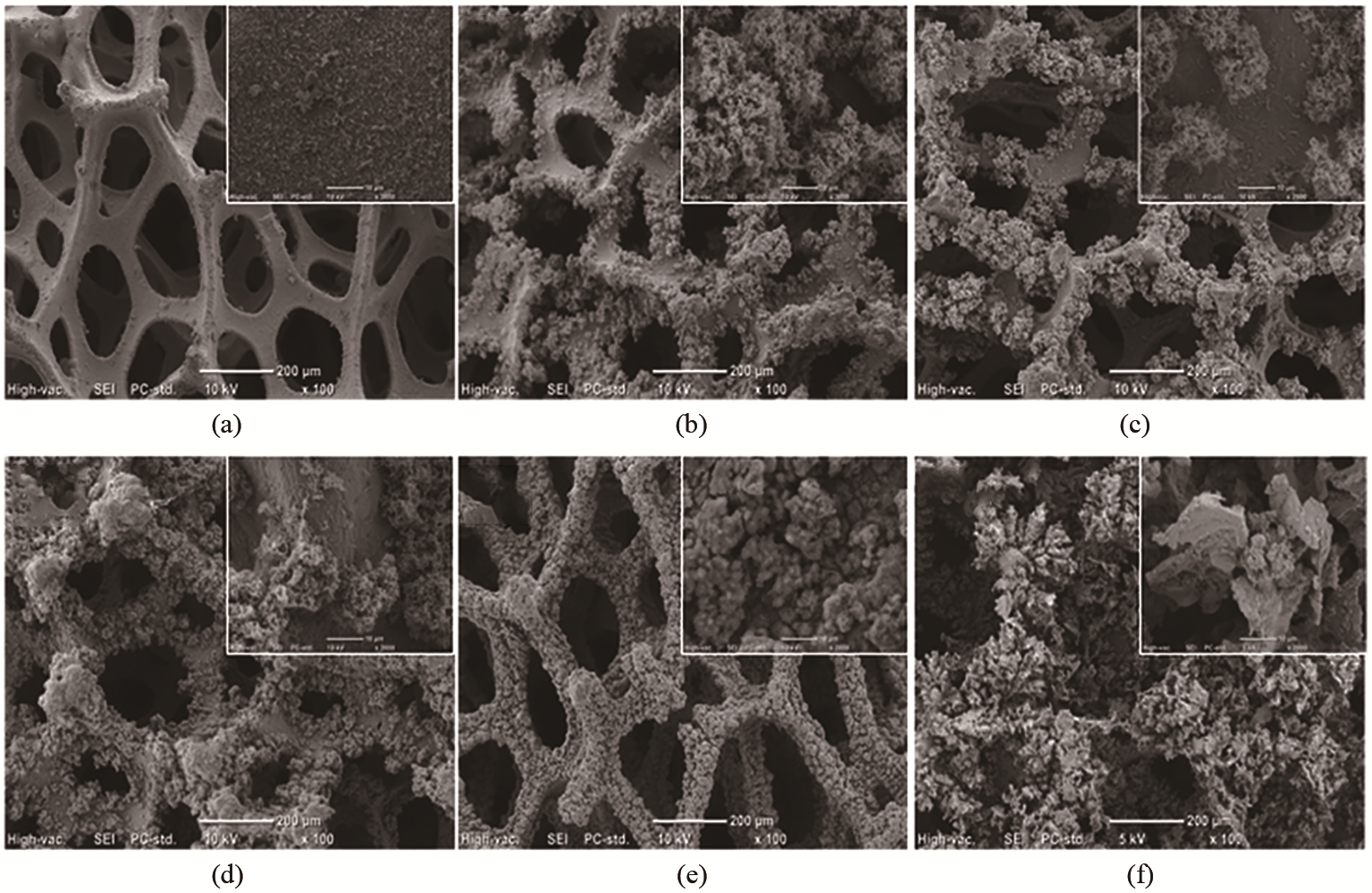

图4 多孔泡沫镍在不同电流密度下锌电沉积形态[9]：(a) 40 mA/cm2; (b) 80 mA/cm2; (c) 120 mA/cm2; (d)160 mA/cm2; (e) 200 mA/cm2; (f) 300 mA/cm2

Fig.4 Zinc electrodeposit morphologies within porous nickel form structures at different current densities[9]: (a) 40 mA/cm2; (b) 80 mA/cm2; (c) 120 mA/cm2; (d) 160 mA/cm2; (e)200 mA/cm2; (f) 300 mA/cm2
