用于酸性析氧反应研究的原位表征技术

杨家豪, 施兆平, 王意波, 葛君杰, 刘长鹏, 邢巍

In-situ/operando characterization techniques for oxygen evolution in acidic media

Jiahao YANG, Zhaoping SHI, Yibo WANG, Junjie GE, Changpeng LIU, Wei XING

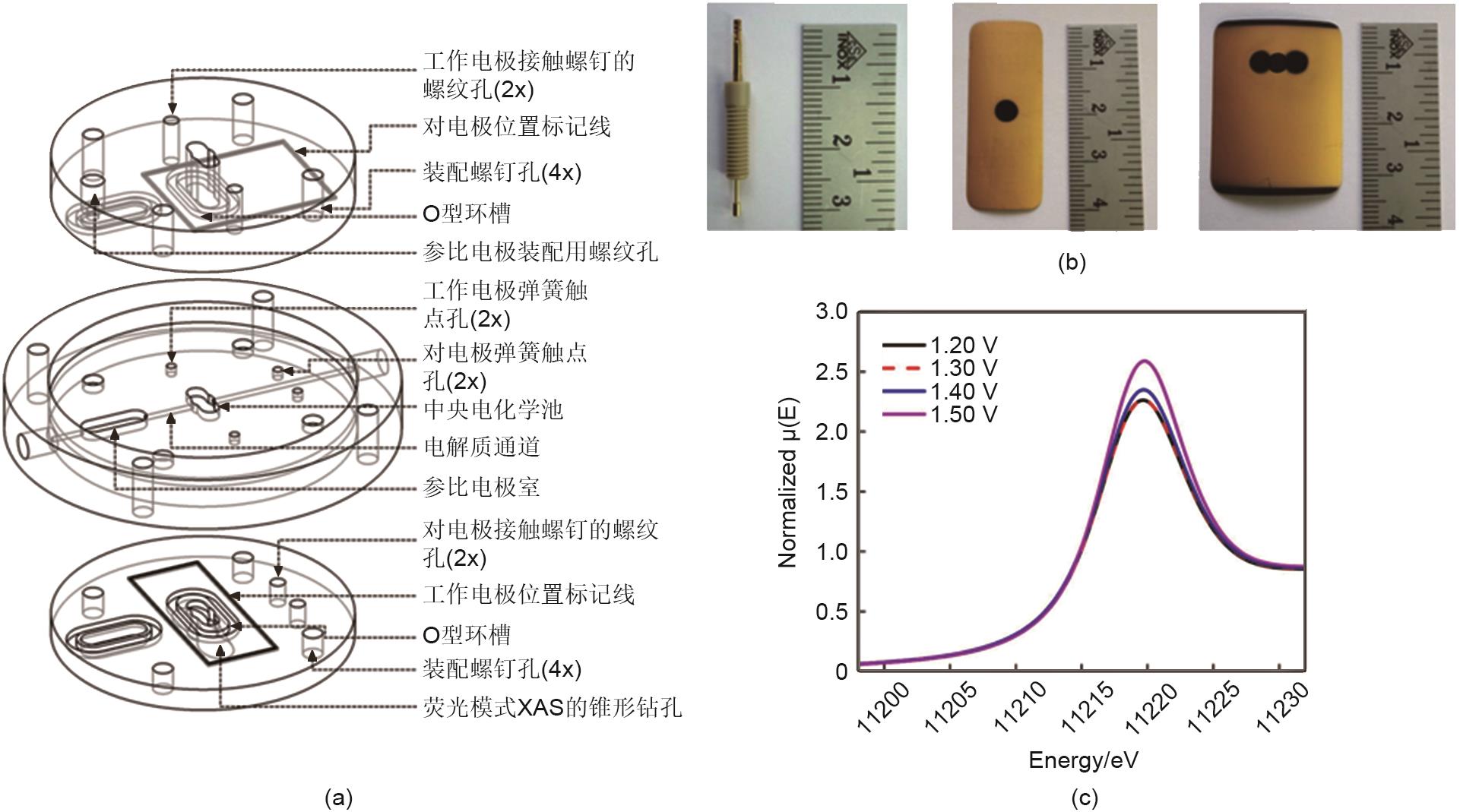

图2 (a) 流动池视图；(b) 从左至右：螺纹钉/工作电极/对电极；(c) Ir LIII边XANES[30] (c) XANES spectra at the Ir LIII edge[30]

Fig. 2 (a) views of the flow-cell; (b) left to right: screw/working electrode/counter electrode;
