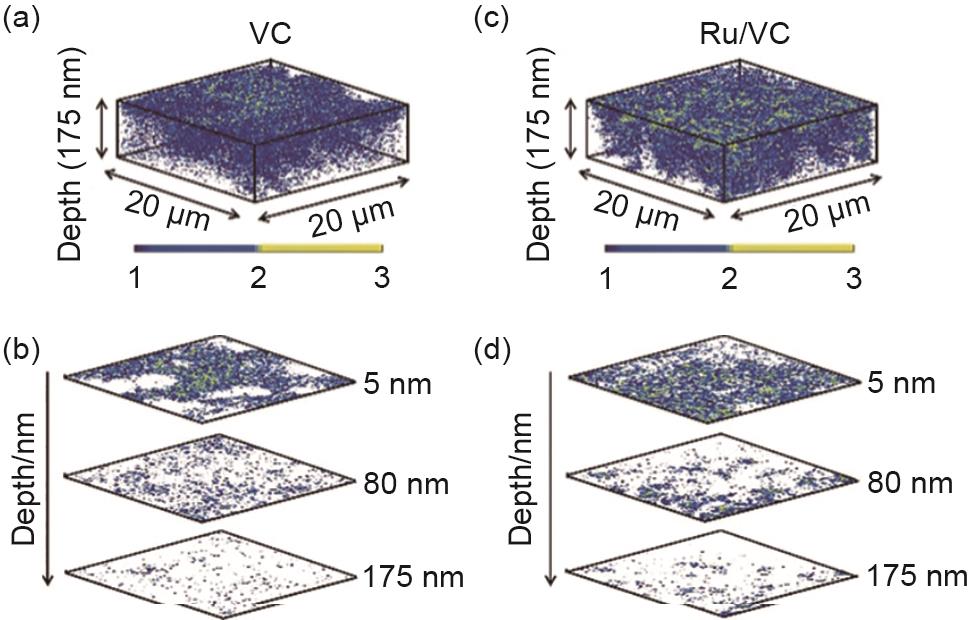

| 图9 放电电极上ToF-SIMS深度扫描二次离子 18O- 的3D图像：(a) 18O- 在碳(VC)电极上的3D分布；(b) VC电极上 18O- 重建的3D图像中选择的三个厚度层；(c) 催化剂负载的碳电极(Ru/VC)电极上 18O- 的3D分布；(d) Ru/VC电极上重建3D图像中选择的三个厚度层[ |
| Fig. 9 3D distribution of secondary ion 18O- on the discharge electrode with ToF-SIMS depth scan: (a) 3D distribution of 18O- on the carbon (VC) electrode; (b) selected layers from the reconstructed 3D image of 18O- on the VC electrode at three depths; (c) 3D distribution of 18O- on the carbon load with Ru (Ru/VC) electrode; (d) selected layers from the reconstructed 3D image of 18O- on the Ru/VC electrode at three depths[ |
|
|
