不同杂原子掺杂钛酸钠对储钠性能的影响

葛金雨, 孟祥辉, 祁永军, 孙浩, 李健君, 周冰, 桂亭亭, 邢庆伟, 黄曼

The effect of different heteroatoms-doped Na2Ti3O7 on sodium ion storage

Jinyu GE, Xianghui MENG, Yongjun QI, Hao SUN, Jianjun LI, Bing ZHOU, Tingting GUI, Qingwei XING, Man HUANG

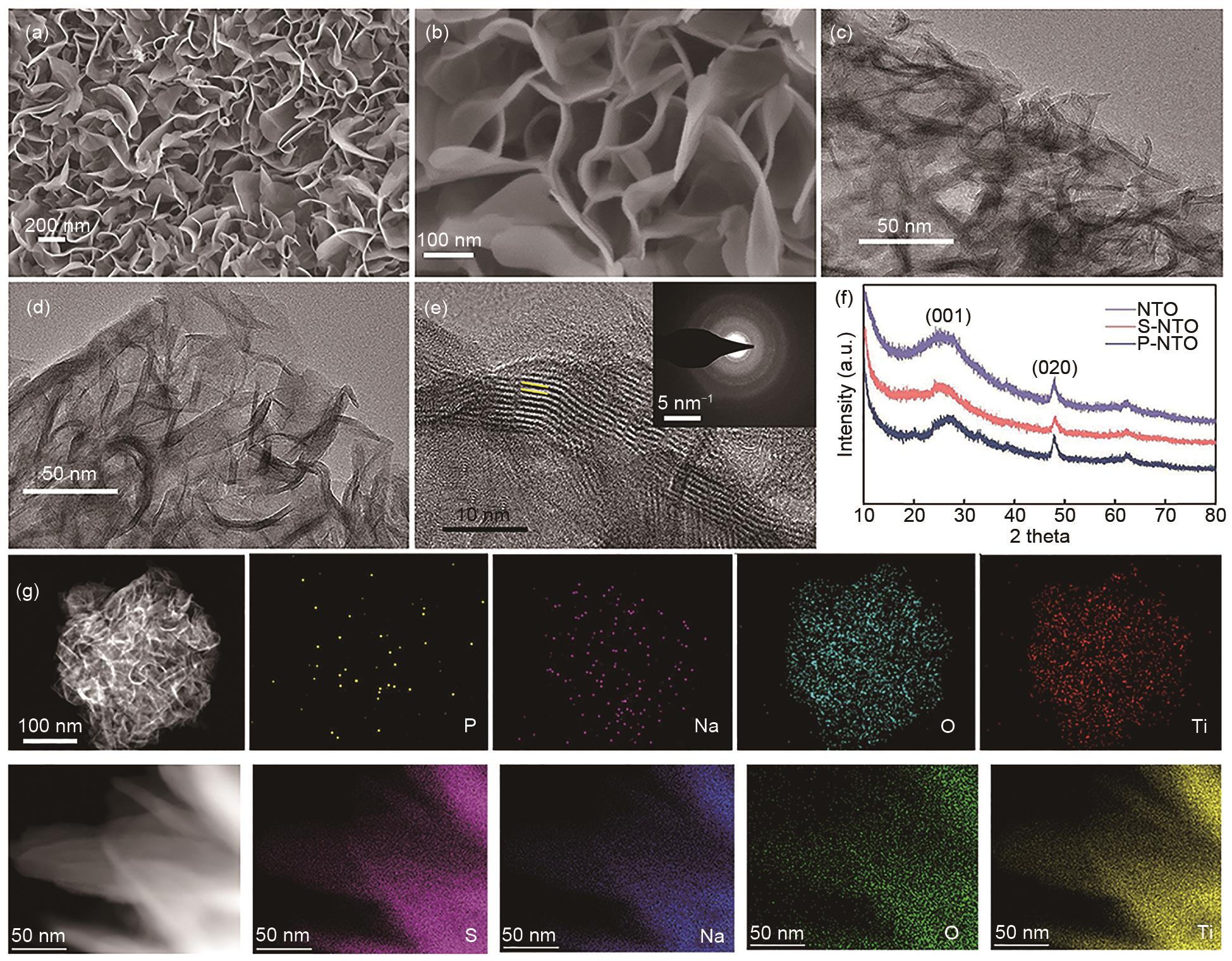

Fig. 1 Morphology and structural characterization of Na2Ti3O7 nanosheets array. (a), (b) SEM images and (c), (d) TEM images of P-NTO nanosheets. (e) High-resolution TEM image. Inset of (e) Electron diffraction of P-NTO nanosheets. (f) XRD patterns for P-NTO, S-NTO, and NTO. (g), (h) HAADF and elemental mapping images of P-NTO and S-NTO nanosheets
