固体氧化物燃料电池气流和热场的宏观尺度数值模拟研究进展

栾凯夫, 蔡长焜, 谢满意, 张纯, 郑坤灿, 安胜利

Research progress of macroscale numerical simulation of fluid and thermal fields of solid oxide fuel cells

Kaifu LUAN, Changkun CAI, Manyi XIE, Chun ZHANG, Kuncan ZHENG, Shengli AN

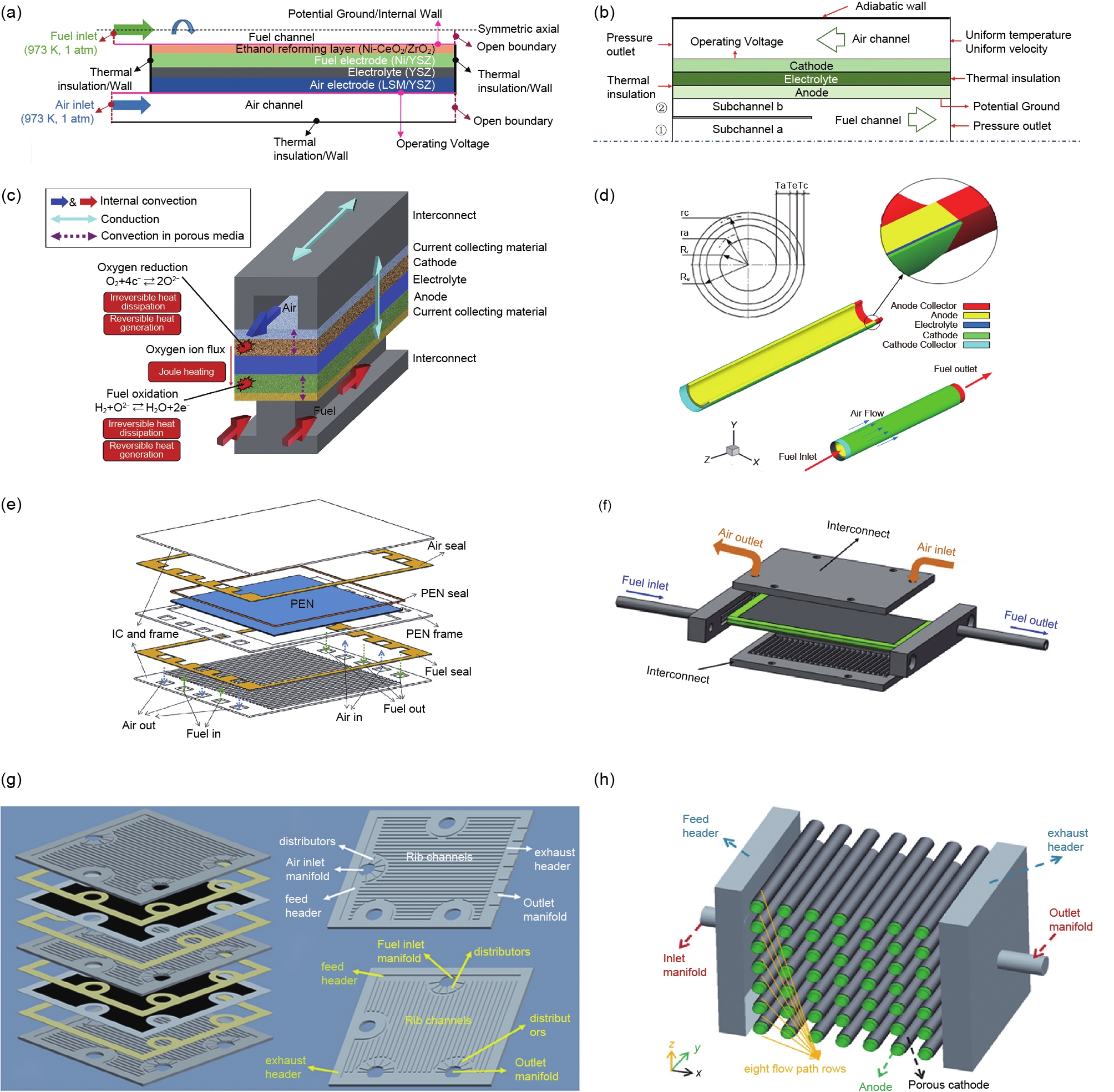

图1 SOFC几何模型 (a) 乙醇燃料SOFC二维模型[29]；(b) 管式SOFC二维模型[30]；(c) 交错式单通道模型[31]；(d) 管式SOFC单元三维模型[32]；(e) 平板式SOFC单元三维模型[33]；(f) 双面阴极SOFC三维模型[34]；(g) 平板式SOFC堆三维模型[35]；(h) 管式SOFC堆三维模型[36]

Fig. 1 Geometric model of SOFC: (a) 2D model of ethanol SOFC[29]; (b) 2D model of tubular SOFC[30]; (c) Staggered single channel model[31]; (d) 3D model of tubular SOFC cell[32]; (e) 3D model of flat panel SOFC cell[33]; (f) 3D model of SOFC with double-sided cathodes[34]; (g) 3D model of panel SOFC stack[35]; (h) 3D model of tubular SOFC stack[36]
