管壳式相变储能换热器翅片优化模拟分析

doi:10.19799/j.cnki.2095-4239.2024.0933

摘要/Abstract

摘要：

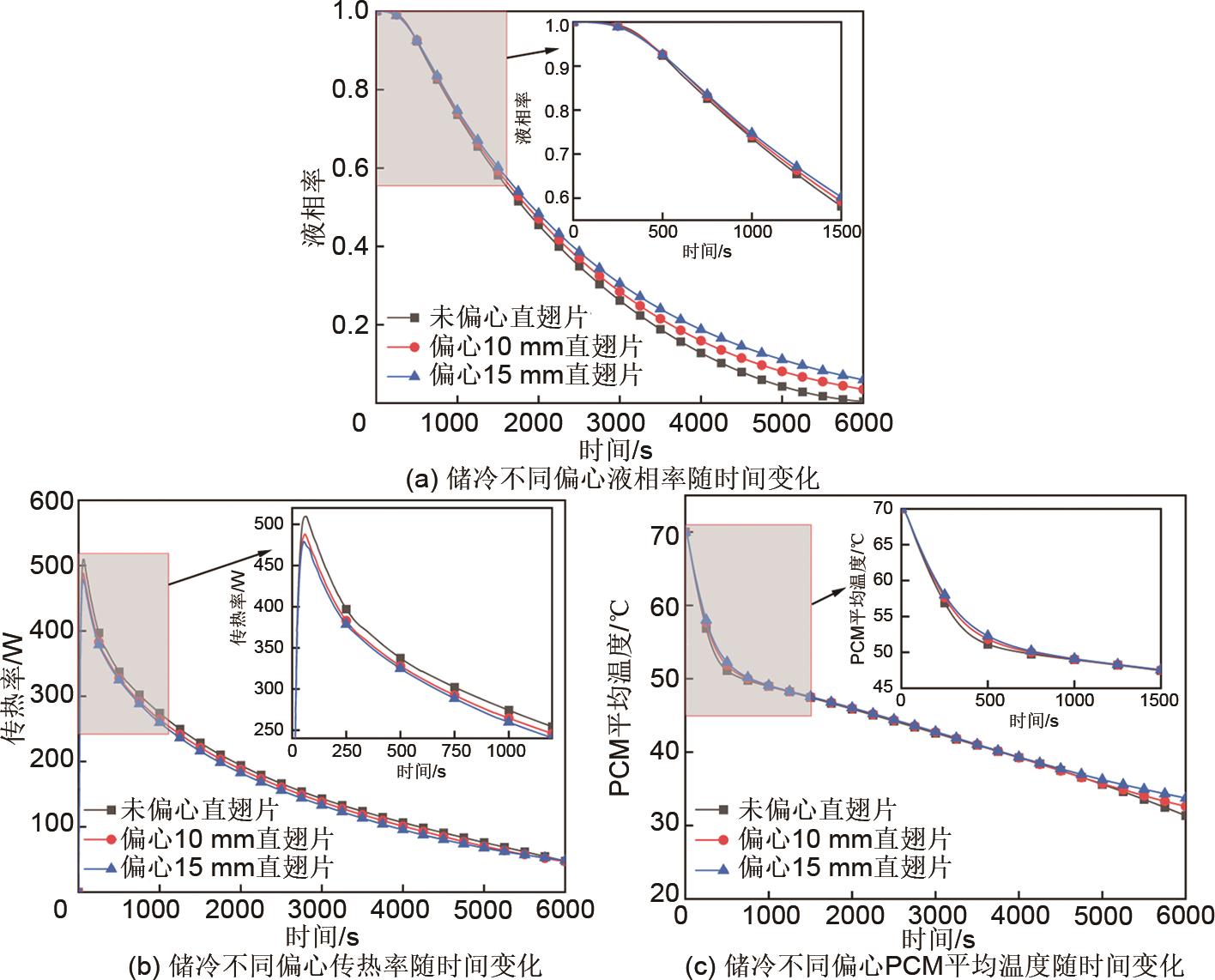

国际能源危机促使提高能源利用效率和解决能源供需失衡问题成为研究热点。潜热储存(LHS)系统以其高能量密度以及能量释放与储存的灵活性成为解决该问题的重要应用，相变换热器则是提高LHS系统性能的重要环节。本工作为提高相变换热器换热效率，在直翅片基础上，通过改变翅片基本结构，设计出三角形、波纹形、方形三种翅片结构，提出偏心10 mm、15 mm、20 mm三种不同偏心程度的翅片，并将最优翅片结构与最优偏心程度相结合，通过Fluent对上述模型进行了储冷储热模拟分析，采用平均单位体积相变材料储能所需的储能时间来定量分析储能速率。模拟结果表明方形结构翅片在储冷与储热中都具有良好的换热效果，相比于原始直翅片储热速率提升了12.2%，储冷速率提升了9.2%；直翅片适当向下偏心能够有效提高储热速率，本工作中向下偏心15 mm为最优偏心程度，储热速率相比于原始直翅片提升了25%；翅片向下偏心会降低储冷效果；将两种最优结构即方形翅片与向下偏心15 mm翅片相结合，储热速率相比于原始直翅片提升了28.2%。

关键词: 潜热储能, 相变材料, 换热器, 翅片优化, 强化传热

Abstract:

The global energy crisis has driven substantial research efforts to enhance energy utilization efficiency and address supply-demand imbalances. Latent heat storage (LHS) systems, known for their high energy density and flexibility in energy storage and release, serve as a crucial solution to this challenge. Phase change heat exchangers play a vital role in improving the performance of LHS systems. This study aims to enhance the heat transfer efficiency of phase change heat exchangers by modifying conventional straight fins. Three fin structures (triangular, wavy, and square) were designed, along with three levels of eccentricity (10 mm, 15 mm, and 20 mm). The optimal fin structure was then combined with the most effective eccentricity. Using Fluent, a simulation analysis of thermal energy storage and cold storage models was conducted. The energy storage rate was quantitatively assessed based on the average energy storage time required for phase change materials per unit volume. The results indicate that square fins substantially enhance both heat and cold storages. Compared to the original straight fins, the heat storage rate is improved by 12.2%, while the cold storage rate increases by 9.2%. Additionally, introducing a downward eccentricity in straight fins improved the heat storage effect, with a 15 mm eccentricity yielding the best results (a 25% increase in heat storage rate compared to the original straight fins). However, downward eccentricity negatively impacted cold storage performance. By integrating the two optimal configurations (square fins and fins and a downward eccentricity of 15 mm) the heat storage rate was further enhanced by 28.2% compared to the original straight fins.

Key words: latent heat energy storage, phase change materials, heat exchanger, fin optimization, enhanced heat transfer

中图分类号:

TK 02

杨斌, 于祥京, 郑洋, 杨世轩, 杨启容, 乔大梁, 孙杨, 李友平. 管壳式相变储能换热器翅片优化模拟分析[J]. 储能科学与技术, 2025, 14(4): 1394-1412.

Bin YANG, Xiangjing YU, Yang ZHENG, Shixuan YANG, Qirong YANG, Daliang QIAO, Yang SUN, Youping LI. Numerical analysis of fin optimization for a shell-and-tube phase change energy storage heat exchanger[J]. Energy Storage Science and Technology, 2025, 14(4): 1394-1412.

图/表 19

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

图18

参考文献 30

1	CHU H Q, YANG C H, ZHANG Z K, et al. Advances in resource utilization of waste in phase change materials[J]. Journal of Energy Storage, 2024, 99: 113342. DOI: 10.1016/j.est.2024. 113342.
2	WANG C, QI J S, YANG J N, et al. A facile strategy for enhancement of heat storage rate in LHS units[J]. Journal of Energy Storage, 2024, 90: 111821. DOI: 10.1016/j.est.2024. 111821.
3	HEDAU A, SINGAL S K. Heat transfer and fluid flow analysis of PCM-based thermal energy storage concept for double pass solar air heater[J]. International Communications in Heat and Mass Transfer, 2024, 157: 107813. DOI: 10.1016/j.icheatmasstransfer. 2024.107813.
4	YIN H, NOROUZIASAS A, HAMDY M. PCM as an energy flexibility asset: How design and operation can be optimized for heating in residential buildings?[J]. Energy and Buildings, 2024, 322: 114721. DOI: 10.1016/j.enbuild.2024.114721.
5	RAKSHAMUTHU S, JEGAN S, JOEL BENYAMEEN J, et al. Experimental analysis of small size solar dryer with phase change materials for food preservation[J]. Journal of Energy Storage, 2021, 33: 102095. DOI: 10.1016/j.est.2020.102095.
6	HUA W S, ZHANG L Y, ZHANG X L. Research on passive cooling of electronic chips based on PCM: A review[J]. Journal of Molecular Liquids, 2021, 340: 117183. DOI: 10.1016/j.molliq. 2021.117183.
7	VERMA A, RAKSHIT D. Performance analysis of PCM-fin combination for heat abatement of Li-ion battery pack in electric vehicles at high ambient temperature[J]. Thermal Science and Engineering Progress, 2022, 32: 101314. DOI: 10.1016/j.tsep. 2022.101314.
8	LIANG Y, YANG H B, WANG H L, et al. Enhancing energy efficiency of air conditioning system through optimization of PCM-based cold energy storage tank: A data center case study[J]. Energy, 2024, 286: 129641. DOI: 10.1016/j.energy.2023.129641.
9	ZHAO Y, HUANG J X, SONG J, et al. Thermodynamic investigation of a Carnot battery based multi-energy system with cascaded latent thermal (heat and cold) energy stores[J]. Energy, 2024, 296: 131148. DOI: 10.1016/j.energy.2024.131148.
10	GUO H, TIAN M C. Enhancing the charging performance of the latent heat storage unit by gradient straight fins[J]. International Communications in Heat and Mass Transfer, 2024, 154: 107391. DOI: 10.1016/j.icheatmasstransfer.2024.107391.
11	NEMATPOURKESHTELI A, IASIELLO M, LANGELLA G, et al. Using metal foam and nanoparticle additives with different fin shapes for PCM-based thermal storage in flat plate solar collectors[J]. Thermal Science and Engineering Progress, 2024, 52: 102690. DOI: 10.1016/j.tsep.2024.102690.
12	WAQAS H, HASAN M J, JI C H, et al. Melting performance of PCM with MoS₂ and Fe₃O₄ nanoparticles using leaf-based fins with different orientations in a shell and tube-based TES system[J]. International Communications in Heat and Mass Transfer, 2024, 158: 107944. DOI: 10.1016/j.icheatmasstransfer.2024. 107944.
13	LIN X W, ZHANG X L, LIU L, et al. Polymer/expanded graphite-based flexible phase change material with high thermal conductivity for battery thermal management[J]. Journal of Cleaner Production, 2022, 331: 130014. DOI: 10.1016/j.jclepro. 2021.130014.
14	陈久林. 管壳式相变蓄热器热性能分析及结构优化[J]. 热能动力工程, 2022, 37(7): 93-101. DOI: 10.16146/j.cnki.rndlgc.2022.07.013.
	CHEN J L. Thermal performance analysis and structural optimization of shell-and-tube phase change accumulator[J]. Journal of Engineering for Thermal Energy and Power, 2022, 37(7): 93-101. DOI: 10.16146/j.cnki.rndlgc.2022.07.013.
15	HUANG Y P, CAO D C, SUN D K, et al. Experimental and numerical studies on the heat transfer improvement of a latent heat storage unit using gradient tree-shaped fins[J]. International Journal of Heat and Mass Transfer, 2022, 182: 121920. DOI: 10. 1016/j.ijheatmasstransfer.2021.121920.
16	LIU J W, HU P F, LIU Z P, et al. Enhancement effect of T-shaped fins on phase change material melting in a horizontal shell-and-tube storage unit[J]. International Journal of Heat and Mass Transfer, 2023, 208: 124044. DOI: 10.1016/j.ijheatmasstransfer. 2023.124044.
17	TAVAKOLI A, FARZANEH-GORD M, EBRAHIMI-MOGHADAM A. Using internal sinusoidal fins and phase change material for performance enhancement of thermal energy storage systems: Heat transfer and entropy generation analyses[J]. Renewable Energy, 2023, 205: 222-237. DOI: 10.1016/j.renene.2023.01.074.
18	ALY K A, EL-LATHY A R, FOUAD M A. Enhancement of solidification rate of latent heat thermal energy storage using corrugated fins[J]. Journal of Energy Storage, 2019, 24: 100785. DOI: 10.1016/j.est.2019.100785.
19	PARSA N, KAMKARI B, ABOLGHASEMI H. Experimental study on the influence of shell geometry and tube eccentricity on phase change material melting in shell and tube heat exchangers[J]. International Journal of Heat and Mass Transfer, 2024, 227: 125571. DOI: 10.1016/j.ijheatmasstransfer.2024.125571.
20	AO C, YAN S Y, HU W Q, et al. Heat transfer analysis of a PCM in shell-and-tube thermal energy storage unit with different V-shaped fin structures[J]. Applied Thermal Engineering, 2022, 216: 119079. DOI: 10.1016/j.applthermaleng.2022.119079.
21	YAN P L, FAN W J, YANG Y, et al. Performance enhancement of phase change materials in triplex-tube latent heat energy storage system using novel fin configurations[J]. Applied Energy, 2022, 327: 120064. DOI: 10.1016/j.apenergy.2022.120064.
22	SONG L P, WU S C, YU C, et al. Thermal performance analysis and enhancement of the multi-tube latent heat storage (MTLHS) unit[J]. Journal of Energy Storage, 2022, 46: 103812. DOI: 10.1016/j.est.2021.103812.
23	YAZICI M Y, AVCI M, AYDIN O, et al. On the effect of eccentricity of a horizontal tube-in-shell storage unit on solidification of a PCM[J]. Applied Thermal Engineering, 2014, 64(1/2): 1-9. DOI: 10. 1016/j.applthermaleng.2013.12.005.
24	ZHANG L D, ZHOU G B. Optimal eccentricity and exergy analyses of a horizontal double-tube latent heat storage unit for melting processes[J]. Journal of Energy Storage, 2024, 88: 111647. DOI: 10.1016/j.est.2024.111647.
25	LIU Y K, TAO Y B. Experimental and numerical investigation of longitudinal and annular finned latent heat thermal energy storage unit[J]. Solar Energy, 2022, 243: 410-420. DOI: 10.1016/j.solener.2022.08.023.
26	HOSSEINI M J, RANJBAR A A, SEDIGHI K, et al. A combined experimental and computational study on the melting behavior of a medium temperature phase change storage material inside shell and tube heat exchanger[J]. International Communications in Heat and Mass Transfer, 2012, 39(9): 1416-1424. DOI: 10. 1016/j.icheatmasstransfer.2012.07.028.
27	谭振炜, 李沐, 李传常. 相变储冷凝胶在管翅式储冷器中传热特性的研究[J]. 储能科学与技术, 2023, 12(12): 3740-3748. DOI: 10. 19799/j.cnki.2095-4239.2023.0682.
	TAN Z W, LI M, LI C C. Research on the heat transfer characteristics of phase change cold storage gels in tube and fin cold storage equipment[J]. Energy Storage Science and Technology, 2023, 12(12): 3740-3748. DOI: 10.19799/j.cnki.2095-4239.2023. 0682.
28	WANG Z, WANG Y L, YANG L S, et al. Study on solidification characteristics of bionic finned phase change heat exchanger and multi-objective optimization design[J]. Journal of Energy Storage, 2024, 86: 111105. DOI: 10.1016/j.est.2024.111105.
29	HUANG Y P, LIU X D. Charging and discharging enhancement of a vertical latent heat storage unit by fractal tree-shaped fins[J]. Renewable Energy, 2021, 174: 199-217. DOI: 10.1016/j.renene. 2021.04.066.
30	ZHENG J Y, WANG J, CHEN T T, et al. Solidification performance of heat exchanger with tree-shaped fins[J]. Renewable Energy, 2020, 150: 1098-1107. DOI: 10.1016/j.renene.2019.10.091.

热物性	铜	水	RT50
比热容c_p /[J/(kg·K)]	381	4180	2000
热导率k/[W/(m·K)]	387.6	0.64	0.2
密度ρ/(kg/m³)	8978	989	780
潜热L/(J/kg)	—	—	168000
动态黏度μ/[kg/(m·s)]	—	5.77×10^-4	0.819e^-0.01546^T
固相线温度T_s/K	—	—	318
液相线温度T_l/K	—	—	324
热膨胀系数β/K^-1	—	—	0.0006
