基于带传动的垂直式重力储能系统能效分析模型与实验验证

doi:10.19799/j.cnki.2095-4239.2024.0835

储能科学与技术 ›› 2025, Vol. 14 ›› Issue (3): 1141-1149.doi: 10.19799/j.cnki.2095-4239.2024.0835

基于带传动的垂直式重力储能系统能效分析模型与实验验证

王青山¹(), 李妍¹, 张群¹, 汪德成¹, 吴高昀², 王祖凡², 赵海森²()

^1.国网江苏省电力有限公司经济技术研究院，江苏南京 210008
^2.华北电力大学电气与电子工程学院，北京 102206

收稿日期:2024-09-06 修回日期:2024-09-25 出版日期:2025-03-28 发布日期:2025-04-28
通讯作者: 赵海森 E-mail:wangqingshan16@163.com;zhaohisen@163.com
作者简介:王青山（1989—），男，博士，高级工程师，研究方向为新型储能本体及并网控制，E-mail：wangqingshan16@163.com；
基金资助:
国家电网有限公司总部管理科技项目(4000-202318089A-1-1-ZN)

Energy efficiency analysis model and experimental verification of vertical gravity energy storage system based on belt drive

Qingshan WANG¹(), Yan LI¹, Qun ZHANG¹, Decheng WANG¹, Gaoyun WU², Zufan WANG², Haisen ZHAO²()

^1.Economic Research Institution of State Grid Jiangsu Electric Power Co. , Ltd, Nanjing 210008, Jiangsu, China
^2.School of Electric and Electronic Engineering, North China Electric Power University, Beijing 102206, China

Received:2024-09-06 Revised:2024-09-25 Online:2025-03-28 Published:2025-04-28
Contact: Haisen ZHAO E-mail:wangqingshan16@163.com;zhaohisen@163.com

摘要/Abstract

摘要：

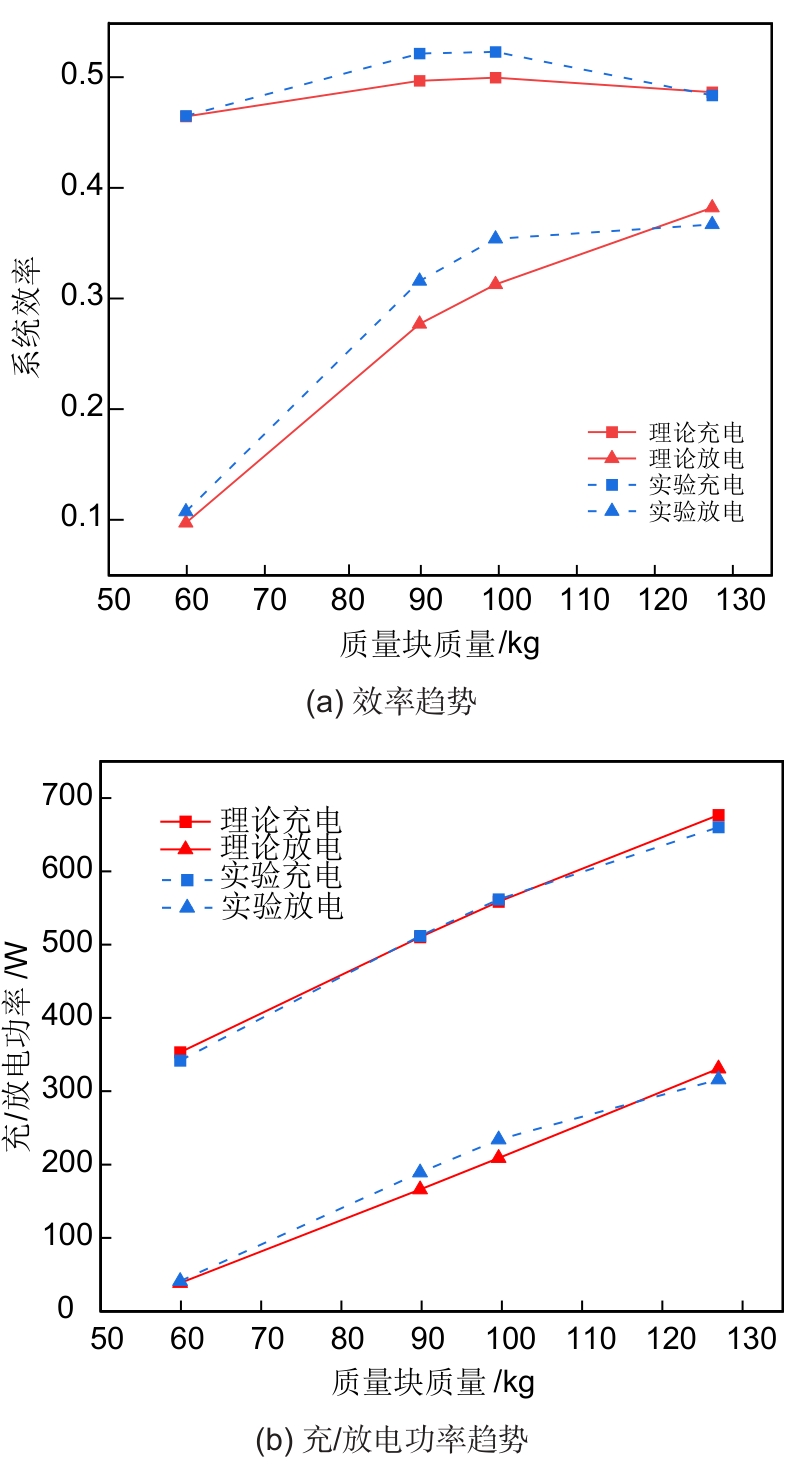

重力储能系统(GESS)因其长时、大容量、零自放电率、安全性高等优点受到广泛关注，而能效水平是影响GESS规模化推广应用的重要因素。首先，针对基于带传动的垂直式GESS，分析机械环节中动/定滑轮相对于轴承表面的滑动摩擦、曳引系统的球轴承摩擦、传动带相对于带轮的弹性滑动摩擦及电气环节中电机的铜耗、铁耗、风摩耗、杂散损耗，推导了系统各环节效率及损耗的理论计算方法。其次，针对所提理论计算方法设计了算例，算例结果表明，机械环节效率随质量块质量增加而略有减小；系统充电效率随质量块质量增加而先增加后减小；系统放电效率随质量块质量增加而增加；放电工况下，系统机械损耗占比与充电工况相比明显增加。最后，通过搭建1.1 kW样机对算例结果进行实验验证，实验结果表明，当质量块为127.35 kg时，充、放电状态下电机损耗实测占比分别为82.77%和72.42%，与算例得到的电机损耗理论占比80.56%和72.96%较为接近，且系统充、放电效率随质量块质量的理论变化曲线与实测曲线趋势相同，验证了所提能效分析方法的正确性和实用性。

关键词: 垂直式重力储能, 带传动, 能效分析, 损耗计算

Abstract:

The gravity energy storage system (GESS) has attracted extensive attention owing to its long-term operation, large capacity, zero self-discharge rate, and high safety. The energy efficiency level is a critical factor affecting the large-scale application of GESS. Firstly, for the vertical GESS based on belt drive, the sliding friction of the moving/fixed pulley relative to the bearing surface in the mechanical link, the ball bearing friction in the traction system, the elastic sliding friction of the drive belt relative to the pulley, and the copper loss, iron loss, wind friction, and stray loss of the motor in the electrical link are analyzed, and the theoretical calculation method for the efficiency and loss of each link of the system is derived. Secondly, a numerical example is provided for the proposed calculation method. The results show that the efficiency of the mechanical link decreases slightly as the mass block increases; the charging efficiency of the system initially increases and then decreases with increasing mass block; the discharging efficiency increases with the mass block; and under discharging conditions, the proportion of mechanical loss in the system is significantly higher than under charging conditions. Finally, a 1.1 kW prototype is built to verify the calculation results. The experimental results show that when the mass block is 127.35 kg, the measured motor loss proportions in charging and discharging states are 82.77% and 72.42%, respectively, which are close to the theoretical values of 80.56% and 72.96% obtained from the numerical example. The theoretical variation curve of the system's charging and discharging efficiencies with respect to the mass block exhibits the same trend as the measured curve, which verifies the correctness and practicability of the proposed energy efficiency analysis method.

Key words: vertical gravity energy storage, belt drive, efficiency analysis, loss calculation

中图分类号:

TK 02

王青山, 李妍, 张群, 汪德成, 吴高昀, 王祖凡, 赵海森. 基于带传动的垂直式重力储能系统能效分析模型与实验验证[J]. 储能科学与技术, 2025, 14(3): 1141-1149.

Qingshan WANG, Yan LI, Qun ZHANG, Decheng WANG, Gaoyun WU, Zufan WANG, Haisen ZHAO. Energy efficiency analysis model and experimental verification of vertical gravity energy storage system based on belt drive[J]. Energy Storage Science and Technology, 2025, 14(3): 1141-1149.

图/表 10

图1

表1

表2

表3

图2

图3

表4

图4

表5

图5

参考文献 20

1	O'NEILL S. Weights-based gravity energy storage looks to scale up[J]. Engineering, 2022, 14: 3-6. DOI: 10.1016/j.eng. 2022. 05.007.
2	王粟, 肖立业, 唐文冰, 等. 新型重力储能研究综述[J]. 储能科学与技术, 2022, 11(5): 1575-1582. DOI: 10.19799/j.cnki.2095-4239. 2021.0590.
	WANG S, XIAO L Y, TANG W B, et al. Review of new gravity energy storage[J]. Energy Storage Science and Technology, 2022, 11(5): 1575-1582. DOI: 10.19799/j.cnki.2095-4239. 2021. 0590.
3	张京业, 林玉鑫, 邱清泉, 等. 基于斜坡和山体的重力储能技术研究进展[J]. 储能科学与技术, 2024, 13(3): 924-933. DOI: 10.19799/j.cnki.2095-4239.2023.0667.
	ZHANG J Y, LIN Y X, QIU Q Q, et al. Gravity energy storage technology based on slopes and mountains[J]. Energy Storage Science and Technology, 2024, 13(03): 924-933. DOI: 10.19799/j.cnki.2095-4239.2023.0667.
4	邱清泉, 罗晓悦, 林玉鑫, 等. 垂直式重力储能系统的研究进展和关键技术[J]. 储能科学与技术, 2024, 13(3): 934-945. DOI: 10.19799/j.cnki.2095-4239.2023.0789.
	QIU Q Q, LUO X Y, LIN Y X, et al. Research progress and key technologies in vertical gravity energy storage systems[J]. Energy Storage Science and Technology, 2024, 13(03): 934-945. DOI: 10.19799/j.cnki.2095-4239.2023.0789.
5	严圣军, 董雪, 李军, 等. 一种矩阵式重力储能系统控制方法: CN202210629182.3[P]. 2022-09-06.
6	LI F F, XIE J Z, FAN Y F, et al. Potential of different forms of gravity energy storage[J]. Sustainable Energy Technologies and Assessments, 2024, 64: 103728. DOI: 10.1016/j.seta. 2024.103728.
7	MORSTYN T, CHILCOTT M, MCCULLOCH M D. Gravity energy storage with suspended weights for abandoned mine shafts[J]. Applied Energy, 2019, 239: 201-206. DOI: 10.1016/j.apenergy. 2019.01.226.
8	郑开云, 梁宏, 蒋励. 一种重力储能系统及其使用方法: CN202010634490.6[P]. 2024-04-26.
9	李明, 亚夏尔·吐尔洪, 查鲲鹏, 等. 用于快速响应负荷需求的两段式斜坡重力储能系统放电功率调节方法[J]. 电机与控制应用, 2024, 51(4): 12-19. DOI: 10.12177/emca.2024.007.
	LI M, YAXIAER T, ZHA K P, et al. Discharging power adjustment of two-stage ramp-type gravity energy storage system for fast response to load demand[J]. Electric Machines & Control Application, 2024, 51(4): 12-19. DOI: 10.12177/emca.2024.007.
10	李震, 王斌, 牟雪鹏, 等. 基于瞬时功率镜像补偿的斜坡式重力储能系统功率平滑控制策略[J]. 电机与控制应用, 2024, 51(5): 12-20. DOI: 10.12177/emca.2024.026.
	LI Z, WANG B, MOU X P, et al. Power smoothing control strategy for slope gravity energy storage system based on instantaneous power mirror compensation[J]. Electric Machines & Control Application, 2024, 51(5): 12-20. DOI: 10.12177/emca.2024.026
11	李震, 陈巨龙, 朱永清, 等. 基于效益分析的重力储能系统能流路径选择方法[J/OL]. 南方电网技术, 1-9[2024-07-01]. http://kns.cnki.net/kcms/detail/44.1643.TK.20240623.1335.012.html.
	LI Z, CHEN J L, ZHU Y Q, et al. Energy flow path selection method of gravity energy storage system based on benefit analysis[J/OL]. Southern Power System Technology, 1-9[2024-07-01]. http://kns.cnki.net/kcms/detail/44.1643.TK.20240623.1335.012.html.
12	陈巨龙, 李震, 朱永清, 等. 基于深度神经网络的斜坡式重力储能系统质量块抓取装置控制方法[J]. 电机与控制应用, 2023, 50(11): 37-45. DOI: 10.12177/emca.2023.139.
	CHEN J L, LI Z, ZHU Y Q, et al. Control method of mass block grasping device of slope gravity energy storage system based on deep neural network[J]. Electric Machines & Control Application, 2023, 50(11): 37-45. DOI: 10.12177/emca.2023.139.
13	秦婷婷, 周学志, 郭丁彰, 等. 铁轨重力储能系统效率影响因素研究[J]. 储能科学与技术, 2023, 12(3): 835-845. DOI: 10.19799/j.cnki.2095-4239.2022.0634.
	QIN T T, ZHOU X Z, GUO D Z, et al. Study on factors influencing rail gravity energy storage system efficiency[J]. Energy Storage Science and Technology, 2023, 12(3): 835-845. DOI: 10.19799/j.cnki.2095-4239.2022.0634.
14	高天, 王祖凡, 方舒扬, 等. 含齿轮变速与链式传动机构的斜坡重力储能系统能效分析模型与实验验证[J]. 储能科学与技术, 2025, 14(2): 688-698. DOI: 10.19799/j.cnki.2095-4239.2024.0652.
	GAO T, WANG Z F, FANG S Y, et al. Energy efficiency analysis model and experimental verification of gravity energy storage system with gear box and chain transmission mechanisms[J]. Energy Storage Science and Technology, 2025, 14(2): 688-698. DOI: 10.19799/j.cnki.2095-4239.2024.0652.
15	刘大猛, 陈巨龙, 王斌, 等. 一种斜坡式重力储能系统能效分析方法及系统: CN202310982616.2 [P]. 2023-11-28.
	LIU D M, CHEN J L, WANG B, et al. Energy efficiency analysis method and system of slope gravity energy storage system: CN202310982616.2 [P]. 2023-11-28.
16	邓四二, 贾群义, 薛进学. 滚动轴承设计原理[M]. 北京: 中国标准出版社, 2008.
	DENG S E, JIA Q Y, XIE J X. Principles of rolling bearing design[M]. Beijing: Standards Press of China, 2008.
17	王涛, 贺炜, 郑晨升. 带传动弹性滑动效率分析[J]. 机械科学与技术, 2003, 22(S2): 105-106, 108. DOI: 10.3321/j.issn:1003-8728.2003.z1.036.
	WANG T, HE W, ZHENG C S. Analysis of efficiency of belt drivers by elastic slide [J]. Mechanical Science and Technology for Aerospace Engineering, 2003, 22(S2): 105-106, 108. DOI: 10.3321/j.issn:1003-8728.2003.z1.036.
18	韩彦龙, 田辉, 刘迎娟, 等. 摩擦带弹性滑动率与摩擦损失效率计算及实验[J]. 机械设计与制造, 2017(3): 64-67. DOI: 10.19356/j.cnki.1001-3997.2017.03.017.
	HAN Y L, TIAN H, LIU Y J, et al. Calculation of creep ratio and loss efficiency of belt drive with experiment[J]. Machinery Design & Manufacture, 2017(3): 64-67. DOI: 10.19356/j.cnki.1001-3997.2017.03.017.
19	牟树贞, 赵海森, 罗应立, 等. 笼型异步电机在发电和电动工况下的损耗和无功特性研究[J]. 电机与控制应用, 2012, 39(3): 1-6, 28. DOI: 10.3969/j.issn.1673-6540.2012.03.001.
	MOU S Z, ZHAO H S, LUO Y L, et al. Study on loss and reactive power characteristics of cage asynchronous motor with generator and motor modes[J]. Electric Machines & Control Application, 2012, 39(3): 1-6, 28. DOI: 10.3969/j.issn.1673-6540.2012.03.001.
20	国家市场监督管理总局, 国家标准化管理委员会. 三相异步电动机试验方法: GB/T 1032—2023[S]. 北京: 中国标准出版社, 2023.

m/kg	充电				放电
m/kg	η_m/%	p_wh/W	p_dr/W	p_tr/W	η_m	p_wh	p_dr	p_tr
59.87	83.8	43.8	20.9	3.61	83.9	44.0	17.5	2.04
89.83	83.4	63.4	30.2	7.86	83.6	67.0	26.6	4.64
99.58	83.3	69.3	33.1	9.54	83.5	74.7	29.7	5.73
127.35	83.0	83.9	40.0	14.8	83.3	96.8	38.5	9.48

m/kg	η_e/%	p_Cu1/W	p_Cu2/W	p_Fe/W	p_fw/W	p_ad/W
59.87	55.43	155.54	25.15	126.74	22.96	8.43
89.83	59.54	200.34	57.81	124.64	20.85	12.24
99.58	59.97	218.93	72.06	123.09	20.12	13.41
127.35	58.63	298.24	134.4	109.03	17.29	16.3

m/kg	η_e/%	p_Cu1/W	p_Cu2/W	p_Fe/W	p_fw/W	p_ad/W
59.87	11.60	105.94	12.11	133.66	30.56	9.92
89.83	33.12	111.73	23.81	153.23	31.62	15.05
99.58	37.44	114.47	28.48	157.48	31.98	16.74
127.35	45.87	124.34	43.80	167.66	32.98	21.64

m/kg	充电				放电
m/kg	I₁/A	P_e/W	v/(m/s)	n/(r/min)	I₁	P_e	v	n
59.9	1.14	735	0.582	706	1.03	41	0.654	767
89.8	1.30	982	0.581	683	1.12	189	0.686	787
99.6	1.36	1074	0.575	670	1.16	234	0.676	784
127	1.66	1368	0.53	623	1.24	316	0.69	826

工况	p_Cu1/W	p_Cu2/W	p_Fe/W	p_fw/W	(p_ad+p_m)/W
充电	329.89	162.65	76.6	15.67	121.8
放电	185.13	62.34	114.2	36.5	147.07
