考虑SOC和SOH融合的光储氢孤岛直流微电网协调控制策略研究

doi:10.19799/j.cnki.2095-4239.2025.0664

摘要/Abstract

摘要：

本文以光储氢孤岛直流微电网为研究对象，针对含电/氢混合储能系统的微电网能量流动关系复杂，安全稳定运行要求高的特点，深入分析系统工作模式的基础上，提出了考虑蓄电池荷电态(state of charge，SOC)和储氢罐荷氢态(state of hydrogen，SOH)融合的分层协调控制策略。该协调控制策略能够协调光伏发电单元工作在最大功率跟踪和负载功率跟踪双模式；电解制氢单元自动切除和投入运行，且投入运行时能够在最小功率工作点、最大效率工作点和最大功率工作点三种模式之间自适应切换；燃料电池单元自动介入运行补充微电网功率缺额；负载按照优先级自动投切；蓄电池荷电态和储氢罐荷氢态处于合理工作范围，实现了微电网优化可靠运行。不同工况下的仿真结果验证了所提协调控制策略的正确性和有效性。

关键词: 直流微电网, 氢储能, SOH, SOC, 协调控制

Abstract:

In this paper, the island DC microgrid with photovoltaic, battery and hydrogen storage is taken as the research object. Aiming at the characteristics of complex energy flow relationship and high requirements for safe and stable operation of microgrid with electricity/hydrogen hybrid energy storage system, a hierarchical coordinated control strategy is proposed considering the fusion of the state of charge (SOC) and the state of the hydrogen (SOH) by making deep analysis of the working mode of the system. The proposed strategy is able to coordinate the photovoltaic unit to operate in the dual-mode of maximum power point tracking (MPPT) or load power tracking (LPT), the electrolytic hydrogen unit to be switched on and off automatically, and adaptive switching among the three modes of minimum power point, maximum efficiency point and maximum power point, the fuel cell unit to put into operation automatically to supplement the power shortage of the microgrid, the load to be switched automatically according to the priority, and the SOC and SOH to to stay in a reasonable working range, so as to achieve optimal and reliable operation of microgrid. The simulation results under different working conditions verify the correctness and effectiveness of the proposed coordinated control strategy.

Key words: DC microgrid, hydrogen storage, SOH, SOC, coordinated control

中图分类号:

TM727

温素芳, 赵磊, 刘广忱, 田桂珍, 张建伟. 考虑SOC和SOH融合的光储氢孤岛直流微电网协调控制策略研究[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0664.

Sufang WEN, Lei ZHAO, Guangchen LIU, Guizhen TIAN, Jianwei ZHANG. Research on Coordinated Control Strategy of Islanded DC Microgrids with Photovoltaic, Battery and Hydrogen Storage Considering SOC and SOH Fusion[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0664.

图/表 22

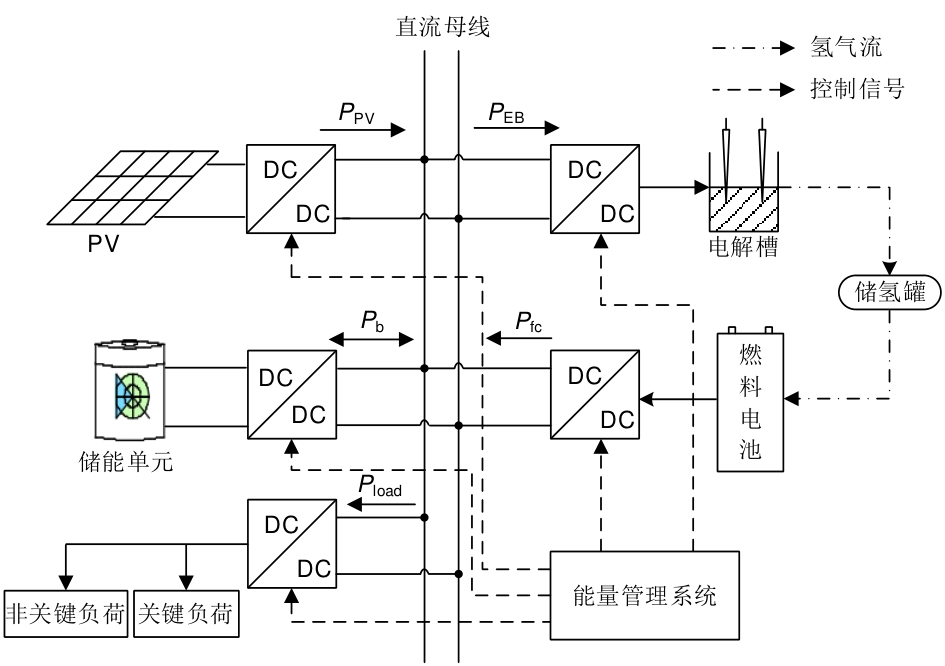

图1

图2

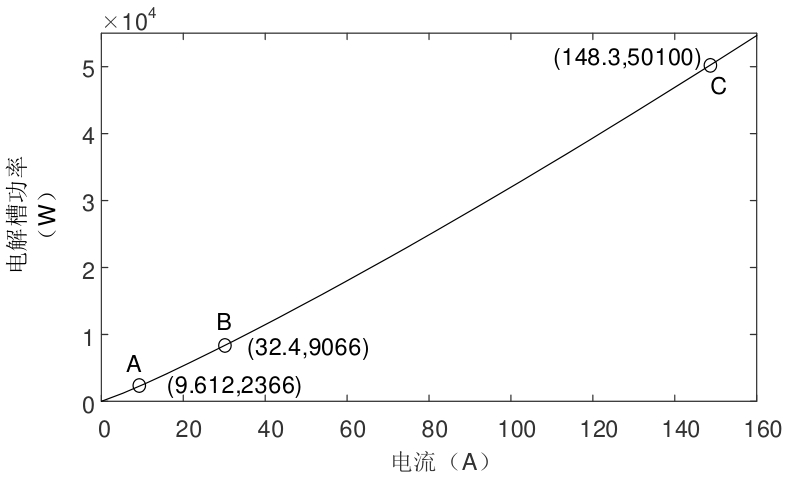

图3

表1

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

图18

表2

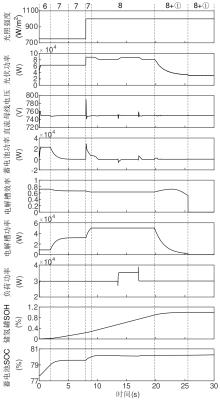

图19

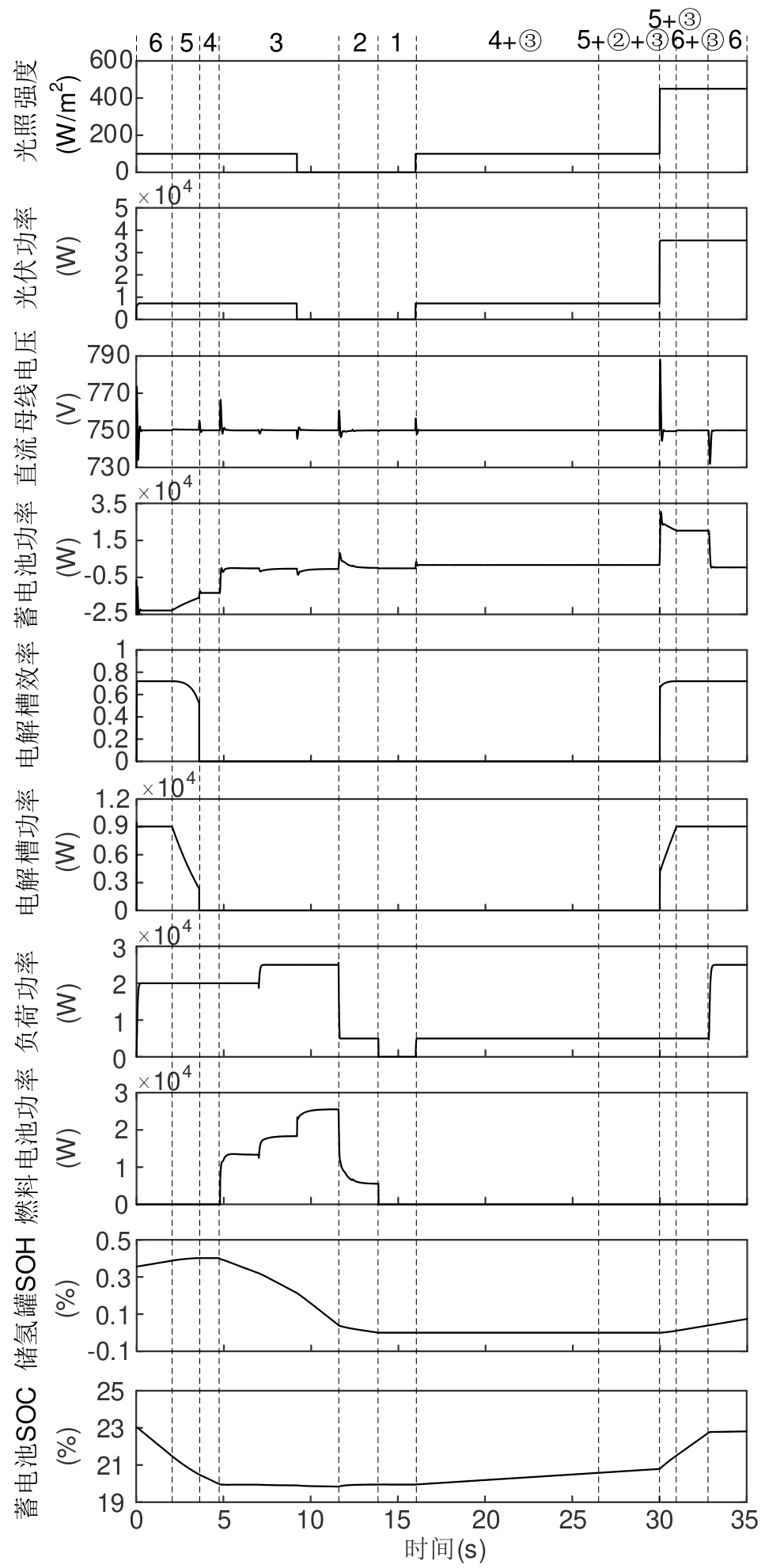

图20

参考文献 20

[1]	吴瑊, 何冰琛, 张勋奎, 等. 荷随源动的电网友好型风光氢储大基地容量优化配置研究[J/OL]. 中国电机工程学报, 1-12. http://kns.cnki. net/kcms/detail/11.2107.tm.20240613.1024.002.html.
	WU Jian, HE Bingchen, ZHANG Xunkui, et al. Research on capacity optimization allocation of a grid-friendly large energy base containing wind power, photovoltaic and hydrogen energy storage whose load changes with the power supply[J/OL]. Proceedings of the CSEE, 1-12. http://kns.cnki.net/kcms/detail/11.2107.tm.20240613.1024.002.html.
[2]	舒印彪, 张正陵, 汤涌, 等. 新型电力系统构建的若干基本问题[J]. 中国电机工程学报, 2024, 44(21): 8327-8341. DOI:10.13334/j.0258-8013.pcsee.242396.
	SHU Yinbiao, ZHANG Zhengling, TANG Yong, et al. Fundamental issues of new-type power system construction[J]. Proceedings of the CSEE, 2024, 44(21): 8327-8341. DOI:10.13334/j.0258-8013.pcsee.242396.
[3]	丁琦欣, 赵波, 陈哲, 等. 基于多时间尺度特征提取的微网电氢混合储能协同优化配置[J/OL]. 中国电机工程学报, 1-13. http://kns.cnki. net/kcms/detail/11.2107.TM.20241114.2052.025.html.
	DING Qixin, ZHAO Bo, CHEN Zhe, et al. Collaborative configuration optimization of microgrid electric-hydrogen hybrid energy storage based on multi-time scale feature extraction [J/OL]. Proceedings of the CSEE, 1-13. http://kns.cnki.net/kcms/detail/11.2107.TM.20241114. 2052.025.html.
[4]	房珂, 周明, 武昭原, 等. 面向低碳电力系统的长期储能优化规划与成本效益分析[J]. 中国电机工程学报, 2023, 43(21): 8282-8295. DOI:10. 13334/j.0258-8013.pcsee.221636.
	FANG Ke, ZHAO Ming, WU Zhaoyuan, et al. Optimal planning and cost-benefit analysis of long-duration energy storage for low-carbon electric power system[J]. Proceedings of the CSEE, 2023, 43(21): 8282-8295. DOI:10.13334/j.0258-8013.pcsee.221636.
[5]	林旗力, 陈珍, 王晓虎, 等. 基于"电-氢-电"过程的规模化氢储能经济性分析[J]. 储能科学与技术, 2024, 13(06): 2068-2077. DOI:10.19799/j. cnki.2095-4239.2023.0955.
	LIN Qili, CHEN Zhen, WANG Xiaohu, et al. Economic analysis of large-scale hydrogen energy storage based on the "electric-hydrogen-electric" process[J]. Energy Storage Science and Technology, 2024, 13(06): 2068-2077. DOI:10.19799/j.cnki.2095-4239.2023.0955.
[6]	高宇歌, 任洲洋, 程欢, 等. 考虑电解槽动态效率特性的电-氢混合储能优化运行方法[J]. 电网技术, 2025, 49(02): 533-541. DOI:10.13335/j. 1000-3673.pst.2023.1986.
	GAO Yuge, REN Zhouyang, CHENG Huan, et al. Optimized operation of hybrid electric-hydrogen energy storage considering dynamic efficiency characteristics of electrolysers[J]. Power System Technology, 2025, 49(02): 533-541. DOI:10.13335/j.1000-3673.pst.2023.1986.
[7]	王彦文, 魏博, 张丽芳, 等. 基于遗传算法的风光储耦合并网制氢系统多目标优化研究[J/OL]. 储能科学与技术, 1-10. https://doi.org/10.19799/j. cnki.2095-4239.2025.0404.
	WANG Yanwen, WEI Bo, ZHANG Lifang, et al. Multi-objective optimization of the grid-connected wind–solar–storage coupled hydrogen production system based on genetic algorithm[J/OL]. Energy Storage Science and Technology, 1-10. https://doi.org/10.19799/j.cnki.2095-4239.2025.0404.
[8]	李明, 尹文良, 李勇康, 等. 多源耦合不确定性下含电氢储能的微电网低碳容量优化配置研究[J]. 储能科学与技术, 2025, 14(05): 1969-1981. DOI:10.19799/j.cnki.2095-4239.2024.1091.
	LI Ming, YIN Wenliang, Li Yongkang, et al. Low-carbon capacity optimal configuration of microgrid with hydrogen energy storage under multi-source coupling uncertainties[J]. Energy Storage Science and Technology, 2025, 14(05): 1969-1981. DOI:10.19799/j.cnki.2095-4239.2024. 1091.
[9]	兰征, 刁伟业, 涂春鸣, 等. 含储能和氢燃料电池的孤岛微电网混合运行模式与功率协调策略研究[J]. 电网技术, 2022, 46(01): 156-164. DOI: 10.13335/j.1000-3673.pst.2021.1095.
	LAN Zheng, DIAO Weiye, TU Chunming, et al. Research on hybrid operation mode and power coordination strategy of island microgrid with energy storage and hydrogen fuel cell[J]. Power System Technology, 2022, 46(01): 156-164. DOI:10.13335/j.1000-3673.pst.2021.1095.
[10]	陈晓雯, 李奇, 蒲雨辰, 等. 基于等效氢耗特征的孤岛电-氢混合储能多微电网功率自适应分配控制方法研究[J]. 电网技术, 2023, 47(03): 896-908. DOI:10.13335/j.1000-3673.pst.2021.2396.
	CHEN Xiaowen, LI Qi, PU Yuchen, et al. Power adaptive distribution control of isolated multi-microgrids containing electric-hydrogen hybrid energy storage based on equivalent hydrogen consumption characteristics[J]. Power System Technology, 2023, 47(03): 896-908. DOI:10. 13335/j.1000-3673.pst.2021.2396.
[11]	LI Jianlin, HU Jiayang, XIN Dixi. Cooperative control of hydrogen-energy storage microgrid system based on disturbance-rejection model predictive control[J]. Journal of Energy Storage, 2025, 118. DOI:10.1016/j.est.2025.116242.
[12]	LI Zhanfei, TU Zhenghong, YI Zhongkai, et al. Coordinated control of proton exchange membrane electrolyzers and alkaline electrolyzers for a wind-to-hydrogen islanded microgrid[J]. Energies, 2024, 17, (10): 2317-2317. DOI:10.3390/en17102317.
[13]	张学, 裴玮, 梅春晓, 等. 含电/氢复合储能系统的孤岛直流微电网模糊功率分配策略与协调控制方法[J]. 高电压技术, 2022, 48(03): 958-968. DOI:10.13336/j.1003-6520.hve.20210283.
	ZHANG Xue, PEI Wei, MEI Chunxiao, et al. Fuzzy power allocation strategy and coordinated control method of islanding DC microgrid with electricity/hydrogen hybrid energy storage systems[J]. High Voltage Engineering, 2022, 48(03): 958-968. DOI:10.13336/j.1003-6520. hve.20210283.
[14]	李赢正. 光储氢直流微电网协调控制策略研究[D]. 华北电力大学, 2022. DOI:10.27139/d.cnki.ghbdu.2022.000039.
	LI Yingzheng. Research on coordinated control strategy of the PV/storage/hydrogen microgrid[D]. North China Electric Power University, 2022. DOI:10.27139/d.cnki.ghbdu.2022.000039.
[15]	武延林. 基于氢储能的微电网优化协调控制[D]. 华北电力大学(北京), 2021. DOI:10.27140/d.cnki.ghbbu.2021.000630.
	WU Yanlin. Optimal coordinated control of microgrid based on hydrogen storage[D]. North China Electric Power University, 2021. DOI:10. 27140/d.cnki.ghbbu.2021.000630.
[16]	韩鹏飞, 徐潇源, 王晗, 等. 基于功率-温度自适应控制的多堆质子交换膜电解制氢系统效率优化[J]. 电工技术学报, 2024, 39(07): 2236-2248. DOI:10.19595/j.cnki.1000-6753.tces.230113.
	HAN Pengfei, XU Xiaoyuan, WANG Han, et al. Operational efficiency enhancement of multi-stack proton exchange membrane electrolyzer systems with power-temperature adaptive control [J]. Transactions of China Electrotechnical Society, 2024, 39(07): 2236-2248. DOI:10. 19595/j.cnki.1000-6753.tces.230113.
[17]	李乃永, 梁军, 赵义术. 并网光伏电站的动态建模与稳定性研究[J]. 中国电机工程学报, 2011, 31(10): 12-18. DOI:10.13334/j.0258-8013. pcsee.2011.10.005.
	LI Naiyong, LIANG Jun, ZHAO Yishu. Research on dynamic modeling and stability of grid-connected photovoltaic power station[J]. Proceedings of the CSEE, 2011, 31(10): 12-18. DOI:10.13334/j.0258-8013.pcsee.2011.10.005.
[18]	原敬磊, 赵李宏, 李明, 等. 光伏发电系统功率输出控制模式研究[J]. 智慧电力, 2017, 45(11): 91-95. DOI:10.3969/j.issn.1673-7598.2017. 11.017.
	YUAN Jinglei, ZHAO Lihong, LI Ming, et al. Study on output power control mode of photovoltaic power generation system[J]. Smart Power, 2017, 45(11): 91-95. DOI:10.3969/j.issn.1673-7598.2017. 11.017.
[19]	田龙刚. 直流微电网电压等级的选择及其稳定控制策略研究[J]. 电力系统保护与控制, 2017, 45(13): 21-26. DOI:10.7667/PSPCI61002.
	TIAN Longgang. Research on the voltage level selection and its stability control strategy of DC microgrid[J]. Power System Protection and Control, 2017, 45(13): 21-26. DOI:10.7667/PSPCI61002.
[20]	赵志宇. 含有电力弹簧的微电网运行特性和能量优化[D]. 上海交通大学, 2019. DOI:10.27307/d.cnki.gsjtu.2019.004724.
	ZHAO Zhjiyu. Operational characteristics and energy optimization of microgrid with electric spring[D]. Shanghai Jiao Tong University, 2019. DOI:10.27307/d.cnki.gsjtu.2019.004724.

模式	系统运行情况			光伏	蓄电池	燃料电池	电解槽	负载
模式	SOC	SOH	Ppv	光伏	蓄电池	燃料电池	电解槽	负载
1	SOC≤SOC_min	SOH≤SOH_min	P_pv≥P_load	MPPT	充电	不工作	不工作	分级供电
1	SOC≤SOC_min	SOH≤SOH_min	P_pv<P_load	MPPT	充电	不工作	不工作	全部停电
2	SOC≤SOC_min	SOH>SOH_min SOH≤SOH_min+ml	P_pv≥P_load	MPPT	充电	不工作	不工作	全部供电
2	SOC≤SOC_min	SOH>SOH_min SOH≤SOH_min+ml	P_pv<P_load	MPPT	不充不放	工作	不工作	部分供电
3	SOC≤SOC_min	SOH>SOH_min+ml	P_pv≥P_load	MPPT	充电	不工作	不工作	全部供电
3	SOC≤SOC_min	SOH>SOH_min+ml	P_pv<P_load	MPPT	不充不放	工作	不工作	全部供电
4	SOC>SOC_min SOC≤SOC_min+cx1	——	P_pv≥P_load	MPPT	充电	不工作	不工作	全部供电
4	SOC>SOC_min SOC≤SOC_min+cx1	——	P_pv<P_load	MPPT	放电	不工作	不工作	全部供电
5	SOC≥SOC_min+cx1 SOC<SOC_min+cx2	SOH≤SOH_max-mh	P_pv≥P_load+P_EB	MPPT	充电	不工作	P_EBmin→ŋ_max	全部供电
5	SOC≥SOC_min+cx1 SOC<SOC_min+cx2	SOH≤SOH_max-mh	P_pv<P_load+P_EB	MPPT	放电	不工作	ŋ_max→P_EBmin	全部供电
6	SOC≥SOC_min+cx2 SOC<SOC_max-cd	SOH≤SOH_max-mh	P_pv≥P_load+P_EBŋ_max	MPPT	充电	不工作	ŋ_max	全部供电
6	SOC≥SOC_min+cx2 SOC<SOC_max-cd	SOH≤SOH_max-mh	P_pv<P_load+P_EBŋ_max	MPPT	放电	不工作	ŋ_max	全部供电
7	SOC≥SOC_max-cd SOC<SOC_max	SOH≤SOH_max-mh	P_pv≥P_load+P_EB	MPPT	充电	不工作	ŋ_max→P_EBmax	全部供电
7	SOC≥SOC_max-cd SOC<SOC_max	SOH≤SOH_max-mh	P_pv<P_load+P_EB	MPPT	放电	不工作	P_EBmax→ŋ_max	全部供电
8	SOC≥SOC_max	SOH≤SOH_max-mh	P_pv≥P_load+P_EBmax	LPT	不充不放	不工作	P_EBmax	全部供电
8	SOC≥SOC_max	SOH≤SOH_max-mh	P_pv<P_load+P_EBmax	LPT	放电	不工作	P_EBmax	全部供电

名称	参数	数值
光伏发电功率	P_pv	88kW
电解槽最大功率	P_EBmax	50.1kW
燃料电池功率	P_fc	36kW
直流母线电压	U_dc	750V
荷电态上限	SOC_max	80%
荷电态下限	SOC_min	20%
荷氢态上限	SOH_max	100%
荷氢态下限	SOH_min	0%
电解槽ŋ_max/P_EBmax切换阈值	cd	1%
电解槽ŋ_max/P_EBmin切换阈值	cx2	1.5%
电解槽投入/切除阈值	cx1	0.5%
电解槽降功率模式阈值	mh	10%
系统切负荷阈值	ml	4%
