基于改进Shapley值与主从博弈的共享储能-充换电站协同运行策略

doi:10.19799/j.cnki.2095-4239.2025.0816

摘要/Abstract

摘要：

随着新能源发电渗透率的不断提升，电网面临源荷时空错配加剧、灵活性资源不足等挑战，共享储能作为平抑波动、提升消纳能力的关键手段，已成为重要解决方案。然而，传统共享储能模式依赖运营商独立投资建设，储能运营商面临初始投资成本高、利用率低等问题。随着电动汽车行业的发展与普及，配备储能资源的电动汽车充换电站的规模也持续扩大。为此，提出一种基于混合博弈架构的共享储能协同优化策略，共享储能运营商通过自建储能以及整合充换电站中的闲置储能资源，构建“自建+合作”双模式储能系统。上层模型中，共享储能运营商与充换电站通过合作博弈形成资源联盟，提出改进Shapley值分配机制，综合考虑计及运行商决策的容量贡献度、负荷-储能匹配度及成本分担因子，并引入熵权法动态调整权重系数，实现联盟收益的公平分配；下层，构建主从博弈模型，以储能运营商为领导者制定分时服务定价策略，引导光伏社区优化用电行为。仿真结果表明：相较于传统储能运营商自建储能模式，所提运营商“自建+合作” 双模式储能系统的投资成本降低27.53%，用户用储成本降低17.62%，且改进Shapley值分配后基尼系数由0.32降低至0.21，显著提升合作公平性。

关键词: 共享储能, 充换电站, 合作博弈, 主从博弈, 改进Shapley值

Abstract:

As the penetration rate of renewable energy generation continues to grow, power grids are confronted with increasingly complex challenges, including significant spatio-temporal mismatches between supply and demand and a critical shortage of flexible regulation resources. As a critical solution to mitigate fluctuations and enhance renewable energy utilization, shared energy storage has emerged as a key strategy. However, traditional shared energy storage models depend on independent investment and construction by operators, leading to high initial capital costs and low resource utilization rates. Driven by the rapid development and widespread adoption of electric vehicles (EVs), the scale of EV charging and battery swapping stations equipped with energy storage resources has expanded continuously. To address these challenges, a collaborative optimization strategy based on a hybrid game-theoretic framework for shared energy storage is proposed. By integrating self-built energy storage systems and aggregating idle storage resources from EV charging/swapping stations, a "self-built + cooperative" dual-source energy storage system is established. At the upper level, a cooperative game model is formed between the shared energy storage operator and the charging/swapping stations, where an improved Shapley value allocation mechanism is introduced. This mechanism comprehensively considers factors including capacity contribution, load-storage matching degree, and cost-sharing, with entropy weight coefficients dynamically adjusted to achieve fair revenue distribution. At the lower level, a Stackelberg game model is constructed, where the energy storage operator (as the leader) formulates time-of-use service pricing strategies to guide prosumers to optimize electricity utilization. Simulation results indicate that compared to traditional self-built energy storage models, the proposed dual-source energy storage system reduces investment costs by 27.53% and lowers prosumers' energy costs by 17.62%. Additionally, the Gini coefficient for fairness improves from 0.32 to 0.21 under the modified Shapley value allocation, demonstrating significantly enhanced equity in cooperative revenue distribution.

Key words: shared energy storage, battery swapping station, cooperative game, stackelberg game, improved Shapley value

成章, 于艾清, 王育飞, 薛花, 李兴壮. 基于改进Shapley值与主从博弈的共享储能-充换电站协同运行策略[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0816.

Zhang CHENG, Aiqing YU, Yufei WANG, Hua XUE, Xingzhuang LI. Based on the improved Shapley value and master-slave game, the cooperative operation strategy of shared energy storage-charging and swapping station is proposed[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0816.

图/表 13

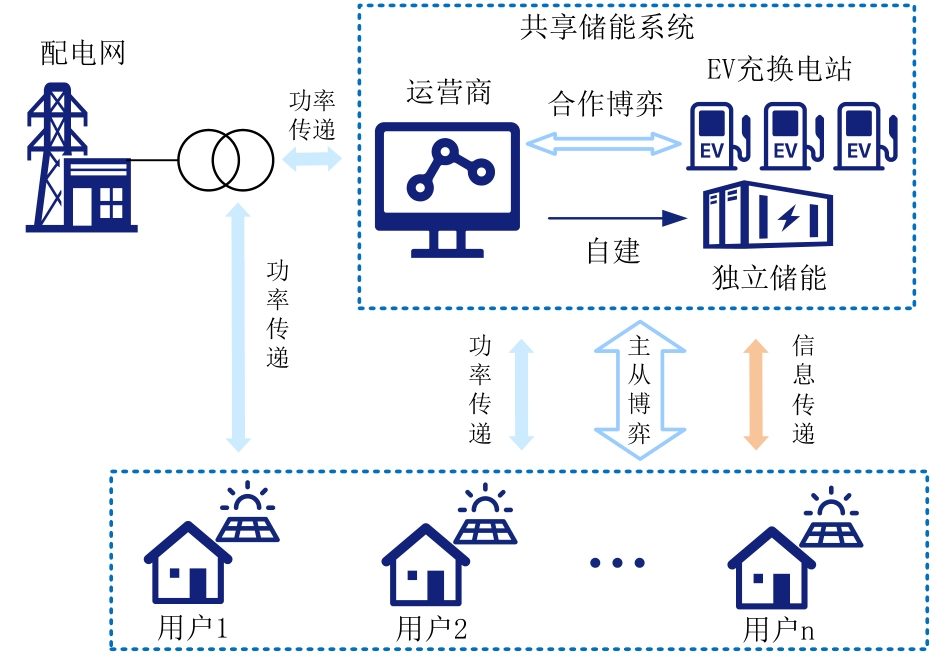

图1

表1

各主体主要参数"

参数	数值
$k 1$	800元/kW
$k 2$	2500元/kW·h
$F e s s$	72元/kWh/a
$η c h$	0.95
$η d i s$	0.95
$γ m i n$	0.2
$γ m a x$ $p i, t b a s e$ : $p i, t l o s s$	0.9 7:3

表1

图2

表2

图3

表3

图4

表4

联盟成员贡献指标结果"

成员	$ϕ i c a p$	$ϕ i c o r r$	$ϕ i c o s t$	$ω 1$	$ω 2$	$ω 3$
SESO	0.7296	0.7892	0.9336	0.4231	0.3657	0.2112
CSS1	0.6789	0.8682	0.0254
CSS2	0.6028	0.5329	0.0238
CSS3	0.3179	0.4638	0.0172

表4

图5

图6

图7

表5

图8

参考文献 22

[1]	国务院办公厅. 国务院办公厅转发国家发展改革委国家能源局关于促进新时代新能源高质量发展实施方案的通知(国办函〔2022〕 39号)[EB/OL]. [2022-05-30].
[2]	卓振宇, 张宁, 谢小荣, 等. 高比例可再生能源电力系统关键技术及发展挑战[J]. 电力系统自动化, 2021, 45(9): 171-191.
	ZHUO Z Y, ZHANG N, XIE X R, et al. Key technologies and developing challenges of power system with high proportion of renewable energy[J]. Automation of Electric Power Systems, 2021, 45(9): 171-191.
[3]	孙玉树, 杨敏, 师长立, 等. 储能的应用现状和发展趋势分析[J]. 高电压技术, 2020, 46(1): 80-89.
	SUN Y S, YANG M, SHI C L, et al. Analysis of application status and development trend of energy storage[J]. High Voltage Engineering, 2020, 46(1): 80-89.
[4]	栗占伟, 樊东方, 曾超, 等. 考虑风光消纳的储能系统容量优化配置及运行策略研究[J]. 储能科学与技术, 2024, 13(8): 2713-2725. DOI: 10.19799/j.cnki.2095-4239.2024.0165.
	LI Z W, FAN D F, ZENG C, et al. Research on capacity optimization configuration and operation strategy of energy storage system considering wind and solar consumption[J]. Energy Storage Science and Technology, 2024, 13(8): 27132725. DOI: 10.19799/j.cnki.2095-4239.2024.0165.
[5]	LOMBARDI P, SCHWABE F. Sharing economy as a new business model for energy storage systems[J]. Applied Energy, 2017, 188: 485-496.
[6]	刘静琨, 张宁, 康重庆. 电力系统云储能研究框架与基础模型[J], 中国电机工程学报, 2017, 37(12): 3361-3371.
	LIU J K, ZHANG N, KANG C Q, Research framework and basic models for cloud energy storage in power system[J], Proceedings of the CSSEE, 2017, 37(12): 3361-3371.
[7]	李淋, 徐青山, 王晓晴, 等. 基于共享储能电站的工业用户日前优化经济调度[J]. 电力建设, 2020, 41(5): 100-107.
	LI L, XU Q S, WANG X Q, et al. Optimal economic scheduling of industrial customers on the basis of sharing energy-storage station[J]. Electric Power Construction, 2020, 41(5): 100-107.
[8]	唐夏菲, 吴献祥, 任青青, 等, 利用云储能租赁服务的风电场储能容量优化配置[J]. 电力科学与技术学报, 2020, 35(1): 90-95.
	TANG X F, WU X X, REN Q Q, et al.Optimized configuration of energy storage capacity of wind farms using cloud energy storage leasing services[J].Journal of Electric Power Science and Technology, 2020, 35(1): 90-95.
[9]	闫东翔, 陈玥. 共享储能商业模式和定价机制研究综述[J]. 电力系统自动化, 2022, 46(23): 178-191.
	YAN D X, CHEN Y. Review on business model and pricing mechanism for shared energy storage[J]. Automation of Electric Power Systems, 2022, 46(23): 178-191.
[10]	袁国淳, 车彬, 何川, 等. 考虑主从博弈多套餐定价与分布鲁棒机会约束的新能源共享储能优化配置研究[J/OL]. 电网技术, 2024.1486.
	YUAN G C, CHE B, HE C, et al.Research on the optimal allocation of new energy shared energy storage considering the robust opportunity constraints of master-slave game, multi-package pricing and distribution[J/OL]. Power System Technology, 2024.1486.
[11]	马楠, 刘国伟, 吴杰康, 等. 租赁市场中储能容量配置双层鲁棒优化模型[J]. 电网技术, 2025, 49(02):653-665.
	MA N, LIU G W,WU J K, et al. A two-layer robust optimization model for energy storage capacity allocation in the leasing market[J]. Power System Technology, 2025, 49(02): 653-665.
[12]	陆秋瑜, 杨银国, 谢平平, 等. 风电场集群租赁共享储能两阶段优化运行策略[J]. 电网技术, 2024, 48(3): 1146-1159.
	LU Q Y, YANG Y G, XIE P P, et al.Two-stage optimal operation strategy of wind farm cluster leasing shared energy storage[J]. Power System Technology, 2024, 48(3): 1146-1159.
[13]	谢雨龙, 罗逸飏, 李智威, 等. 考虑微网新能源经济消纳的共享储能优化配置[J]. 高电压技术,2022 48(11): 4403-4413.
	XIE Y L, LUO Y Y, LI Z W, et al. Optimal allocation of shared energy storage considering the economic consumption of microgrid new energy[J]. High voltage engineering, 2022, 48(11): 4403-4413.
[14]	王晛, 张梓彦, 张少华, 等. 考虑新能源发电商租赁共享储能的电力市场博弈分析[J]. 电网技术, 2024, 48(08):3269-3277.
	WANG X, ZHANG Z Y, ZHANG S H, et al. Considering the power market game analysis of new energy generators leasing and sharing energy storage[J]. Power System Technology, 2024, 48(08): 3269-3277.
[15]	MEDIWATHTHE C P, SHAW M, HALGAMUGE S, et al. An incentive-compatible energy trading framework for neighborhood area networks with shared energy storage[J]. IEEE Transactions on Sustainable Energy, 2020, 11(1): 467-476.
[16]	Cui S, Wang Y W, Shi Y, et al. Community energy cooperation with the presence of cheating behaviors[J]. IEEE Transactions on Smart Grid, 2020, 12(1): 561-573.
[17]	田欣, 陈来军, 李笑竹, 等基于主从博弈和改进Shapley值的分布式光伏社区共享储能优化运行策略[J]. 电网技术, 2023, 47(6): 2252-2261.
	TIAN X, CHEN L J, LI X Z, et al. Optimal scheduling for energy storage sharing among communities with photovoltaic resource based on Stackelberg game and improved shapley value[J]. Power System Technology, 2023, 47(6): 2252-2261.
[18]	WANG C, WEI W, XUE X D, et al. Sizing shared energy storage for the integration of renewable generation:a coalition game based approach [C]// 2021 40th Chinese Control Conference(CCC), July 26-28, 2021, Shanghai, China: 1774-1779.
[19]	吴锦领, 楼平, 管敏渊, 黄宇宙, 张炜鑫, 曹元成. 基于非对称纳什谈判的多微网电能共享运行优化策略[J]. 电网技术, 2022, 46 (07): 2711-2723.
	WU J L, LOU P, GUAN M Y, et al. Multi-microgrid power sharing operation optimization strategy based on asymmetric Nash negotiation[J]. Power System Technology, 2022, 46 (07): 2711-2723.
[20]	张军, 钟康骅, 张勇军, 等. 基于混合博弈的多区域电-储共享运营模式与经济效益分析[J]. 电力系统自动化, 2024, 48(03): 31-41.
	ZHANG J, ZHONG K H, ZHANG Y J, et al. Analysis of multi-regional electricity-storage sharing operation mode and economic benefits based on hybrid game[J]. Automation of Electric Power System, 2024, 48(03): 31-41.
[21]	易建波, 胡猛, 王泽宇, 等. 提升光储充电站运行效率的多目标优化配置策略[J]. 电力系统自动化, 2024, 48(14): 100-109.
	YI J B, HU M, WANG Z Y, et al. Multi-objective optimal configuration strategy for improving operation efficiency of photovoltaic energy storage charging stations[J]. Automation of Electric Power Systems, 2024, 48(14): 100-109.
[22]	栗然, 吕慧敏, 彭湘泽, 等. 阶梯成本下考虑混合租建模式的云储能优化配置[J]. 太阳能学报, 2024, 45(2): 263–273.
	LI R, LYU H M, PENG X Z, et al. Optimal configuration of cloud energy storage consideing hybrid self-built and lease mode under tiered cost[J]. Acta Energiae Solaris Sinica, 2024, 45(2): 263–273.

SESO参数		场景
SESO参数		1	2	4
SESO配置功率 /kW	自建	373.61	260.56	216.25
SESO配置功率 /kW	外借	0	356.71	461.63
SESO配置容量 /(kW·h)	自建	1519.32	1258.61	1002.30
SESO配置容量 /(kW·h)	外借	0	542.10	563.67
储能年投资成本/万		47.62	43.59	34.51
SESO日净收益/元		762.37	853.67	1028.62
负荷削减量/(kW·h)		426.35	357.51	88.61

成员	Shapley分配结果/元	改进后分配结果/元	收益变化/元
SESO	901.5	1028.6	+13.5%
CSS1	363.6	577.8	+58.9%
CSS2	336.7	350.5	+4.1%
CSS3	183.9	204.3	+11.1%
