相变微胶囊悬浮液自然分层型释冷特性及其参数研究

doi:10.19799/j.cnki.2095-4239.2024.1185

储能科学与技术 ›› 2025, Vol. 14 ›› Issue (6): 2256-2269.doi: 10.19799/j.cnki.2095-4239.2024.1185

相变微胶囊悬浮液自然分层型释冷特性及其参数研究

程亚龙¹(), 梁坤峰¹, 周训¹^,²(), 刘苗苗¹, 吕钢欣¹, 宋乂天¹

^1.河南科技大学车辆与交通工程学院，河南洛阳 471003
^2.航空发动机热环境与热结构工信部重点实验室，江苏南京 210016

收稿日期:2024-12-12 修回日期:2024-12-20 出版日期:2025-06-28 发布日期:2025-06-27
通讯作者: 周训 E-mail:891047869@qq.com;zhouxun1990@126.com
作者简介:程亚龙（2000—），男，硕士研究生，研究方向为新能源技术与热管理，E-mail：891047869@qq.com；
基金资助:
国家自然科学基金项目(52378094);河南省科技发展计划项目(222102220033);洛阳市科技发展计划项目(2302035A);航空发动机热环境与热结构工信部重点实验室开放基金(CEPE2020027)

Natural stratification-based cooling characteristics of a microencapsulated phase-change material suspension and its parametric optimization study

Yalong CHENG¹(), Kunfeng LIANG¹, Xun ZHOU¹^,²(), Miaomiao LIU¹, Gangxin LYU¹, Yitian SONG¹

^1.School of Vehicle and Transport Engineering, Henan University of Science and Technology, Luoyang 471003, Henan, China
^2.Aero-engine Thermal Environment and Structure Key Laboratory of Ministry of Industry and Information Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, Jiangsu, China

Received:2024-12-12 Revised:2024-12-20 Online:2025-06-28 Published:2025-06-27
Contact: Xun ZHOU E-mail:891047869@qq.com;zhouxun1990@126.com

摘要/Abstract

摘要：

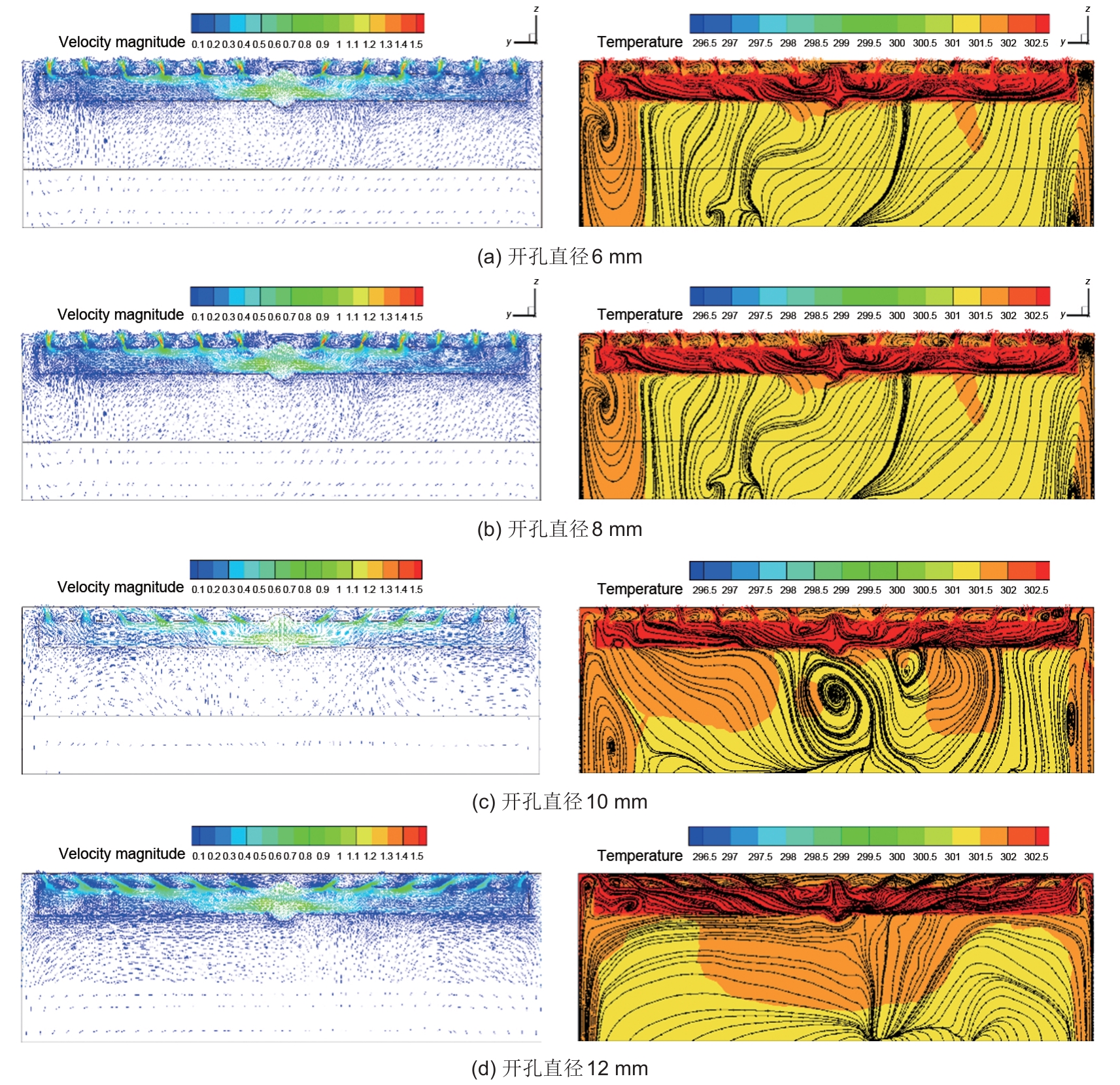

利用相变微胶囊悬浮液(micro-encapsulated phase change material suspension，MPCMS)流动性佳、蓄冷密度高以及释冷过程温度平稳的优势，结合自然分层型蓄冷装置，构建了带有仿八角形散流器的圆柱形蓄冷罐三维瞬态模型。探究了质量分数为10%、20%和30%的MPCMS在不同流量下的自然分层释冷过程的温度迁移特性和散流器开孔数、开孔直径等对释冷过程的影响，进而提出采用喷嘴型散流器的优化策略，阐明了不同散流器结构参数对蓄冷罐斜温层厚度、散流器小孔区域温度场和出流速度的作用规律。结果表明：MPCMS作为自然分层型装置的蓄冷介质时，在释冷过程中会形成中间温度梯度大，两侧温度梯度小的斜温层区域，提高质量分数能抑制冷热流体掺混，其相变区间比热容增大有助于提升释冷与控温效能；MPCMS质量分数为10%和20%时，适当增加开孔数、选用10 mm直径散流器以及新型喷嘴型散流器可降低斜温层厚度，增强蓄冷性能；质量分数为30%时，变化开孔数与使用喷嘴型散流器与原散流器的差异不明显。本研究对推动MPCMS在自然分层型蓄冷装置中的应用以及为MPCMS储能技术研发提供科学依据具有积极意义。

关键词: 相变微胶囊悬浮液, 蓄冷特性, 斜温层, 散流器, 结构优化

Abstract:

This study exploits the advantages of microencapsulated phase-change material suspensions (MPCMSs), such as excellent flowability, high cooling storage density, and stable thermal behavior during cooling release. By integrating these properties into a natural stratification-based cooling storage system, a three-dimensional transient model of a cylindrical cold storage tank with a pseudo-octagonal diffuser was developed. This study investigates the cooling release and temperature distribution characteristics of MPCMSs with mass fractions of 10%, 20%, and 30% under different flow rates. The effects of the diffuser opening count and diameter on the cooling process were analyzed. An optimization strategy employing nozzle-type diffusers was proposed, and the influence of different diffuser structural parameters on the thermocline thickness, temperature fields in small-opening regions, and outflow velocity was examined.The results demonstrate that using MPCMS as the storage medium in a natural stratification-based system creates a thermocline with a steep temperature gradient at the center and smaller gradients at the sides. Higher mass fractions suppress hot-cold fluid mixing and increase the specific heat capacity in the phase-change region, enhancing the cooling release efficiency and temperature control. For 10% and 20% MPCMS mass fractions, increasing the number of openings, selecting a 10 mm diameter diffuser, and using a new nozzle-type diffuser reduce the thermocline thickness and improve cooling performance. However, at 30% mass fraction, variations in the number of openings and the use of nozzle-type diffusers compared with the original diffuser yield negligible differences in performance. This study provides valuable insights for advancing the application of MPCMS in natural stratification-based cooling systems and offers scientific support for optimizing MPCMS energy storage technology.

Key words: MPCMS, cold storage characteristics, thermocline, diffuser, structural optimization

中图分类号:

TK 02

程亚龙, 梁坤峰, 周训, 刘苗苗, 吕钢欣, 宋乂天. 相变微胶囊悬浮液自然分层型释冷特性及其参数研究[J]. 储能科学与技术, 2025, 14(6): 2256-2269.

Yalong CHENG, Kunfeng LIANG, Xun ZHOU, Miaomiao LIU, Gangxin LYU, Yitian SONG. Natural stratification-based cooling characteristics of a microencapsulated phase-change material suspension and its parametric optimization study[J]. Energy Storage Science and Technology, 2025, 14(6): 2256-2269.

图/表 18

图1

图2

表1

表2

工况参数"

参数	质量分数 $ω$
	工况1			工况2			工况3
	10%	20%	30%	10%	20%	30%	10%	20%	30%
流量 $Q$ /(m³/h)	12.56			8.37			6.28
释冷时间 $t$ /h	1			1.5			2
入口流速 $v i n$ /(m/s)	0.61732			0.41153			0.30864
开孔个数	12			12			12
开孔直径/mm	8			8			8

表2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

参考文献 19

1	李洁, 王月. 算力基础设施的现状、趋势和对策建议[J]. 信息通信技术与政策, 2022(3): 2-6. DOI: 10.12267/j.issn.2096-5931. 2022. 03.001.
	LI J, WANG Y. The status, trends and suggestions of computing infrastructure[J]. Information and Communications Technology and Policy, 2022(3): 2-6. DOI: 10.12267/j.issn.2096-5931. 2022. 03.001.
2	钱晓栋, 李震. 数据中心空调系统节能研究[J]. 暖通空调, 2012, 42(3): 91-96. DOI: 10.3969/j.issn.1002-8501.2012.03.021.
	QIAN X D, LI Z. Energy saving research on air conditioning system in data centers[J]. Heating Ventilating & Air Conditioning, 2012, 42(3): 91-96. DOI: 10.3969/j.issn.1002-8501.2012.03.021.
3	ALLOUCHE Y, VARGA S, BOUDEN C, et al. Experimental determination of the heat transfer and cold storage characteristics of a microencapsulated phase change material in a horizontal tank[J]. Energy Conversion and Management, 2015, 94: 275-285. DOI: 10.1016/j.enconman.2015.01.064.
4	ZHENG H F, TIAN G J, YANG C W, et al. Experimental study on performance of phase change microcapsule cold storage solar composite refrigeration system[J]. Renewable Energy, 2022, 198: 1176-1185. DOI: 10.1016/j.renene.2022.08.133.
5	殷亮, 刘道平. 自然分层水蓄冷技术[J]. 暖通空调, 1997, 27(1): 50-53. DOI: 10.19991/j.hvac1971.1997.01.013.
	YIN L, LIU D P. Chilled water storage: Its arrangement and design[J]. Hv & Ac, 1997, 27(1): 50-53. DOI: 10.19991/j.hvac1971. 1997. 01.013.
6	WANG Z L, ZHANG H, DOU B L, et al. The thermal stratification characteristics affected by a novel equalizer in a dynamic hot water storage tank[J]. Applied Thermal Engineering, 2017, 126: 1006-1016. DOI: 10.1016/j.applthermaleng.2017.06.045.
7	OSMAN K, AL KHAIREED S M N, ARIFFIN M K, et al. Dynamic modeling of stratification for chilled water storage tank[J]. Energy Conversion and Management, 2008, 49(11): 3270-3273. DOI: 10. 1016/j.enconman.2007.09.035.
8	YANG Z, CHEN H S, WANG L, et al. Comparative study of the influences of different water tank shapes on thermal energy storage capacity and thermal stratification[J]. Renewable Energy, 2016, 85: 31-44. DOI: 10.1016/j.renene.2015.06.016.
9	TANG J L, OUYANG Z R, SHI Y Y. Diffuser design and experimental research of a large-scale chilled water storage system[J]. Energy Sources, Part A: Recovery, Utilization, and Environmental Effects, 2021, 43(12): 1456-1467. DOI: 10.1080/15567036.2020.1804013.
10	HOSSEINNIA S M, AKBARI H, SORIN M. Numerical analysis of thermocline evolution during charging phase in a stratified thermal energy storage tank[J]. Journal of Energy Storage, 2021, 40: 102682. DOI: 10.1016/j.est.2021.102682.
11	方桂花, 张振华, 连小刚, 等. 环形布水器对蓄热水箱释热性能影响的研究[J]. 建筑科学, 2021, 37(10): 89-96. DOI: 10.13614/j.cnki. 11-1962/tu.2021.10.12.
	FANG G H, ZHANG Z H, LIAN X G, et al. Research on the influence of annular water distributor on heat release performance of thermal tank[J]. Building Science, 2021, 37(10): 89-96. DOI: 10.13614/j.cnki.11-1962/tu.2021.10.12.
12	张素芬, 唐超权, 陈振乾. 自然分层型水蓄冷槽布水器速度场的模拟[J]. 重庆大学学报, 2011, 34(S1): 13-16.
	ZHANG S F, TANG C Q, CHEN Z Q. Simulation study of the velocity field of naturally stratified chilled water storage tank diffuser[J]. Journal of Chongqing University, 2011, 34(S1): 13-16.
13	BAHNFLETH W P, SONG J, CIMBALA J M. Measured and modeled charging of a stratified chilled water thermal storage tank with slotted pipe diffusers[J]. HVAC&R Research, 2003, 9(4): 467-491. DOI: 10.1080/10789669.2003.10391081.
14	高良军, 姜晓霞. 某大型斜温层储水罐布水器设计[J]. 机械工程师, 2018(5): 101-102, 105. DOI: 10.3969/j.issn.1002-2333. 2018. 05.029.
	GAO L J, JIANG X X. Water distributor design for large scale thermocline water tank[J]. Mechanical Engineer, 2018(5): 101-102, 105. DOI: 10.3969/j.issn.1002-2333.2018.05.029.
15	GUO Y H, ZHANG X L, YANG L J, et al. The heat transfer of microencapsulated phase change material slurry and its thermal energy storage performance of combined heat and power generating units[J]. Energies, 2017, 10(10): 1662. DOI: 10.3390/en10101662.
16	夏鹏, 徐国英, 陈麒, 等. 螺旋管外相变微胶囊悬浮液换热-蓄热特性提升的影响分析[J]. 中南大学学报(自然科学版), 2022, 53(2): 696-706.
	XIA P, XU G Y, CHEN Q, et al. Influence analysis on natural convective heat transfer and storage characteristics of mPCM slurry outside helical coiled tube[J]. Journal of Central South University (Science and Technology), 2022, 53(2): 696-706.
17	HU X X, ZHANG Y P. Novel insight and numerical analysis of convective heat transfer enhancement with microencapsulated phase change material slurries: Laminar flow in a circular tube with constant heat flux[J]. International Journal of Heat and Mass Transfer, 2002, 45(15): 3163-3172. DOI: 10.1016/S0017-9310(02)00034-0.
18	BAHNFLETH W P, SONG J. Constant flow rate charging characteristics of a full-scale stratified chilled water storage tank with double-ring slotted pipe diffusers[J]. Applied Thermal Engineering, 2005, 25(17/18): 3067-3082. DOI: 10.1016/j.applthermaleng. 2005. 03.013.
19	郝宁, 蒋俊, 刘传亮, 等. 大型中温斜温层储水罐蓄热性能分析[J]. 电力科技与环保, 2024, 40(6): 635-645. DOI: 10.19944/j.eptep.1674-8069.2024.06.008.
	HAO N, JIANG J, LIU C L, et al. Analysis of heat storage performance of large medium-temperature thermocline water storage tank[J]. Electric Power Technology and Environmental Protection, 2024, 40(6): 635-645. DOI: 10.19944/j.eptep.1674-8069.2024.06.008.

项目名称	数值
入口温度/K	303
出口温度/K	296
重力加速度/(m/s²)	9.81
蓄冷介质	MPCMS
黏度模型	Laminar flow
入口类型	Inlet-velocity
出口类型	Pressure-out
