水系锌离子电池正极的改性策略及发展展望

doi:10.19799/j.cnki.2095-4239.2024.1223

摘要/Abstract

摘要：

伴随着国家“碳达峰”和“碳中和”政策的实施，新型电化学储能技术的开发已成为新型电力系统和能源转型的重要支撑。在各种储能设备中，水系锌离子电池具有资源丰富、理论比容量高、经济性和安全性好等优点而受到广泛关注，但其快速发展亟待在电极材料的技术难题上实现突破。现阶段的水系锌离子电池正极材料普遍存在三方面的问题，这使其难以在复杂服役条件下高性能长续航应用。本文从水系锌离子电池的发展历程出发，通过对近期相关文献的探讨，系统阐述了水系锌离子电池正极材料常见的四类储能机制，总结了锰基材料、钒基材料、有机材料三类常见正极材料存在的固有电导率低、离子传输速度慢、材料结构稳定性差等问题，重点介绍了构建新颖微观结构、氧空位浓度调控、层间结构调控、增加材料疏水性四种性能提升策略及相应的研究进展，最后，展望了正极材料的研究发展前景和在材料复合方法、研究领域拓展和表征测试技术等方面的具体方向，为高性能水系锌离子电池的设计开发提供参考和借鉴。

关键词: 水系锌离子正极, 储能机制, 调控策略

Abstract:

With the implementation of the national "carbon peak" and "carbon neutrality" policies, the development of new electrochemical energy storage technologies becomes an important support for the new power system and energy transformation. Among various energy storage devices, aqueous zinc ion batteries(AZIBs) attracts widespread attention due to their abundant resources, high theoretical specific capacity, high safety and cost effectiveness. However, their rapid development urgently requires breakthroughs in the technical challenges of electrode materials. At present, there are three common problems with the positive electrode materials of AZIBs, which make it difficult to apply them with high performance and long endurance under complex service conditions. In this article, starting from the development history of AZIBs, the authors systematically elaborate on four common energy storage mechanisms of positive electrode materials of AZIBs through the exploration of recent relevant literature. Then, the authors summarize the inherent low conductivity, slow ion transport speed, and poor structural stability of three common positive electrode materials: manganese based materials, vanadium based materials, and organic materials. Furthermore, the authors focuses on four improving strategies and corresponding progress, including the construction of novel microstructures, oxygen vacancy concentration regulation, interlayer structure regulation, and increasing material hydrophobicity. Finally, the authors discuss the research prospects and specific directions in material composite method, research field expansion, and characterization testing technology, providing reference and inspiration for the design and development of high-performance AZIBs.

Key words: Aqueous Zinc-Ion Battery Cathode, Energy Storage Mechanisms, Modulation Strategies

中图分类号:

TM911

尹朝莛, 郭威, 王金鑫, 孟洋. 水系锌离子电池正极的改性策略及发展展望[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2024.1223.

Zhaoting Yin, Wei Guo, Jinxin Wang, Yang Meng. Modification strategy and development prospects of positive electrode for aqueous zinc ion batteries[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2024.1223.

图/表 17

图1

图2

图3

图4

图5

图6

图7

图8

图9(a)

图10

图11

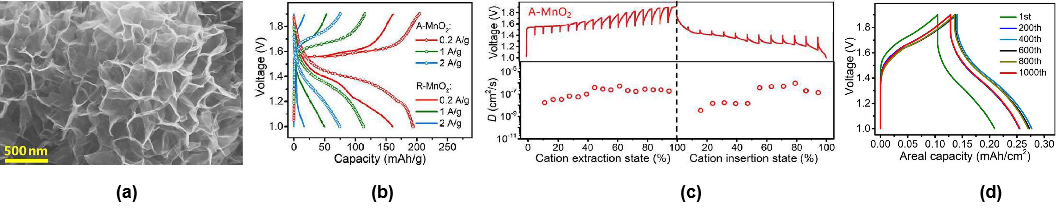

图12

图13

图14

图15

表1

图16

参考文献 71

1	国家能源局. 国家发展改革委国家能源局关于加快推动新型储能发展的指导意见[EB/OL]. [2021-7-15]. http://zfxxgk.nea.gov.cn/2021-07/15/c_1310079331.html
2	XU Z, ZHANG W, WANG X, et al. High-Rate and Long-Life Flexible Aqueous Rechargeable Zinc-Ion Battery Enabled by Hierarchical Core-Shell Heterostructures[J]. Journal of Materials Chemistry A, 2024, 4:2172-2183.
3	WU X, JI X. Aqueous batteries get energetic[J]. Nature Chemistry, 2019, 11: 680.
4	CHAO D, ZHOU W, XIE F, et al. Roadmap for advanced aqueous batteries: From design of materials to applications[J]. Science Advances, 2020; 6: eaba4098.
5	DING L, WANG L, GAO J, et al. Facile Zn²⁺ Desolvation Enabled by Local Coordination Engineering for Long-Cycling Aqueous Zinc-Ion Batteries[J]. Advanced Functional Materials, 2023, 33:2301648.
6	SHEN S, MA D, OUYANG K, et al. An In Situ Electrochemical Amorphization Electrode Enables High-Power High-Cryogenic Capacity Aqueous Zinc-Ion Batteries[J]. Advanced Functional Materials, 2023,33:2304255.
7	TANG B, SHAN L, LIANG S, et al. Issues and opportunities facing aqueous zinc-ion batteries[J]. Energy & Environmental Science, 2019, 12(11): 3288-3304.
8	HU L, WU Z, LU C, et al. Principles of interlayer-spacing regulation of layered vanadium phosphates for superior zinc-ion batteries[J]. Energy & Environmental Science,2021,14:4095.
9	LI C, LIU C, WANG Y, et al. Drastically-enlarged interlayer-spacing MoS₂ nanocages by inserted carbon motifs as high performance cathodes for aqueous zinc-ion batteries[J]. Energy Storage Materials, 2022,49:144–152.
10	LI S, LIU Y, ZHAO X, et al. Sandwich-Like Heterostructures of MoS2/Graphene with Enlarged Interlayer Spacing and Enhanced Hydrophilicity as High-Performance Cathodes for Aqueous Zinc-Ion Batteries[J]. Advanced Functional Materials, 2021, 33, 2007480.
11	SUN R, DONG S, GUO X, et al. Construction of 2D sandwich-like Na₂V₆O₁₆·3H₂O@MXene heterostructure for advanced aqueous zinc ion batteries [J]. Journal of Colloid And Interface Science,2024,655:226–233.
12	PU X, SONG T, TANG L, et al. Rose-like vanadium disulfide coated by hydrophilic hydroxyvanadium oxide with improved electrochemical performance as cathode material for aqueous zinc-ion batteries[J]. Journal of Power Sources,2019,437:226917.
13	ZHANG Q, ZHANG Y, FU L, et al. A novel and improved hydrophilic vanadium oxide-based cathode for aqueous Zn-ion batteries[J]. Electrochimica Acta,2020,354:136721.
14	ZHANG C, WU Zi, YANG C, et al. Rational Regulation of Optimal Oxygen Vacancy Concentrations on VO₂ for Superior Aqueous Zinc-Ion Battery Cathodes[J]. ACS Applied Materials & Interfaces,2024,16:40903-40913.
15	ZHOU Y, WANG C, CHEN F, et al. Scalable fabrication of NiCoMnO₄ yolk-shell microspheres with gradient oxygen vacancies for high-performance aqueous zinc ion batteries[J]. Journal of Colloid and Interface Science, 2022,626:314–323.
16	XU C, LI B, DU H, et al. Energetic Zinc Ion Chemistry: The Rechargeable Zinc Ion Battery[J]. Angewandte Chemie International Edition, 2012, 124: 957-959.
17	KUNDU D, ADAMS B D, DUFFORT V, et al. A high-capacity and long-life aqueous rechargeable zinc battery using a metal oxide intercalation cathode[J]. Nature Energy, 2016, 1:16119.
18	ZHAO Q, HUANG W, LUO Z, et al. High-capacity aqueous zinc batteries using sustainable quinone electrodes[J]. Science Advances, 2018, 4:eaao1761.
19	ZHONG C, LIU B, DING J, et al. Decoupling electrolytes towards stable and high-energy rechargeable aqueous zinc–manganese dioxide batteries[J]. Nature Energy, 2020, 5:440-449.
20	YUAN Y, SHARPE R, HE K, et al. Understanding intercalation chemistry for sustainable aqueous zinc–manganese dioxide batteries[J]. Nature Sustainability,2022, 5: 890-898.
21	LI Y, ZHENG X, CARLSON E Z, et al. In situ formation of liquid crystal interphase in electrolytes with soft templating effects for aqueous dual-electrode-free batteries[J]. Nature Energy,2024,9:1350–1359.
22	DAI Y, LU R, ZHANG C, et al. Zn²⁺-mediated catalysis for fast-charging aqueous Zn-ion batteries[J]. Nature Catalysis,2024, 7:776-784.
23	YANG W, XIE Xi, Wu R, et al. Research status and prospects of cathode materials for aqueous zinc-ion batteries[J]. Journal of China Coal Society, 2022,47(9):3351-3364.
24	CHEN D, LU M, CAI D, et al. Recent advances in energy storage mechanism of aqueous zinc-ion batteries.[J]. Journal of Energy Chemistry, 2021,54:712-726.
25	SUN W, WANG F, HOU S, et al. Zn/MnO₂ Battery Chemistry With H⁺ and Zn ²⁺ Coinsertion[J]. Journal of the American Chemical Society,2017, 139:9775-9778.
26	CHAO D, ZHOU W, YE C, et al. An Electrolytic Zn–MnO₂ Battery for High-Voltage and Scalable Energy Storage[J]. Angewandte Chemie International Edition, 2019, 58: 7823-7828.
27	LI Y, LI Y, LIU Q, et al. Revealing the Dominance of the Dissolution-Deposition Mechanism in Aqueous ZnMnO₂Batteries[J]. Angewandte Chemie International Edition, 2024, 63: e202318444.
28	YUAN C, ZHANG Y, PAN Y, et al. Investigation of the intercalation of polyvalent cations (Mg²⁺, Zn²⁺) into λ-MnO₂ for rechargeable aqueous battery[J]. Electrochimica Acta, 2014,116: 404-412.
29	ZHANG N, CHENG F, LIU J, et al. Rechargeable aqueous zinc-manganese dioxide batteries with high energy and power densities[J]. Nature Communications, 2017,8:405.
30	LI S, SHANG J, LI M, et al. Design and Synthesis of a π-Conjugated N-Heteroaromatic Material for Aqueous Zinc-Organic Batteries with Ultrahigh Rate and Extremely Long Life[J]. Advanced Materials, 2023, 35:2207115.
31	XIE M, WANG R, WANG N, et al. MnO₂@CeO₂composite cathode for aqueous zinc ion batteries: enhanced electrical conductivity and stability through Mn–O–Ce bonds[J]. Journal of Materials Chemistry A, 2023,11:21927.
32	WANG Z, SONG Y, WANG J, et al. Vanadium Oxides with Amorphous-Crystalline Heterointerface Network for Aqueous Zinc-Ion Batteries[J]. Angewandte Chemie International Edition, 2023, 62: e202216290.
33	FANG G, LIANG S, CHEN Z, et al. Simultaneous Cationic and Anionic Redox Reactions Mechanism Enabling High‐Rate Long‐Life Aqueous Zinc-Ion Battery[J].Advanced Functional Materials, 2019, 29: 1905267.
34	WAN F, ZHANG Y, ZHANG L,et al. Reversible Oxygen Redox Chemistry in Aqueous Zinc-Ion Batteries[J]. Angewandte Chemie International Edition, 2019, 58: 7062-7067.
35	LV H, WANG J, GAO X, et al. Electrochemical Performance and Mechanism of Bimetallic Organic Framework for Advanced Aqueous Zn Ion Batteries[J]. ACS Applied Materials & Interfaces, 2023,15:47094-47102.
36	JIA D, SHEN Z, LV Y, et al. In Situ Electrochemical Tuning of MIL-88B(V)@rGO into Amorphous V₂O₅@rGO as Cathode for High-Performance Aqueous Zinc-Ion Battery[J]. Advanced Functional Materials,2024, 34: 2308319.
37	LIU Y, MA Y, YANG W, et al. Spontaneously dissolved MnO: A better cathode material for rechargeable aqueous zinc-manganese batteries[J]. Chemical Engineering Journal, 2023, 473: 145490.
38	WANG X, WANG Y, NAVEED A,et al. Magnesium Ion Doping and Micro-Structural Engineering Assist NH₄V₄O₁₀ as a High-Performance Aqueous Zinc Ion Battery Cathode[J]. Advanced Functional Materials, 2023, 33: 2306205.
39	GUO J, HE B, GONG W, et al. Emerging Amorphous to Crystalline Conversion Chemistry in Ca-Doped VO₂Cathodes for High-Capacity and Long-Term Wearable Aqueous Zinc-Ion Batteries[J]. Advanced Materials, 2024, 36: 2303906.
40	YIN C, PAN C, PAN Y, et al. Proton Self-Doped Polyaniline with High Electrochemical Activity for Aqueous Zinc-Ion Batteries[J]. Small Methods, 2023, 7: 2300574.
41	ZHANG Q, LIU P, WANG T, et al. Core-shell structure of Cu₂O constructed by carbon quantum dots as high performance zinc-ion battery cathode[J]. Journal of Materials Chemistry A, 2023, 11: 24823-24835.
42	LI J, ZHANG L, XIN W, et al. Rationally Designed ZnTe@C Nanowires with Superior Zinc Storage Performance for Aqueous Zn Batteries[J]. Small, 2023, 19: 2304916.
43	YAN Z, LI J, LIU H, et al. A Reversible Six-Electron Transfer Cathode for Advanced Aqueous Zinc Batteries[J]. Angewandte Chemie International Edition, 2023, 62: e202312000.
44	HUANG Q, SHAO L, SHI Xi, et al. Na₃V₂O₂(PO₄)₂F nanoparticles@reduced graphene oxide: a high-voltage polyanionic cathode with enhanced reaction kinetics for aqueous zinc-ion batteries[J]. Chemical Engineering Journal, 2023, 468: 143738.
45	WANG K, WANG J, CHEN P, et al. Structural Transformation by Crystal Engineering Endows Aqueous Zinc-Ion Batteries with Ultra-long Cyclability[J]. Small, 2023, 19: 2300585.
46	LIU Z, QIN L, CAO X, et al. Ion migration and defect effect of electrode materials in multivalent-ion batteries[J]. Progress in Materials Science, 2022, 125: 100911.
47	ZHANG A, ZHAO R, WANG Y, et al. Hybrid Superlattice-Triggered Selective Proton Grotthuss Intercalation in δ-MnO₂ for High-Performance Zinc-Ion Battery[J]. Angewandte Chemie International Edition, 2023, 62: e202313163.
48	LI C, YUN X, CHEN Y, et al. Unravelling the proton hysteresis mechanism in vacancy modiffed vanadium oxides for High-Performance aqueous zinc ion battery[J]. Chemical Engineering Journal, 2023, 477: 146901.
49	GUO C, ZHOU R, LIU X, et al. Activating the MnS_0.5Se_0.5 Microspheres as High-Performance Cathode Materials for Aqueous Zinc-Ion Batteries: Insight into In Situ Electrooxidation Behavior and Energy Storage Mechanisms[J]. Small, 2023, 20: 2306237.
50	GOU L, LI J, LIANG K, et al. Bi-MOF Modulating MnO₂ Deposition Enables Ultra-Stable Cathode-Free Aqueous Zinc-Ion Batteries[J]. Small, 2023, 19: 2208233.
51	XIA J, ZHOU Y, ZHANG J, et al. Triggering High Capacity and Superior Reversibility of Manganese Oxides Cathode via Magnesium Modulation for Zn//MnO₂ Batteries[J]. Small, 2023, 19: 2301906.
52	SUN T, ZHANG W, ZHA Z, et al. Designing a solubility-limited small organic molecule for aqueous zinc-organic batteries[J]. Energy Storage Materials, 2023, 59: 102778.
53	SUN Q Q, SUN T, DU J, et al. A Sulfur Heterocyclic Quinone Cathode Towards High-Rate and Long-Cycle Aqueous Zn-Organic Batteries[J]. Advanced Materials, 2023, 35: 2301088.
54	ZHENG C, HUANG Z, SUN F, et al. Oxygen-Vacancy-Reinforced Vanadium Oxide/Graphene Heterojunction for Accelerated Zinc Storage with Long Life Span[J]. Small, 2023, 19: 2306275.
55	LI T, TONG J, LIU S, et al. Butterffy-tie like MnCO₃@Mn₃O₄ heterostructure enhanced the electrochemical performances of aqueous zinc ion batteries[J]. Journal of Colloid And Interface Science, 2024, 656: 504-512.
56	LI Y, LI X, DUAN H, et al. Aerogel-structured MnO2 cathode assembled by defect-rich ultrathin nanosheets for zinc-ion batteries[J]. Chemical Engineering Journal, 2022,441:136008.
57	LI Y, YANG W, YANG Wu, et al. High-performance zinc-ion batteries enabled by electrochemically induced transformation of vanadium oxide cathodes[J]. Journal of Energy Chemistry,2021,60:233–240.
58	LIU Y, GUO S, LING W, Cet al. In-situ oriented oxygen-defect-rich MnANAO via nitridation and electrochemical oxidation based on industrial-scale Mn₂O₃ to achieve high-performance aqueous zinc ion battery[J]. Journal of Energy Chemistry, 2023, 76: 11–18.
59	WANG Y, ZHANG Y, GAO G, et al. Effectively Modulating Oxygen Vacancies in Flower-Like δ-MnO₂ Nanostructures for Large Capacity and High-Rate Zinc-Ion Storage[J]. Nano-Micro Letters, 2023, 15: 219.
60	ZHANG Y, SUN D, WANG Y, et al. Facile electrochemically induced vacancy modulation of NiCo₂O₄ cathode toward high-performance aqueous Zn-based battery[J]. Chemical Engineering Journal, 2023, 453: 139736.
61	ZONG Y, CHEN H, WANG J, et al. Cation Defect-Engineered Boost Fast Kinetics of Two-Dimensional Topological Bi₂Se₃ Cathode for High-Performance Aqueous Zn-Ion Batteries[J]. Advanced Materials, 2023, 35: 2306269.
62	WU Z, YAO J, CHEN C, et al. Ammonium intercalation engineering regulated structural stability of V₆O₁₃ cathodes for durable zinc ion batteries[J]. Chemical Engineering Journal, 2024, 479: 147889.
63	YOO G, KOO B, AN G. Nano-sized split V₂O₅ with H₂O-intercalated interfaces as a stable cathode for zinc ion batteries without an aging process[J]. Chemical Engineering Journal, 2022, 434: 134738.
64	JIANG H, ZHANG Y, PAN Z, et al. NH₄V₃O₈0.5H₂O nanobelts with intercalated water molecules as a high performance zinc ion battery cathode[J]. Materials Chemistry Frontiers,2020,4:1434.
65	CHENG X, XIANG Z, YANG C, et al. Polar Organic Molecules Inserted in Vanadium Oxide with Enhanced Reaction Kinetics for Promoting Aqueous Zinc-Ion Storage[J]. Advanced Functional Materials, 2024, 34: 2311412.
66	MA X, CAO X, YAO M, et al. Organic-Inorganic Hybrid Cathode with Dual Energy Storage Mechanism for Ultrahigh-Rate and Ultralong-Life Aqueous Zinc-Ion Batteries[J]. Advanced Materials, 2022, 34: 2105452.
67	CHEN H, MA W, GUO J, et al. PEDOT-intercalated MnO₂ layers as a high-performance cathode material for aqueous Zn-ion batteries[J]. Journal of Alloys and Compounds, 2023, 932: 167688.
68	FANG Z, LIU C, LI X, et al. Systematic Modiffcation of MoO₃-Based Cathode by the Intercalation Engineering for High-Performance Aqueous Zinc-Ion Batteries[J]. Advanced Functional Materials, 2023, 33: 2210010.
69	HE W, FAN Z, HUANG Z, et al. A Li⁺ and PANI co-intercalation strategy for hydrated V₂O₅ to enhance zinc ion storage performance[J]. Journal of Materials Chemistry A, 2022, 10: 18962.
70	JIANG H, ZHANG Y, WAQAR M, et al. Anomalous Zn²⁺ Storage Behavior in Dual-Ion-In-Sequence Reconstructed Vanadium Oxides[J]. Advanced Functional Materials, 2023, 33: 2213127.
71	ZHAI X, QU J, HAO S, et al. Layered Birnessite Cathode with a Displacement/Intercalation Mechanism for High-Performance Aqueous Zinc-Ion Batteries[J]. Nano-Micro Letters, 2020, 12: 56.

正极材料	性能提升策略	工作电压 / V	放电容量(电流密度) / mAh g^-1(A g^-1)	循环性能(电流密度,次数) / % (A g^-1,次)	参考文献
MnCO₃@Mn₃O₄	构建异质结构	0.4-1.9	174 (0.1)	77.32(1.0,1000)	[55]
VO-E	构建异质结构	0.3-1.9	516 (0.5)	85.5(20,5000)	[32]
MNO	制造氧空位	0.4-1.9	283(0.3)	92.5(3,1000)	[58]
δ-MnO₂-2.0	调控氧空位	0.9-1.9	551.8(0.5)	83(3,1500)	[59]
O_d-NiCo₂O₄	制造氧空位	0-0.57	418.9(1.0)	99.8(16,10000)	[60]
Mg-MnO₂	阳离子掺杂	1.0-1.8	370 (0.6)	87.07(0.6,300)	[51]
Cu-Bi₂-xSe₃	阳离子掺杂	0.2-1.6	288.5(0.2)	46.6(10,4000)	[61]
VO-NH	阳离子掺杂	0.2-1.6	396.1(0.5)	80.2(10,10000)	[62]
NH₄V₃O₈ 0.5H₂O	水分子插层	0.4-1.3	399(0.2)	82.7(0.2,120)	[64]
HATN-PNZ	大π共轭平面增加疏水性	0.05- 1.65	257(5.0)	99.8(50,45000)	[30]
TABQ-PQ	大π共轭平面增加疏水性	0.2-1.2	200(0.1)	90.8(5.0,30000)	[52]
MnOF0.04	引入阴离子配位	0.9-1.8	241.9(0.2)	76.2(5,3500)	[5]
MnO₂@CeO₂	材料复合	0.8-1.8	355(1.0)	89.68(3,1000)	[31]
MnO@PC	增强自发溶解活性	0.8-1.9	223(0.2)	89(2.0,2000)	[37]
MNVO	氧离子掺杂	0.3-1.6	368(0.5)	90.2(10,5000)	[38]
PANI-M	质子自掺杂	0.6-1.6	270(0.5)	87(15,4000)	[40]
Cu₂O-CDs	构建异质结构	0.2-1.2	339(0.2)	63(0.1,100)	[41]
ZnTe@C NWs	构建异质结构	0.2-1.6	309(1.0)	74(1,400)	[42]
AlMO	阳离子掺杂	0.8-1.8	268.2(0.5)	100(4,15000)	[45]
PVP-MnO₂	有机分子插层	0.8-1.8	309(0.25)	100(10,20000)	[47]
V₆O_13-x/rGO	构建异质结构	0.2-1.6	376.8(0.5)	92(5,3000)	[54]
NSVOHI	水分子插层	0.4-1.6	426(0.5)	91(1.3,200)	[63]
PEDOT-MnO₂	有机分子插层	0.8-1.8	300(0.2)	100(0.2,100)	[67]
PEDOT-MoO₃	有机分子插层	0.2-1.4	270.5(5.0)	77.6(30,500)	[68]
LPVO	有机分子插层	0.2-1.4	303(0.5)	94(5,800)	[69]
V-EG	有机分子插层	0.2-1.8	516(0.5)	81.1(20,10000)	[65]
EDA-VO	有机分子插层	0.4-1.4	382.6(0.5)	99.95(5,10000)	[66]
NMOH	双分子共嵌入	0.8-1.9	389.8(0.2)	100(0.5,400)	[71]
Li@MnVO	双离子顺序插层	0.2-1.6	232(4.0)	99(10,5000)	[70]
