储能电池模组膨胀力特性研究及仿真分析

doi:10.19799/j.cnki.2095-4239.2024.1210

摘要/Abstract

摘要：

锂离子电池在充放电过程中存在膨胀力，其受电池的荷电状态(state of charge，SOC)和健康状态(state of health，SOH)影响。对于储能磷酸铁锂电池，其膨胀力特性是有关储能电池系统电性能及安全性能的重要特性之一，而大容量储能磷酸铁锂电池在全生命周期内膨胀力的演变特性及机理尚不清晰。本工作选择一款容量为280安时的磷酸铁锂电池为研究对象，将其组装成不同串数的模组，采用膨胀力夹具模拟其在实际储能模组中的应用场景，开展了循环耐久性测试，并对全SOC及全生命周期下电池模组膨胀力的演变规律进行了分析。研究结果显示：由于石墨和磷酸铁锂材料的结构特性，充电过程在约30%SOC和100%SOC有2次膨胀力峰值，放电过程也在100%SOC和30%SOC有2次膨胀力峰值。各膨胀力峰值随着电池的衰减呈现不同的演变规律，100%SOC时的膨胀力由最大值逐渐演变成最小值，30%SOC时的膨胀力演变成最大值。此外，在SOH衰减至约90%后，模组膨胀力与SOH呈线性相关，且电芯串联数量的增加没有改变模组最大膨胀力的增长趋势，1P12S模组的最大膨胀力在70%SOH时达到了2365 kgf。根据实测数据对模组的膨胀力仿真分析表明，模组主要零部件的设计能够满足全生命周期内的结构安全性能。该工作初步探究了磷酸铁锂电池模组的膨胀力特性，有助于为模组层级的膨胀力仿真和预测提供参考，为后期磷酸铁锂电池在储能系统模组的安全设计开发提供了支撑。

关键词: 磷酸铁锂电池, 膨胀力, 储能模组, SOC, SOH

Abstract:

Swelling force is an important parameter for evaluating the performance and safety of LiFePO₄ (LFP) energy storage batteries, which is affected by the state of charge (SOC) and state of health (SOH) of the battery. However, the evolution and mechanisms of swelling forces over the full lifecycle of high-capacity LFP batteries are not well understood. In this study, we investigated the swelling force variation in a 280 Ah LFP battery under constrained conditions, which was assembled into modules with different string numbers. In addition, we analyze the behavior of the swelling force under full SOC and lifecycle. The results demonstrate that the swelling force changes with the SOC of the battery during a single cycle. Because of the structural characteristics of graphite and lithium iron phosphate materials, during charging, two swelling peaks emerged at approximately 30% and 100%SOC, and two peaks emerged at 100% and 30%SOC during discharging. These peaks evolved with the battery degradation. At 100%SOC, the force gradually changes from maximum to minimum value of the battery ages, whereas at 30%SOC, the force gradually becomes the largest. In addition, after the SOH dropped to approximately 90%, the expansion force exhibited a linear correlation with the SOH. The swelling force growth trend was maintained as the series count increased, and the maximum expansion force of the 1P12S module reached 2365 kgf at 70% SOH. Based on the measured data, the simulation analysis of the swelling force of the module indicates that the design of the module's main components meets the structural safety requirements throughout its lifecycle. This study preliminarily explores the swelling force characteristics of the LFP battery modules, providing a reference for swelling force simulations at the module level. Furthermore, this study provides support for the safe design and development of LFP battery modules in energy storage systems.

Key words: LFP battery, swelling force, energy storage module, state of charge (SOC), state of health (SOH)

中图分类号:

TM 911

樊慧敏, 彭浩鸿, 孟辉, 唐梦宏, 易昊昊, 丁静, 刘金成, 徐成善, 冯旭宁. 储能电池模组膨胀力特性研究及仿真分析[J]. 储能科学与技术, 2025, 14(6): 2488-2497.

Huimin FAN, Haohong PENG, Hui MENG, Menghong TANG, Haohao YI, Jing DING, Jincheng LIU, Chengshan XU, Xuning FENG. Research and simulation analysis of swelling force characteristics in energy storage battery modules[J]. Energy Storage Science and Technology, 2025, 14(6): 2488-2497.

图/表 11

表1

图1

表2

图2

图3

表3

图4

图5

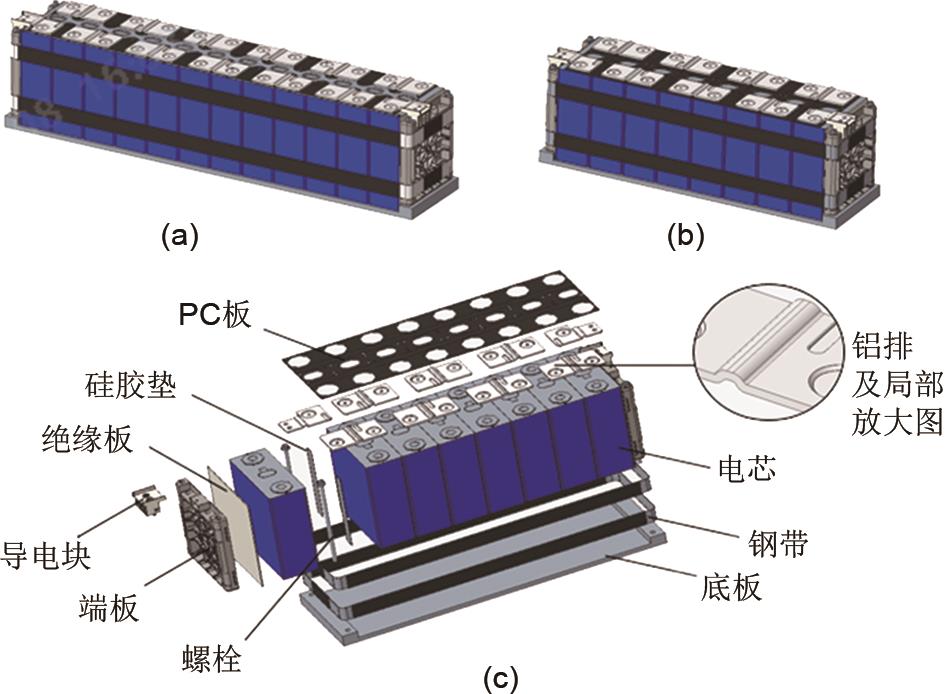

图6

表4

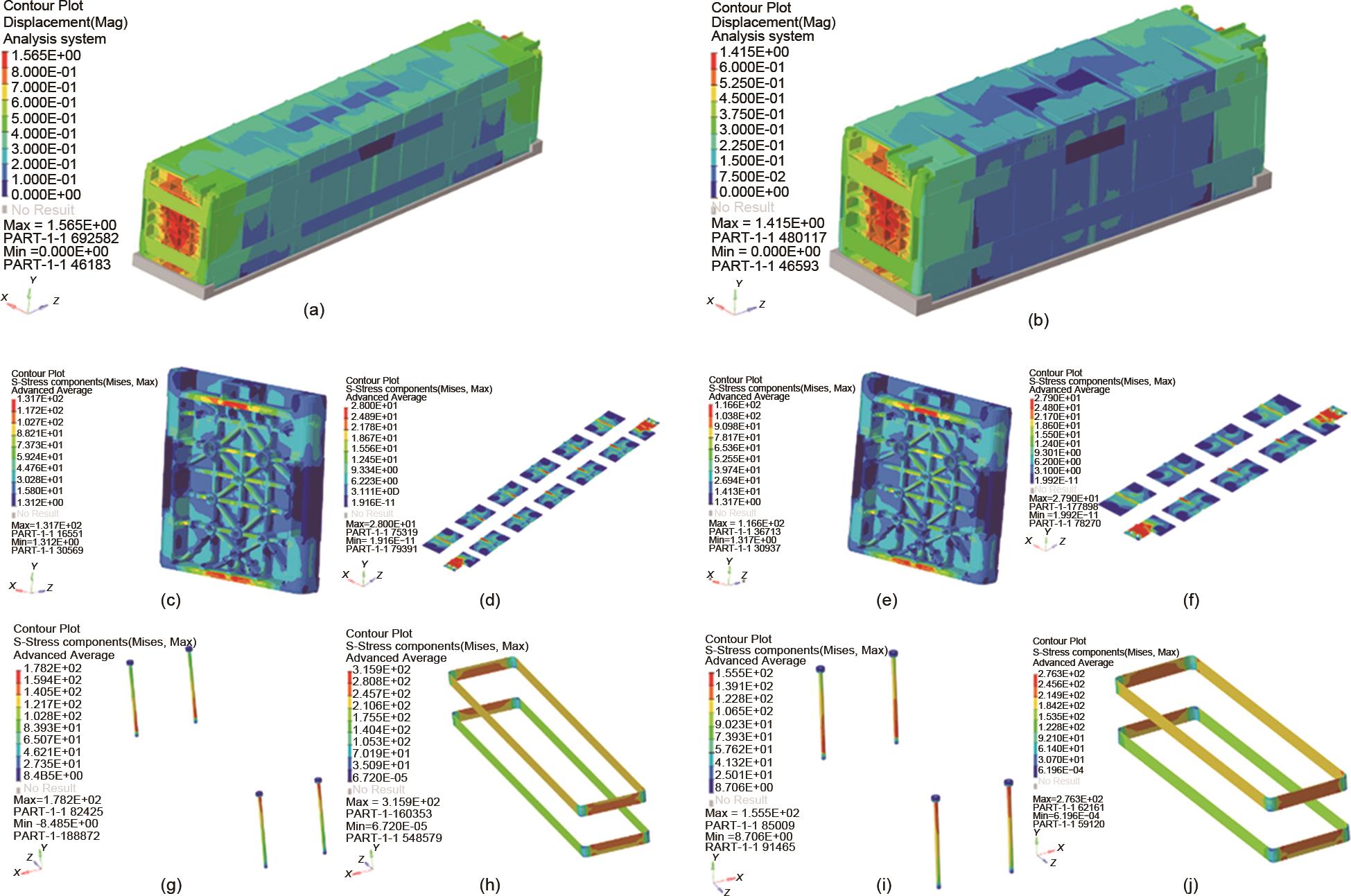

图7

参考文献 22
