“散-储”一体化的电池热管理系统研究

doi:10.19799/j.cnki.2095-4239.2025.0238

摘要/Abstract

摘要：

本工作针对传统相变材料(PCM)与风冷耦合的电池热管理结构在散热效率上的不足，提出一种新型PCM与风冷耦合的“散-储”一体化热管理结构，该结构采用“X”型翅片与铜柱组合，能够大幅提升风冷的散热效率，满足严苛条件下电池的温度需求。本工作探讨了该结构在高温环境下，电池以6C放电和2C充电进行多次充放电循环过程的热特性，并研究了PCM物性参数以及冷板结构参数对结构传热特性的影响规律。结果表明：该新型电池热管理结构能在多次充放电循环过程中，使单体电池的最大温度控制在45 ℃以内，最大温差控制在3 ℃以内。PCM的熔点对电池温升影响较大，过高的熔点会导致电池最高温度过高，过低的熔点会使PCM熔化速度过快，导致PCM冷板在循环末段缺乏温度调节能力使电池温升加快。在确保PCM不会完全熔化的前提下，PCM的熔点越低越有利于将电池温度控制在合适的范围内；此外，增加PCM冷板厚度、冷板面板厚度以及翅片肋板厚度，能显著提升结构的散热性能与控温稳定性。该研究成果为远距离连续高速行驶工况和寒冷地区锂电池使用安全性的电池热管理系统设计提供了方法支撑。

关键词: 电池热管理, 相变材料, 风冷, 循环充放电

Abstract:

Traditional battery thermal management structure that integrates a phase change material (PCM) with air cooling—using "X"-shaped fins and copper columns—can significantly improve the heat dissipation efficiency of air cooling and meet the temperature requirements of batteries under harsh conditions. However, these structures still exhibit notable deficiencies in heat dissipation efficiency. To address these issues, we propose a novel and innovative "dissipation-storage-integrated" thermal management structure that effectively combines PCM and air cooling. This study investigates the thermal characteristics of the proposed structure during repeated charge-discharge cycles, in which the batteries discharge at a relatively high rate of 6 C and charge at 2 C under challenging high-temperature conditions. The effects of the PCM physical parameters (e.g., melting point, thermal conductivity, and specific heat capacity) and different cold-plate structural parameters (e.g., thickness, shape, and fin density) are analyzed to evaluate their influence on the heat transfer characteristics of the structure. The results demonstrate that the proposed battery thermal management structure is highly effective. It can successfully maintain the maximum temperature of a single battery cell within a safe range of 45 ℃ and limit the maximum temperature difference to within 3 ℃ throughout multiple charge-discharge cycles. Among PCM parameters, the melting point strongly influences the battery temperature rise. An excessively high melting point inevitably leads to an overly high maximum battery temperature, jeopardizing the battery's performance and lifespan. In contrast, an excessively low melting point causes PCM to melt alarmingly fast. As a result, the PCM-based cold-plate lacks the essential temperature-regulating capacity in the later part of the cycle, significantly accelerating the battery temperature rise. Provided that PCM does not completely melt, lowering the melting points is more favorable for maintaining safe operating temperatures. Additionally, increasing the thickness of the PCM cold-plate, cold-plate panel, and the fin ribs can significantly enhance the heat dissipation performance and temperature-control stability of the structure, further improving the overall efficiency of the thermal management system. These findings provide valuable methodological support for designing battery thermal management systems that ensure the safety of lithium-ion batteries under long-distance continuous high-speed driving conditions and in cold regions. The proposed approach not only strengthens the theoretical foundation of battery thermal management but also provides practical and valuable guidance for improving the performance and safety of battery systems in demanding application scenarios.

Key words: battery thermal management, phase change material, air cooling, charge-discharge cycle

中图分类号:

TM 912

吕福祥, 陆晓峰, 李洪峰, 朱晓磊. “散-储”一体化的电池热管理系统研究[J]. 储能科学与技术, 2025, 14(10): 3677-3686.

Fuxiang LYU, Xiaofeng LU, Hongfeng LI, Xiaolei ZHU. The research of the "dissipation-storage" integrated battery thermal management system[J]. Energy Storage Science and Technology, 2025, 14(10): 3677-3686.

图/表 17

图1

图2

图3

表1

图4

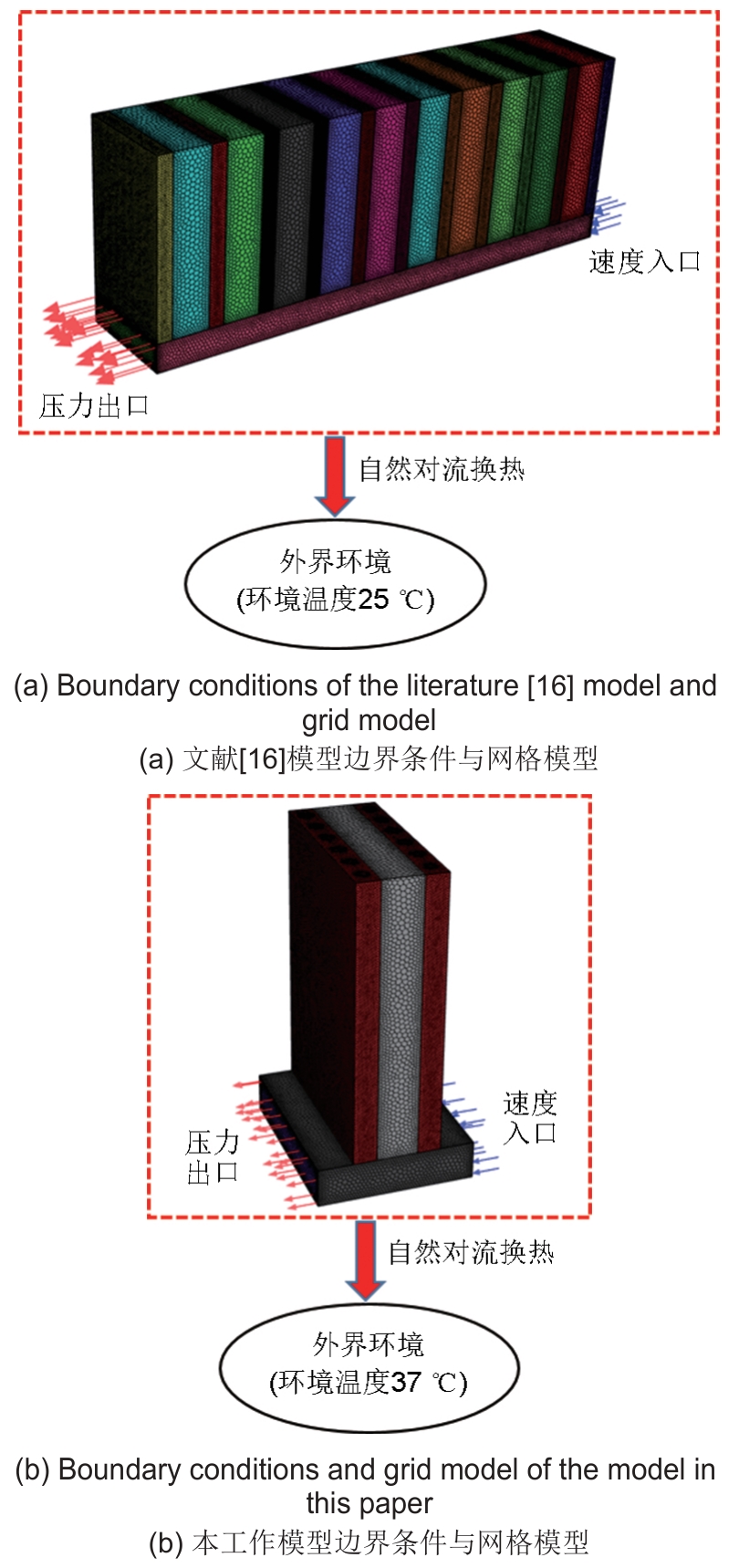

图5

图6

表2

图7

图8

表3

图9

图10

图11

图12

图13

图14

参考文献 20

[1]	XIE N, ZHANG Y, LIU X J, et al. Thermal performance and structural optimization of a hybrid thermal management system based on MHPA/PCM/liquid cooling for lithium-ion battery[J]. Applied Thermal Engineering, 2023, 235: 121341. DOI: 10.1016/j.applthermaleng.2023.121341.
[2]	GUO Z J, XU Q D, WANG Y, et al. Battery thermal management system with heat pipe considering battery aging effect[J]. Energy, 2023, 263: 126116. DOI: 10.1016/j.energy.2022.126116.
[3]	ZHANG G X, WEI X Z, HAN G S, et al. Lithium plating on the anode for lithium-ion batteries during long-term low temperature cycling[J]. Journal of Power Sources, 2021, 484: 229312. DOI: 10.1016/j.jpowsour.2020.229312.
[4]	WANG C, XU J, WANG M W, et al. Experimental investigation on reciprocating air-cooling strategy of battery thermal management system[J]. Journal of Energy Storage, 2023, 58: 106406. DOI: 10.1016/j.est.2022.106406.
[5]	YANG W, ZHOU F, ZHOU H B, et al. Thermal performance of axial air cooling system with bionic surface structure for cylindrical lithium-ion battery module[J]. International Journal of Heat and Mass Transfer, 2020, 161: 120307. DOI: 10.1016/j.ijheatmasstransfer.2020.120307.
[6]	YATES M, AKRAMI M, JAVADI A A. Analysing the performance of liquid cooling designs in cylindrical lithium-ion batteries[J]. Journal of Energy Storage, 2021, 33: 100913. DOI: 10.1016/j.est.2019.100913.
[7]	ZHOU Z Z, WANG D, PENG Y, et al. Experimental study on the thermal management performance of phase change material module for the large format prismatic lithium-ion battery[J]. Energy, 2022, 238: 122081. DOI: 10.1016/j.energy.2021.122081.
[8]	MBULU H, LAOONUAL Y, WONGWISES S. Experimental study on the thermal performance of a battery thermal management system using heat pipes[J]. Case Studies in Thermal Engineering, 2021, 26: 101029. DOI: 10.1016/j.csite.2021.101029.
[9]	HE J S, YANG X Q, ZHANG G Q. A phase change material with enhanced thermal conductivity and secondary heat dissipation capability by introducing a binary thermal conductive skeleton for battery thermal management[J]. Applied Thermal Engineering, 2019, 148: 984-991. DOI: 10.1016/j.applthermaleng.2018.11.100.
[10]	WU X Y, ZHU Z H, ZHANG H Y, et al. Structural optimization of light-weight battery module based on hybrid liquid cooling with high latent heat PCM[J]. International Journal of Heat and Mass Transfer, 2020, 163: 120495. DOI: 10.1016/j.ijheatmasstransfer. 2020.120495.
[11]	GAO C, SUN K, SONG K W, et al. Performance improvement of a thermal management system for Lithium-ion power battery pack by the combination of phase change material and heat pipe[J]. Journal of Energy Storage, 2024, 82: 110512. DOI: 10.1016/j.est.2024.110512.
[12]	QIN P, LIAO M R, ZHANG D F, et al. Experimental and numerical study on a novel hybrid battery thermal management system integrated forced-air convection and phase change material[J]. Energy Conversion and Management, 2019, 195: 1371-1381. DOI: 10.1016/j.enconman.2019.05.084.
[13]	AHMAD S, LIU Y H, KHAN S A, et al. Hybrid battery thermal management by coupling fin intensified phase change material with air cooling[J]. Journal of Energy Storage, 2023, 64: 107167. DOI: 10.1016/j.est.2023.107167.
[14]	BERNARDI D, PAWLIKOWSKI E, NEWMAN J. A general energy balance for battery systems[J]. Journal of the Electrochemical Society, 1985, 132(1): 5-12. DOI: 10.1149/1.2113792.
[15]	FAN X, MENG C, YANG Y W, et al. Numerical optimization of the cooling effect of a bionic fishbone channel liquid cooling plate for a large prismatic lithium-ion battery pack with high discharge rate[J]. Journal of Energy Storage, 2023, 72: 108239. DOI: 10.1016/j.est.2023.108239.
[16]	周廷博. PCM冷板耦合强制风冷的电池热管理系统研究[D]. 南京: 南京农业大学, 2018.
	ZHOU Y B. Research on the battery thermal management system with phase change material (PCM) cold plate coupled with forced air cooling[D]. Nanjing: Nanjing Agricultural University, 2018.
[17]	王宇鹏. 相变冷却用于复合电池热管理系统的结构优化研究[D]. 长春: 吉林大学, 2020. DOI: 10.27162/d.cnki.gjlin.2020.005001.
	WANG Y P. Study on structural optimization of thermal management system of composite battery with phase change cooling[D]. Changchun: Jilin University, 2020. DOI: 10.27162/d.cnki.gjlin.2020.005001.
[18]	汪张洲, 唐天琪, 夏嘉俊, 等. 基于复合相变材料的电池热管理性能模拟[J]. 化工学报, 2024, 75(S1):329-338. DOI:10.11949/0438-1157.20240229.
	WANG Z Z, TANG T Q, XIA J J, et al. Battery thermal management performance simulation based on composite phase change material[J]. CIESC Journal, 2024, 75(S1): 329-338. DOI:10.11949/0438-1157.20240229.
[19]	安治国, 张显, 祝惠, 等. 蜂窝状CPCM/水冷复合式圆柱型锂电池散热性能[J]. 储能科学与技术, 2022, 11(1): 211-220. DOI: 10.19799/j.cnki.2095-4239.2021.0292.
	AN Z G, ZHANG X, ZHU H, et al. Heat dissipation performance of honeycomb-like thermal management system combined CPCM with water cooling for lithium batteries[J]. Energy Storage Science and Technology, 2022, 11(1): 211-220. DOI: 10.19799/j.cnki.2095-4239.2021.0292.
[20]	张文灿, 李星耀, 王道勇. 动力电池相变传热介质热管理系统影响因素分析[J]. 机械设计与制造, 2023(9): 226-230, 236. DOI: 10. 19356/j.cnki.1001-3997.20230207.016.
	ZHANG W C, LI X Y, WANG D Y. The influencing factors importance analysis on thermal management system of phase change heat transfer medium for power battery[J]. Machinery Design & Manufacture, 2023(9): 226-230, 236. DOI: 10.19356/j.cnki.1001-3997.20230207.016.

物性参数/材料	锂电池	铝	铜
导热系数/[(W/(m·K)]	k_x=k_y=34；k_z=8.2	202.4	387.6
密度/(kg/m³)	1983.28	2719	8978
比热容/[J/(kg·K)]	1030	871	381

PCM	导热系数/[W/(m·K)]	熔点/℃	相变潜热/(J/kg)	比热容/[J/(kg·K)]	密度/(kg/m³)
PCM₁^[17]	0.36	40	195000	1770	822
PCM₂^[18]	1.9	42	198500	2122	900
PCM₃^[19]	1.23	44	258500	1926	800
PCM₄^[20]	0.2	46	278000	2160	860

冷板厚度/mm	PCM体积/mm³
10	71173
12	97161
14	123059
16	148839
