Fuzzy reasoning-based evaluation of the thermal diffusion probability of lithium-ion battery modules for energy storage systems

doi:10.19799/j.cnki.2095-4239.2025.0072

Abstract

Abstract:

Lithium-ion battery modules (LIBMs) are currently the most widely used battery components in energy storage systems. Thermal runaway events can significantly compromise the reliable operation of an energy storage system. Existing models for the qualitative analysis of thermal diffusion cannot be directly used to evaluate the thermal diffusion probability of LIBMs quantitatively under time-varying operation conditions. To overcome this problem, a fuzzy reasoning-based method for evaluating the thermal diffusion probability of LIBMs is proposed in this work. The study first built a thermal diffusion simulation model of LIBMs on the COMSOL platform. This model was used to analyze the effects of various heating modes, LIBM arrangement configurations, and state of charge (SOC) on LIBMs and to investigate the mechanisms of thermal diffusion in LIBMs. Subsequently, a fuzzy reasoning system was constructed based on the simulation test data. The cell temperature, inter-cell distance, and ambient temperature of the lithium-ion battery were taken as inputs, and the LIBM thermal runaway probability was the output. To improve the accuracy of the evaluation results, the improved dung beetle optimizer (IDBO) was used to optimize the membership function parameters in the fuzzy reasoning system. The results revealed that reducing the contact area between cells in an LIBM effectively mitigated thermal diffusion; additionally, slow heating of the LIBM resulted in a higher thermal runaway temperature for the last cell in the module to experience thermal runaway. The Pearson correlation coefficient of the thermal diffusion probability evaluation results obtained by the proposed method was higher compared with that of the traditional dung beetle algorithm, particle swarm algorithm, and sparrow search algorithm by 0.076, 0.041, and 0.047 respectively. The high coefficient provides a more reasonable reference basis for the risk warning of LIBM thermal diffusion in energy storage systems in engineering practice.

Key words: energy storage system, lithium-ion battery module, thermal diffusion probability, fuzzy reasoning, improved dung beetle optimizer (IDBO)

CLC Number:

TM 911

Liyue HU, Wei HUANG, Yun ZHOU, Yingqiang ZHOU, Changzheng SHAO, Ke WANG. Fuzzy reasoning-based evaluation of the thermal diffusion probability of lithium-ion battery modules for energy storage systems[J]. Energy Storage Science and Technology, 2025, 14(7): 2662-2674.

Figures/Tables 26

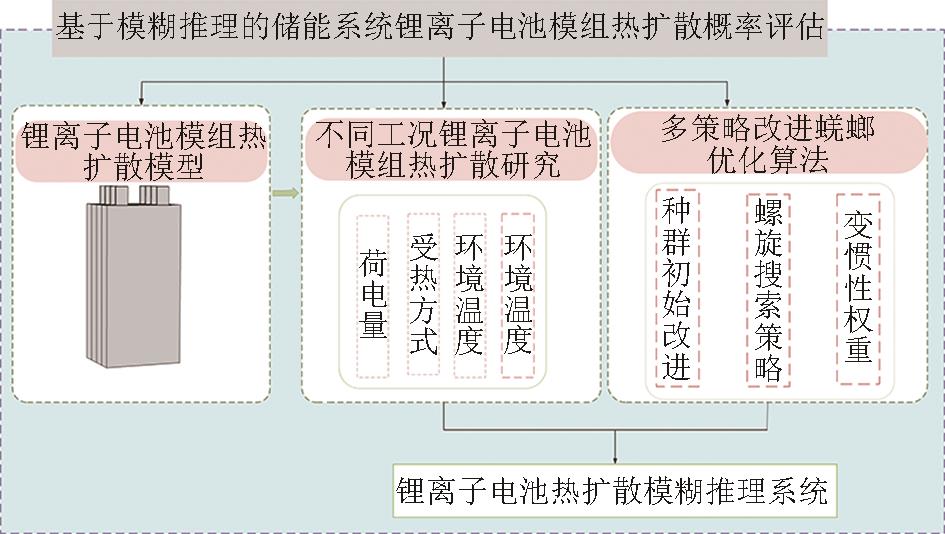

Fig. 1

Fig. 2

Table 1

Thermal property parameters of Li-ion battery"

组件	$ρ / (k g / m 3)$	$C p / [J / (g / K)]$	$k b a t / [W / (m ∙ K)]$
电芯	1367	2867	$k x = k y = 13.8$ ， $k z = 1.38$
正极极耳	2700	900	160
负极极耳	8960	385	146

Table 1

Table 2

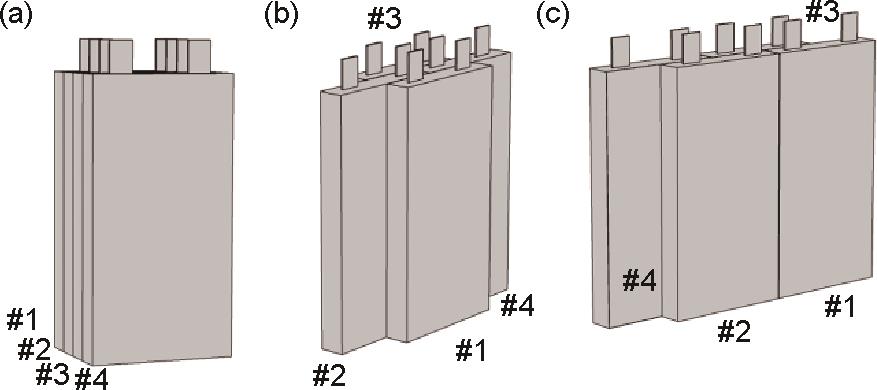

Thermal diffusion of LIBM in different arrangement modes"

编号	方式a		方式b		方式c
编号	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$
1	944	1199	952	1247	947	1573
2	970	1332	965	1589	978	1720
3	977	1502	965	1586	974	1791
4	992	1672	$999$	1720	993	2017

Table 2

Table 3

Thermal diffusion of LIBM under different heating modes"

编号	恒温加热		阶梯式升温加热		线性加热
编号	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$
1	944	1199	916	2654	886	3141
2	970	1332	972	2762	979	3241
3	977	1502	975	2914	981	3387
4	992	1672	1009	3079	1016	3546

Table 3

Table 4

Thermal diffusion of LIBM under different SOC"

编号	SOC=90%		SOC=75%		SOC=60%
编号	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$	$T m a x / ℃$	$t i / s$
$1$	918	1213	861	1234	808	1279
$2$	900	1354	884	1395	829	1445
$3$	938	1542	886	1590	830	1661
4	985	1721	920	1785	864	1874

Table 4

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Table 5

Fuzzy domains of fuzzy language values and input and output variables"

变量	模糊语言值	模糊域
$T s e l f$	$S T s e l f$ , $M T s e l f$ , $B T s e l f$	$0,1$
$T e n v$	$S T e n v$ , $M T e n v$ , $B T e n v$	$0,1$
$D N$	VN,SN,MN,BN	$0,3$
$P t r$	VP,SP,MP,RP,BP	$0,1$

Table 5

Fig. 7

Table 6

Fuzzy rules"

序号	$T e n v$	$T s e l f$	$D N$	$P t r$	序号	$T e n v$	$T s e l f$	$D N$	$P t r$	序号	$T e n v$	$T s e l f$	$D N$	$P t r$
1	$S T e n v$	S $T s e l f$	VN	MP	13	$M T e n v$	S $T s e l f$	VN	MP	25	$B T e n v$	S $T s e l f$	VN	RP
2			SN	SP	14			SN	SP	26			SN	MP
3			MN	VP	15			MN	SP	27			MN	SP
4			BN	VP	16			BN	VP	28			BN	SP

5		M $T s e l f$	VN	RP	17		M $T s e l f$	VN	RP	29		M $T s e l f$	VN	BP
6			SN	MP	18			SN	RP	30			SN	RP
7			MN	SP	19			MN	MP	31			MN	MP
8			BN	VP	20			BN	SP	32			BN	SP

9		B $T s e l f$	VN	BP	21		B $T s e l f$	VN	BP	33		B $T s e l f$	VN	BP
10			SN	RP	22			SN	BP	34			SN	BP
11			MN	RP	23			MN	RP	35			MN	RP
12			BN	MP	24			BN	MP	36			BN	RP

Table 6

Fig. 8

Fig. 9

Fig. 10

Table 7

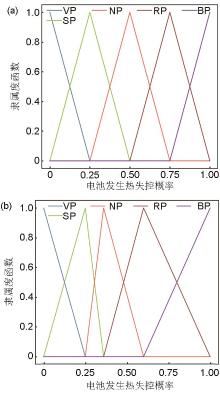

Figure.11

Table 8

Membership function parameters after applying IDBO optimization"

参数	取值	参数	取值
$μ 1$	0.66	$μ 5$	0.29
$μ 2$	0.34	$μ 6$	0.62
$μ 3$	2.72	$μ 7$	0.77
$μ 4$	0.87

Table 8

Fig. 12

Fig. 13

Table 9

Table 10

Fig. 14

Table 11

The probability of thermal runaway of different battery cells in LIBM under experimental conditions a"

编号	1号	2号	3号	4号
概率	0.984	0.25	0.44	0.19
$T m a x / ℃$	945	56	87	32

Table 11

Fig. 15
