带非均质盐膜多层异质结构吸热管超声导波传播特性仿真研究

doi:10.19799/j.cnki.2095-4239.2025.0136

储能科学与技术 ›› 2025, Vol. 14 ›› Issue (3): 1168-1176.doi: 10.19799/j.cnki.2095-4239.2025.0136

带非均质盐膜多层异质结构吸热管超声导波传播特性仿真研究

倪心怡¹(), 徐晓萌¹(), 曹逻炜², 李乐¹, 姚雪佳², 贾国栋²

^1.中国计量大学，浙江杭州 310018
^2.中国特种设备检测研究院，北京 100029

收稿日期:2025-02-20 修回日期:2025-03-16 出版日期:2025-03-28 发布日期:2025-04-28
通讯作者: 徐晓萌 E-mail:nxy551155@foxmail.com;xiaomeng.xu@cjlu.edu.cn
作者简介:倪心怡（2001—），女，硕士研究生，研究方向为超声导波检测技术，Email： nxy551155@foxmail.com；
基金资助:
国家重点研发计划项目(2023YFF0614902)

Simulation of ultrasonic guided wave propagation characteristics in multilayer heterogeneous absorber tubes with non-homogeneous salt films

Xinyi NI¹(), Xiaomeng XU¹(), Luowei CAO², Le LI¹, Xuejia YAO², Guodong JIA²

^1.China Jiliang University, Hangzhou 310018, Zhejiang, China
^2.China Special Equipment Inspection & Research Institute, Beijing 100029, China

Received:2025-02-20 Revised:2025-03-16 Online:2025-03-28 Published:2025-04-28
Contact: Xiaomeng XU E-mail:nxy551155@foxmail.com;xiaomeng.xu@cjlu.edu.cn

摘要/Abstract

摘要：

在塔式太阳能光热储能发电系统中，吸热管长期处于高温、强辐射及熔盐流体侵蚀等极端工况，其内壁易形成复杂的非均质盐膜结构，这种盐膜与涂层及管道本体共同构成的多层异质结构显著影响超声导波的传播特性和回波特征，增加了检测和分析的难度。为解决多层异质结构管道中超声导波传播特性分析的难题，本工作系统探究了非均质盐膜的生成机理及其影响因素，获取了盐膜的分布特性和尺度特征，并提出了一种基于随机过程和时间序列模型的盐膜表面生成及仿真方法。利用有限元软件COMSOL，构建了包含吸热管基体、涂层及盐膜的多层异质结构模型，并模拟了不同粗糙度盐膜对超声导波信号特征及其传播特性的影响。研究结果表明，盐膜的存在显著衰减了回波信号幅值，降低了传播速度，并引发了超声导波的模态转换；随着盐膜粗糙度的增加，回波能量呈非线性增大趋势，且模态转换波形的复杂性显著增加。本工作研究填补了多层异质结构管道声场仿真研究的空白，为超声导波检测吸热管缺陷提供了理论依据，同时为塔式光热系统的安全评估与维护提供了有力的技术支持。

关键词: 塔式太阳能吸热管, 超声导波, 多层异质结构, 非均质盐膜, 数值仿真

Abstract:

In tower-type solar thermal energy storage and power generation systems, absorber tubes operate under extreme conditions, including high temperatures, intense radiation, and molten salt fluid erosion. Over time, these conditions result in the formation of complex heterogeneous salt films on the inner tube walls. The salt film, combined with the coating and the tube substrate, creates a multi-layered heterogeneous structure that significantly affects the propagation characteristics and echo signals of ultrasonic guided waves. Consequently, defect detection and analysis are rendered complicated. Thus, this study systematically investigates the formation mechanisms and influencing factors of heterogeneous salt films, characterizing their distribution and scale properties. Further, a novel simulation method for salt film surfaces, based on stochastic processes and time series models, is proposed. Employing the finite element software COMSOL, a multi-layered heterogeneous model incorporating the tube substrate, coating, and salt film is developed to simulate the effects of salt films under varying roughness levels on ultrasonic guided wave signal characteristics and propagation behavior. The presence of salt films is found to significantly attenuate echo signal amplitude, reduce wave propagation velocity, and induce mode conversion in ultrasonic guided waves. Moreover, with increase in the salt film roughness, the echo energy exhibits a non-linear growth trend, and the complexity of mode-converted waveforms intensifies. Thus, the results highlight the importance of this study in terms of bridging a critical gap in the simulation of acoustic fields in multi-layered heterogeneous pipelines, thereby providing a theoretical foundation for ultrasonic guided wave-based defect detection in absorber tubes. Furthermore, this study offers robust technical support for the safety assessment and maintenance of tower-type solar thermal systems.

Key words: tower-type solar absorber tube, ultrasonic guided waves, multilayer heterogeneous structures, absorber tubes, numerical simulation

中图分类号:

TB 559

倪心怡, 徐晓萌, 曹逻炜, 李乐, 姚雪佳, 贾国栋. 带非均质盐膜多层异质结构吸热管超声导波传播特性仿真研究[J]. 储能科学与技术, 2025, 14(3): 1168-1176.

Xinyi NI, Xiaomeng XU, Luowei CAO, Le LI, Xuejia YAO, Guodong JIA. Simulation of ultrasonic guided wave propagation characteristics in multilayer heterogeneous absorber tubes with non-homogeneous salt films[J]. Energy Storage Science and Technology, 2025, 14(3): 1168-1176.

图/表 11

图1

图2

图3

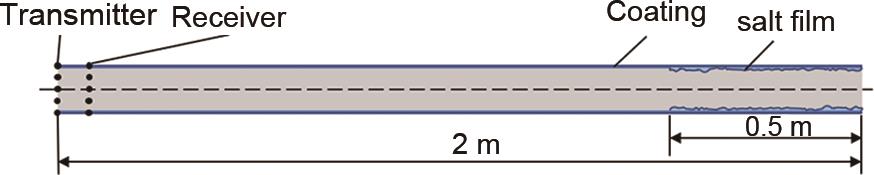

图4

表1

图5

图6

表2

图7

图8

图9

参考文献 17

1	许家鸣, 胡健, 陈冬, 等. 塔式太阳能腔体吸热器光热耦合模型与试验[J]. 太阳能学报, 2023, 44(2): 15-21. DOI: 10.19912/j.0254-0096.tynxb.2021-1058.
	XU J M, HU J, CHEN D, et al. Photo-thermal coupling model and experiment of solar tower cavity receiver[J]. Acta Energiae Solaris Sinica, 2023, 44(2): 15-21. DOI: 10.19912/j.0254-0096.tynxb.2021-1058.
2	王晓娟, 杨帆, 王错, 等. 面向超声导波检测的管道腐蚀建模及仿真实现[J]. 仪器仪表学报, 2023, 44(5): 71-80. DOI: 10.19650/j.cnki.cjsi.J2210677.
	WANG X J, YANG F, WANG C, et al. Pipeline corrosion modeling and simulation for guided-waves-based inspection[J]. Chinese Journal of Scientific Instrument, 2023, 44(5): 71-80. DOI: 10.19650/j.cnki.cjsi.J2210677.
3	马君旺. 两种复杂构件的超声导波缺陷监测关键技术研究与应用[D]. 杭州: 浙江大学, 2023. DOI: 10.27461/d.cnki.gzjdx. 2023.002469.
	MA J W. Key technologies and applications for defect monitoring of two complex components using ultrasonic guided waves [D]. Hangzhou: Zhejiang University, 2023. DOI: 10.27461/d.cnki.gzjdx.2023.002469.
4	WEN J W, JIANG C, CHEN H. Detection of multi-layered bond delamination defects based on full waveform inversion[J]. Sensors, 2024, 24(12): 4017. DOI:10.3390/s24124017.
5	周友行, 谢宝安, 高腾腾, 等. 换热管表面的分形表征及积灰特性数值模拟[J]. 中国粉体技术, 2024, 30(6): 85-96. DOI: 10.13732/j.issn.1008-5548.2024.06.008.
	ZHOU Y H, XIE B A, GAO T T, et al. Fractal characterization of heat exchange tube surfaces and numerical simulation on ash deposition characteristics[J]. China Powder Science and Technology, 2024, 30(6): 85-96. DOI: 10.13732/j.issn.1008-5548. 2024.06.008.
6	LØVSTAD A, CAWLEY P. The reflection of the fundamental torsional guided wave from multiple circular holes in pipes[J]. NDT & E International, 2011, 44(7): 553-562. DOI: 10.1016/j.ndteint.2011.05.010.
7	张俊峰, 彭怀午, 田家铭, 等. 塔式太阳能吸热器表面热流密度预测及优化[J]. 太阳能学报, 2023, 44(12): 136-142. DOI: 10.19912/j.0254-0096.tynxb.2022-1393.
	ZHANG J F, PENG H W, TIAN J M, et al. Prediction and optimization of heat flux of surface receiver in tower concentrating solar power systen[J]. Acta Energiae Solaris Sinica, 2023, 44(12): 136-142. DOI: 10.19912/j.0254-0096.tynxb. 2022-1393.
8	BOUDRAA B, BESSAÏH R. Heat transfer analysis of turbulent forced-convection flow in a wavy absorber tube containing a molten salt-based hybrid nanofluid filled with a porous material[J]. Numerical Heat Transfer, Part A: Applications, 2023: 1-23. DOI:10.1080/10407782.2023.2235072.
9	程堂华, 韩一峰, 蒋川, 等. 塔式太阳能热管接收器表面热流密度分布及光学性能研究[J]. 太阳能学报, 2022, 43(12): 98-103. DOI: 10.19912/j.0254-0096.tynxb.2022-0126.
	CHENG T H, HAN Y F, JIANG C, et al. Heat flux distribution and optical performance of heat pipe receiver in solar tower system[J]. Acta Energiae Solaris Sinica, 2022, 43(12): 98-103. DOI: 10.19912/j.0254-0096.tynxb.2022-0126.
10	贾培英, 崔成云. 塔式熔盐吸热器热效率计算数值研究[J]. 锅炉制造, 2022(2): 29-30, 46. DOI: 10.3969/j.issn.1674-1005. 2022. 02.012.
	JIA P Y, CUI C Y. Numerical study on the thermal efficiency of tower molten salt receiver [J]. Boiler Manufacturing, 2022(2): 29-30, 46. DOI: 10.3969/j.issn.1674-1005.2022.02.012.
11	CHANG C, PENG X D, NIE B J, et al. Heat transfer enhancement of a molten salt parabolic trough solar receiver with concentric and eccentric pipe inserts[J]. Energy Procedia, 2017, 142: 624-629. DOI: 10.1016/j.egypro.2017.12.103.
12	STARKE A R, CARDEMIL J M, BONINI V R B, et al. Assessing the performance of novel molten salt mixtures on CSP applications[J]. Applied Energy, 2024, 359: 122689. DOI: 10. 1016/j.apenergy.2024.122689.
13	GRAY V, LIPPIATT K, BELL S, et al. Identifying structural integrity issues for molten salt phase change material thermal storage systems from corrosion behavior[C]// Solarpaces 2019: International Conference on Concentrating Solar Power and Chemical Energy Systems. AIP Publishing, 2020: 10.1063/5.0028680. DOI:10.1063/5.0028680.
14	SUTTER F, OSKAY C, GALETZ M C, et al. Dynamic corrosion testing of metals in solar salt for concentrated solar power[J]. Solar Energy Materials and Solar Cells, 2021, 232: 111331. DOI: 10.1016/j.solmat.2021.111331.
15	李高之. 不规则型面表面粗糙度检测技术研究[D]. 长沙: 国防科技大学, 2019. DOI: 10.27052/d.cnki.gzjgu.2019.000191.
	LI G Z. Research on surface roughness detection technology of irregular profile[D]. Changsha: National University of Defense Technology, 2019. DOI: 10.27052/d.cnki.gzjgu.2019.000191.
16	王晨雨, 葛明媚, 潘彧, 等. 光切显微镜测量粗糙度实验仿真视频制作[J]. 轻工科技, 2024, 40(6): 136-139.
	WANG C Y, GE M M, PAN Y, et al. Experimental simulation video production for roughness measurement using interferometric microscopy [J]. Light Industry Science and Technology, 2024, 40(6): 136-139.
17	陈辉, 胡元中, 王慧, 等. 粗糙表面计算机模拟[J]. 润滑与密封, 2006, 31(10): 52-55, 59. DOI: 10.3969/j.issn.0254-0150. 2006.10.016.
	CHEN H, HU Y Z, WANG H, et al. Computer simulation of rough surfaces[J]. Lubrication Engineering, 2006, 31(10): 52-55, 59. DOI: 10.3969/j.issn.0254-0150.2006.10.016.

材料名称	密度/(kg/m³)	弹性模量/GPa	泊松比
黑钴(涂层)	8900	167.7	0.32
Inconel 625(基底)	8440	205	0.308
熔盐(盐膜)	1899	25	0.25

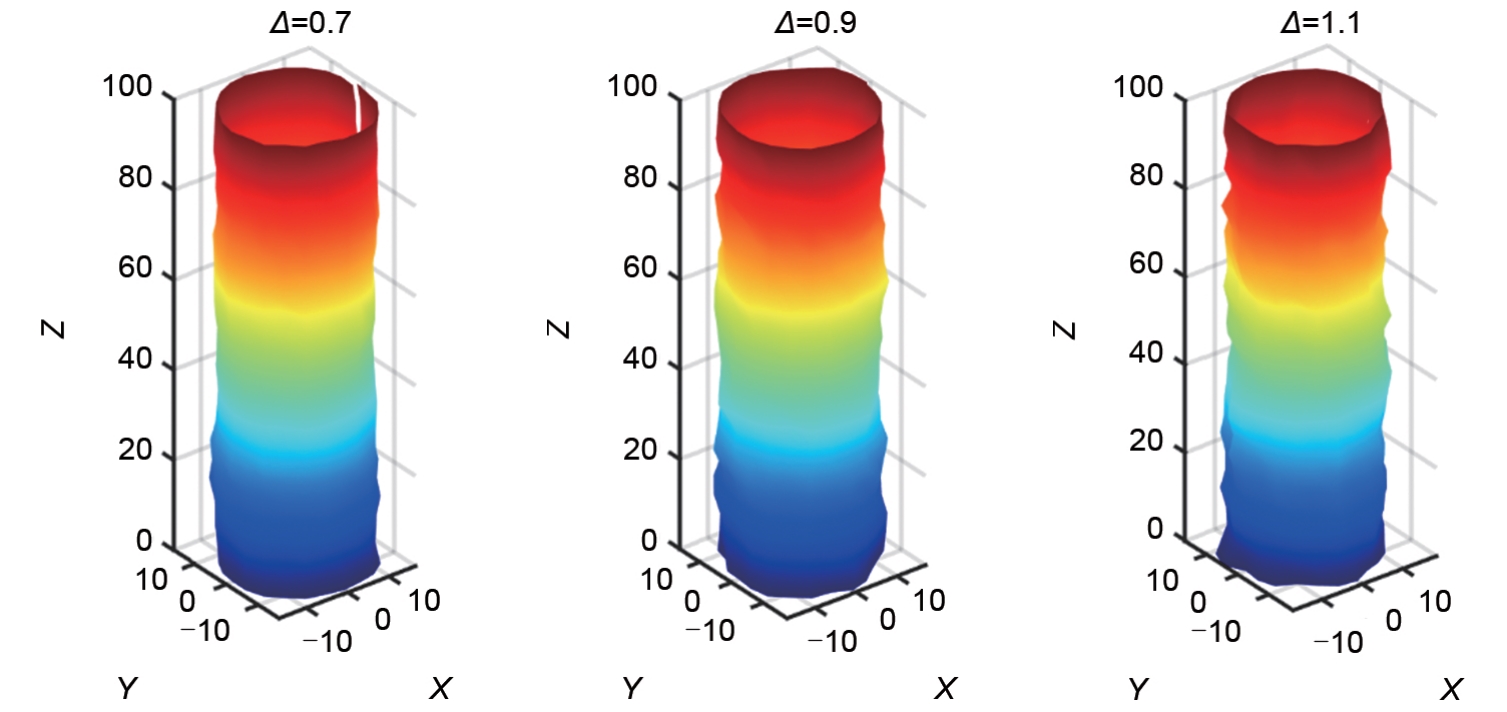

特征参数	Δ=0.7	Δ=0.9	Δ=1.1
平均厚度/mm	0.15	0.15	0.15
最大厚度/mm	1.61	1.72	1.75
轴向长度/mm	500	500	500
