考虑储能SOC的分布式光伏一次调频优化控制方法

doi:10.19799/j.cnki.2095-4239.2025.0295

摘要/Abstract

摘要：

随着分布式光伏等可再生能源的并网，传统调频资源已无法满足日益增长的调频需求。为更好地改善电网频率特性，发挥分布式光伏的调频潜力，提出了考虑储能SOC的分布式光伏一次调频优化控制方法。首先，根据分布式光伏以及储能设备的频率响应特性，建立了并网频率控制模型；然后，结合冠豪猪优化算法(CPO)对模型预测控制(MPC)的关键参数进行自适应调整，在此基础上考虑分布式光伏的容量限制以及储能SOC特征，构建了一次调频参数优化模型并实时更新状态空间方程，以此实现对分布式光伏频率支撑能力的精确控制；最后，通过Matlab/Simulink仿真算例对比不同控制策略下的调频性能。结果表明，该算法相比于优化前的控制策略具有更高的控制精度和更快的响应速度，且在延时和连续扰动场景下仍能表现出较好的控制性能，具有较强的鲁棒性和抗干扰能力。

关键词: 储能荷电状态, 分布式光伏, 模型预测控制, 参数优化

Abstract:

With the integration of renewable energy sources such as distributed photovoltaics, traditional frequency regulation resources can no longer meet the growing frequency regulation demand. To better improve the frequency characteristics of power grids and unleash the frequency regulation potential of distributed photovoltaics, we propose an optimization control method for distributed photovoltaic primary frequency regulation considering energy storage SOC. First, a grid-connected frequency control model was developed based on the frequency response characteristics of distributed photovoltaic and energy storage devices. Second, combined with the Guanhao pig optimization algorithm, the key parameters of the predictive control model were adaptively adjusted. Based on this, considering the capacity limitation of distributed photovoltaics and the characteristics of energy storage SOC, a frequency modulation parameter optimization model was developed, and the state space equation was updated in real time to achieve precise control of the frequency support capability of distributed photovoltaics. Finally, by comparing the frequency modulation performance under different control strategies through MATLAB/Simulink simulation examples, the results show that the optimized control algorithm has higher control accuracy and faster response speed than the pre-optimized control strategy. Moreover, the optimized algorithm demonstrates good control performance in delay scenarios with good robustness and anti-interference ability.

Key words: energy storage state of charge, distributed photovoltaics, model predictive control, parameter optimization

中图分类号:

TM 712

张天海, 杨小龙, 周帅, 汤可怡, 刘鑫. 考虑储能SOC的分布式光伏一次调频优化控制方法[J]. 储能科学与技术, 2025, 14(10): 3796-3807.

Tianhai ZHANG, Xiaolong YANG, Shuai ZHOU, Keyi TANG, Xin LIU. Optimization control method for distributed photovoltaic primary frequency regulation considering energy storage SOC[J]. Energy Storage Science and Technology, 2025, 14(10): 3796-3807.

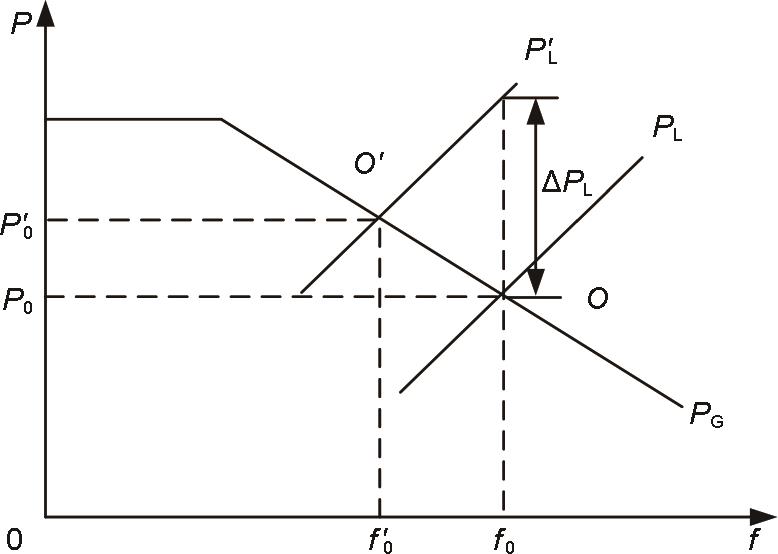

图/表 4

参考文献 22

[1]	孙大雁, 耿建, 杨胜春, 等. 新型电力系统环境下煤电与新能源等多元资源协调优化运行及其挑战[J]. 电网技术, 2024, 48(8): 3105-3113. DOI: 10.13335/j.1000-3673.pst.2024.0713.
	SUN D Y, GENG J, YANG S C, et al. Challenges of coordinated and optimized operation of coal power and new energy and other diversified resources in new power system[J]. Power System Technology, 2024, 48(8): 3105-3113. DOI: 10.13335/j.1000-3673.pst.2024.0713.
[2]	刘刚, 闵金, 宋伟, 等. 基于K-Means和GBRT的分布式光伏中短期发电量预测[J]. 能源与环保, 2023, 45(3): 210-215, 221. DOI: 10. 19389/j.cnki.1003-0506.2023.03.036.
	LIU G, MIN J, SONG W, et al. Medium-short term power generation prediction of distributed photovoltaic based on K-Means and GBRT[J]. China Energy and Environmental Protection, 2023, 45(3): 210-215, 221. DOI: 10.19389/j.cnki.1003-0506.2023.03.036.
[3]	鲁宗相, 李佳明, 乔颖, 等. 新能源场站快速频率支撑能力评估研究现状与技术展望[J]. 电力系统自动化, 2024, 48(10): 1-19.
	LU Z X, LI J M, QIAO Y, et al. Research status and technology prospects of fast frequency support capability assessment for renewable energy stations[J]. Automation of Electric Power Systems, 2024, 48(10): 1-19.
[4]	张天海, 汤可怡, 周丽丽, 等. 基于SSA-MPC-WSO算法的分布式光伏频率控制策略研究[J]. 水利水电技术(中英文), 2024, 55(S2): 831-838. DOI: 10.13928/j.cnki.wrahe.2024.S1.126.
	ZHANG T H, TANG K Y, ZHOU L L, et al. Research on distributed PV frequency control strategy based on SSA-MPC-WSO algorithm[J]. Water Resources and Hydropower Engineering, 2024, 55(S2): 831-838. DOI: 10.13928/j.cnki.wrahe.2024.S1.126.
[5]	许海园, 程帆, 徐业琰, 等. 基于分布式光伏和ZIP负荷协同的系统频率控制方法[J]. 智慧电力, 2022, 50(4): 43-50.
	XU H Y, CHENG F, XU Y Y, et al. System frequency control method based on coordination between distributed photovoltaic and ZIP load[J]. Smart Power, 2022, 50(4): 43-50.
[6]	李红, 任永峰. 含可再生能源的多微网系统负荷频率控制策略[J]. 可再生能源, 2023, 41(5): 699-704. DOI: 10.13941/j.cnki.21-1469/tk. 2023.05.007.
	LI H, REN Y F. Load frequency control strategy of multi-microgrid systems containing renewable energy[J]. Renewable Energy Resources, 2023, 41(5): 699-704. DOI: 10.13941/j.cnki.21-1469/tk.2023.05.007.
[7]	钟诚, 姜志富, 张翔宇, 等. 含风光出力随机性的独立微电网二次频率控制[J]. 太阳能学报, 2024, 45(1): 523-533. DOI: 10.19912/j. 0254-0096.tynxb.2022-1463.
	ZHONG C, JIANG Z F, ZHANG X Y, et al. Secondary frequency control of islanded microgrid considering wind and solar stochastics[J]. Acta Energiae Solaris Sinica, 2024, 45(1): 523-533. DOI: 10. 19912/j.0254-0096.tynxb.2022-1463.
[8]	曹永吉, 张江丰, 王天宇, 等. 基于分布式模型预测控制的自适应二次调频策略[J].上海交通大学学报, 2025, 59(3): 333-341. DOI:10. 16183/j.cnki.jsjtu.2023.352.
	CAO Y J, ZHANG J F, WANG T Y, et al. Self-adaptive secondary frequency regulation strategy based on distributed model predictive control[J]. Journal of Shanghai Jiaotong University, 2025, 59(3): 333-341. DOI:10.16183/j.cnki.jsjtu.2023.352.
[9]	刘传斌, 矫文书, 吴秋伟, 等. 基于模型预测控制的风储联合电场参与电网二次调频策略[J]. 上海交通大学学报, 2024, 58(1): 91-101. DOI: 10.16183/j.cnki.jsjtu.2022.217.
	LIU C B, JIAO W S, WU Q W, et al. Strategy of wind-storage combined system participating in power system secondary frequency regulation based on model predictive control[J]. Journal of Shanghai Jiao Tong University, 2024, 58(1): 91-101. DOI: 10.16183/j.cnki.jsjtu.2022.217.
[10]	智筠贻, 凌浩恕, 吴昊, 等. 风光储多能互补能源系统容量配置优化[J]. 储能科学与技术, 2024, 13(11): 3874-3888. DOI: 10.19799/j.cnki.2095-4239.2024.0377.
	ZHI J Y, LING H S, WU H, et al. Optimization of capacity configuration for multi-energy complementary systems using wind, solar, and energy storage[J]. Energy Storage Science and Technology, 2024, 13(11): 3874-3888. DOI: 10.19799/j.cnki.2095-4239.2024.0377.
[11]	黎萌, 林章岁, 林毅, 等. 基于改进模型预测控制的分布式储能辅助调频控制方法[J]. 水利水电技术(中英文), 2023, 54(S2): 447-456. DOI: 10.13928/j.cnki.wrahe.2023.S2.071.
	LI M, LIN Z S, LIN Y, et al. Distributed energy storage assisted frequency regulation control method based onimproved model predictive control[J]. Water Resources and Hydropower Engineering, 2023, 54(S2): 447-456. DOI: 10.13928/j.cnki.wrahe.2023.S2.071.
[12]	张恒旭, 高志民, 曹永吉, 等. 高比例可再生能源接入下电力系统惯量研究综述及展望[J]. 山东大学学报(工学版), 2022, 52(5): 1-13. DOI: 10.6040/j.issn.1672-3961.0.2022.237.
	ZHANG H X, GAO Z M, CAO Y J, et al. Review and prospect of research on power system inertia with high penetration of renewable energy source[J]. Journal of Shandong University (Engineering Science), 2022, 52(5): 1-13. DOI: 10.6040/j.issn. 1672-3961.0.2022.237.
[13]	郭士琦, 郭东, 尚国政, 等. 互联电网控制性能评价标准下储能集群参与AGC控制策略[J]. 储能科学与技术, 2024, 13(11): 4005-4016. DOI: 10.19799/j.cnki.2095-4239.2024.0518.
	GUO S Q, GUO D, SHANG G Z, et al. AGC control strategy incorporating energy storage cluster participation under control performance standards for interconnected grids[J]. Energy Storage Science and Technology, 2024, 13(11): 4005-4016. DOI: 10.19799/j.cnki.2095-4239.2024.0518.
[14]	杨牧青, 王程, 葛辰雨, 等. 考虑多阻尼状态与限幅环节的新能源电力系统一次调频备用整定[J]. 中国电机工程学报, 2024, 44(1): 147-160. DOI: 10.13334/j.0258-8013.pcsee.221274.
	YANG M Q, WANG C, GE C Y, et al. Primary frequency regulation reserve procurement of renewable energy power system considering multiple damping states and governor limiters[J]. Proceedings of the CSEE, 2024, 44(1): 147-160. DOI: 10. 13334/j.0258-8013.pcsee.221274.
[15]	付媛, 万怿, 张祥宇, 等. 储能虚拟惯量主动支撑与调频状态转移控制[J]. 中国电机工程学报, 2024, 44(7): 2628-2641. DOI: 10.13334/j.0258-8013.pcsee.222011.
	FU Y, WAN Y, ZHANG X Y, et al. Energy storage virtual inertia active support and frequency modulation state transfer control[J]. Proceedings of the CSEE, 2024, 44(7): 2628-2641. DOI: 10. 13334/j.0258-8013.pcsee.222011.
[16]	赵晶晶, 张宇, 杜明, 等. 基于模型预测控制的新型电力系统光储电站调频控制策略[J]. 电力建设, 2022, 43(11): 99-107.
	ZHAO J J, ZHANG Y, DU M, et al. Frequency regulation control strategy based on model predictive control for combined PV and energy storage power station in new power system[J]. Electric Power Construction, 2022, 43(11): 99-107.
[17]	ABDEL-BASSET M, MOHAMED R, ABOUHAWWASH M. Crested porcupine optimizer: A new nature-inspired metaheuristic[J]. Knowledge-Based Systems, 2024, 284: 111257. DOI: 10.1016/j.knosys.2023. 111257.
[18]	胡英杰, 李强, 李群. 考虑容量限制的构网型光储系统惯量与一次调频参数优化配置方法[J]. 中国电力, 2024, 57(10): 115-122.
	HU Y J, LI Q, LI Q. Co-optimization of inertia and droop control coefficient for grid-forming photovoltaic-storage system considering capacity limits[J]. Electric Power, 2024, 57(10): 115-122.
[19]	吴毅, 孟亚宏, 张怡, 等. 配电台区电池储能系统优化均衡控制研究[J]. 储能科学与技术, 2023, 12(5): 1655-1663. DOI: 10.19799/j.cnki. 2095-4239.2022.0759.
	WU Y, MENG Y H, ZHANG Y, et al. Optimal equalization control of battery energy storage systems in power distribution station area[J]. Energy Storage Science and Technology, 2023, 12(5): 1655-1663. DOI: 10.19799/j.cnki.2095-4239.2022.0759.
[20]	叶林, 王凯丰, 赖业宁, 等. 低惯量下电力系统频率特性分析及电池储能调频控制策略综述[J]. 电网技术, 2023, 47(2): 446-464. DOI: 10. 13335/j.1000-3673.pst.2022.1269.
	YE L, WANG K F, LAI Y N, et al. Review of frequency characteristics analysis and battery energy storage frequency regulation control strategies in power system under low inertia level[J]. Power System Technology, 2023, 47(2): 446-464. DOI: 10.13335/j.1000-3673.pst.2022.1269.
[21]	郭小龙, 杨桂兴, 张江飞, 等. 考虑时空特性与多指标约束的电力系统惯量需求评估[J]. 高电压技术, 2024, 50(1): 148-156. DOI: 10. 13336/j.1003-6520.hve.20230189.
	GUO X L, YANG G X, ZHANG J F, et al. Assessment of inertia demand in power system considering spatio-temporal characteristics and multi-index constraints[J]. High Voltage Engineering, 2024, 50(1): 148-156. DOI: 10.13336/j.1003-6520.hve.20230189.
[22]	赵宁波, 王开艳, 李沛航, 等. 考虑基荷的联合电力系统多目标分层优化调度[J]. 现代电力, 2024, 41(1): 47-54. DOI: 10.19725/j.cnki. 1007-2322.2022.0179.
	ZHAO N B, WANG K Y, LI P H, et al. Multi-objective hierarchical optimal scheduling of combined power systems considering base loads[J]. Modern Electric Power, 2024, 41(1): 47-54. DOI: 10. 19725/j.cnki.1007-2322.2022.0179.

符号	含义	数值
H_G	同步机时间惯性常数	6
D	负荷频率响应系数	0.01
k_E	储能调频增益系数	10
T_E	储能惯性响应系数	0.3
k_d	分布式光伏的一次调频控制增益	8
T_PV1	调频控制指令下发到光伏逆变器的时间常数	0.2
T_PV2	光伏逆变器的执行时间常数	0.5
P_L/p.u.	负荷扰动	0.15

场景	最大频率波动/Hz	调节时间/s
场景一	0.374	7.42
场景二	0.298	6.53
场景三	0.221	5.21

场景	最大频率波动/Hz	调节时间/s
场景一	0.408	11.51
场景二	0.342	8.47
场景三	0.253	5.92
