State of charge estimation of lithium iron phosphate batteries based on force-electric-temperature signals and a CNN-BiLSTM model

doi:10.19799/j.cnki.2095-4239.2025.0062

Abstract

Abstract:

The state of charge (SOC) of lithium batteries is a critical parameter for battery management systems. However, SOC cannot be measured directly because it is strongly coupled to the intricate electrochemical characteristics of the battery. Although data-driven methods recently demonstrated significant potential in SOC estimation, their accuracy depends greatly on the precision of input data. SOC estimation of lithium iron phosphate (LiFePO₄) batteries is challenging because the battery exhibits voltage plateau characteristics: voltage fluctuations and noise substantially degrade the estimation reliability. To overcome this challenge, this study proposes a hybrid experimental and data-driven approach that incorporates battery expansion force as a novel input dimension, thereby synergizing the electrochemical and mechanical properties of the battery to mitigate the impact of voltage plateau on SOC estimation. Experiments were conducted at four environmental temperatures and under two dynamic current test conditions. The acquired data were used to train and validate neural network models for evaluating the SOC estimation accuracy and to verify the feasibility and robustness of the proposed method. Furthermore, a hybrid model combining a convolutional neural network (CNN) and a bidirectional long short-term memory (Bi-LSTM) network was developed to simultaneously capture local temporal patterns and long-term dependencies in sequential data, further enhancing the SOC estimation reliability. The results indicated that the proposed method remarkably improved the SOC estimation accuracy for LiFePO₄ batteries, achieving an average reduction of 43.82% in the root-mean-square error (RMSE) compared to methods that did not incorporate expansion force signals. Moreover, the CNN-BiLSTM model outperformed conventional neural network models, achieving a maximum RMSE reduction of 53.88%. Thus, this study provides a novel perspective for high-precision SOC estimation and offers valuable knowledge for advancing the performance of battery management systems.

Key words: iron phosphate lithium battery, state of charge estimation, expansion force, data-driven, bi-directional long short-term memory model

CLC Number:

TM 912

Haoyuan MA, Yan WU, Tong WANG, Jinyang HU, Jia LI, Yuqi HUANG. State of charge estimation of lithium iron phosphate batteries based on force-electric-temperature signals and a CNN-BiLSTM model[J]. Energy Storage Science and Technology, 2025, 14(7): 2865-2874.

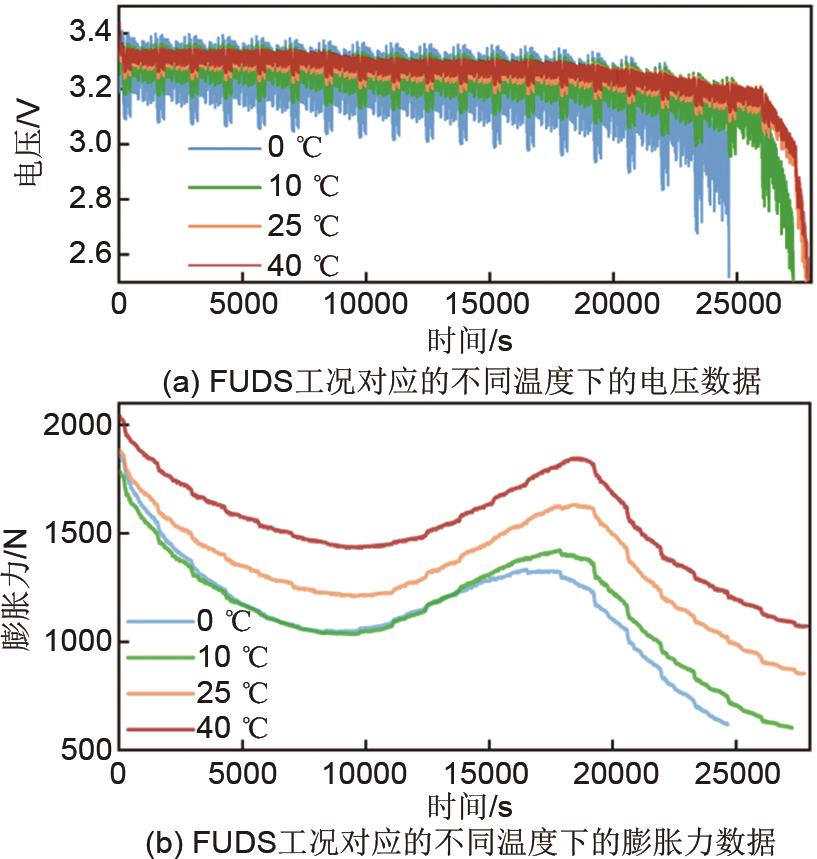

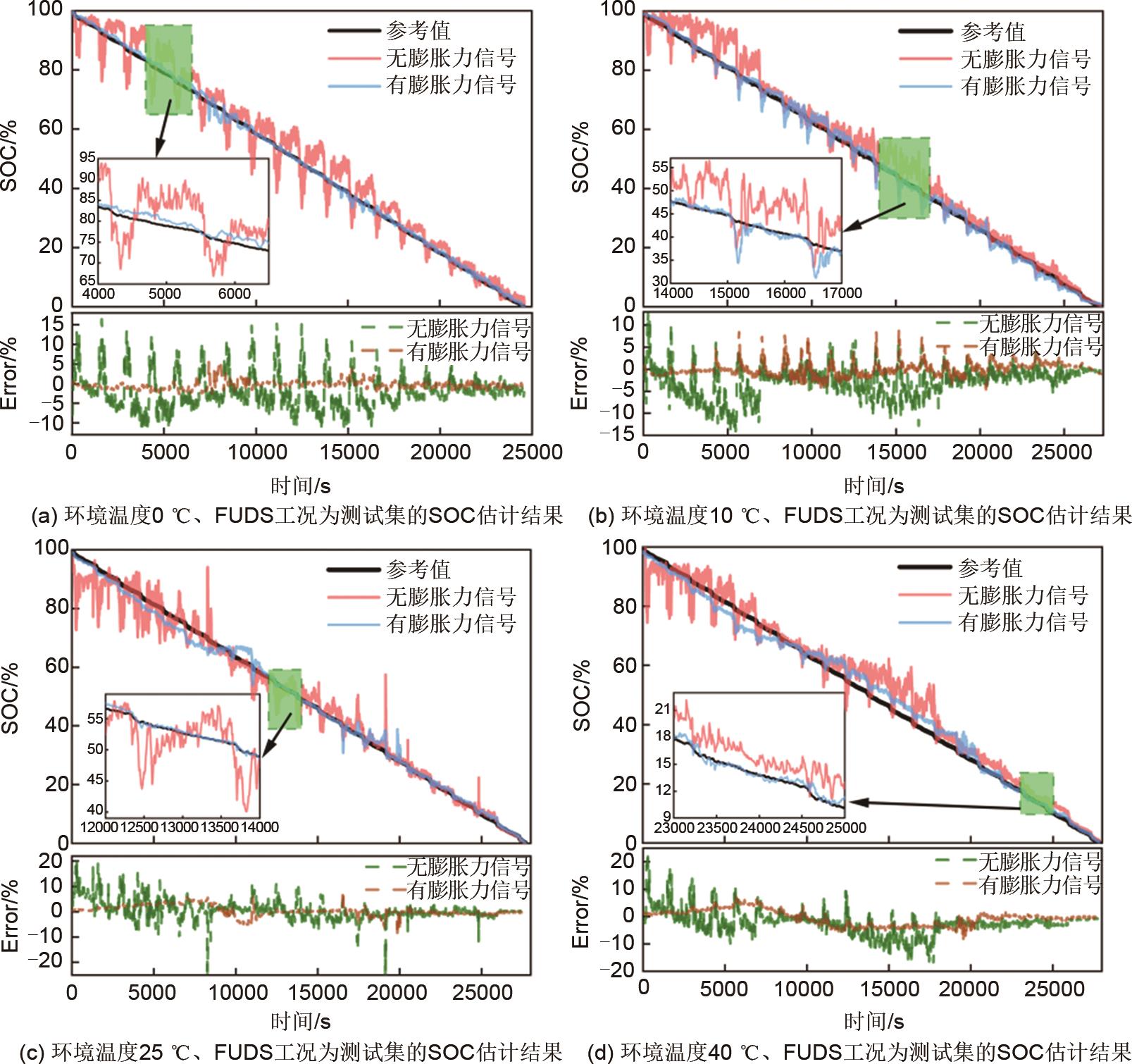

Figures/Tables 14

Table 1

Specifications of the test battery"

规格	参数
阴极材料	磷酸铁锂LFP
阳极材料	石墨
尺寸/mm×mm×mm	185×135×29.3
重量/g	1395±50
标称电压U/V	3.2
标称容量C/Ah	50
充电截止电压 $U'$ /V	3.65
放电截止电压 $U'$ /V	2.5
充电温度 $T 1$ /℃	0~55
放电温度 $T 2$ /℃	-20~55
