含碳雾滴燃烧制备微纳空心球型富锂锰基正极材料及性能研究

doi:10.19799/j.cnki.2095-4239.2024.1014

储能科学与技术 ›› 2025, Vol. 14 ›› Issue (4): 1362-1368.doi: 10.19799/j.cnki.2095-4239.2024.1014

含碳雾滴燃烧制备微纳空心球型富锂锰基正极材料及性能研究

陈志铭¹(), 储爱民¹(), 周子榆¹, 赵玉萍², 陈友明¹

^1.湖南科技大学材料科学与工程学院
^2.湖南科技大学土木工程学院，湖南湘潭 411201

收稿日期:2024-10-31 修回日期:2024-11-24 出版日期:2025-04-28 发布日期:2025-05-20
通讯作者: 储爱民 E-mail:2368445516@qq.com;chuaiminme@163.com
作者简介:陈志铭（1999—），男，硕士研究生，研究方向为锂离子电池富锂锰基正极材料制备与性能，E-mail：2368445516@qq.com；
基金资助:
国家自然科学基金(52174344);湖南省自然科学基金(2024JJ7178)

Preparation and performance of Li-rich cathode material by carbon-containing droplet combustion

Zhiming CHEN¹(), Aimin CHU¹(), Ziyu ZHOU¹, Yuping Zhao², Youming CHEN¹

^1.School of Materials Science and Engineering, Hunan University of Science and Technology
^2.School of Civil and Engineering, Hunan University of Science and Technology, Xiangtan 411201, Hunan, China

Received:2024-10-31 Revised:2024-11-24 Online:2025-04-28 Published:2025-05-20
Contact: Aimin CHU E-mail:2368445516@qq.com;chuaiminme@163.com

摘要/Abstract

摘要：

为了满足市场对高容量锂离子电池正极材料的需求，运用含碳雾滴燃烧法制备C/Li_1.2Ni_0.13Co_0.13Mn_0.54O₂复合前驱体，通过煅烧除碳获得富锂锰基正极材料，并对比溶液燃烧法制备的样品。利用X射线衍射仪、扫描电子显微镜观测制备样品的微观形貌和晶体结构差异，使用电池测试系统和电化学工作站，对两种方法制备正极材料的电化学性能进行对比分析。结果表明，含碳雾滴燃烧制备的Li_1.2Ni_0.13Co_0.13Mn_0.54O₂在0.1C倍率下首周放电比容量达到了390.89 mAh/g，在5C电流密度下，仍有185.06 mAh/g；1C倍率下循环充放电100周放电容量保持在108.78 mAh/g，展示了较好的容量与倍率性能，但其循环性能略低于溶液燃烧法制备的样品。

关键词: 含碳雾滴燃烧, 富锂锰基, 正极材料, 电化学

Abstract:

To meet the market demand for high-capacity lithium-ion battery cathode materials, C/Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ composite precursors were prepared using carbon-containing droplet combustion. Lithium-rich manganese-based cathode materials were then obtained through calcination and carbon removal. The electrochemical performance of these materials was compared with that of samples prepared using the solution combustion method. X-ray diffraction (XRD) and scanning electron microscopy (SEM) were employed to analyze the microstructure and crystal morphology of the prepared samples. Electrochemical properties were evaluated using a battery testing system and an electrochemical workstation. The results indicate that Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ prepared via carbon-containing droplet combustion exhibited an initial discharge specific capacity of 390.89 mAh/g at a 0.1C rate and 185.06 mAh/g at a 5C current density. After 100 cycles at a 1C rate, the discharge capacity remained at 108.78 mAh/g, demonstrating good capacity retention and rate performance. However, its cycling stability was slightly lower than that of samples obtained via the solution combustion method.

Key words: carbon-containing droplet combustion, lithium-ion battery, Li-rich Mn-base cathode, electrochemical

中图分类号:

TM 911

陈志铭, 储爱民, 周子榆, 赵玉萍, 陈友明. 含碳雾滴燃烧制备微纳空心球型富锂锰基正极材料及性能研究[J]. 储能科学与技术, 2025, 14(4): 1362-1368.

Zhiming CHEN, Aimin CHU, Ziyu ZHOU, Yuping Zhao, Youming CHEN. Preparation and performance of Li-rich cathode material by carbon-containing droplet combustion[J]. Energy Storage Science and Technology, 2025, 14(4): 1362-1368.

图/表 8

图1

图2

图3

表1

图4

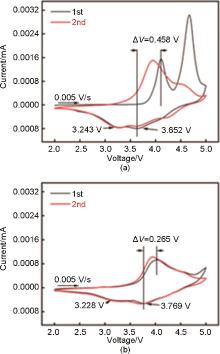

图5

图6

图7

参考文献 22

1	QIN H Q, MO Z Z, LU J, et al. Ultrafast transformation of natural graphite into self-supporting graphene as superior anode materials for lithium-ion batteries[J]. Carbon, 2024, 216: 118559. DOI: 10.1016/j.carbon.2023.118559.
2	ACHARYA T, PATHAK A D, PATI S. High-temperature electrochemical performance of lithium titanate (Li₄Ti₅O₁₂) anode material in secondary lithium-ion batteries[J]. Journal of Energy Storage, 2023, 67: 107529. DOI: 10.1016/j.est.2023.107529.
3	ZHAO L Y, BENNETT J C, GEORGE A, et al. SiC-free carbon-silicon alloys prepared by delithiation as lithium-ion battery negative electrodes[J]. Chemistry of Materials, 2019, 31(11): 3883-3890. DOI: 10.1021/acs.chemmater.8b03898.
4	ZHANG J C, LIU Z D, ZENG C H, et al. High-voltage LiCoO₂ cathodes for high-energy-density lithium-ion battery[J]. Rare Metals, 2022, 41(12): 3946-3956. DOI: 10.1007/s12598-022-02070-6.
5	STENINA I, MINAKOVA P, KULOVA T, et al. Electrochemical properties of LiFePO₄ cathodes: The effect of carbon additives[J]. Batteries, 2022, 8(9): 111. DOI: 10.3390/batteries8090111.
6	HU S J, PILLAI A S, LIANG G M, et al. Li-rich layered oxides and their practical challenges: Recent progress and perspectives[J]. Electrochemical Energy Reviews, 2019, 2(2): 277-311. DOI: 10. 1007/s41918-019-00032-8.
7	SONG J, LI B, CHEN Y Y, et al. A high-performance Li-Mn-O Li-rich cathode material with rhombohedral symmetry via intralayer Li/Mn disordering[J]. Advanced Materials, 2020, 32(16): 2000190. DOI: 10.1002/adma.202000190.
8	LIU W, XU J P, KAN W H, et al. Enhancing ionic transport and structural stability of lithium-rich layered oxide cathodes via local structure regulation[J]. Small, 2023, 19(41): 2302912. DOI: 10. 1002/smll.202302912.
9	ZHANG K, LI B, ZUO Y X, et al. Voltage decay in layered Li-rich Mn-based cathode materials[J]. Electrochemical Energy Reviews, 2019, 2(4): 606-623. DOI: 10.1007/s41918-019-00049-z.
10	MA Y T, LIU P F, XIE Q S, et al. Double-shell Li-rich layered oxide hollow microspheres with sandwich-like carbon@spinel@layered@ spinel@carbon shells as high-rate lithium ion battery cathode[J]. Nano Energy, 2019, 59: 184-196. DOI: 10.1016/j.nanoen.2019. 02.040.
11	LIU S L, YAN P, LI H B, et al. One-step microwave synthesis of micro/nanoscale LiFePO₄/graphene cathode with high performance for lithium-ion batteries[J]. Frontiers in Chemistry, 2020, 8: 104. DOI: 10.3389/fchem.2020.00104.
12	徐祖伟, 高富昌, 龙周禾, 等. 火焰喷雾热解合成Pt/TiO₂纳米颗粒的催化燃烧性能[J]. 燃烧科学与技术, 2024, 30(2): 103-110. DOI: 10.11715/rskxjs.R202312021.
	XU Z W, GAO F C, LONG Z H, et al. Catalytic combustion performance of Pt/TiO₂ nanoparticles synthesized by flame spray pyrolysis[J]. Journal of Combustion Science and Technology, 2024, 30(2): 103-110. DOI: 10.11715/rskxjs.R202312021.
13	GAO J, HUANG Z L, LI J J, et al. Preparation and characterization of Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ cathode materials for lithium-ion battery[J]. Ionics, 2014, 20(3): 301-307. DOI: 10.1007/s11581-013-0991-1.
14	LI S H, LI H X, ZHANG H Y, et al. Constructing stable surface structures enabling fast charging for Li-rich layered oxide cathodes[J]. Chemical Engineering Journal, 2022, 427: 132036. DOI: 10.1016/j.cej.2021.132036.
15	DOUMENG M, BERTHET F, DELBÉ K, et al. Effect of size, concentration, and nature of fillers on crystallinity, thermal, and mechanical properties of polyetheretherketone composites[J]. Journal of Applied Polymer Science, 2022, 139(5): 51574. DOI: 10.1002/app.51574.
16	LIU Z G, SU Z, TIAN H L. Synthesis of β-LiVOPO₄/C by sol-gel method and microwave sintering as cathode material for lithium ion batteries[J]. International Journal of Electrochemical Science, 2017, 12(11): 10107-10114. DOI: 10.20964/2017.11.87.
17	JAMES LI Y J, CHIEN W C, TANG C J, et al. Electrochemical performance of spherical Li-rich LMNCO cathode materials prepared using a two-step spray-drying method[J]. Ceramics International, 2022, 48(5): 6302-6312. DOI: 10.1016/j.ceramint. 2021.11.173.
18	XIE X, LI H, CAO S, et al. Improving the cycling stability of Li-rich Mn-based cathodes through surface modification of VOPO₄[J]. Energy & Fuels, 2021, 35(17): 14148-14156. DOI: 10.1021/acs.energyfuels.1c01898.
19	ZHAO L, SUN Y Y, SONG K X, et al. Enhanced electrochemical performance of Li-rich Li[Li_0.2Mn_0.52Ni_0.13Co_0.13V_0.02]O₂ cathode materials for lithium ion batteries by Li_1.13Mn_0.47Ni_0.2Co_0.2O₂ coating[J]. Ionics, 2020, 26(9): 4455-4462. DOI: 10.1007/s11581-020-03621-6.
20	GUO W B, ZHANG C Y, ZHANG Y G, et al. A universal strategy toward the precise regulation of initial coulombic efficiency of Li-rich Mn-based cathode materials[J]. Advanced Materials, 2021, 33(38): 2103173. DOI: 10.1002/adma.202103173.
21	WU Z L, XIE H J, LI Y Z, et al. Insights into the chemical and structural evolution of Li-rich layered oxide cathode materials[J]. Inorganic Chemistry Frontiers, 2021, 8(1): 127-140. DOI: 10. 1039/D0QI01021A.
22	CHEN H, XIA X, MA J. Comprehensive review of Li-rich Mn-based layered oxide cathode materials for lithium-ion batteries: Theories, challenges, strategies and perspectives[J]. ChemSusChem, 2024, 17(24): e202401120. DOI: 10.1002/cssc. 202401120.

Samples	0.1C	0.3C	0.5C	1C	2C	5C	10C	0.1C
LMCN-solution	326.66	256.07	219.30	194.59	176.41	136.97	105.74	301.84
LMCN-droplet	390.89	370.04	283.21	258.81	230.39	185.06	57.03	464.10
difference value	64.23	113.97	63.91	64.22	53.98	48.09	-48.70	162.26
