多端口能量路由器快速频率响应及稳定控制方法研究

doi:10.19799/j.cnki.2095-4239.2025.0524

摘要/Abstract

摘要：

为解决大量可再生新能源接入电网系统稳定性差、快速调频难的问题，本文提出了一种适用于调频工况下的多端口能量路由器快速频率响应及稳定控制方法。首先，针对现有多端口能量路由器(小水电、光伏、储能及并网端口)调频控制策略易引发低频失稳问题，本文先对能量路由器控制方法进行了分析，结合小信号阻抗建模方法，推导出多端口能量路由器各端口阻抗模型；然后，根据能量路由器各端口的等效阻抗模型，研究多端口能量路由器失稳及稳定运行机理，得出能量路由器现有调频控制策略易出现感性阻抗、容性阻抗及负阻尼阻抗交互，端口阻抗相交处的相位差大于180°、Nyguist图顺时针包围了(-1,0j)点，系统易发生低频振荡失稳，而采用本文所提新的能量路由器快速频率响应控制策略能保证端口阻抗相交处的相位差小于180°、Nyguist图不包围 (-1,0j)点，保证了系统稳定运行，为调频工况多端口能量路由器快速频率响应及稳定控制提供了理论指导及技术支撑；最后，通过仿真验证了所提的多端口能量路由器快速频率响应及稳定控制方法的正确性。

关键词: 一次调频, 多端口能量路由器, 稳定性分析

Abstract:

To solve the problems of poor stability and difficulty in rapid frequency regulation of a large number of renewable new energy sources connected to the power grid system, this paper proposes a fast frequency response and stability control method for multi-port energy routers suitable for frequency regulation conditions. Firstly, in response to the low-frequency instability problem caused by the frequency modulation control strategy of existing multi-port energy routers (small hydro power, photovoltaic, energy storage, and grid connected ports), this paper first analyzes the control methods of energy routers, and combines small signal impedance modeling methods to derive impedance models for each port of multi-port energy routers; Then, based on the equivalent impedance model of each port of the energy router, the instability and stable operation mechanism of the multi-port energy router were studied. It was found that the existing frequency modulation control strategy of the energy router is prone to the interaction of inductive impedance, capacitive impedance, and negative damping impedance. The phase difference at the intersection of port impedances is greater than 180 °, and the Nyquist plot clockwise surrounds the point of (-1,0j), which makes the system prone to low-frequency oscillation instability. However, adopting the new fast frequency response control strategy of the energy router proposed in this paper can ensure that the phase difference at the intersection of port impedances is less than 180 °, and the Nyquist plot does not surround the point of (-1,0j), ensuring the stable operation of the system. This provides theoretical guidance and technical support for the fast frequency response and stable control of multi-port energy routers under frequency modulation conditions; Finally, the correctness of the proposed fast frequency response and stable control method for multi port energy routers was verified by simulation.

Key words: Primary frequency regulation, Multi port energy router, Stability analysis

中图分类号:

TM712

孙召琴, 黎可, 杜杲娴, 胡晨, 牛萌, 朱真. 多端口能量路由器快速频率响应及稳定控制方法研究[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0524.

Zhaoqin Sun, Ke Li, Gaoxian Du, Chen Hu, Meng Niu, Zhen Zhu. Research on Fast Frequency Response and Stable Control Method of Multi Port Energy Router[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0524.

图/表 19

图1

图2

图3

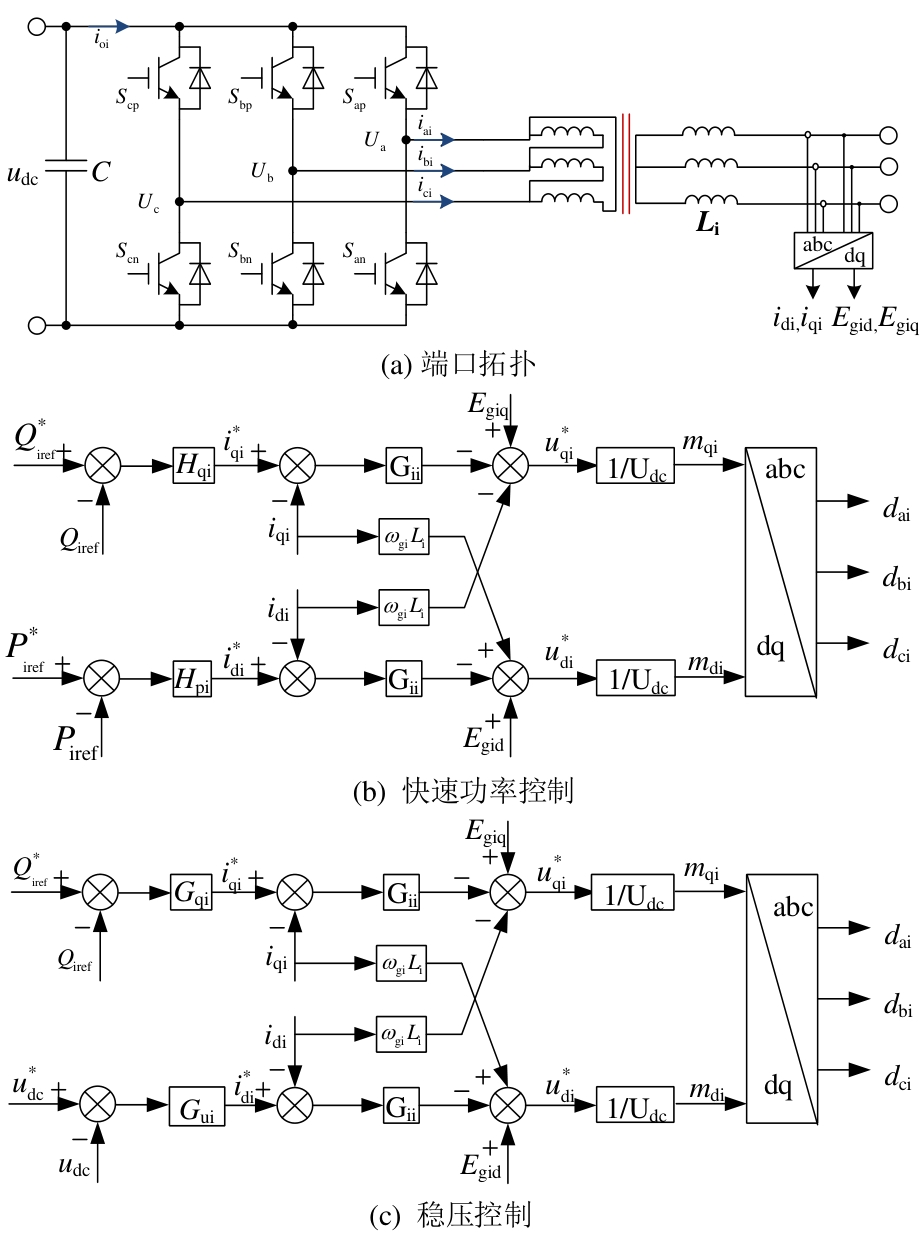

图4

图5

图6

图7

图8

图9

表1

图10

图11

图12

图13

图14

图15

图16

图17

图18

参考文献 22

[1]	MENG L, ZAFAR J, KHADEM S K, et al. Fast Frequency Response From Energy Storage Systems-A Review of Grid Standards, Projects and Technical Issues[J]. IEEE Transactions on Smart Grid, 2020, 11(2):1566-1581.
[2]	LUO X, WANG J, WOJCIK J D, et al. Review of Voltage and Frequency Grid Code Specifications for Electrical Energy Storage Applications[J]. Energies, 2018, 11(5):1070.
[3]	王伟胜,林伟芳,何国庆,等.美国得州2021 年大停电事故对我国新能源发展的启示[J].中国电机工程学报,2021,41(12):4033-4042.
	WANG Weisheng,LIN Weifang,HE Guoqing,et al.Enlightenment of 2021 Texas blackout to the renewable
	energy development in China[J] . Proceedings of the CSEE,2021,41(12):4033-4042(in Chinese).
[4]	孙华东,许涛,郭强,等.英国"8·9"大停电事故分析及对中国电网的启示[J].中国电机工程学报,2019,39(21):6183-6191.
	SUN Huadong,XU Tao,GUO Qiang,et al.Analysis on blackout in great Britain power grid on August 9th,2019 and its enlightenment to power grid in China[J]. Proceedings of the CSEE,2019,39(21):6183-6191(in Chinese) .
[5]	曾辉,孙峰,李铁,等.澳大利亚"9·28"大停电事故分析及对中国启示[J].电力系统自动化,2017,41(13):1-6.
	ZENG Hui,SUN Feng,LI Tie,et al.Analysis of "9·28"blackout in South Australia and its enlightenment to China[J].Automation of Electric Power Systems,2017,41(13):1-6(in Chinese).
[6]	刘欢, 李翔, 景艳伟. 新能源快速频率响应技术[J]. 电工技术,2021, 1(1): 30-32.
	LIU Huan, LI Xiang, JING Yanwei. New Energy Fast Frequency Response Technology[J]. Electric engineering, 2021, 1(1): 30-32.
[7]	肖亮,陈亦平,伍阳阳,等.风电场快速调频技术的工程实践及关键参数取值[J].高电压技术,2023,49(6):2536-2548.
	XIAO Liang, CHEN Yiping, WU Yangyan, et al. Engineering Practice and Key Parameter Selection for Fast Frequency Regulation Technology of Wind Farms [J]. High Voltage Engineering,2023,49(6):2536-2548.
[8]	Meng L, Zafar J, Khadem S K,et al.Fast Frequency Response From Energy Storage Systems—A Review of Grid Standards, Projects and Technical Issues[J].IEEE Transactions on Smart Grid, 2020, 11(2):1566-1581.DOI:10.1109/TSG.2019.2940173.
[9]	Mitsugi Y, Hashiguchi H, Shigemasa T,et al.Control Hardware-in-the-Loop Simulation on Fast Frequency Response of Battery Energy Storage System Equipped With Advanced Frequency Detection Algorithm[J].IEEE Transactions on Industry Applications, 2021(57-6).DOI:10.1109/TIA.2021.3107223.
[10]	宫成,王卫,赵正奎,等.基于改进锁频器频率偏差检测的光伏逆变器快速频率响应控制[J].电工电能新技术, 2021, 040(009):10-17.DOI:10.12067/ATEEE2104005.
	Gong Cheng, Wang Wei, Zhao Zhengkui, etc Fast frequency response control of photovoltaic inverters based on improved lock-in frequency deviation detection [J]. New Technology of Electrical Energy, 2021, 040 (009): 10-17. DOI: 10.12067/ATEEE2104005.
[11]	L. A. M. Lima and E. H. Watanabe, "Hybrid Control Scheme for VSC Presenting Both Grid-Forming and Grid-Following Capabilities," in IEEE Trans. Power Deliv., vol. 37, no. 6, pp. 4570-4581, Dec. 2022.
[12]	K. Hiroshi et al., "Performance evaluation of grid-following and grid-forming inverters on frequency stability in low-inertia power systems by power hardware-in-the-loop testing," in Energy Reports, vol. 9, no. 1, pp. 381-392, March 2023.
[13]	Xue Lyu, Dominc Grob. Grid forming fast frequency response forpmsg-based wind turbines[J]. IEEE Transactions on Sustainable Energy, 2024, 15(1) :23-39.
[14]	汪梦军,郭剑波,马士聪,等.新能源电力系统暂态频率稳定分析与调频控制方法综述[J].中国电机工程学报,2023,43(5):1672-1693.
	WANG Mengjun, GUO Jianbo, MA Shicong, et al. Review of Transient Frequency Stability Analysis and Frequency Regulation Control Methods for Renewable Power Systems[J]. Proceedings of the CSEE,2023,43(5):1672-1693.
[15]	许诘翊,刘威,刘树,等.电力系统变流器构网控制技术的现状与发展趋势[J].电网技术,2022,46(9):3586-3594.
	XU Jieyi, LIU Wei, LIU Shu, et al. Current State and Development Trends of Power System Converter Grid-forming Control Technology[J]. Power System Technology,2022,46(9):3586-3594.
[16]	罗魁,郭剑波,王伟胜,等.跟网型新能源附加频率控制对频率稳定及小扰动同步稳定影响分析综述[J].中国电机工程学报,2023,43(4):1262-1280.
	LUO Kui, GUO Jianbo, WANG Weisheng, et al. Review of Impact of Grid Following Variable Renewable Energy Supplementary Frequency Control on Frequency Stability and Small-disturbance Synchronization Stability[J]. Proceedings of the CSEE,2023,43(4):1262-1280.
[17]	舒印彪,陈国平,贺静波,等.构建以新能源为主体的新型电力系统框架研究[J].中国工程科学,2021,23(6):61-69.
	SHU Yinbiao, CHEN Guoping, HE Jingbo, et al.Building a new electric power system based on new energy sources[J]. Strategic Study of CAE,2021,23(6):61-69(in Chinese)
[18]	郭剑波.构建新型电力系统是实现能源转型、达成"双碳"目标的有效途径[N].国家电网报,2021-09-07(5).
	Guo Jianbo. Building new-type power systems is an effective way to realise the energy transition and achieve the "carbon peaking and carbon neutrality" goalN]. State Grid News, 2021-09-07(5)(in Chinese).
[19]	徐德鸿.电力电子系统建模及控制[M].北京:机械工业出版社,2006.
	XU Dehong.Modeling and control of power electronics system[M].Beijing:China Machine Press,2006(in Chinese).
[20]	Teng Liu, Xiongfei Wang. Physical insight into hybrid-synchronization-controlled grid-forming inverters under large disturbances[J]. IEEE Transactions on Power Electronics, 2022: 37(10): 11475-11480.
[21]	Lima L A M, Watanabe E H.Hybrid Control Scheme for VSC Presenting Both Grid-Forming and Grid-Following Capabilities[J].Power Delivery, IEEE Trans. on (T-PWRD), 2022, 37(6):12.DOI:10.1109/TPWRD.2022.3151715.
[22]	Sun J. Impedance-Based Stability Criterion for Grid-Connected Inverters[J]. IEEE Transactions on Power Electronics, 2011, 26(11): 3075-3078.

系统参数	控制策略1	控制策略2
水电端口变换器滤波电感值L_w	0.4 mH
光伏端口变换器滤波电感值L_pv	0.8 mH
光伏端口输入侧电容值C_pv	3300 µF
储能端口变换器滤波电感值L_bat	0.8 mH
并网端口变换器侧电感值L_i	0.4 mH
直流侧电容值C	1800 µF
水电端口变换器控制器	k_puw=1.2, k_iuw=400, k_piw=5, k_iiw=3000	k_ppw=0.05, k_ipw=10, k_piw=1.25, k_iiw=250
光伏端口变换器控制器	k_vppv=1, k_vipv=400, k_ippv=12, k_iipv=3000
储能端口变换器控制器	k_pibat=0.00744, k_iibat=5.699
并网端口变换器控制器	k_ppi=0.05, k_ipi=10, k_pii=1.25, k_iii=250	k_pui=1.2, k_iui=400, k_pii=5, k_iii=3000
