Research on comprehensive evaluation and regulation strategy of renewable energy system based on disordered charging behavior of electric vehicles

doi:10.19799/j.cnki.2095-4239.2025.0015

Abstract

Abstract:

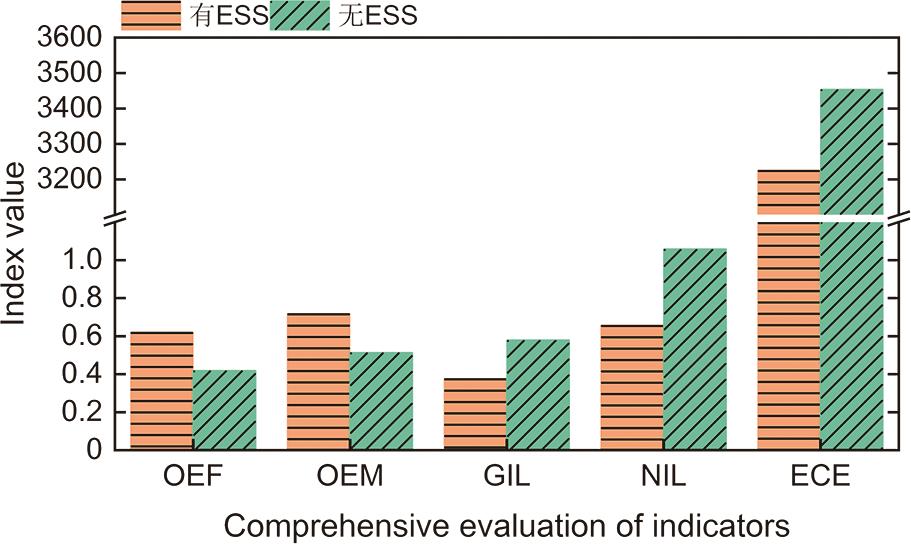

As the penetration rate of electric vehicles (EVs) increases, their widespread integration significantly affects the power grid stability. To better absorb highly volatile renewable energy and manage uncertain EV charging demands, this study proposed a renewable energy system. The proposed system combines energy storage technology with wind power, photovoltaic power, and grid technology to create a renewable energy system. The disordered charging behavior of EVs was characterized using the Monte Carlo sampling method, and MATLAB was coupled with TRNSYS to build a dynamic system simulation model. An evaluation framework was proposed to comprehensively evaluate system performance across different time scales, technical forms, and control strategies. The analysis was based on three system control strategies. The results demonstrate that the system's annual energy matching index increased by up to 48.20%, its flexibility index decreased by up to 37.77%, and the environmental benefit index decreased by up to 6.59% after the introduction of energy storage technology. Through an orderly charging strategy, the system demonstrated strong performance metrics: an on-site energy fraction of 66.71%, on-site energy matching of 73.20%, grid integration level of 33.29%, and net interaction level of 52.63%. The proposed system effectively regulates loads, relieves pressure on the power grid, improves supply-demand mismatches due to EV loads, and decreases demand-side dependence on the power grid.

Key words: electric vehicles, renewable energy, Monte Carlo, energy storage, TRNSYS

CLC Number:

TK 519

Yanting LIU, Guohui FENG, Shasha CHANG, Yuqian CHENG, Yuming DING. Research on comprehensive evaluation and regulation strategy of renewable energy system based on disordered charging behavior of electric vehicles[J]. Energy Storage Science and Technology, 2025, 14(7): 2772-2781.

Figures/Tables 17

Fig. 1

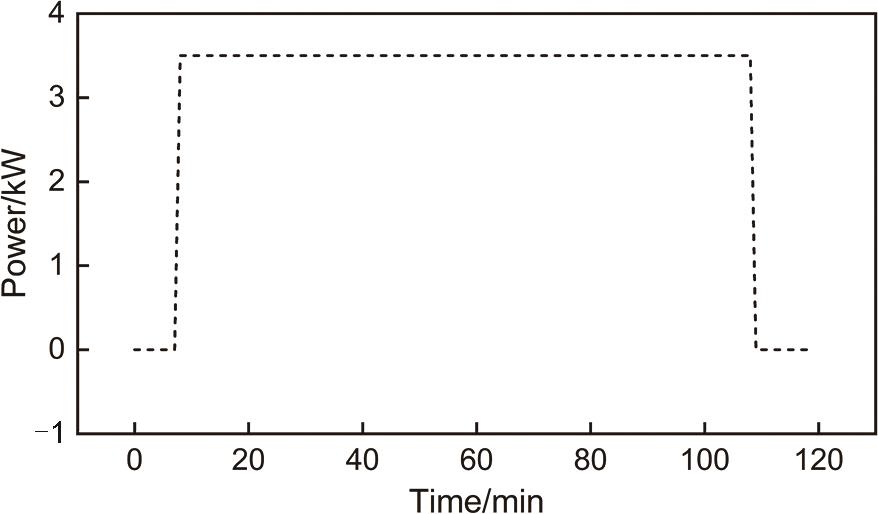

Fig. 2

Fig. 3

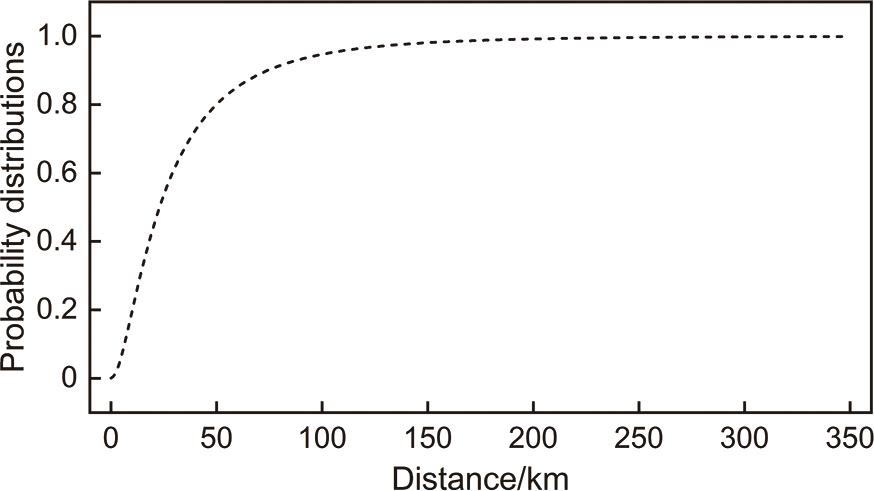

Fig. 4

Fig. 5

Table 1

Table 2

Fig. 6

Fig. 7

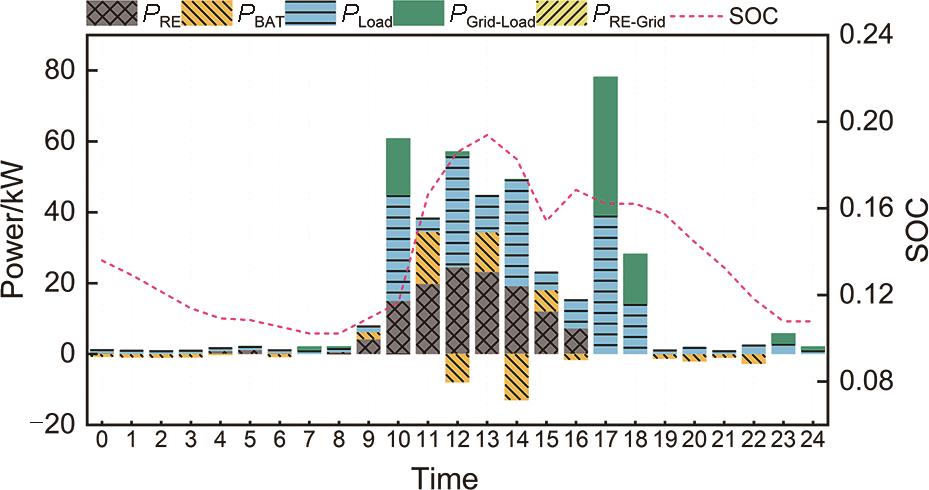

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Table 3

References 26

[1]	国务院关于印发2030年前碳达峰行动方案的通知[EB/OL]. [2021-10-24]. https://www.gov.cn/zhengce/zhengceku/2021-10/26/content_5644984.htm.
[2]	刘连德, 何江, 周家旭, 等. 含高比例风光发电的电力系统中抽蓄电站的优化控制策略[J]. 储能科学与技术, 2022, 11(7): 2197-2205. DOI: 10.19799/j.cnki.2095-4239.2021.0696.
	LIU L D, HE J, ZHOU J X, et al. Optimization control strategy of pumped storage station in power system with high proportion wind/photovoltaic power[J]. Energy Storage Science and Technology, 2022, 11(7): 2197-2205. DOI: 10.19799/j.cnki.2095-4239.2021.0696.
[3]	张文亮, 丘明, 来小康. 储能技术在电力系统中的应用[J]. 电网技术, 2008, 32(7): 1-9.
	ZHANG W L, QIU M, LAI X K. Application of energy storage technologies in power grids[J]. Power System Technology, 2008, 32(7): 1-9.
[4]	WANG S, LI F T, ZHANG Y, et al. A method for selecting the type of energy storage for power systems with high penetration of renewable energy with multi-application scenarios[J]. Renewable Energy, 2024, 235: 121343. DOI: 10.1016/j.renene.2024.121343.
[5]	LIN B Q, LIU Z W. Assessment of flexible coal power and battery energy storage system in supporting renewable energy[J]. Energy, 2024, 313: 133805. DOI: 10.1016/j.energy.2024.133805.
[6]	CALISE F, FABOZZI S, VANOLI L, et al. A sustainable mobility strategy based on electric vehicles and photovoltaic panels for shopping centers[J]. Sustainable Cities and Society, 2021, 70: 102891. DOI: 10.1016/j.scs.2021.102891.
[7]	FACHRIZAL R, QIAN K, LINDBERG O, et al. Urban-scale energy matching optimization with smart EV charging and V2G in a net-zero energy city powered by wind and solar energy[J]. eTransportation, 2024, 20: 100314. DOI: 10.1016/j.etran.2024. 100314.
[8]	ZHAO K, ZHENG K J, SHEN C, et al. Configuration optimization and performance analysis of hybrid PV/wind systems in building groups[J]. Journal of Building Engineering, 2024, 97: 110696. DOI: 10.1016/j.jobe.2024.110696.
[9]	YAHYA W, SAIED K M, NASSAR A, et al. Optimization of a hybrid renewable energy system consisting of a of PV/wind turbine/battery/fuel cell integration and component design[J]. International Journal of Hydrogen Energy, 2024, 94: 1406-1418. DOI: 10.1016/j.ijhydene.2024.11.187.
[10]	蒋林洳, 万伟江, 丁霄寅, 等. 一种基于直接蒙特卡洛法的电动汽车充电负荷模型[J]. 供用电, 2018, 35(4): 20-25, 13. DOI: 10.19421/j.cnki.1006-6357.2018.04.004.
	JIANG L R, WAN W J, DING X Y, et al. Electric vehicle charging load model based on direct Monte-Carlo method[J]. Distribution & Utilization, 2018, 35(4): 20-25, 13. DOI: 10.19421/j.cnki.1006-6357.2018.04.004.
[11]	周晓薇, 陈昕儒. 基于离网型微网的电动汽车消纳可再生能源研究[J]. 电工电气, 2017(6): 25-30.
	ZHOU X W, CHEN X R. Research on electric vehicle in renewable energy sources based on islanded microgrid[J]. Electrotechnics Electric, 2017(6): 25-30.
[12]	王浩林, 张勇军, 毛海鹏. 基于时刻充电概率的电动汽车充电负荷预测方法[J]. 电力自动化设备, 2019, 39(3): 207-213. DOI: 10.16081/j.issn.1006-6047.2019.03.033.
	WANG H L, ZHANG Y J, MAO H P. Charging load forecasting method based on instantaneous charging probability for electric vehicles[J]. Electric Power Automation Equipment, 2019, 39(3): 207-213. DOI: 10.16081/j.issn.1006-6047.2019.03.033.
[13]	乔珊. 主动配电网多源协同运行优化研究[D]. 济南: 山东大学, 2021. DOI: 10.27272/d.cnki.gshdu.2021.004989.
	QIAO S. Research on multi-source cooperative operation optimization of active distribution network[D]. Jinan: Shandong University, 2021. DOI: 10.27272/d.cnki.gshdu.2021.004989.
[14]	刘效辰, 刘晓华, 张涛, 等. 建筑区域广义储能资源的刻画与设计方法[J]. 中国电机工程学报, 2024, 44(6): 2171-2185. DOI: 10.13334/j.0258-8013.pcsee.222949.
	LIU X C, LIU X H, ZHANG T, et al. Characterization and design method of generalized energy storage resources in or around buildings[J]. Proceedings of the CSEE, 2024, 44(6): 2171-2185. DOI: 10.13334/j.0258-8013.pcsee.222949.
[15]	ZHAI R R, LIU H T, CHEN Y, et al. The daily and annual technical-economic analysis of the thermal storage PV-CSP system in two dispatch strategies[J]. Energy Conversion and Management, 2017, 154: 56-67. DOI: 10.1016/j.enconman.2017.10.040.
[16]	LIU H T, ZHAI R R, PATCHIGOLLA K, et al. Multi-objective optimisation of a thermal-storage PV-CSP-wind hybrid power system in three operation modes[J]. Energy, 2023, 284: 129255. DOI: 10.1016/j.energy.2023.129255.
[17]	NIVEDITHA N, RAJAN SINGARAVEL M M. Optimal sizing of PV-wind generators with a smart EV charging framework to build grid friendly net zero energy campus[J]. Sustainable Cities and Society, 2024, 111: 105575. DOI: 10.1016/j.scs.2024.105575.
[18]	LI Y X, SENTHIL KUMAR G M, CAO S L, et al. Electric vehicle-based distant energy sharing between zero-emission coastal office and hotel buildings[J]. Journal of Building Engineering, 2024, 90: 109496. DOI: 10.1016/j.jobe.2024.109496.
[19]	CAO S L. The impact of electric vehicles and mobile boundary expansions on the realization of zero-emission office buildings[J]. Applied Energy, 2019, 251: 113347. DOI: 10.1016/j.apenergy. 2019.113347.
[20]	YAN R J, LU Z R, WANG J J, et al. Stochastic multi-scenario optimization for a hybrid combined cooling, heating and power system considering multi-criteria[J]. Energy Conversion and Management, 2021, 233: 113911. DOI: 10.1016/j.enconman. 2021.113911.
[21]	HUTCHINSON A, GLADWIN D T. Optimisation of a wind power site through utilisation of flywheel energy storage technology[J]. Energy Reports, 2020, 6: 259-265. DOI: 10.1016/j.egyr.2020. 03.032.
[22]	WANG M, YU H, JING R, et al. Combined multi-objective optimization and robustness analysis framework for building integrated energy system under uncertainty[J]. Energy Conversion and Management, 2020, 208: 112589. DOI: 10.1016/j.enconman.2020.112589.
[23]	SALAMA H S, VOKONY I. Comparison of different electric vehicle integration approaches in presence of photovoltaic and superconducting magnetic energy storage systems[J]. Journal of Cleaner Production, 2020, 260: 121099. DOI: 10.1016/j.jclepro. 2020.121099.
[24]	ZHOU L, ZHOU Y K. Study on thermo-electric-hydrogen conversion mechanisms and synergistic operation on hydrogen fuel cell and electrochemical battery in energy flexible buildings[J]. Energy Conversion and Management, 2023, 277: 116610. DOI: 10.1016/j.enconman.2022.116610.
[25]	KUMAR G M S, CAO S L. Leveraging energy flexibilities for enhancing the cost-effectiveness and grid-responsiveness of net-zero-energy metro railway and station systems[J]. Applied Energy, 2023, 333: 120632. DOI: 10.1016/j.apenergy.2022.120632.
[26]	陈海东, 蒙飞, 王庆, 等. 储能系统和新能源发电装机容量对电力系统性能的影响[J]. 储能科学与技术, 2023, 12(2): 477-485. DOI: 10.19799/j.cnki.2095-4239.2022.0439.
	CHEN H D, MENG F, WANG Q, et al. Influence of installed capacity of energy storage system and renewable energy power generation on power system performance[J]. Energy Storage Science and Technology, 2023, 12(2): 477-485. DOI: 10.19799/j.cnki.2095-4239.2022.0439.

结构类型	传热系数/[W/(m²·K)]
外墙	0.10
屋顶	0.10
地面	0.12
外窗	1.00

部件	参数设置
光伏阵列	峰值电压40.9 V，峰值电流13.45 A，光伏板数量7×8块，峰值功率550 W
风力发电机	额定功率20 kW
储能系统	蓄电池电量132.46 kWh，储能水箱容量7 m³
热泵机组	额定制冷功率19.76 kW，额定制热功率27.65 kW

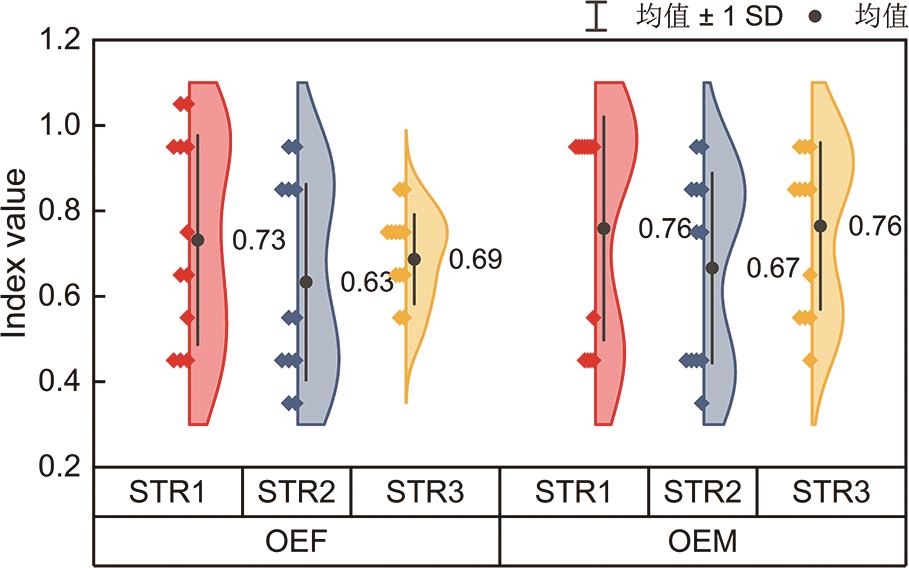

策略	OEF/%	OEM/%	GIL/%	NIL/%
STR1	62.21	72.00	37.79	65.85
STR2	52.76	63.31	47.24	83.76
STR3	66.71	73.20	33.29	52.63
