热化学储能材料的制备及其在跨季节储能中的应用进展研究

doi:10.19799/j.cnki.2095-4239.2025.0381

摘要/Abstract

摘要：

热化学储能技术利用热化学储能材料可逆的化学反应来储放热，材料的性能直接决定了热化学储热系统的效率与应用潜力。目前，热化学储能材料推广应用面临着热传导率低、转化率低、循环稳定性差和成本高昂等问题。本文综述了不同温区分类下热化学储热材料在跨季节储能中的研究进展和优化路径，重点讨论了热化学储热材料的制备方法和改性方式。回顾了低温水合盐、氨络合物、金属氧化物、金属氢化物、氢氧化物、碳酸盐、氨和有机物等材料的热化学储能特性。针对材料的制备方法，阐述了溶胶-凝胶法、封装成型法、微胶囊法、浸渍法的原理和典型应用实例，着重介绍了聚合物、无机氧化物、陶瓷这三种壳封装材料的不同点并对比分析了干法浸渍和湿法浸渍的优缺点及适用场景。针对材料的改性方式，主要介绍了物理改性、化学改性、复合材料掺杂三种方式，对改性前后热化学储能材料的物理和化学特性进行了差异化分析。综合分析表明，通过选择合适材料制备方法以及利用化学元素掺杂、金属表面涂层、物理结构调控和多孔载体复合等改性方式，可以显著提高材料的循环稳定性、使用寿命、反应活性和储热密度，有望促使热化学储能技术商业化应用的早日实现。

关键词: 热化学储能, 储热材料, 吸附材料, 基体改性, 太阳能

Abstract:

Thermochemical energy storage technology utilizes the reversible chemical reactions of thermochemical energy storage materials to store and release heat. The performance of the materials directly determines the efficiency and application potential of the thermochemical heat storage system. At present, the promotion and application of thermochemical energy storage materials are confronted with problems such as low thermal conductivity, low conversion rate, poor cycle stability and high cost. This paper reviews the research progress and optimization paths of thermochemical heat storage materials in cross-seasonal energy storage under different temperature zone classifications, with a focus on discussing the preparation methods and modification approaches of thermochemical heat storage materials. The thermochemical energy storage characteristics of materials such as low-temperature hydrated salts, ammonia complexes, metal oxides, metal hydrides, hydroxides, carbonates, ammonia and organic substances were reviewed. Regarding the preparation methods of materials, the principles and typical application examples of sol-gel method, encapsulation molding method, microcapsule method and impregnation method are expounded. The differences among the three shell encapsulation materials, namely polymers, inorganic oxides and ceramics, are emphatically introduced, and the advantages, disadvantages and applicable scenarios of dry impregnation and wet impregnation are compared and analyzed. For the modification methods of materials, three methods, namely physical modification, chemical modification and doping of composite materials, are mainly introduced. The physical and chemical properties of thermochemical energy storage materials before and after modification are differentiated and analyzed. Comprehensive analysis shows that by choosing appropriate material preparation methods and using modification methods such as chemical element doping, metal surface coating, physical structure regulation and porous carrier composite, the cycling stability, service life, reactivity and heat storage density of materials can be significantly improved, which is expected to promote the early realization of commercial application of thermochemical energy storage technology.

Key words: Thermochemical energy storage, Heat storage materials, Adsorption materials, Matrix modification, Solar energy

杨蕊, 乔洋, 周奕锟, 张雨欣, 王晨, 赵学敏, 折晓会. 热化学储能材料的制备及其在跨季节储能中的应用进展研究[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0381.

Rui YANG, Yang QIAO, Yikun ZHOU, Yuxing ZHANG, Chen WANG, Xuemin ZHAO, Xiaohui SHE. Research on the preparation of thermochemical energy storage materials and application in cross-season energy storage[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0381.

图/表 15

图1

图2

表1

表2

表3

表4

图3

图4

表5

表6

热化学储能材料不同掺杂物改性的优缺点[93]"

材料	实验添加	结果	文献
Co₃O₄基材料	Fe	与纯钴氧化物相比，其还原/再氧化温度更高且两者温差更小(可通过增加Fe含量调节)，再氧化完成度更好，晶粒生长有限且静电充电低、成本低。添加10 mol% Fe：在12次氧化还原循环中具有良好的循环稳定性	[94]
		能量密度和储氧能力降低，且存在烧结和晶粒尺寸增大的问题。Co3O4中添加20摩尔%以上的Fe时，材料不再是单一尖晶石相，而是两种尖晶石的混合物
Co₃O₄基材料	CuO	与纯钴氧化物相比，在40次氧化还原循环中循环稳定性良好，能量密度相当，且还原反应温度降低50K，氧化与还原之间的温差较小，反应效率较高，烧结现象缓解。	[95]
Co₃O₄基材料	CeO₂	改善Co3O4的反应动力学，具有高能量密度496 J/g，但热化学稳定性低	[106]
Co₃O₄基材料	Al₂O₃	体积储能密度由870升至1700 kg/m³、晶粒生长有限、再氧化完成度好、低静电荷、氧化反应起始温度增加约27K，而还原不受影响，且10wt%Al₂O₃在112次循环中显示良好结构稳定性。	[97]
Co₃O₄基材料	Cr₂O₃	良好的再氧化完成、有限的晶粒生长、低静电荷	[108]
Co₃O₄基材料	Y_0.15Zr_0.85O_1.93	还原和再氧化过程温差小、能量密度高	[96]
Co₃O₄基材料	SiC	氧化还原反应弱、能量密度比纯钴氧化物低	[96]
Co₃O₄基材料	NiCo₂O₄(尖晶石)	与纯钴氧化物相比，操作温度大致相同，再氧化反应动力学高且再氧化反应完全但还原反应完成率低	[99]
Co₃O₄基材料	CuCo₂O₄(尖晶石)	工作温度高但操作温度接近CuO的熔点、再氧化反应完成度和动力学性能较差	[99]
Co₃O₄基材料	MgCo₂O₄(尖晶石)	工作温度高但再氧化反应完成度和动力学性能较差	[99]
Mn₂O₃基材料	Cu掺杂	与氧化锰相比反应温度高，还原和再氧化之间的温差减少41K(热滞后)但还原反应动力学缓慢。	[100]
Mn₂O₃基材料	Fe-Cu共掺杂	具有高储能密度、快速再氧化反应动力学和较小的热滞后温差，共掺杂会降低还原动力学，可通过提高加热速率来增强反应速率，20%F-1%Cu和5%Fe-1%Cu掺杂样品在30次氧化还原中具有良好的循环稳定性，但高Fe和Cu掺杂样品易烧结。	[101][102]
Mn₂O₃基材料	LiMnO₂	具有高还原焓(165 ± 1kJ/kg)、还原和氧化之间的温差小(热滞后84 ± 2K)且可逆的氧化还原反应超过45次	[103]
CuO基材料	Co₃O₄	无熔化问题、氧化和还原反应之间的温差提高、能量密度和工作温度低于纯氧化铜	[95]
CuO基材料	Cr₂O₃	反应温度(约为1313K)接近氧化铜的熔点，且反应不可逆	[95][104]
BaO基材料	NiO、TiO₂、Fe₂O₃、SnO、ZnO、BaTiO₃或BaCuOx	纯氧化钡的化学稳定性和氧化还原性能没有改善	[98]
Fe₂O₃基材料	添加Co₃O₄	反应温度降低，反应焓降低，储能密度下降(5%含量的Co添加物使反应焓由599 J/g降至295.9 J/g)	[105]
Al₂O₃基材料	添加Mn₂O₃	不存在氧化还原反应、缓慢的再氧化反应	[95]

表6

图5

图6

图7

图8

表7

参考文献 134

1	袁晓辉. 人类世时代的生态危机与生态文明建设探析 [J]. 西部学刊, 2024, (24): 49-52. DOI:10.16721/j.cnki.cn61-1487/c.2024.24.006.
	YUAN Xiaohui. Ecological Crisis and Ecological Civilization Construction in Anthropocene Era [ J ].West Journal, 2024, ( 24 ) : 49-52. DOI : 10.16721 / j.cnki.cn61-1487 / c.2024.24.006.
2	折晓会,王星宇,郭晓龙,等.超低温-高温跨温区相变材料制备及物性调控综述[J].储能科学与技术,2023,12(12):3818-3835.DOI:10.19799/j.cn ki.2095-4 239.20 23.0 726 .
	SHE Xiaohui, WANG Xingyu, GUO Xiaolong, et al. Review of preparation and physical property regulation of phase change materials in ultra-low temperature-high temperature cross-temperature region [ J ].Energy Storage Science and Technology, 2023,12 ( 12 ) : 3818-3835.DOI : 10.19799 / j.cnki.2095-4239.2023.0726.
3	潘亚楠.地埋管管群多周期跨季节储/释能间歇运行数值模拟研究[D].内蒙古科技大学,2024.DOI:10.27724/d.cnki.gnmgk.2024.000151.
	PAN Yanan. Numerical simulation of multi-period cross-seasonal energy storage / release intermittent operation of buried pipe group [ D ].Inner Mongolia University of Science and Technology, 2024.DOI : 10.27724 / d.cnki.gnmgk.2024.000151.
4	凌祥,刘向雷.«热化学储能»专刊——主编寄语[J].储能科学与技术,2024,13(12):4240.
	LING Xiang, LIU Xianglei. " Thermochemical Energy Storage " Special Issue-Editor 's Message [ J ]. Energy Storage Science and Technology, 2024,13 ( 12 ) : 4240.
5	CHANG X L, YAN T, WANG Z, et al. State of the art on solid–gas sorption based long-term thermochemical energy storage[J]. Chemical Engineering Science, 2024: 120853.
6	FU H, LAN Y, LING Z, et al. Review on development of magnesium sulfate heptahydrate for thermochemical storage and application[J]. Chemical Industry and Engineering Progress, 2022, 41(4): 1956.
7	JOHAR D K, SHARMA D, SONI S L. Comparative studies on micro cogeneration, micro cogeneration with thermal energy storage and micro trigeneration with thermal energy storage system using same power plant[J]. Energy Conversion and Management, 2020, 220: 113082.
8	YAN X, WANG X, XIA W, et al. Screening of organic lithium precursors for producing high-performance Li₄SiO₄-based thermochemical energy storage materials: Experimental and kinetic investigations[J]. Journal of Energy Storage, 2024, 85: 111098.
9	PARDO P, DEYDIER A, ANXIONNAZ-MINVIELLE Z, et al. A review on high temperature thermochemical heat energy storage[J]. Renewable and Sustainable Energy Reviews, 2014, 32: 591-610.
10	YAN T,WANG R Z, LI T X, et al. A review of promising candidate reactions for chemical heat storage[J]. Renewable and Sustainable Energy Reviews, 2015, 43: 13-31.
11	PRASAD J S, MUTHUKUMAR P, DESAI F, et al. A critical review of high-temperature reversible thermochemical energy storage systems[J]. Applied Energy, 2019, 254: 113733.
12	HU Q, JIANG Y, WANG Z. Calcium-based composite materials for thermochemical heat storage: structure, performance and mechanisms[J]. Journal of Alloys and Compounds, 2024: 177960.
13	BAYON A, BADER R, JAFARIAN M, et al. Techno-economic assessment of solid–gas thermochemical energy storage systems for solar thermal power applications[J]. Energy, 2018, 149: 473-484.
14	BAGHERISERESHKI E, TRAN J, LEI F, et al. Investigation into SrO/SrCO₃ for high temperature thermochemical energy storage[J]. Solar Energy, 2018, 160: 85-93.
15	AGRAFIOTIS C, ROEB M, SCHMÜCKER M, et al. Exploitation of thermochemical cycles based on solid oxide redox systems for thermochemical storage of solar heat. Part 1: Testing of cobalt oxide-based powders[J]. Solar Energy, 2014, 102: 189-211.
16	Yang H, Wang C, Zhang Y, et al. Experimental investigation of a thermochemical energy storage system based on MgSO₄-silica gel for building heating: adsorption/desorption performance testing and system optimization[J]. Energy Conversion and Management, 2024, 301: 118000.
17	LI T, WANG R, KIPLAGAT J K, et al. Performance analysis of an integrated energy storage and energy upgrade thermochemical solid–gas sorption system for seasonal storage of solar thermal energy[J]. Energy, 2013, 50: 454-467.
18	MASTRONARDO E, KATO Y, BONACCORSI L, et al. Thermochemical storage of middle temperature wasted heat by functionalized C/Mg (OH)₂ hybrid materials[J]. Energies, 2017, 10(1): 70.
19	ZONDAG H A, KIKKERT B W J, SMEDING S, et al. Thermochemical seasonal solar heat storage with MgCl_2·6H₂O: first upscaling of the reactor[C]//IC-SES Conference. 2011.
20	THINSURAT K, MA Z, ROSKILLY A P, et al. Compressor-assisted thermochemical sorption integrated with solar photovoltaic-thermal collector for seasonal solar thermal energy storage[J]. Energy Conversion and Management: X, 2022, 15: 100248.
21	LI Z, XU M, HUAI X, et al. Simulation and analysis of thermochemical seasonal solar energy storage for district heating applications in China[J]. International Journal of Energy Research, 2021, 45(5): 7093-7107.
22	TESCARI S, SINGH A, AGRAFIOTIS C, et al. Experimental evaluation of a pilot-scale thermochemical storage system for a concentrated solar power plant[J]. Applied Energy, 2017, 189: 66-75.
23	WEI Z, TIEN P W, CALAUTIT J, et al. Investigation of a model predictive control (MPC) strategy for seasonal thermochemical energy storage systems in district heating networks[J]. Applied Energy, 2024, 376: 124164.
24	DONKERS P A J, SÖGÜTOGLU L C, HUININK H P, et al. A review of salt hydrates for seasonal heat storage in domestic applications[J]. Applied energy, 2017, 199: 45-68.
25	ZHANG Y, WANG R. Sorption thermal energy storage: Concept, process, applications and perspectives[J]. Energy Storage Materials, 2020, 27: 352-369.
26	BÖHM H, LINDORFER J. Techno-economic assessment of seasonal heat storage in district heating with thermochemical materials[J]. Energy, 2019, 179: 1246-1264.
27	LI T, WANG R, KIPLAGAT J K. A target‐oriented solid‐gas thermochemical sorption heat transformer for integrated energy storage and energy upgrade[J]. AIChE Journal, 2013, 59(4): 1334-1347.
28	WU J, LONG X F. Research progress of solar thermochemical energy storage[J]. International Journal of Energy Research, 2015, 39(7): 869-888.
29	CARRILLO A J, SERRANO D P, PIZARRO P, et al. Manganese oxide-based thermochemical energy storage: Modulating temperatures of redox cycles by Fe-Cu co-doping[J]. Journal of Energy Storage, 2016, 5: 169-176.
30	WU S, ZHOU C, DOROODCHI E, et al. A review on high-temperature thermochemical energy storage based on metal oxides redox cycle[J]. Energy conversion and management, 2018, 168: 421-453.
31	CHEN X, KUBOTA M, KOBAYASHI N, et al. Development of redox-type thermochemical energy storage module: A support-free porous foam made of CuMn₂O₄/CuMnO₂ redox couple[J]. Chemical Engineering Journal, 2024, 485: 149540.
32	BHUIYA M M H, KUMAR A, KIM K J. Metal hydrides in engineering systems, processes, and devices: a review of non-storage applications[J]. International Journal of Hydrogen Energy, 2015, 40(5): 2231-2247.
33	MELLOULI S, ALQAHTANI T, ALGARNI S, et al. Numerical simulation of a combined thermochemical-latent energy storage system based on paired metal hydrides and phase change material[J]. Journal of Energy Storage, 2024, 86: 111216.
34	FELDERHOFF M, BOGDANOVIĆ B. High temperature metal hydrides as heat storage materials for solar and related applications[J]. International journal of molecular sciences, 2009, 10(1): 325-344.
35	WANG X H, DU X C, WEI J J. Research progress of different solar thermochemical energy storage systems[J]. Chin. Sci. Bull, 2017, 62: 3631-3642.
36	SCHMIDT M, SZCZUKOWSKI C, ROßKOPF C, et al. Experimental results of a 10 kW high temperature thermochemical storage reactor based on calcium hydroxide[J]. Applied Thermal Engineering, 2014, 62(2): 553-559.
37	ERVIN G. Solar heat storage using chemical reactions[J]. Journal of solid state chemistry, 1977, 22(1): 51-61.
38	DUNN R, LOVEGROVE K, BURGESS G. A review of ammonia-based thermochemical energy storage for concentrating solar power[J]. Proceedings of the IEEE, 2011, 100(2): 391-400.
39	DENG Z, HU T, TIAN J, et al. Performance of a novel single-tubular ammonia-based reactor driven by concentrated solar power[J]. Solar Energy, 2020, 204: 696-707.
40	汪德良, 张纯, 杨玉, 等. 基于太阳能光热发电的热化学储能体系研究进展[J]. 热力发电, 2019, 48(7): 1-9.
	WANG Deliang, ZHANG Chun, YANG Yu, et al. Research progress of thermochemical energy storage system based on solar photothermal power generation[J].Thermal Power Generation, 2019, 48 ( 7 ) : 1-9.
41	KYAW K, SHIBATA T, WATANABE F, et al. Applicability of zeolite for CO₂ storage in a CaO-CO₂ high temperature energy storage system[J]. Energy conversion and management, 1997, 38(10-13): 1025-1033.
42	KATO Y, WATANABE Y, YOSHIZAWA Y. Application of inorganic oxide/carbon dioxide reaction system to a chemical heat pump[C]//IECEC 96. Proceedings of the 31st Intersociety Energy Conversion Engineering Conference. IEEE, 1996, 2: 763-768.
43	GOKON N, INUTA S, YAMASHITA S, et al. Double-walled reformer tubes using high-temperature thermal storage of molten-salt/MgO composite for solar cavity-type reformer[J]. International Journal of Hydrogen Energy, 2009, 34(17): 7143-7154.
44	SHEU E J, MOKHEIMER E M A, GHONIEM A F. A review of solar methane reforming systems[J]. International Journal of Hydrogen Energy, 2015, 40(38): 12929-12955.
45	BRADFORD M C J, VANNICE M A. Catalytic reforming of methane with carbon dioxide over nickel catalysts I. Catalyst characterization and activity[J]. Applied Catalysis A: General, 1996, 142(1): 73-96.
46	PAALO M, YEGIT S S, MOUMANEIX L, et al. Synthesis of zirconium carbide via sol-gel method as a precursor for micro-and mesoporous carbide-derived carbon materials[J]. Carbon Trends, 2025, 19: 100494.
47	HROCH J, DOHNALOVÁ Ž, LUXOVÁ J, et al. Synthesis and characterisation of Mn-doped CaTiO₃ pigments via the sol–gel method: Effect of substitution steps on the pigmentary properties[J]. Ceramics International, 2024.
48	HUANG Y, ZHU P, XU H, et al. Mn-based oxides modified with MnSiO₃ for thermochemical energy storage[J]. Chemical Engineering Journal, 2024, 483: 149437.
49	CHEN H, ZHANG P, DUAN Y, et al. Reactivity enhancement of calcium based sorbents by doped with metal oxides through the sol–gel process[J]. Applied Energy, 2016, 162: 390-400.
50	AZIMI B, TAHMASEBPOOR M, SANCHEZ-JIMENEZ P E, et al. Multicycle CO₂ capture activity and fluidizability of Al-based synthesized CaO sorbents[J]. Chemical engineering journal, 2019, 358: 679-690.Aarts J, Fischer H, Adan O, et al. Towards stable performance of salt hydrates in thermochemical energy storage: A review[J]. Journal of Energy Storage, 2025, 114: 115726.
51	PECHINI M P. Method of preparing lead and alkaline earth titanates and niobates and coating method using the same to form a capacitor: U.S. Patent 3,330,697[P]. 1967-7-11.
52	CALABRESE L, BRANCATO V, PALOMBA V, et al. Magnesium sulphate-silicone foam composites for thermochemical energy storage: Assessment of dehydration behaviour and mechanical stability[J]. Solar Energy Materials and Solar Cells, 2019, 200: 109992.
53	张皓,杨凡,朱志杰,等.溶胶–凝胶法制备碳化锆纳米粉体[J/OL].中国陶瓷,2025,(05):11-17[2025-05-02].https://doi.org/10.16521/ j.cnki.issn.1001-9642.2025.05.002.
	ZHANG Hao, YANG Fan, ZHU Zhijie, et al. Preparation of zirconium carbide nanopowders by sol-gel method [ J / OL ].China Ceramics, 2025, ( 05 ) : 11-17 [ 2025-05-02 ].https://doi.org/10.16521/ j.cnki.issn.1001-9642.2025.05.002.
54	MEHROTRA R C. Precursors for aerogels[J]. Journal of non-crystalline solids, 1992, 145: 1-10.
55	AARTS J, FISCHEr H, ADAN O, et al. Towards stable performance of salt hydrates in thermochemical energy storage: A review[J]. Journal of Energy Storage, 2025, 114: 115726.
56	SALVIATI S, CAROSIO F, SARACCO G, et al. Hydrated salt/graphite/polyelectrolyte organic-inorganic hybrids for efficient thermochemical storage[J]. Nanomaterials, 2019, 9(3): 420.
57	HU Q, JIANG Y, WANG Z. Calcium-based composite materials for thermochemical heat storage: structure, performance and mechanisms[J]. Journal of Alloys and Compounds, 2024: 177960.
58	AFFLERBACH S, AFFLERBACH K, TRETTIN R, et al. Improvement of a semipermeable shell for encapsulation of calcium hydroxide for thermochemical heat storage solutions: Material design and evaluation in laboratory and reactor scale[J]. Solar Energy, 2021, 217: 208-222.
59	MANOVIC V, WU Y, HE I, et al. Core-in-shell CaO/CuO-based composite for CO₂ capture[J]. Industrial & engineering chemistry research, 2011, 50(22): 12384-12391.
60	VAN RAVENSTEIJN B G P, DONKERS P A J, RULIAMAN R C, et al. Encapsulation of salt hydrates by polymer coatings for low-temperature heat storage applications[J]. ACS Applied Polymer Materials, 2021, 3(4): 1712-1726.
61	ELAHI B, SALEHZADEH D, DE VOS W M, et al. Boosting stability of K₂CO₃ granules for thermochemical heat storage applications through innovative membrane encapsulation[J]. Chemical Engineering Journal, 2024, 500: 157042.
62	SHIZUME K, HATADA N, TOYOURA K, et al. Characteristic microstructure underlying the fast hydration–dehydration reaction of β-La₂(SO₄)₃:"fine platy joints" with "loose grain boundaries"[J]. Journal of Materials Chemistry A, 2018, 6(48): 24956-24964.
63	CHIZHIK S, MATVIENKO A, SIDELNIKOV A. Spatially-ordered nano-sized crystallites formed by dehydration-induced single crystal cracking of CuCl₂·2(H₂O)[J]. CrystEngComm, 2018, 20(39): 6005-6017.
64	CALABRESE L, BRANCATO V, PALOMBA V, et al. Magnesium sulphate-silicone foam composites for thermochemical energy storage: Assessment of dehydration behaviour and mechanical stability[J]. Solar Energy Materials and Solar Cells, 2019, 200: 109992.
65	SHKATULOV A, JOOSTEN R, FISCHER H, et al. Core-shell encapsulation of salt hydrates into mesoporous silica shells for thermochemical energy storage, ACS Appl. Energy Mater. 3 (2020) 6860–6869[EB/OL].
66	HU Q, JIANG Y, WANG Z. Calcium-based composite materials for thermochemical heat storage: structure, performance and mechanisms[J]. Journal of Alloys and Compounds, 2024: 177960.
67	KHOSA A A, XU T, XIA B Q, et al. Technological challenges and industrial applications of CaCO₃/CaO based thermal energy storage system–A review[J]. Solar Energy, 2019, 193: 618-636.
68	CHEN Y, LONG Y, SUN J, et al. Core-in-shell, cellulose-templated CaO-based sorbent pellets for CO₂ capture at elevated temperatures[J]. Energy & Fuels, 2021, 35(16): 13215-13223.
69	JIN D, YU X, YUE L, et al. Decomposition kinetics study of AlOOH coated calcium carbonate[J]. Materials Chemistry and Physics, 2009, 115(1): 418-422.
70	GHARSALLAOUI A, ROUDAUT G, CHAMBIN O, et al. Applications of spray-drying in microencapsulation of food ingredients: An overview[J]. Food research international, 2007, 40(9): 1107-1121.
71	BARSK A, YAZDANI M R, KANKKUNEN A, et al. Exceptionally high energy storage density for seasonal thermochemical energy storage by encapsulation of calcium chloride into hydrophobic nanosilica capsules[J]. Solar Energy Materials and Solar Cells, 2023, 251: 112154.
72	DAWSON R, STEVENS L A, WILLIAMS O S A, et al. 'Dry bases': carbon dioxide capture using alkaline dry water[J]. Energy & Environmental Science, 2014, 7(5): 1786-1791.
73	SHKATULOV A I, HOUBEN J, FISCHER H, et al. Stabilization of K₂CO₃ in vermiculite for thermochemical energy storage[J]. Renewable Energy, 2020, 150: 990-1000.
74	COURBON E, D'ANS P, PERMYAKOVA A, et al. Further improvement of the synthesis of silica gel and CaCl₂ composites: Enhancement of energy storage density and stability over cycles for solar heat storage coupled with space heating applications[J]. Solar Energy, 2017, 157: 532-541.
75	COURBON E, D'ANS P, PERMYAKOVA A, et al. A new composite sorbent based on SrBr₂ and silica gel for solar energy storage application with high energy storage density and stability[J]. Applied energy, 2017, 190: 1184-1194.
76	CHEN Y, LI Z, LUO C, et al. Preparation and Performance of Tubular Carbon-Based Carbonate Composites for Thermochemical Energy Storage[J]. Energy, 2025: 134826.
77	XU J X, LI T X, CHAO J W, et al. High energy-density multi-form thermochemical energy storage based on multi-step sorption processes[J]. Energy, 2019, 185: 1131-1142.
78	WANG K, GU F, CLOUGH P T, et al. Porous MgO-stabilized CaO-based powders/pellets via a citric acid-based carbon template for thermochemical energy storage in concentrated solar power plants[J]. Chemical Engineering Journal, 2020, 390: 124163.
79	OUYANG L Z, YANG X S, ZHU M, et al. Enhanced hydrogen storage kinetics and stability by synergistic effects of in situ formed CeH2. 73 and Ni in CeH_2.73-MgH₂-Ni nanocomposites[J]. The Journal of Physical Chemistry C, 2014, 118(15): 7808-7820.
80	ZHENG H, SONG C, BAO C, et al. Dark calcium carbonate particles for simultaneous full-spectrum solar thermal conversion and large-capacity thermochemical energy storage[J]. Solar Energy Materials and Solar Cells, 2020, 207: 110364.
81	ROßKOPF C, AFFLERBACH S, SCHMIDT M, et al. Investigations of nano coated calcium hydroxide cycled in a thermochemical heat storage[J]. Energy Conversion and Management, 2015, 97: 94-102.
82	XU Y, LU B, LUO C, et al. Na₂CO₃ promoted CaO-based heat carrier for thermochemical energy storage in concentrated solar power plants[J]. Chemical Engineering Journal, 2022, 435: 134852.
83	YAN J, ZHAO C Y. First-principle study of CaO/Ca(OH)₂ thermochemical energy storage system by Li or Mg cation doping[J]. Chemical Engineering Science, 2014, 117: 293-300.
84	LIU L, ZHOU Z, CAO X E, et al. Screening of optimal dopants on cobalt-based ceramics for high-temperature thermochemical energy storage[J]. Ceramics International, 2023, 49(2): 2329-2339.
85	TORTOZA M S, HUMPHRIES T D, SHEPPARD D A, et al. Thermodynamics and performance of the Mg–H–F system for thermochemical energy storage applications[J]. Physical Chemistry Chemical Physics, 2018, 20(4): 2274-2283.
86	PITT M P, PASKEVICIUS M, WEBB C J, et al. The synthesis of nanoscopic Ti based alloys and their effects on the MgH2 system compared with the MgH₂+ 0.01 Nb₂O₅ benchmark[J]. international journal of hydrogen energy, 2012, 37(5): 4227-4237.
87	CALABRESE L, BRANCATO V, PALOMBA V, et al. Assessment of the hydration/dehydration behaviour of MgSO₄∙7H₂O filled cellular foams for sorption storage applications through morphological and thermo-gravimetric analyses[J]. Sustainable Materials and Technologies, 2018, 17: e00073.
88	SAKELLARIOU K G, KARAGIANNAKIS G, CRIADO Y A, et al. Calcium oxide based materials for thermochemical heat storage in concentrated solar power plants[J]. Solar Energy, 2015, 122: 215-230.
89	DENG J, GU C, XU H, et al. Self-assembly CuO surface decorated with NiAl₂O₄ for high-temperature thermochemical energy storage: Excellent performance and strong interaction mechanism[J]. Journal of Energy Storage, 2023, 59: 106370.
90	JEREMIAS F, LOZAN V, HENNINGER S K, et al. Programming MOFs for water sorption: amino-functionalized MIL-125 and UiO-66 for heat transformation and heat storage applications[J]. Dalton transactions, 2013, 42(45): 15967-15973.
91	PERMYAKOVA A. Metal Organic Frameworks based materials for long term solar energy storage application[D]. Université Paris Saclay (COmUE); Université de Mons, 2016.
92	FU R, HUANG J, FENG Q, et al. Synthesis of dark Li₄- 3xFe_xSiO₄ for simultaneous direct solar thermal conversion and durable thermochemical energy storage[J]. Journal of Energy Storage, 2023, 73: 109053.
93	DIZAJI H B, HOSSEINI H. A review of material screening in pure and mixed-metal oxide thermochemical energy storage (TCES) systems for concentrated solar power (CSP) applications[J]. Renewable and Sustainable Energy Reviews, 2018, 98: 9-26.
94	ANDRÉ L, ABANADES S, CASSAYRE L. High-temperature thermochemical energy storage based on redox reactions using Co-Fe and Mn-Fe mixed metal oxides[J]. Journal of Solid State Chemistry, 2017, 253: 6-14.
95	BLOCK T, SCHMÜCKER M. Metal oxides for thermochemical energy storage: A comparison of several metal oxide systems[J]. Solar Energy, 2016, 126: 195-207.
96	PAGKOURA C, KARAGIANNAKIS G, ZYGOGIANNI A, et al. Cobalt oxide based structured bodies as redox thermochemical heat storage medium for future CSP plants[J]. Solar Energy, 2014, 108: 146-163.
97	KARAGIANNAKIS G, PAGKOURA C, HALEVAS E, et al. Cobalt/cobaltous oxide based honeycombs for thermochemical heat storage in future concentrated solar power installations: Multi-cyclic assessment and semi-quantitative heat effects estimations[J]. Solar Energy, 2016, 133: 394-407.
98	WONG B. Thermochemical Heat Storage for Concentrated Solar Power: Thermochemical System Reactor Design for Thermal Energy Storage: Phase II Final Report for the Period September 30, 2008 through April 30, 2011[J]. US Department of Energy: Washington, DC, USA, 2011.
99	AGRAFIOTIS C, ROEB M, SCHMÜCKER M, et al. Exploitation of thermochemical cycles based on solid oxide redox systems for thermochemical storage of solar heat. Part 1: Testing of cobalt oxide-based powders[J]. Solar Energy, 2014, 102: 189-211.
100	CARRILLO A J, SERRANO D P, PIZARRO P, et al. Design of efficient Mn-based redox materials for thermochemical heat storage at high temperatures[C]//AIP Conference Proceedings. AIP Publishing, 2016, 1734(1).
101	CARRILLO A J, SERRANO D P, PIZARRO P, et al. Manganese oxide-based thermochemical energy storage: Modulating temperatures of redox cycles by Fe-Cu co-doping[J]. Journal of Energy Storage, 2016, 5: 169-176.
102	CARRILLO A J, SERRANO D P, PIZARRO P, et al. Thermochemical heat storage at high temperatures using Mn₂O₃/Mn₃O₄ system: narrowing the redox hysteresis by metal co-doping[J]. Energy Procedia, 2015, 73: 263-271.
103	VARSANO F, ALVANI C, LA BARBERA A, et al. Lithium manganese oxides as high-temperature thermal energy storage system[J]. Thermochimica Acta, 2016, 640: 26-35.
104	JACOB K T, KALE G M, IYENGAR G N K. Oxygen potentials, Gibbs' energies and phase relations in the Cu-Cr-O system[J]. Journal of materials science, 1986, 21: 2753-2758.
105	BLOCK T, KNOBLAUCH N, SCHMÜCKER M. The cobalt-oxide/iron-oxide binary system for use as high temperature thermochemical energy storage material[J]. Thermochimica Acta, 2014, 577: 25-32.
106	WANG P, GUO Y, ZHOU D, et al. High‐temperature flexible nanocomposites with ultra‐high energy storage density by nanostructured MgO fillers[J]. Advanced Functional Materials, 2022, 32(31): 2204155.
107	岳一莹,潘红阳,蒋剑春.纳米纤维素/还原氧化石墨烯光催化气凝胶的制备及其吸附降解罗丹明B[J].生物质化学工程,2024,58(02):1-12.
	YUE Yiying, PAN Hongyang, JIANG Jianchun. Preparation of nanocellulose / reduced graphene oxide photocatalytic aerogel and its adsorption and degradation of rhodamine B [ J ].Biomass Chemical Engineeringl, 2024,58 ( 02 ) : 1-12.
108	XU M, HUAI X, CAI J. Agglomeration behavior of calcium hydroxide/calcium oxide as thermochemical heat storage material: a reactive molecular dynamics study[J]. The Journal of Physical Chemistry C, 2017, 121(5): 3025-3033.
109	林艳红, 王德军, 肇启东, 等.ZnO纳米粒子结构对光电量子限域特性的影响[J]. 高等学校化学学报, 2003, 24(11): 2077-2079.
	LIN Yanhong, WANG Dejun, ZHAO Qidong, et al. [ 92 ].Effect of ZnO nanoparticle structure on photoelectric quantum confinement characteristics [ J ].Chemical Journal of ChineseUniversities, 2003,24 ( 11 ) : 2077-2079.
110	ZAHIR M H, RAHMAN M M, BASAMAD S K S, et al. Preparation of a Sustainable Shape-Stabilized Phase Change Material for Thermal Energy Storage Based on Mg²⁺-Doped CaCO₃/PEG Composites[J]. Nanomaterials, 2021, 11(7): 1639.
111	JIANG L, YAN J, TIAN X K, et al. Thermochemical heat storage and material behavior of calcium hydroxide fine powder in a fluidized bed reactor[J]. Energy, 2024, 312: 133691.
112	KIM Y, DONG X, CHAE S, et al. Ultrahigh‐porosity MgO microparticles for heat‐energy storage[J]. Advanced Materials, 2023, 35(43): 2204775.
113	JIANG L, ZHOU H, YANG H, et al. Applications of hierarchical metal–organic frameworks and their derivatives in electrochemical energy storage and conversion[J]. Journal of Energy Storage, 2022, 55: 105354.
114	ZHAO M, SHI J, ZHONG X, et al. A novel calcium looping absorbent incorporated with polymorphic spacers for hydrogen production and CO₂ capture[J]. Energy & Environmental Science, 2014, 7(10): 3291-3295.
115	TIAN Z, ZHANG J, ZHANG Y, et al. Thermochemical heat storage performance of Fe-doped MgO/Mg(OH)₂: Experimental and DFT investigation[J]. Journal of Energy Storage, 2024, 86: 111388.
116	WARD P A, CORGNALE C, TEPROVICH J A, et al. Technical challenges and future direction for high-efficiency metal hydride thermal energy storage systems[J]. Applied Physics A, 2016, 122: 1-10.
117	MISTRY P C, GRANT D M, STUART A D, et al. Evolution of catalyst coated atomised magnesium spheres–An alternative thermal storage medium for concentrated solar power applications[J]. International Journal of Hydrogen Energy, 2017, 42(47): 28453-28463.
118	AFFLERBACH S, KAPPES M, GIPPERICH A, et al. Semipermeable encapsulation of calcium hydroxide for thermochemical heat storage solutions[J]. Solar Energy, 2017, 148: 1-11.
119	COT-GORES J, CASTELL A, CABEZA L F. Thermochemical energy storage and conversion: A-state-of-the-art review of the experimental research under practical conditions[J]. Renewable and Sustainable Energy Reviews, 2012, 16(7): 5207-5224.
120	YANG H, WANG C, ZHANG Y, et al. Experimental investigation of a thermochemical energy storage system based on MgSO₄-silica gel for building heating: adsorption/desorption performance testing and system optimization[J]. Energy Conversion and Management, 2024, 301: 118000.
121	YANG H, WANG C, TONG L, et al. Investigation of thermochemical energy storage materials for building heating applications: Desorption behaviors of MgSO₄·7H₂O–silica gel composite[J]. Chemical Engineering Journal, 2024, 502: 157859.
122	WEI S, ZHOU W, HAN R, et al. Influence of minerals with different porous structures on thermochemical heat storage performance of CaCl2-based composite sorbents[J]. Solar Energy Materials and Solar Cells, 2022, 243: 111769.
123	吴桐.二元锰铁热化学储热材料团聚调控机制及模块循环性能优化[D].浙江大学,2024.DOI:10.27461/d.cnki.gzjdx.2024.000013.
	WU Tong. Aggregation regulation mechanism and module cycle performance optimization of binary ferromanganese thermochemical heat storage materials [ D ].Zhejiang University, 2024.DOI : 10.27461 / d.cnki.gzjdx.2024.000013.
124	XU Y, ZHANG T, LU B, et al. Glycine tailored effective CaO-based heat carriers for thermochemical energy storage in concentrated solar power plants[J]. Energy Conversion and Management, 2021, 250: 114886.
125	LIU H, NAGANO K, TOGAWA J. A composite material made of mesoporous siliceous shale impregnated with lithium chloride for an open sorption thermal energy storage system[J]. Solar Energy, 2015, 111: 186-200.
126	WANG Z, TAO S, DENG J, et al. Significant improvement in the dehydriding properties of perovskite hydrides, NaMgH₃, by doping with K2TiF6[J]. International Journal of Hydrogen Energy, 2017, 42(12): 8554-8559.
127	POSERN K, KAPS C. Calorimetric studies of thermochemical heat storage materials based on mixtures of MgSO₄ and MgCl₂[J]. Thermochimica Acta, 2010, 502(1-2): 73-76.
128	AIT OUSALEH H, SAIR S, MANSOURI S, et al. New hybrid graphene/inorganic salt composites for thermochemical energy storage: synthesis, cyclability investigation and heat exchanger metal corrosion protection performance[J]. Solar Energy Materials and Solar Cells, 2020, 215: 110601.
129	ANDRÉ L, ABANADES S. Evaluation and performances comparison of calcium, strontium and barium carbonates during calcination/carbonation reactions for solar thermochemical energy storage[J]. Journal of Energy Storage, 2017, 13: 193-205.
130	TIAN X, GUO S, LV X, et al. Progress in multiscale research on calcium-looping for thermochemical energy storage: From materials to systems[J]. Progress in Energy and Combustion Science, 2025, 106: 101194.
131	SARRION B, VALVERDE J M, PEREJON A, et al. On the multicycle activity of natural limestone/dolomite for thermochemical energy storage of concentrated solar power[J]. Energy Technology, 2016, 4(8): 1013-1019.
132	VALVERDE J M, BAREA-LOPEZ M, PEREJON A, et al. Effect of thermal pretreatment and nanosilica addition on limestone performance at calcium-looping conditions for thermochemical energy storage of concentrated solar power[J]. Energy & Fuels, 2017, 31(4): 4226-4236.
133	RAGANATI F, CHIRONE R, AMMENDOLA P. Calcium-looping for thermochemical energy storage in concentrating solar power applications: Evaluation of the effect of acoustic perturbation on the fluidized bed carbonation[J]. Chemical Engineering Journal, 2020, 392: 123658.
134	RAGANATI F, AMMENDOLA P. Sound-assisted fluidization for temperature swing adsorption and calcium looping: A review[J]. Materials, 2021, 14(3): 672.

水合盐材料	n的最大值	n的最小值	开放系统能量密度(GJ/m³)	封闭系统能量密度(GJ/m³)	水化温度(K)(1.2kPa)	脱水温度(K)(2kPa)	最低熔点(K)	价格(€/kg)	稳定性
GdCl₃∙nH₂O	6	0	2.7	1.56	363	371	-	稀土金属	-
EuCl₃∙nH₂O	6	0	2.61	1.52	362	370	-	稀土金属	-
CrCl₂∙nH₂O	3	0	2.11	1.31	334	341	372	-	Cr²⁺不稳定
LiCl∙nH₂O	1	0	2.08	1.36	339	345	-	37	-
LiBr∙nH₂O	1	0	2.01	1.37	376	383	393	37	-
FeCl₂∙nH₂O	2	0	1.93	1.26	326	332	-	-	Fe²⁺不稳定
CsF∙nH₂O	1	0	1.79	1.20	357	364	-	>10	-
Ca(ClO₄)₂∙nH₂O	4	0	1.75	1.17	365	373	-	-	爆炸性
CuCl₂∙nH₂O	2	0	1.74	1.13	326	332	>423	3	急性毒性
Na₂S∙nH₂O	5	0.5	2.79	1.58	339	355	355	0.65	产生H₂S
RbF∙nH₂O	1	0	1.57	1.10	357	364	-	>10	-
CrCl₂∙nH₂O	2	0	1.57	1.07	335	342	-	-	Cr²⁺不稳定
CaCl₂∙nH₂O	2	0	1.54	1.06	336	384	449	0.29	-
Mg(NO₃)₂∙nH₂O	6	2	1.53	1.04	334	341	362	-	损失N₂
LiNO₂∙nH₂O	1	0	1.51	1.07	367	375	-	37	损失N₂
Mg(NO₃)₂∙nH₂O	2	0	1.51	1.08	378	386	-	-	损失N₂
LiI∙nH₂O	3	1	1.49	1.02	370	368	-	37	-
LaCl₃∙nH₂O	7	3	1.48	1.03	339	346	364	稀土元素	-
KAl(SO₄)₂∙nH₂O	3	0	1.39	1.01	330	336	365		-
MnI₂∙nH₂O	4	0	1.39	0.90	332	336	353		急性毒性
VOSO₄∙nH₂O	3	1	1.35	0.98	346	353		>10	急性毒性
K₂CO₃∙nH₂O	1.5	0	1.30	0.96	332	338	>423	1	-
MgCl₂∙nH₂O	6	2	1.93	1.24	334	377	390	0.18	产生HCl
Na₂S∙nH₂O	5	2	1.77	1.17	339	346	355	0.65	产生H₂S
Na₂S∙nH₂O	2	0.5	1.60	1.14	348	355	355	0.65	产生H₂S

名称	化学反应	产物	储能密度(kWh/m³)	反应温度(K)	反应压强(MPa)
金属氧化物	2Co₃O₄↔6CoO+O₂	Co₃O₄	295	973–1123	0-1
金属氢化物	MgH₂↔Mg+H₂	MgH₂	580	573–773	5-10
氢氧化物	Ca(OH)₂↔CaO+H₂O	Ca(OH)₂	437	623–1173	0.1-10.0
	Mg(OH)₂↔MgO+H₂O	Mg(OH)₂	388	573–723	0.1-10.0
氨	2NH₃↔N₂+3H₂	NH₃(l)	745	673–973	10-30
碳酸盐	CaCO₃↔CaO+CO₂	CaCO₃	692	973–1273	0-10
	PbCO₃↔PbO+CO₂	PbCO₃	303	573–1723	0-10
甲烷重整	CH₄+H₂O↔CO+3H₂	CH₄(g)	7.8	873–1223	1.0-3.5
	CH₄+CO₂↔2CO+2H₂	CH₄(g)	7.7	973–1173	1.0-3.5

材料	反应温度(K)	优点	缺点	技术现状
氧化物	973以上	高反应焓(205 kJ/mol)	储存O₂	实验室规模
		宽操作温度(973-1300K)	产物有毒(Co₃O₄/CoO)
		低操作压力(0-0.1MPa)	产物成本高
		无催化剂
		无副反应(BaO/BaO₂)
		高可逆性(500次循环)(Co₃O₄/CoO)
金属氢化物	573~973	高能量密度	反应动力学差	中试规模
		高可逆性	氢脆
		大量关于储氢和热泵应用的实验反馈	材料成本较高
氢氧化物	573以上	材料成本低	材料结块	实验室和中试规模
氢氧化物	573以上	无毒	与CO₂的副反应	实验室和中试规模
氨合成/分解	673~973	易于控制	有毒	中试规模
		无副反应	遏制成本高
		丰富的工业经验	体积能量密度低
			工作压力高
碳酸盐	573~1723	廉价、丰富、无毒	可逆性较差	实验室和中试规模
		高能量密度	低循环稳定性
		高工作温度(1700K)	烧结
		适合高温发电	物料结块
			与CO₂的副反应
甲烷重整	873~1223	高操作温度(1223K)	体积能量密度低	中试规模
		高质量能量密度	催化剂成本高
		更便宜的能量输送方法(最远100-300km)	CO毒性
SO₃/O₂/SO₂系统	1073~1473	高工作温度(1473K)	有毒
SO₃/O₂/SO₂系统		硫酸生产中的工业反馈	高度腐蚀
硫基循环	773~1473	价格便宜且市场有售	有毒	实验室规模
		储存稳定	需要高度防护的容器
		能量密度为9 MJ/kg
		硫具有成本效益(<0.2€/kg)

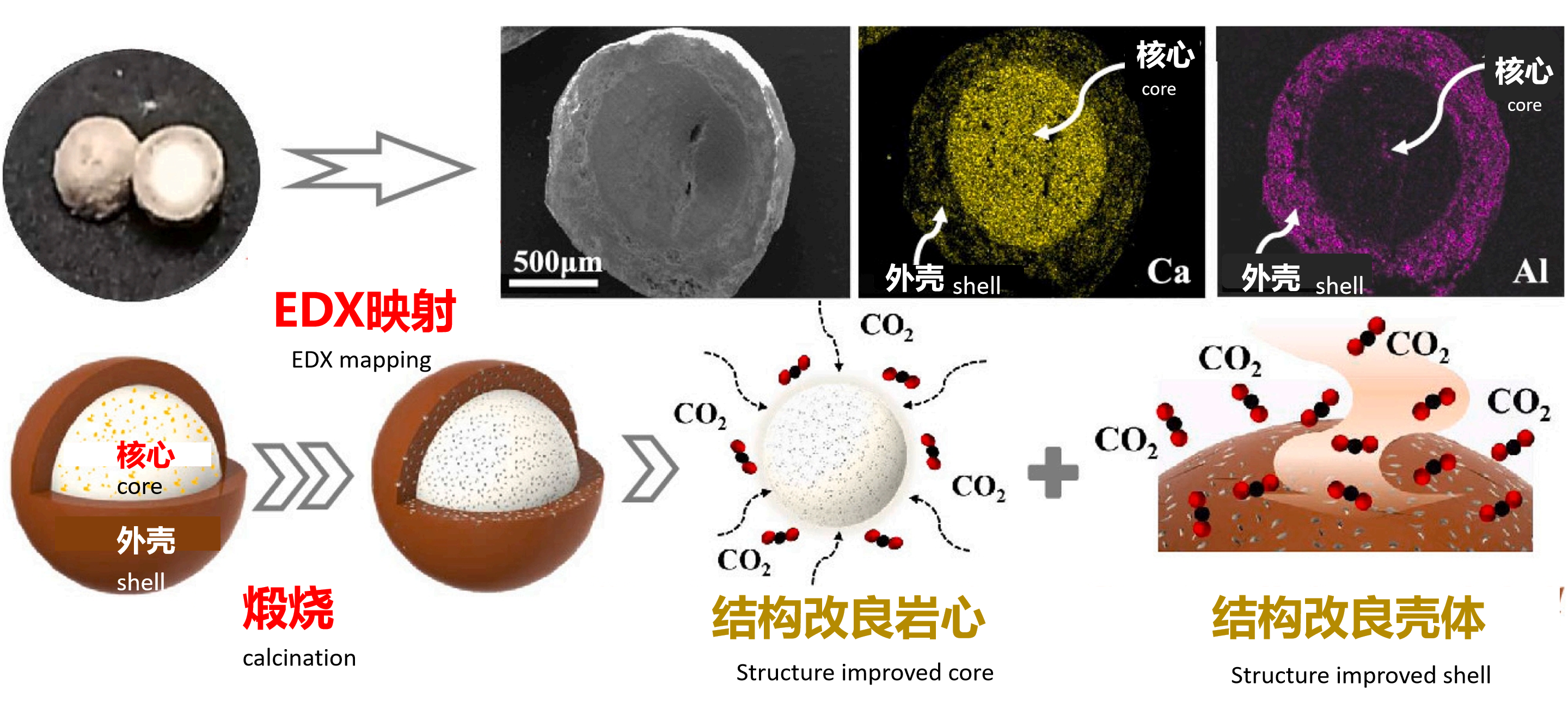

封装壳层材料	聚合物	无机氧化物	陶瓷
优点	1.化学惰性减少副反应	1.化学惰性较强	1.化学惰性强
	2.良好弹性适应体积变化	2.热稳定性高(1273K以上)	2.热稳定性极高(1273K以上)
	3.耐磨性好	3.耐磨性好	3.耐磨性好
	4.不影响导热性	4.机械稳定性好	4.机械稳定性好
	5.加工简单，无需高温烧结	5.成本效益高	5.成本低
缺点	1.受熔融/分解温度限制	1.需高温烧结，不适用低温敏感核材料	1.烧结影响稳定性
	2.热稳定性低	2.脆性高、易断裂	2.脆性大，易断裂
	3.高温环境失效	3.热导性较低	3.需要助熔剂/特殊工艺降低烧结温度
	4.机械强度较弱	4.与材料发生副反应	4.热导性低于金属材料

方法	原理	优点	缺点	适用场景
干法浸渍	气相扩散	无溶剂废液、可浸渍高温热化学材料、高负载性	工艺复杂、成本较高、均匀性较差	高温储热体系、气体吸附剂、难容易升华物质、微孔基质
湿法浸渍	溶液渗透	工艺简单、浸渍均匀、高分散性、成本较低	浸渍率低、需要额外操作去除溶剂	中低温储热体系、可溶性盐类、络合物、亲水多孔材料
