Research on blade stress optimization method of axial flow compressor in compressed air energy storage system

doi:10.19799/j.cnki.2095-4239.2024.1011

Abstract

Abstract:

Compressed air energy storage (CAES) systems are recognized as one of the most promising large-scale physical energy storage technologies. At the heart of these systems lies the axial flow compressor, whose safety and operational stability are critical for ensuring the economic viability and safe use of advanced CAES. Within the compressor, the blades play a key role in energy conversion but are vulnerable to fatigue damage during operation. The stacking line of the blade can effectively adjust the stress distribution characteristics. This study focuses on the structural optimization of a 1.5-stage axial flow compressor within a CAES system. Latin hypercube planning (LHS) is employed for parameter selection, a radial basis function neural network (RBFNN) is used to establish the agent model, and the non-dominated sorting genetic algorithm-II (NSGA-II) is applied to capture the target value. Together, these approaches establish an integrated parametric optimization framework for three-dimensional bending and sweeping structure modeling of axial flow blades. The optimization results show that the maximum equivalent stress of the optimized blade decreases from 376.8 MPa to 255.9 MPa, achieving a stress reduction of 32.1%. The blade stress distribution is primarily influenced by centrifugal forces, while appropriate bending and sweeping modifications can effectively adjust the center of gravity and the centrifugal bending moment for each blade section. Notably, the optimization method does not significantly impact the flow field distribution, rotor surface load distribution, and tip clearance energy dissipation and achieve the decoupling of aerodynamic performance and structural stress distribution.

Key words: axial compressor, stacking method, parametric modeling, numerical simulation

CLC Number:

TK 14

Guiyue SHI, Hailiang TAO, Zhitao ZUO, Jingxin LI, Jixiang CHEN, Jiaxi CHEN, Haisheng CHEN. Research on blade stress optimization method of axial flow compressor in compressed air energy storage system[J]. Energy Storage Science and Technology, 2025, 14(4): 1522-1532.

Figures/Tables 23

Fig. 1

Fig. 2

Table 1

Fig. 3

Fig. 4

Fig. 5

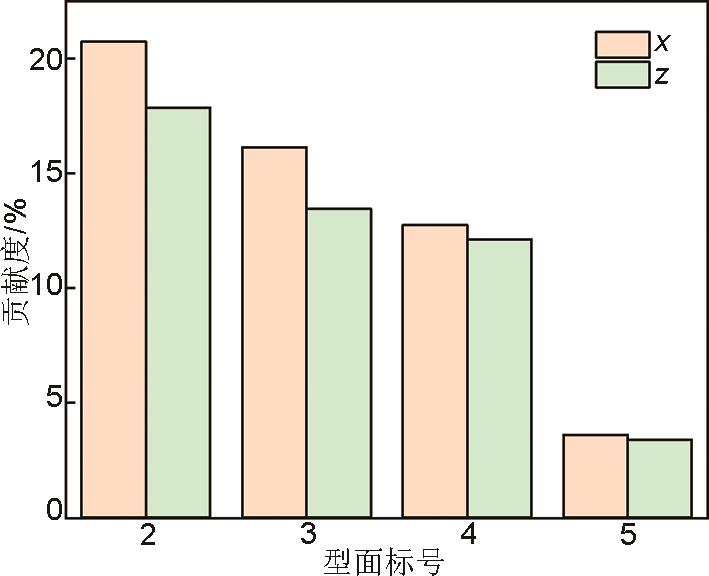

Fig. 6

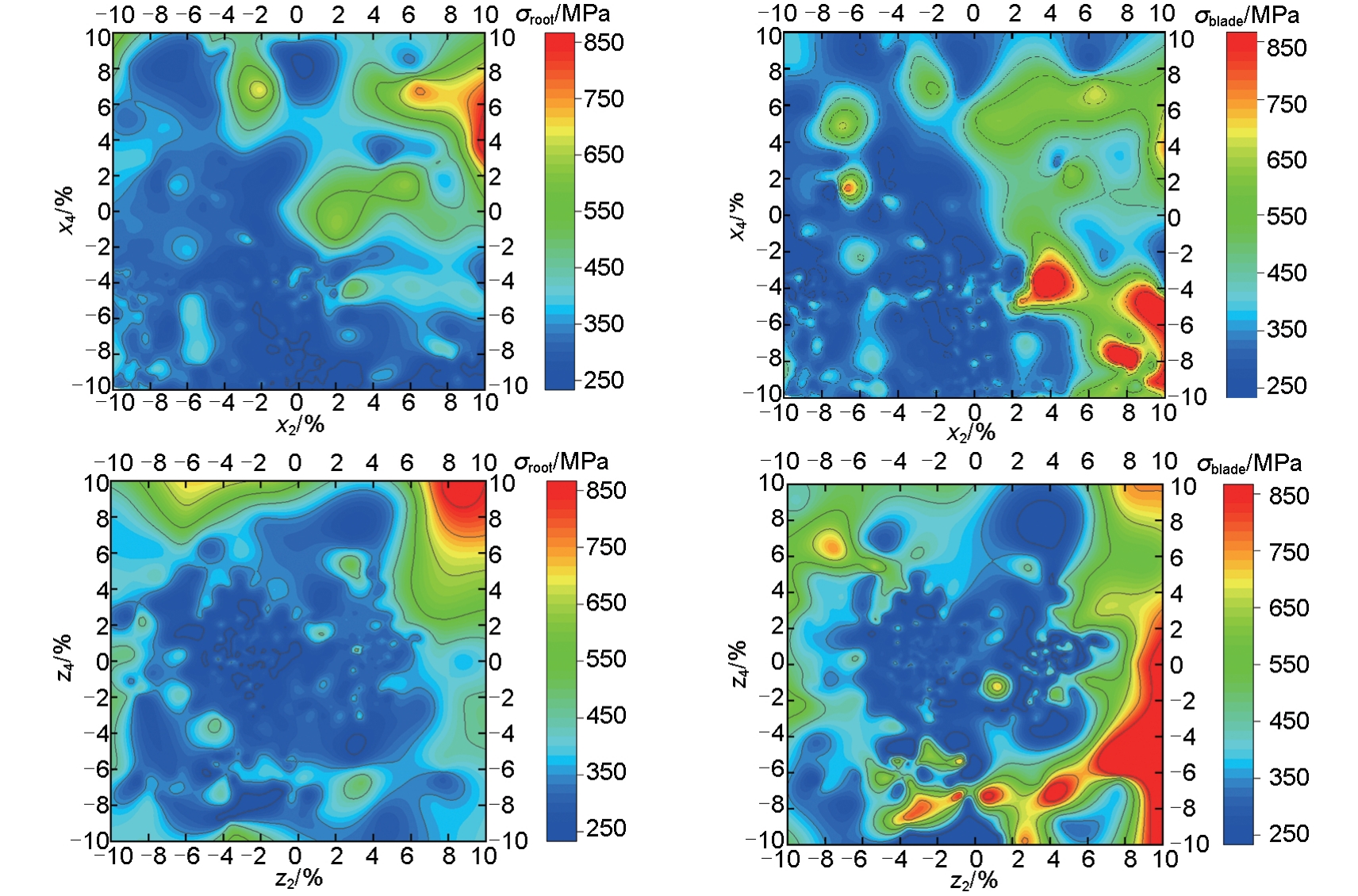

Fig. 7

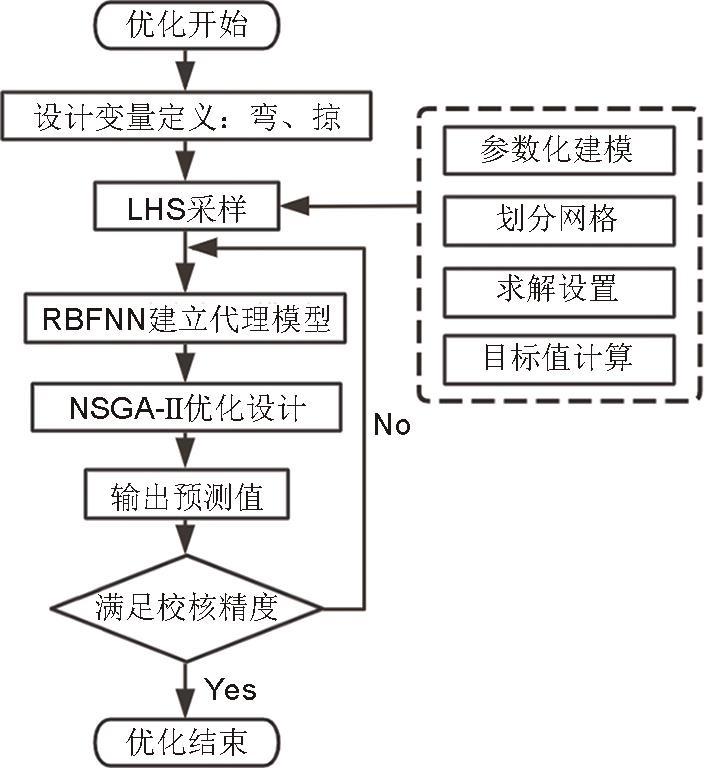

Fig. 8

Table 2

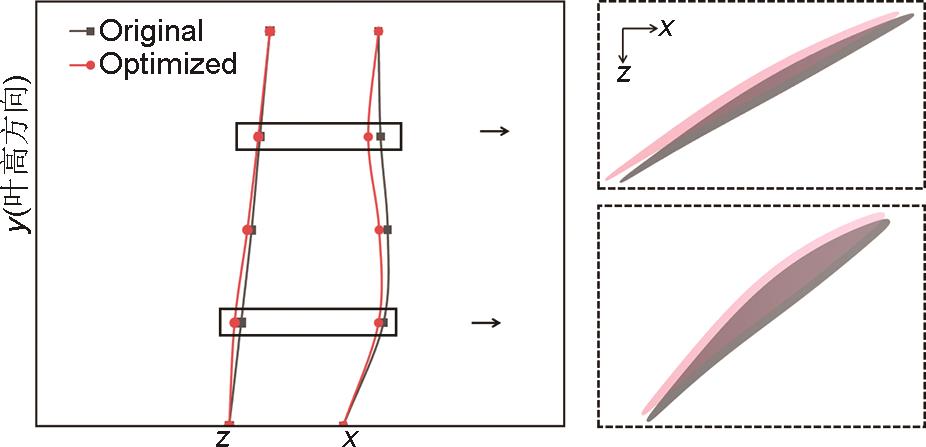

Optimization result"

参数	优化前	优化后
$x 2$	0	-1.998%
$z 2$	0	-2.646%
$x 4$	0	-4.927%
$z 4$	0	-0.701%
$σ m a x$ /MPa	376.8	255.9
优化量	0	-32.1%

Table 2

Fig. 9

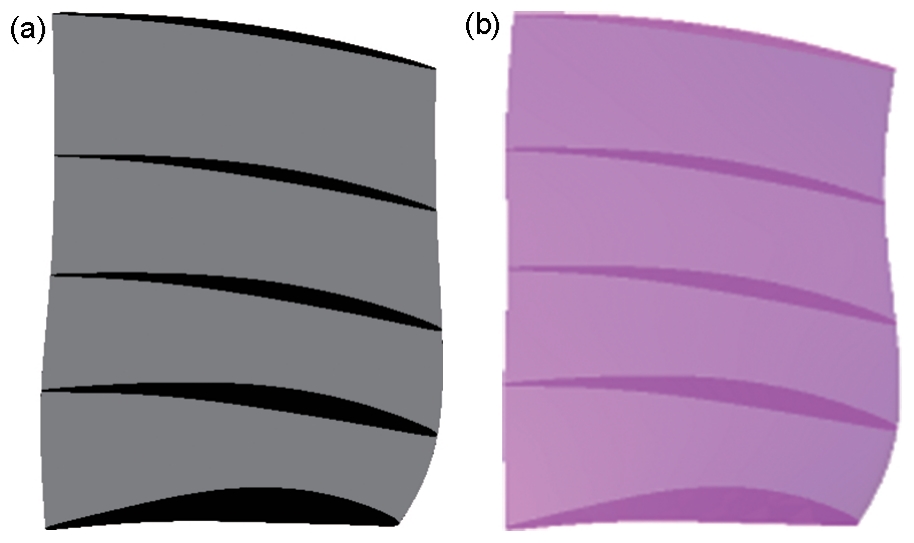

Fig. 10

Fig. 11

Fig. 12

Table 3

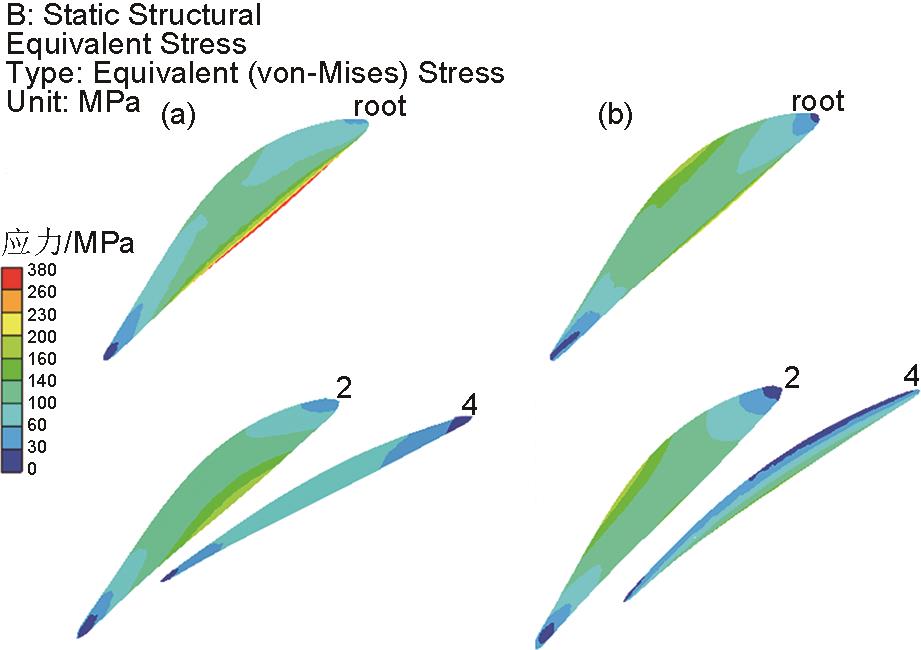

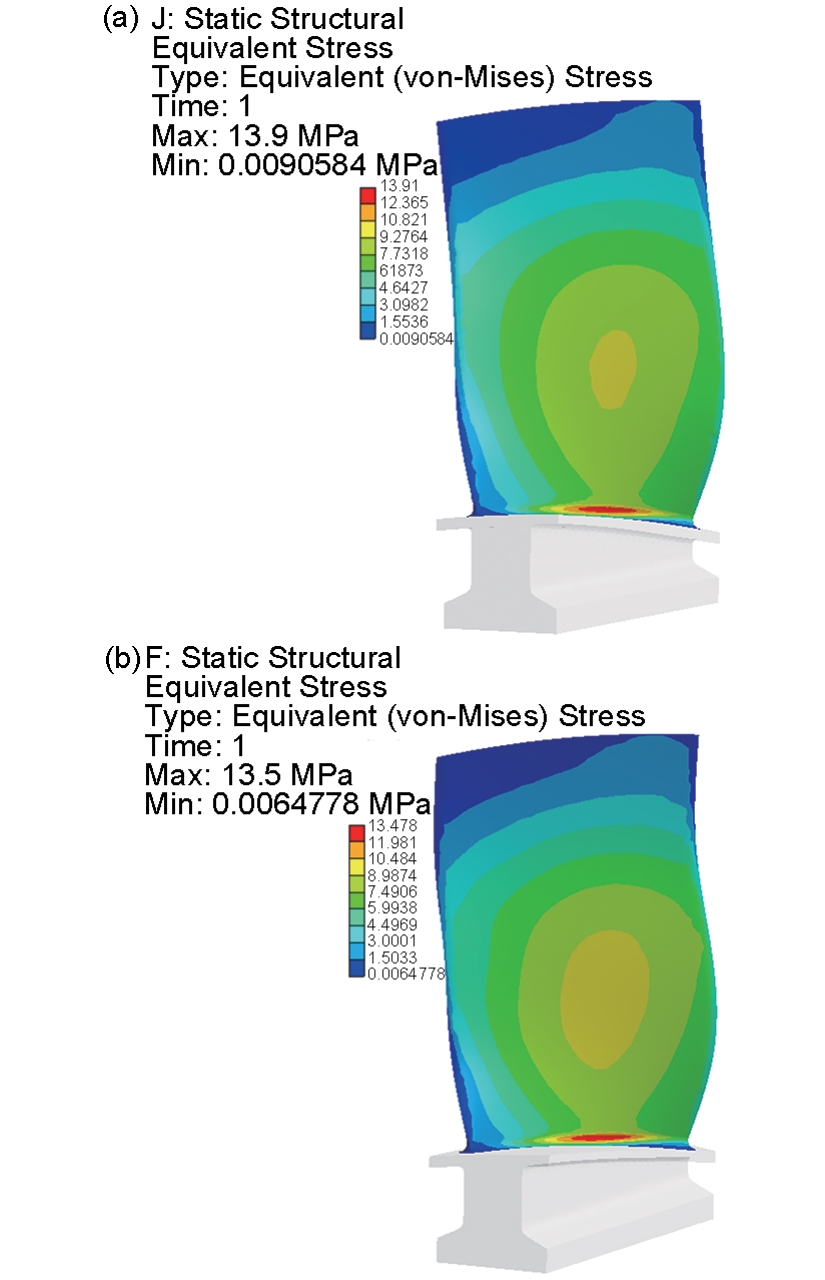

Maximum equivalent stress values under different loads"

施加载荷	优化前 $σ m a x$ /MPa	优化后 $σ m a x$ /MPa
气动力	13.9	13.5
离心力	368.2	256.6
气动力+离心力	376.8	255.9

Table 3

Fig. 13

Fig. 14

Table 4

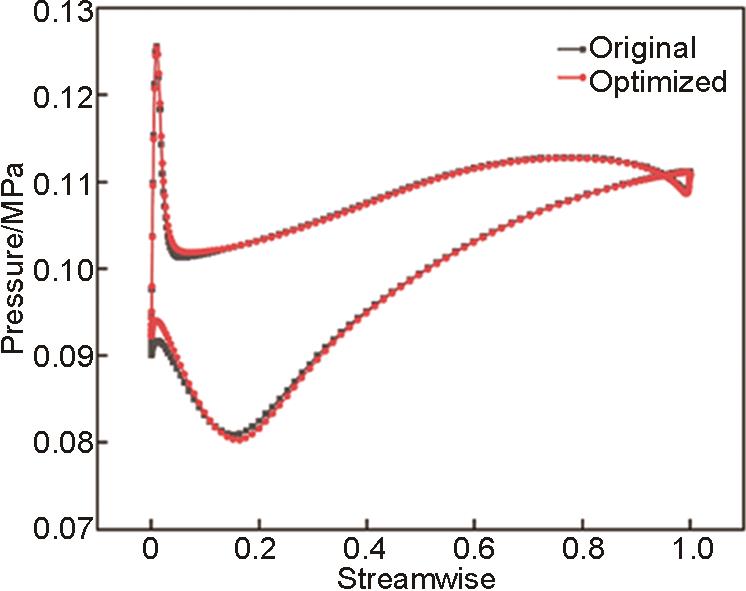

Fig. 15

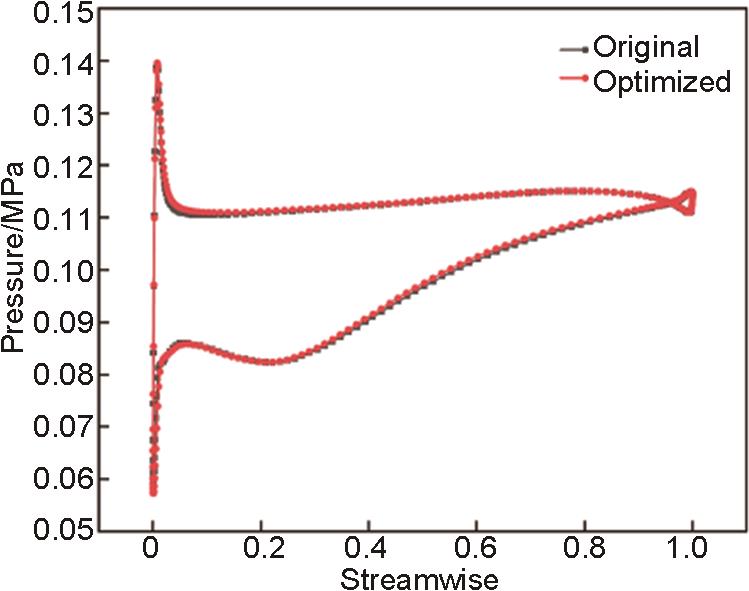

Fig. 16

Fig. 17

Fig. 18

Fig. 19

References 27

1	BUDT M, WOLF D, SPAN R, et al. A review on compressed air energy storage: Basic principles, past milestones and recent developments[J]. Applied Energy, 2016, 170: 250-268. DOI:10. 1016/j.apenergy.2016.02.108.
2	LI P F, ZUO Z T, LI J X, et al. Characteristics of inlet guide vane adjustment of multi-stage axial compressor in compressed air energy storage system[J]. Journal of Energy Storage, 2023, 72: 108342. DOI:10.1016/j.est.2023.108342.
3	CHEN X Y. Blade stress of the reactor coolant pump of 300 MWe nuclear power plant in China based on fluid-solid coupling method[J]. Journal of Mechanical Engineering, 2010, 46(4): 111. DOI:10. 3901/jme.2010.04.111.
4	MALIK A, ZHENG Q, FAWZY H, et al. Evaluation of helium xenon gas mixture as working fluid in highly loaded axial compressor [J]. Journal of Turbomachinery, 2019, 61(2): 10-15.
5	曹传军, 刘天一, 朱伟, 等. 民用大涵道比涡扇发动机高压压气机技术进展[J]. 航空学报, 2023, 44(12): 027824.
	CAO C J, LIU T Y, ZHU W, et al. Technology development in high pressure compressor of civil high bypass-ratio turbofan engine[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(12): 027824.
6	陈海生, 李泓, 马文涛, 等. 2021年中国储能技术研究进展[J]. 储能科学与技术, 2022, 11(3): 1052-1076. DOI: 10.19799/j.cnki.2095-4239.2022.0105.
	CHEN H S, LI H, MA W T, et al. Research progress of energy storage technology in China in 2021[J]. Energy Storage Science and Technology, 2022, 11(3): 1052-1076. DOI: 10.19799/j.cnki. 2095-4239.2022.0105.
7	MIURA T, SAKAI N, KANAZAWA N, et al. Forced response excitation due to the stator vanes of two and three compressor stages away[J]. Journal of Engineering for Gas Turbines and Power, 2021, 143(11): 111018. DOI:10.1115/1.4051918.
8	DAY I J. Stall, surge, and 75 years of research[J]. Journal of Turbomachinery, 2016, 138(1): 011001. DOI:10.1115/1.4031473.
9	CAI L, HE Y, LI Y, et al. Research progress on the influence of particle fouling and erosion damage on the performance of axial compressors [J]. Journal of Chinese Society of Power Engineering, 2022, 42(7): 622-631.
10	LIU C, LIU S J, GAO S B, et al. Fatigue life assessment of the centrifugal compressor impeller with cracks based on the properties of FV520B[J]. Engineering Failure Analysis, 2016, 66: 177-186. DOI:10.1016/j.engfailanal.2016.04.028.
11	曹传军, 况成玉, 姜逸轩. 高负荷轴流压气机喘振时叶片动应力[J]. 科学技术与工程, 2021, 21(27): 11850-11857. DOI: 10.3969/j.issn.1671-1815.2021.27.052.
	CAO C J, KUANG C Y, JIANG Y X. Surge on blade dynamic stress of high loading axial compressor[J]. Science Technology and Engineering, 2021, 21(27): 11850-11857. DOI: 10.3969/j.issn.1671-1815.2021.27.052.
12	伊卫林, 黄鸿雁, 韩万金. 跨声压气机动叶周向弯曲的数值优化设计[J]. 航空动力学报, 2006, 21(3): 480-484. DOI: 10.13224/j.cnki.jasp.2006.03.008.
	YI W L, HUANG H Y, HAN W J. Numerical optimization design of circumferentially curved transonic compressor rotor[J]. Journal of Aerospace Power, 2006, 21(3): 480-484. DOI: 10.13224/j.cnki.jasp.2006.03.008.
13	王会社, 袁新, 岳国强, 等. 弯曲叶片积叠线对压气机叶栅气动性能的影响[J]. 航空动力学报, 2002, 17(3): 327-331. DOI: 10.13224/j.cnki.jasp.2002.03.012.
	WANG H S, YUAN X, YUE G Q, et al. Effects of curved blade stacking line on the aerodynamic performance of compressor cascade[J]. Journal of Aerospace Power, 2002, 17(3): 327-331. DOI: 10.13224/j.cnki.jasp.2002.03.012.
14	TAYLOR J V, MILLER R J. Competing 3D mechanisms in compressor flows[C]//ASME Turbo Expo 2015: Turbine Technical Conference and Exposition, June 15–19, 2015, Montreal, Quebec, Canada. 2015 DOI:10.1115/GT2015-43322.
15	SONG Z, LIU B, MAO X, et al. Optimization of tandem blade based on improved particle swarm algorithm[C]//ASME Turbo Expo 2016: Turbomachinery Technical Conference and Exposition, June 13-17, 2016, Seoul, Republic of Korea. 2016 DOI:10. 1115/GT 2016-56901.
16	KORAKIANITIS T, HAMAKHAN I A, REZAIENIA M A, et al. Design of high-efficiency turbomachinery blades for energy conversion devices with the three-dimensional prescribed surface curvature distribution blade design (CIRCLE) method[J]. Applied Energy, 2012, 89(1): 215-227. DOI:10.1016/j.apenergy. 2011. 07.004.
17	CHEN J X, ZUO Z T, ZHOU X, et al. Genetic optimization design for aerodynamic structure of oblique flow compressor radial inlet chamber in compressed air energy storage system[J]. Energy Storage, 2023, 5(6): e452. DOI:10.1002/est2.452.
18	SONG W M, ZHANG Y F, CHEN H X, et al. Transonic compressor blade optimization integrated with circumferential groove casing treatment[J]. Journal of Turbomachinery, 2019, 141(3): 031015. DOI:10.1115/1.4041699.
19	ZHONG J, KANG D, WANG Y, et al. A reconstruction method for axial compressor blade based on variable stiffness[J]. Journal of Propulsion Technology, 2017, 38(8): 1857-1862.
20	VELAZQUEZ A, SWARTZ R A. Damped gyroscopic effects and axial-flexural-torsional coupling using spinning finite elements for wind-turbine blades characterization[C]//Sensors and Smart Structures Technologies for Civil, Mechanical, and Aerospace Systems 2013. San Diego, California, USA. SPIE, 2013. DOI:10. 1117/12.2011722.
21	张正秋, 邹正平, 刘宝杰. 高负荷风扇叶片重心线调节对叶片强度和气动性能的影响分析[J]. 航空学报, 2006, 27(3): 380-385.
	ZHANG Z Q, ZOU Z P, LIU B J. Influence of gravity center modification on structural strength and aerodynamic performance of blade in high-load fan blade design[J]. Acta Aeronautica et Astronautica Sinica, 2006, 27(3): 380-385.
22	马艳红, 曹冲, 张大义, 等. 高负荷弯掠叶片力学模型与应力抑制研究[J]. 推进技术, 2016, 37(8): 1551-1559. DOI: 10.13675/j.cnki.tjjs.2016.08.020.
	MA Y H, CAO C, ZHANG D Y, et al. Mechanical modeling and stress suppression on high loading swept blade[J]. Journal of Propulsion Technology, 2016, 37(8): 1551-1559. DOI: 10.13675/j.cnki.tjjs.2016.08.020.
23	RIBEIRO A F P, AWRUCH A M, GOMES H M. An airfoil optimization technique for wind turbines[J]. Applied Mathematical Modelling, 2012, 36(10): 4898-4907. DOI:10.1016/j.apm. 2011. 12.026.
24	CHEHOURI A, YOUNES R, ILINCA A, et al. Review of performance optimization techniques applied to wind turbines[J]. Applied Energy, 2015, 142: 361-388. DOI:10.1016/j.apenergy. 2014.12.043.
25	ZHANG X Y, QIANG X Q, TENG J F, et al. A new curvature-controlled stacking-line method for optimization design of compressor cascade considering surface smoothness[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2020, 234(5): 1061-1074. DOI:10.1177/095441001 9894119.
26	王旭东, 邵惠鹤. RBF神经元网络在非线性系统建模中的应用[J]. 控制理论与应用, 1997, 14(1): 59-66.
	WANG X D, SHAO H H. Nonlinear system modeling using the radial basis function neural networks[J]. Control Theory & Applications, 1997, 14(1): 59-66.
27	郑强. 带精英策略的非支配排序遗传算法的研究与应用[D]. 杭州: 浙江大学, 2006.
	ZHENG Q. Research and application of non-dominated sorting genetic algorithm with elite strategy[D]. Hangzhou: Zhejiang University, 2006.

参数	参数值
材料	合金钢
密度/(kg/m³)	7850
杨氏模量/MPa	210000
泊松比	0.3
设计转速/(r/min)	3000

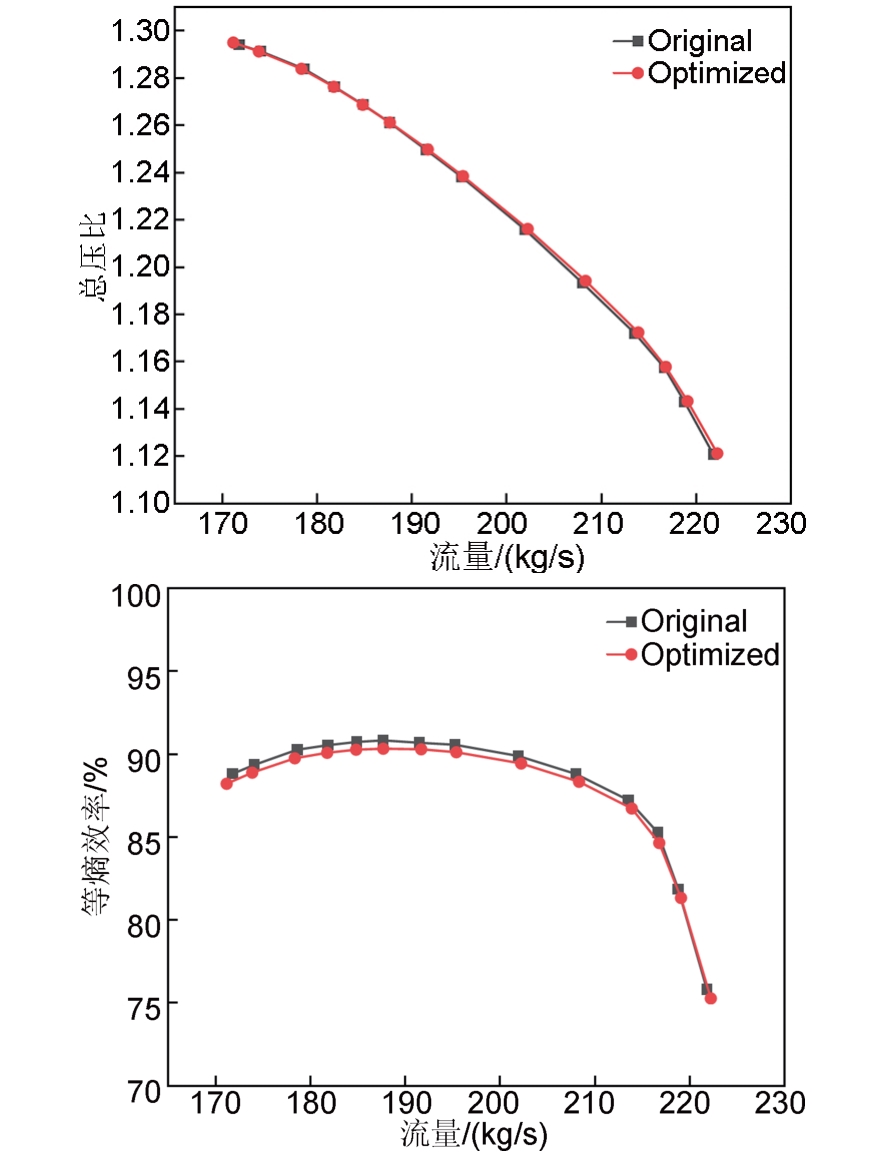

算例	等熵效率/%	总压比
优化前	90.758	1.266
优化后	90.306	1.266
