Dynamic performance analysis of a Carnot battery-based combined cooling, heating, and power system under variable operating conditions

doi:10.19799/j.cnki.2095-4239.2025.0511

Abstract

Abstract:

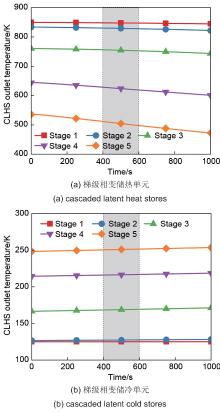

Carnot batteries are anticipated to evolve into combined cooling, heating, and power (CCHP) systems based on their thermo-electric conversion principle. When integrated with cascaded latent heat and cold storage technologies, these systems can flexibly supply electricity together with multigrade heat and cold. Given the time-varying nature of renewable energy inputs and load demands, analyzing dynamic response characteristics is essential to overcome technical barriers and support large-scale deployment. This study develops a dynamic model of a Carnot battery-based CCHP system incorporating cascaded latent heat and cold storage. The model evaluates the system's multienergy coordinated response under disturbances in electrical and heating/cooling power outputs, and examines the dynamic evolution of outlet temperatures and pressures, working fluid mass flow rates, and compressor/expander rotational speeds. Results show that cascaded latent heat and cold storage units provide strong thermal buffering, effectively smoothing outlet temperature fluctuations caused by changes in working fluid flow rate. Consequently, heating/cooling power outputs—primarily governed by working fluid flow rate—respond more rapidly than electrical power. The system also demonstrates robust resistance to multi-energy disturbances, with electrical and thermal/cooling power fluctuations being independent, thus enabling stable co-generation. Moreover, compressor/expander speed and mass flow rate are positively correlated with power input during charging: a 5% decrease in electrical input reduces them by 0.8% and 2.7%, respectively. Conversely, during discharging, they are negatively correlated with load fluctuations: a 5% reduction in load increases them by 1.4% and 4.5%, respectively. These findings provide valuable insights for the development of advanced control strategies.

Key words: Carnot battery, cascaded latent heat/cold storage, dynamic performance, combined cooling, heating, and power

CLC Number:

TK 02

Jiaxing HUANG, Yao ZHAO, Puliang DU, Peifeng SUN, Jiyu LI. Dynamic performance analysis of a Carnot battery-based combined cooling, heating, and power system under variable operating conditions[J]. Energy Storage Science and Technology, 2025, 14(11): 4245-4253.

Figures/Tables 10

Fig. 1

Table 1

Table 2

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 20

[1]	HUANG J X, ZHAO Y, SONG J, et al. A review of progress in thermo-mechanical energy storage technologies for combined cooling, heating and power applications[J]. Frontiers in Energy, 2025, 19(2): 117-143. DOI: 10.1007/s11708-025-0998-0.
[2]	ZHAO Y, SONG J, ZHU P W, et al. Carnot battery for energy storage: Advancements and challenges[J]. Green Energy and Resources, 2023, 1(4): 100048. DOI: 10.1016/j.gerr.2024.100048.
[3]	YANG H, LI J D, GE Z H, et al. Dynamic characteristics and control strategy of pumped thermal electricity storage with reversible Brayton cycle[J]. Renewable Energy, 2022, 198: 1341-1353. DOI: 10.1016/j.renene.2022.08.129.
[4]	YANG H, LI J D, GE Z H, et al. Dynamic performance for discharging process of pumped thermal electricity storage with reversible Brayton cycle[J]. Energy, 2023, 263: 125930. DOI: 10.1016/j.energy.2022.125930.
[5]	LU C, SHI X P, HE Q, et al. Dynamic modeling and numerical investigation of novel pumped thermal electricity storage system during startup process[J]. Journal of Energy Storage, 2022, 55: 105409. DOI: 10.1016/j.est.2022.105409.
[6]	SHI X P, HE Q, LU C, et al. Variable load modes and operation characteristics of closed Brayton cycle pumped thermal electricity storage system with liquid-phase storage[J]. Renewable Energy, 2023, 203: 715-730. DOI: 10.1016/j.renene.2022.12.116.
[7]	AN X G, HE Q, ZHANG Q X, et al. Physical modeling and dynamic characteristics of pumped thermal energy storage system[J]. Energy, 2024, 290: 130144. DOI: 10.1016/j.energy. 2023.130144.
[8]	MCTIGUE J, NEISES T. Off-design operation and performance of pumped thermal energy storage[J]. Journal of Energy Storage, 2024, 99: 113355. DOI: 10.1016/j.est.2024.113355.
[9]	ZHANG H, WANG L, LIN X P, et al. Combined cooling, heating, and power generation performance of pumped thermal electricity storage system based on Brayton cycle[J]. Applied Energy, 2020, 278: 115607. DOI: 10.1016/j.apenergy.2020.115607.
[10]	ZHAO Y, SONG J, ZHAO C Y, et al. Thermodynamic investigation of latent-heat stores for pumped-thermal energy storage[J]. Journal of Energy Storage, 2022, 55: 105802. DOI: 10.1016/j.est.2022.105802.
[11]	ZHAO Y, XIE Y, SONG J, et al. Second-law thermodynamic assessment of cascaded latent-heat stores for pumped-thermal electricity storage[J]. Applied Thermal Engineering, 2025, 262: 125290. DOI: 10.1016/j.applthermaleng.2024.125290.
[12]	ZHAO Y, HUANG J X, SONG J, et al. Thermodynamic investigation of a Carnot battery based multi-energy system with cascaded latent thermal (heat and cold) energy stores[J]. Energy, 2024, 296: 131148. DOI: 10.1016/j.energy.2024.131148.
[13]	HUANG J X, ZHAO Y, SONG J, et al. Thermodynamic investigation of a Joule-Brayton cycle Carnot battery multi-energy system integrated with external thermal (heat and cold) sources[J]. Applied Energy, 2025, 377: 124652. DOI: 10.1016/j.apenergy.2024.124652.
[14]	ZHAO Y, YOU Y, LIU H B, et al. Experimental study on the thermodynamic performance of cascaded latent heat storage in the heat charging process[J]. Energy, 2018, 157: 690-706. DOI: 10.1016/j.energy.2018.05.193.
[15]	ZHANG N, CAI R X. Analytical solutions and typical characteristics of part-load performances of single shaft gas turbine and its cogeneration[J]. Energy Conversion and Management, 2002, 43(9/10/11/12): 1323-1337. DOI: 10.1016/S0196-8904(02)00018-3.
[16]	ZHAO Y, ZHAO C Y, MARKIDES C N, et al. Medium- and high-temperature latent and thermochemical heat storage using metals and metallic compounds as heat storage media: A technical review[J]. Applied Energy, 2020, 280: 115950. DOI: 10.1016/j.apenergy.2020.115950.
[17]	MOHAMED S A, AL-SULAIMAN F A, IBRAHIM N I, et al. A review on current status and challenges of inorganic phase change materials for thermal energy storage systems[J]. Renewable and Sustainable Energy Reviews, 2017, 70: 1072-1089. DOI: 10.1016/j.rser.2016.12.012.
[18]	YANG L Z, VILLALOBOS U, AKHMETOV B, et al. A comprehensive review on sub-zero temperature cold thermal energy storage materials, technologies, and applications: State of the art and recent developments[J]. Applied Energy, 2021, 288: 116555. DOI: 10.1016/j.apenergy.2021.116555.
[19]	WANG P L, LI Q B, WANG S K, et al. Off-design performance evaluation of thermally integrated pumped thermal electricity storage systems with solar energy[J]. Energy Conversion and Management, 2024, 301: 118001. DOI: 10.1016/j.enconman.2023. 118001.
[20]	LACROIX M. Numerical simulation of a shell-and-tube latent heat thermal energy storage unit[J]. Solar Energy, 1993, 50(4): 357-367. DOI: 10.1016/0038-092X(93)90029-N.

参数及条件	单位	值
环境温度，T_e	K	298
压缩机进口压力，p₁	kPa	105
设计压比，β	—	10.50^[12]
供电氩气质量流量，ṁ_f,e	kg/s	12.50^[12]
供热/冷氩气质量流量，ṁ_{f, hc}	kg/s	6.25^[13]
压缩机等熵效率，η_c	%	85^[12]
膨胀机等熵效率，η_e	%	95^[12]
压缩/膨胀机设计转速，n	r/min	10000^[15]
级长度，L	m	10^[13]
管中心距，W	m	3.0×10^-2[13]
管外径，d_o	m	1.9×10^-2[13]
管内径，d_i	m	1.57×10^-2[13]
总管数	—	2500

单元	级数	材料	相变温度/K	比潜热/(kJ/kg)	密度/(kg/m³)	热导率/[W/(m⋅K)]
梯级相变储热单元	1	Al-Cu(质量比67∶33)	821	351	1110	80
	2	Li₂CO₃-K₂CO₃(质量比47∶53)	757	300	1850	0.6
	3	Li₂CO₃-Na₂CO₃-K₂CO₃ (质量比32∶33∶35)	661	388	2084	1.9
	4	LiCl-LiOH(质量比51∶49)	535	485	1550	1.1
	5	LiNO₃-KCl(质量比58∶42)	433	272	2196	0.9
梯级相变储冷单元	1	Pentane	143	116	756	0.2
	2	E-114	159	107	782	0.2
	3	E-90	183	90	786	0.2
	4	SP-50	223	200	1300	0.6
	5	E-15	258	320	1060	0.5
