Numerical analysis of temperature rise characteristics of lithium battery based on dual-channel parallel series liquid cooling plate

doi:10.19799/j.cnki.2095-4239.2024.0866

Abstract

Abstract:

Among the various cooling methods for lithium battery energy storage systems, liquid-cooled cooling systems have significant advantages. However, the performance of liquid-cooled cooling systems are significantly influenced by the type and structure of liquid-cooled plates. To address the thermal safety problem of lithium-ion batteries, a 280 Ah lithium-ion battery was numerically analyzed using ANSYS FLUENT. In addition, a three-dimensional transient heat generation model was constructed based on Bernardi's heat generation rate, fluid momentum conservation equations, and energy conservation equation to simulate the change in temperature field of lithium battery pack at high rate of operation, and to evaluate the cooling effect of three connection methods of dual-channel parallel series liquid cooling plate scheme. The effects of coolant flow rate, initial temperature of coolant and channel height of the liquid cooling plate on the cooling effect of the lithium battery pack were analyzed. The optimal cooling scheme of the liquid cooling plate was thus obtained. The results demonstrated that among the three connection schemes examined, the third scheme demonstrated the best heat dissipation performance, ensuring a uniform temperature distribution across the battery pack. Based on the third connection scheme, as the coolant flow rate increased, the maximum temperature of the lithium battery pack changed from a rapid decline in the initial stage to a slow decline. Lowering the inlet temperature of the coolant significantly decreased the maximum temperature of the lithium battery pack. By analyzing and comparing coolant channels with different heights, an appropriate increase in the channel height can effectively improve the heat dissipation performance of the liquid cooling system. Based on this study, the best cooling scheme can be achieved by increasing the coolant flow rate, reducing the coolant inlet temperature, and increasing the flow channel height of the liquid cooling plate structure.

Key words: lithium battery, liquid cooling plate, liquid cooling system, liquid-cooled structure, heat dispersion

CLC Number:

TM 911

Shunxin LIU, Lingping XU, Jianxing ZHANG, Guang ZENG, Haoyang LI. Numerical analysis of temperature rise characteristics of lithium battery based on dual-channel parallel series liquid cooling plate[J]. Energy Storage Science and Technology, 2025, 14(4): 1496-1506.

Figures/Tables 14

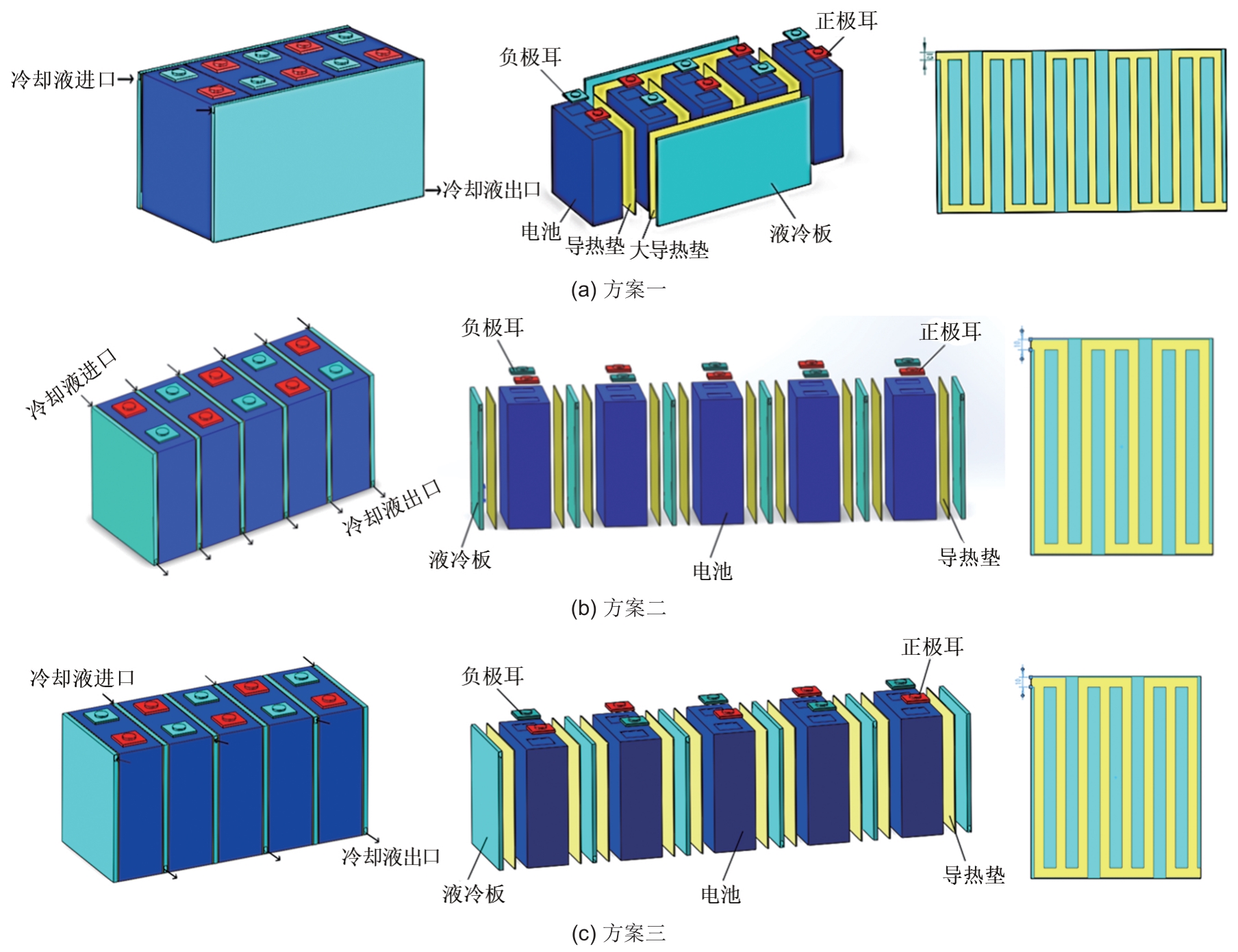

Fig. 1

Table 1

Table 2

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig.11

Fig.12

References 20

1	潘新慧, 陈人杰, 吴锋. 电化学储能技术发展研究[J]. 中国工程科学, 2023, 25(6): 225-236.
	PAN X H, CHEN R J, WU F. Research on the development of electrochemical energy storage technology[J]. China Engineering Science, 2023, 25(6): 225-236.
2	李峰, 耿天翔, 王哲, 等. 电化学储能关键技术分析[J]. 电气时代, 2021(9): 33-38.
	LI F, GENG T X, WANG Z, et al. Analysis of key technologies of electrochemical energy storage[J]. Electric Age, 2021(9): 33-38.
3	唐亮, 尹小波, 吴候福, 等. 电化学储能产业发展对安全标准的需求[J]. 储能科学与技术, 2022, 11(8): 2645-2652.
	TANG L, YIN X B, WU H F, et al. The demand of electrochemical energy storage industry for safety standards[J]. Energy Storage Science and Technology, 2022, 11(8): 2645-2652.
4	李存璞, 唐晓霞, 魏子栋. 锂离子电池的热失控与预防[J]. 科技导报, 2024, 42(12): 178-192. DOI: 10.3981/j.issn.1000-7857. 2024. 03. 01161.
	LI C P, TANG X X, WEI Z D. Thermal runaway and prevention of lithium-ion batteries[J]. Science & Technology Review, 2024, 42(12): 178-192. DOI: 10.3981/j.issn.1000-7857.2024.03.01161.
5	张斌洋, 任晓龙, 赵江铭, 等. 锂离子电池双螺旋结构流道液冷板数值优化[J]. 储能科学与技术, 2024, 13(10): 3545-3555. DOI: 10.19799/j.cnki.2095-4239.2024.0273.
	ZHANG B Y, REN X L, ZHAO J M, et al. Numerical optimization of a liquid cooling plate with double helix flow channel for lithium-ion battery[J]. Energy Storage Science and Technology, 2024, 13(10): 3545-3555. DOI: 10.19799/j.cnki.2095-4239.2024.0273.
6	黄兴华, 范元亮, 吴涵, 等. 液冷散热式预制舱储能系统冷却液回路设计[J]. 电源技术, 2024(1): 161-167.
	HUANG X G, FAN Y L, WU H, et al. Coolant loop design of energy storage system of liquid-cooled prefabricated cabin[J]. Chinese Journal of Power Sources, 2024(1): 161-167.
7	刘霏霏, 淦述龙, 郝三强, 等. 锂电池模组液冷复合散热结构设计及性能分析[J]. 重庆交通大学学报(自然科学版), 2023(1): 137-144.
	LIU F F, GAN S L, HAO S Q, et al. Structural design and performance analysis of liquid-cooled composite cooling of lithium battery module [J]. Journal of Chongqing Jiaotong University (Natural Science Edition), 2023(1): 137-144.
8	王冬, 唐明云, 韩润利, 等. 18650锂离子电池组液冷散热仿真研究[J]. 佳木斯大学学报(自然科学版), 2023, 41(6): 23-27.
	WANG D, TANG M Y, HAN R L, et al. Simulation study on liquid cooling and heat dissipation of 18650 Li-ion battery pack[J]. Journal of Jiamusi University (Natural Science Edition), 2023, 41(6): 23-27.
9	李睿, 王铁. 基于双向并联流道液冷板的电池热仿真与优化[J]. 车辆与动力技术, 2023(2): 14-19.
	LI R, WANG T. Thermal simulation and optimization of battery based on two-way parallel flow channel liquid cooling plate[J]. Vehicle and Power Technology, 2023(2): 14-19.
10	YAO F D, GUAN X, YANG M Y, et al. Study on liquid cooling heat dissipation of Li-ion battery pack based on bionic cobweb channel[J]. Journal of Energy Storage, 2023, 68: 107588. DOI: 10.1016/j.est.2023.107588.
11	TIAN J M, MEI W X, TANG J, et al. Numerical study on heat dissipation and structure optimization of immersed liquid cooling mode used in 280Ah LiFePO₄ batteries[J]. Process Safety and Environmental Protection, 2024, 185: 446-457. DOI: 10.1016/j.psep.2024.02.077.
12	LI Y, BAI M L, ZHOU Z F, et al. Experimental investigations of liquid immersion cooling for 18650 lithium-ion battery pack under fast charging conditions[J]. Applied Thermal Engineering, 2023, 227: 120287. DOI: 10.1016/j.applthermaleng.2023.120287.
13	YANG H Z, WANG Z H, LI M X, et al. A manifold channel liquid cooling system with low-cost and high temperature uniformity for lithium-ion battery pack thermal management[J]. Thermal Science and Engineering Progress, 2023, 41: 101857. DOI: 10. 1016/j.tsep.2023.101857.
14	WEI W H, LUO Z, QIAO S X, et al. Analysis and design of module-level liquid cooling system for rectangular Li-ion batteries[J]. International Journal of Heat and Mass Transfer, 2024, 225: 125435. DOI: 10.1016/j.ijheatmasstransfer.2024.125435.
15	吴超, 王罗亚, 袁子杰, 等. 液冷散热技术在电化学储能系统中的研究进展[J]. 储能科学与技术, 2024, 13(10): 3596-3612. DOI: 10.19799/j.cnki.2095-4239.2024.0290.
	WU C, WANG L Y, YUAN Z J, et al. Research progress in liquid cooling and heat dissipation technologies for electrochemical energy storage systems[J]. Energy Storage Science and Technology, 2024, 13(10): 3596-3612. DOI: 10.19799/j.cnki.2095-4239.2024.0290.
16	李天奇,李悦,潘崇超.锂离子电池恒流充电的温度及产热特性分析[J].电源技术, 2021, 45(7): 872-876.
	LI T Q, LI Y, PAN C C. Analysis of temperature and heat generation characteristics of constant current charging of lithium-ion batteries[J]. Chinese Journal of Power Sources, 2021, 45(7): 872-876.
17	BERNARDI D, PAWLIKOWSKI E, NEWMAN J. A general energy balance for battery systems[J]. Journal of the Electrochemical Society, 1985, 132(1): 5. DOI: 10.1149/1.2113792.
18	潘海鸿, 李熠婧, 张沫, 等. 锂离子电池多因素动态生热率模型[J]. 汽车工程, 2021, 43(2): 204-209, 217. DOI: 10.19562/j.chinasae.qcgc.2021.02.007.
	PAN H H, LI Y J, ZHANG M, et al. Multiple factors dynamic heat generation rate model of lithium-ion battery[J]. Automotive Engineering, 2021, 43(2): 204-209, 217. DOI: 10.19562/j.chinasae. qcgc.2021.02.007.
19	金昕. 锂离子电池组冷却流道传热特性均衡化设计研究[D]. 长春: 吉林大学, 2023.
	JIN X. Research on balanced design of heat transfer characteristics of cooling channels for lithium ion batteries[D]. Changchun: Jilin University, 2023.
20	陈岳浩, 陈莎, 陈慧兰, 等. 储能电池组浸没式液冷系统冷却性能模拟研究[J]. 储能科学与技术, 2025, 14(2): 648-658. DOI: 10.19799/j.cnki.2095-4239.2024.0751.
	CHEN Y H, CHEN S, CHEN H L, et al. Simulation study on cooling performance of submerged liquid cooling system for energy storage battery pack[J]. China Industrial Economics, 2025, 14(2): 648-658. DOI: 10.19799/j.cnki.2095-4239.2024.0751.

参数名称	数值
标准容量/Ah	280
额定电压/V	3.2
内阻/mΩ	0.16
电池重量/kg	5.36
长宽高/mm	17472207

材料	密度/(kg/m³)	比热容/[J/(kg·K)]	导热系数/[W/(m·K)]
电芯	2118	1150	21.6/21.6/2.1
导热垫	2750	1500	2
铝	2719	871	202.4
铜	8920	386	377
50%乙二醇水溶液	1071	3300	0.384
