软包电池组大倍率放电浸没冷却系统实验研究

doi:10.19799/j.cnki.2095-4239.2025.0272

摘要/Abstract

摘要：

针对软包电池组浸没冷却在高倍率放电下的散热问题，构建了3S2P型32Ah软包电池模组的浸没冷却实验平台（冷却介质：壳牌SK-3）。以电池温升、电芯间温差标准差和电芯面温差标准差为评价指标的三维热评估体系分析冷却效果优劣。首先进行了静置与流动浸没冷却的对比实验。后又以放电倍率、流量和电池间距为变量，研究了其对流动浸没冷却系统的冷却效果的影响。对比实验结果表明，静置冷却系统可将3C以下倍率放电的电池温度控制在正常范围，而合理参数配置的流动浸没冷却可将温控范围扩展至5C倍率放电工况。与空气自然对流相比，静置浸没冷却系统在3C放电时可使电池表面温度降低29.79℃，流动浸没冷却进一步降低8.26℃，并减少电芯间温差60.26%；之后通过实验数据分析发现，在低流量条件下，仅增加电芯间距效果改善幅度很小；在小间距条件下，仅增加流量则会恶化温度一致性；此外，通过对Gr/Re²和h的相关分析，电池组内部间距尺寸与冷却介质流量的协同作用，通过影响自然对流与强制对流的强度比例，最终影响电池组的温度分布特征。例如，强制对流不均匀性会导致电芯间温度差较大，系统设计时可以利用自然对流优化设计的温度一致性；最后，以体积能量密度、成组效率和散热效果等评价指标对该浸没冷却系统与文献中提到的其它冷却方法进行了比较，证明了该流动浸没冷却系统优异性能和工程应用价值。

关键词: 电池组, 软包电池, 浸没冷却, 热管理

Abstract:

In order to solve the heat dissipation problem of the submerged cooling of the soft pack battery pack under high rate discharge, the submerged cooling experiment platform of 3S2P 32Ah soft pack battery module (cooling medium: Shell SK-3) was constructed. The 3D thermal evaluation system is used to analyze the cooling effect by taking the temperature rise of the battery, the standard deviation of temperature difference between cells and the standard deviation of temperature difference between cells. Firstly, the contrast experiment between static cooling and flow immersion cooling was carried out. Then the effect of discharge rate, flow rate and cell spacing on the cooling effect of flow immersion cooling system was studied. The experimental results show that the static cooling system can control the temperature of the battery below 3C in the normal range, and the flow immersion cooling with reasonable parameter configuration can extend the temperature control range to 5C discharge condition. Compared with the natural convection of air, the static submerged cooling system can reduce the battery surface temperature by 29.79℃, the flow submerged cooling system can further reduce 8.26℃, and reduce the temperature difference between cells by 60.26%. After the analysis of the experimental data, it is found that under the condition of low flow, the effect of only increasing the cell spacing is very small. Under the condition of small spacing, only increasing the flow rate will deteriorate the temperature consistency. In addition, through the correlation analysis of Gr/Re² and h, the synergistic effect of the internal spacing size of the battery pack and the flow rate of the cooling medium ultimately affects the temperature distribution characteristics of the battery pack by influencing the intensity ratio of natural convection to forced convection. For example, the inhomogeneity of forced convection will lead to a large temperature difference between cells, so natural convection can be used to optimize the temperature consistency of the system design. Finally, the evaluation indexes such as volumetric energy density, group efficiency and heat dissipation effect are compared with other cooling methods mentioned in the literature, which proves the excellent performance and engineering application value of the flow immersion cooling system.

Key words: Battery Module, Pouch cells, Immersion Cooling, Thermal Management

中图分类号:

TM912.8

王宇航, 苑清扬, 吴浩, 张博, 赵鑫, 龚洋凯, 王宁生. 软包电池组大倍率放电浸没冷却系统实验研究[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0272.

Yu-hang WANG, Qing-yang Yuan, Bo ZHANG, Xin Zhao, Gong, Yang-kai, Ning-sheng Wang. Experimental study on immersion cooling system for high rate discharge of soft pack battery pack[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0272.

图/表 20

表1

图1

图2

表2

图3

图4

图5

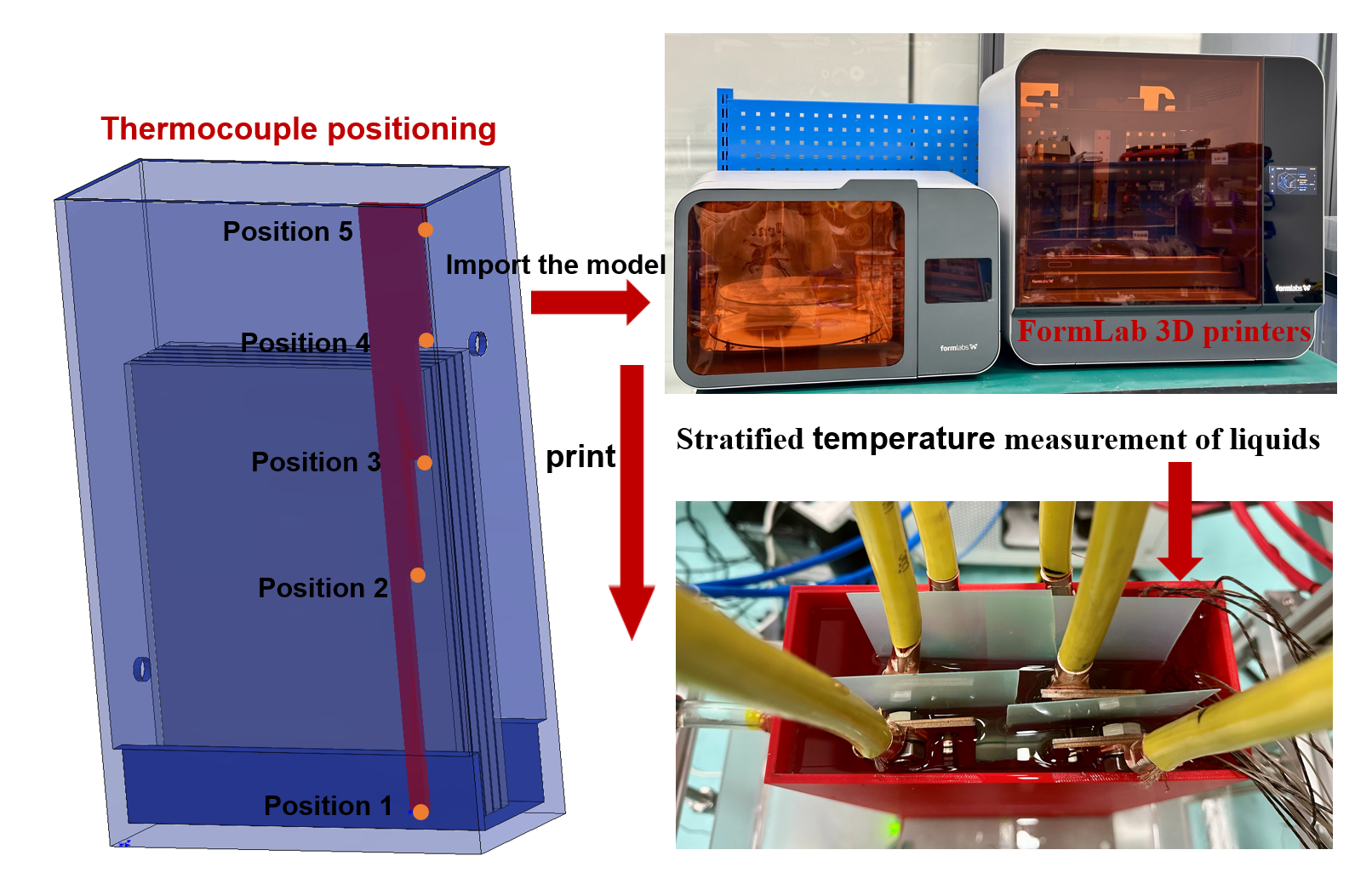

图6

图7

图8

图9

图10

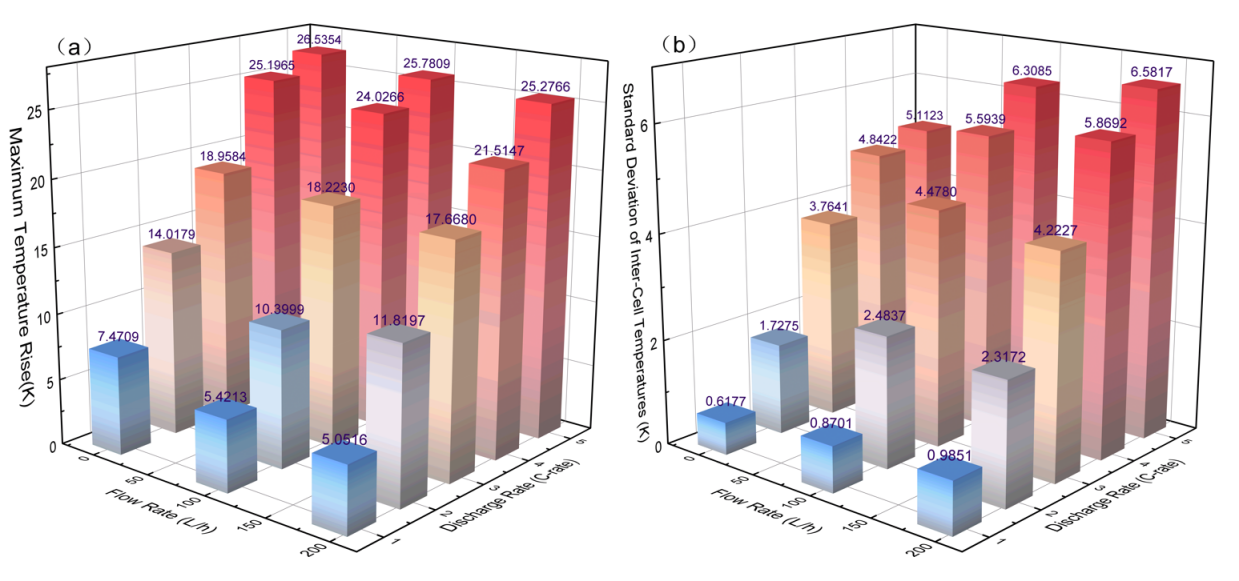

图11

图12

图13

图14

图15

图16

图17

图18

参考文献 29

1	SHAHJALAL M, SHAMS T, ISLAM M E, et al. A review of thermal management for Li-ion batteries: Prospects, challenges, and issues[J]. Journal of Energy Storage, 2021,39: 102518.
2	NIZAMUDDIN A D, HO W S, MUIS Z A, et al. Dual-battery energy storage system targeting using dual battery power pinch analysis[J]. Energy, 2024,313: 133797.
3	CHEN K, WANG S, SONG M, et al. Structure optimization of parallel air-cooled battery thermal management system[J]. International Journal of Heat and Mass Transfer, 2017,111: 943-952.
4	PAW Y C, ANG E Y M. Battery cycle life assessment for a lift+cruise electric vertical takeoff and landing transporter drone[J]. Journal of Energy Storage, 2023,66: 107493.
5	LING Z, WANG F, FANG X, et al. A hybrid thermal management system for lithium ion batteries combining phase change materials with forced-air cooling[J]. Applied Energy, 2015,148: 403-409.
6	FENG X, ZHENG S, REN D, et al. Investigating the thermal runaway mechanisms of lithium-ion batteries based on thermal analysis database[J]. Applied Energy, 2019,246: 53-64.
7	LIU Z, HUANG J, CAO M, et al. Experimental study on the thermal management of batteries based on the coupling of composite phase change materials and liquid cooling[J]. Applied Thermal Engineering, 2021,185: 116415.
8	陈天雨, 高尚, 冯旭宁, 等. 锂离子电池热失控蔓延研究进展[J]. 储能科学与技术, 2018,7(06): 1030-1039.
	CHENG T,GAO S,FENG X,et al. Recent progress on thermal runaway propagation of lithium-ion battery[J]. Energy Storage Science and Technology, 2018,7(06): 1030-1039.
9	HONG S, ZHANG X, CHEN K, et al. Design of flow configuration for parallel air-cooled battery thermal management system with secondary vent[J]. International Journal of Heat and Mass Transfer, 2018,116: 1204-1212.
10	吴超, 王罗亚, 袁子杰, 等. 液冷散热技术在电化学储能系统中的研究进展[J]. 储能科学与技术, 2024,13(10): 3596-3612.
	WU C,WANG L,YUAN Z,et al. Research Progress of Liquid Cooling Heat Dissipation Technology in Electrochemical Energy Storage Systems, 2024,13(10): 3596-3612.
11	李岳峰, 徐卫潘, 韦银涛, 等. 储能锂电池包浸没式液冷系统散热设计及热仿真分析[J]. 储能科学与技术, 2024,13(10): 3534-3544.
	LI Y,XU W,WEI Y,et al. Heat dissipation design and thermal simulation analysis of submerged liquid cooling system for energy storage lithium battery pack, 2024,13(10): 3534-3544.
12	HAN J, GARUD K S, KANG E, et al. Numerical Study on Heat Transfer Characteristics of Dielectric Fluid Immersion Cooling with Fin Structures for Lithium-Ion Batteries: Symmetry[Z]. 2023: 15.
13	DUBEY P, PULUGUNDLA G, SROUJI A K. Direct comparison of immersion and cold-plate based cooling for automotive Li-ion battery modules[J]. Energies, 2021,14(5): 1259.
14	CHENG W, CHEN M, OUYANG D, et al. Investigation of the thermal performance and heat transfer characteristics of the lithium-ion battery module based on an oil-immersed cooling structure[J]. Journal of Energy Storage, 2024,79: 110184.
15	KARAKOR A, TEKIN V, KORKMAZ S A, et al. PARAMETRIC INVESTIGATION OF IMMERSION TYPE THERMAL MANAGEMENT SYSTEM OF LI-ION POUCH BATTERY MODULE[J].
16	THIRU KUMARAN A, HEMAVATHI S. Optimization of Lithium-ion battery thermal performance using dielectric fluid immersion cooling technique[J]. Process Safety and Environmental Protection, 2024,189: 768-781.
17	WANG H, XIA L, ZHU Z, et al. Using fins to enhance heat transfer of cylindrical lithium-ion batteries immersed in electrical insulating oil[J]. Journal of Energy Storage, 2024,99: 113358.
18	LI Z, ZHANG H, SHENG L, et al. Liquid-immersed thermal management to cylindrical lithium-ion batteries for their pack applications[J]. Journal of Energy Storage, 2024,85: 111060.
19	WU X, LU Y, OUYANG H, et al. Theoretical and experimental investigations on liquid immersion cooling battery packs for electric vehicles based on analysis of battery heat generation characteristics[J]. Energy Conversion and Management, 2024,310: 118478.
20	AN Z, SHAH K, JIA L, et al. A parametric study for optimization of minichannel based battery thermal management system[J]. Applied Thermal Engineering, 2019,154: 593-601.
21	LI X, HE F, ZHANG G, et al. Experiment and simulation for pouch battery with silica cooling plates and copper mesh based air cooling thermal management system[J]. Applied Thermal Engineering, 2019,146: 866-880.
22	MONIKA K, CHAKRABORTY C, ROY S, et al. Parametric investigation to optimize the thermal management of pouch type lithium-ion batteries with mini-channel cold plates[J]. International Journal of Heat and Mass Transfer, 2021,164: 120568.
23	FAIZAN M, PATI S, RANDIVE P. Implications of novel cold plate design with hybrid cooling on thermal management of fast discharging lithium-ion battery[J]. Journal of Energy Storage, 2022,53: 105051.
24	WANG H, TAO T, XU J, et al. Thermal performance of a liquid-immersed battery thermal management system for lithium-ion pouch batteries[J]. Journal of Energy Storage, 2022,46: 103835.
25	ADENIRAN A, PARK S. Optimized cooling and thermal analysis of lithium-ion pouch cell under fast charging cycles for electric vehicles[J]. Journal of Energy Storage, 2023,68: 107580.
26	DUAN L, ZHOU H, XU W, et al. Design method of multiple inlet/outlet air cooling frame of pouch lithium-ion battery based on thermal-fluid coupling topology optimization[J]. International Journal of Heat and Mass Transfer, 2023,215: 124496.
27	JI H, LUO T, DAI L, et al. Topology design of cold plates for pouch battery thermal management considering heat distribution characteristics[J]. Applied Thermal Engineering, 2023,224: 119940.
28	LIU Z, XU G, XIA Y, et al. Numerical study of thermal management of pouch lithium-ion battery based on composite liquid-cooled phase change materials with honeycomb structure[J]. Journal of Energy Storage, 2023,70: 108001.
29	KAUSTHUBHARAM, KOORATA P K, PANCHAL S, et al. Investigation of the thermal performance of biomimetic minichannel-based liquid-cooled large format pouch battery pack[J]. Journal of Energy Storage, 2024,84: 110928.

Parameters of Pouch Battery
Nominal voltage	3.7V	Charging upper limit voltage	4.15V
Nominal capacity	32Ah	Discharge cut-off voltage	2.75V
weight	0.5Kg	Discharge current	3-5C
Resistance	0.8mΩ	Suggestion for charging current	0.5C
size	7.5×164×232mm	Operating temperature	-30℃~55℃

Working fluid	Methyl silicone	mineral oil	S3-X	HFE-7100
density (kg/m³)	968	895.5	845	1418.64
viscosity (mm²/s)	50	15	9.8	0.3
Specific heat capacity (J/kg·K)	1350	2093	2274	1170
Thermal conductivity (W/m·K)	0.1565	0.1287	0.17	0.068
