钠离子电池的阶梯充电策略及优化

doi:10.19799/j.cnki.2095-4239.2024.0963

摘要/Abstract

摘要：

以锂离子电池为能量载体的电动汽车正在面临安全与成本的双重考验。与锂离子电池具有相似的工作原理且兼具经济性和安全性的钠离子电池正在崭露头角。为实现钠离子电池的高效快速充电，本工作基于充电区间的直流内阻变化以及差分电压分析(differential voltage analysis, DVA)特征峰的变化，提出了一种优化的九阶梯电压截止充电策略，在充电初期与中后期对电流进行了限制，以应对低荷电状态(state of charge, SOC)充电直流内阻过高、中高SOC区间越过中心特征峰高倍率充电易损伤电池的情况，并与3种容量截止阶梯充电以及恒流恒压(constant current constant voltage, CCCV)充电策略进行了老化对比。基于150次老化循环的实验结果表明，在相同约束条件下，所有的阶梯充电策略的电池老化情况均不同程度优于CCCV充电，其中优化的九阶梯电压截止充电策略性能最优，相比CCCV标准充电，其充电时间缩短了16.0%，电池健康状态提高7.4个百分点，内阻衰减低17.8个百分点。

关键词: 钠离子电池, 阶梯充电, 电池老化

Abstract:

Electric vehicles that rely on lithium-ion batteries for energy face dual challenges of safety and cost. An emerging alternative, sodium-ion batteries, share similar working principles with lithium-ion batteries, while being more economical and inherently safer. To achieve the rapid charging of sodium-ion batteries, this study proposes an optimized nine-step voltage cutoff charging strategy, developed based on the analysis of DC internal resistance changes and differential voltage analysis to monitor characteristic peak variations. The proposed strategy adjusts current limitations across three charging phases (early, middle, and late) to address specific issues, namely high DC internal resistance at low states of charge (SOC) during early charging, increased risk of damage at medium and high SOC regions, caused by high-rate charging and graphite characteristic peak activity. This strategy is compared against existing methods, including the constant current constant voltage (CCCV) charging method and a three-capacity cutoff tiered charging method, by analyzing 150 charging cycles. Experimental results show that, under the same constraints, the proposed battery aging strategies outperform the CCCV charging method. Specifically, compared with the optimized CCCV standard charging, the proposed strategies reduce charging time by 19.04%, improve battery health state by 7.4%, and decrease internal resistance attenuation by 17.8%.

Key words: sodium ion battery, step charging, battery aging

中图分类号:

TM 912

单福星, 霍海波, 张铮, 渐彬彬, 陈军. 钠离子电池的阶梯充电策略及优化[J]. 储能科学与技术, 2025, 14(4): 1668-1678.

Fuxing SHAN, Haibo HUO, Zheng ZHANG, Binbin JIAN, Jun CHEN. Step-charging strategy and optimization of sodium-ion batteries[J]. Energy Storage Science and Technology, 2025, 14(4): 1668-1678.

图/表 19

表1

图1

表2

表3

表4

图2

表5

图3

表6

表7

图4

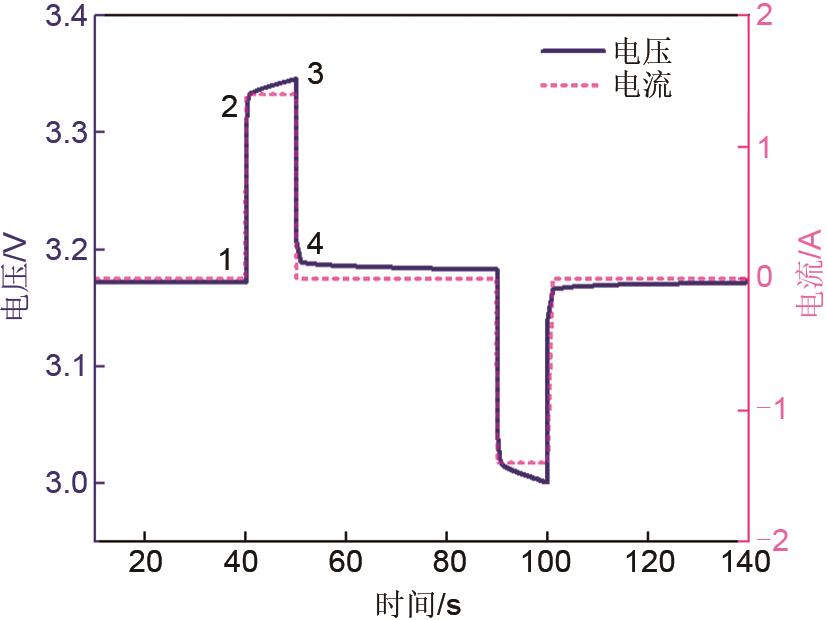

图5

图6

图7

图8

表8

图9

表9

图10

参考文献 23

1	陆雅翔, 赵成龙, 容晓晖, 等. 室温钠离子电池材料及器件研究进展[J]. 物理学报, 2018, 67(12): 39-49. DOI: 10.7498/aps. 67. 20180847.
	LU Y X, ZHAO C L, RONG X H, et al. Research progress of materials and devices for room-temperature Na-ion batteries[J]. Acta Physica Sinica, 2018, 67(12): 39-49. DOI: 10.7498/aps. 67. 20180847.
2	菅夏琰, 金俊腾, 王瑶, 等. 钠离子电池层状氧化物正极材料研究进展[J]. 工程科学学报, 2022, 44(4): 601-611. DOI: 10.13374/j.issn2095-9389.2021.05.26.001.
	JIAN X Y, JIN J T, WANG Y, et al. Recent progress on layered oxide cathode materials for sodium-ion batteries[J]. Chinese Journal of Engineering, 2022, 44(4): 601-611. DOI: 10.13374/j.issn2095-9389.2021.05.26.001.
3	陈娜, 李安琪, 郭子祥, 等. 钠离子电池普鲁士蓝材料结构构建及优化的研究进展[J]. 储能科学与技术, 2023, 12(11): 3340-3351. DOI: 10.19799/j.cnki.2095-4239.2023.0467.
	CHEN N, LI A Q, GUO Z X, et al. Research progress on the construction and optimization of Prussian blue material structure for sodium-ion batteries[J]. Energy Storage Science and Technology, 2023, 12(11): 3340-3351. DOI: 10.19799/j.cnki.2095-4239.2023.0467.
4	LIN X K, KHOSRAVINIA K, HU X S, et al. Lithium plating mechanism, detection, and mitigation in lithium-ion batteries[J]. Progress in Energy and Combustion Science, 2021, 87: 100953. DOI: 10.1016/j.pecs.2021.100953.
5	PASTOR-FERNÁNDEZ C, UDDIN K, CHOUCHELAMANE G H, et al. A comparison between electrochemical impedance spectroscopy and incremental capacity-differential voltage as Li-ion diagnostic techniques to identify and quantify the effects of degradation modes within battery management systems[J]. Journal of Power Sources, 2017, 360: 301-318. DOI: 10.1016/j.jpowsour.2017.03.042.
6	李义函, 卢世刚, 王晶, 等. 磷酸铁锂锂离子电池低温不可逆析锂及其对电池性能衰减的影响[J]. 储能科学与技术, 2024, 13(10): 3656-3665. DOI: 10.19799/j.cnki.2095-4239.2024.0285.
	LI Y H, LU S G, WANG J, et al. Effect of irreversible lithium plating at low temperature on the performance degradation of LiFePO₄ lithium-ion batteries[J]. Energy Storage Science and Technology, 2024, 13(10): 3656-3665. DOI: 10.19799/j.cnki.2095-4239.2024.0285.
7	MUTARRAF M U, GUAN Y J, XU L N, et al. Electric cars, ships, and their charging infrastructure—A comprehensive review[J]. Sustainable Energy Technologies and Assessments, 2022, 52: 102177. DOI: 10.1016/j.seta.2022.102177.
8	USMAN TAHIR M, SANGWONGWANICH A, STROE D I, et al. Overview of multi-stage charging strategies for Li-ion batteries[J]. Journal of Energy Chemistry, 2023, 84: 228-241. DOI: 10.1016/j.jechem.2023.05.023.
9	LI J, MURPHY E, WINNICK J, et al. The effects of pulse charging on cycling characteristics of commercial lithium-ion batteries[J]. Journal of Power Sources, 2001, 102(1/2): 302-309. DOI: 10. 1016/S0378-7753(01)00820-5.
10	陈立铎, 吉登粤, 徐月, 等. 锂离子电池脉冲充电策略研究及表征分析[J]. 储能科学与技术, 2019, 8(6): 1182-1189. DOI: 10.12028/j.issn.2095-4239.2019.0139.
	CHEN L D, JI D Y, XU Y, et al. Research and characterization of pulse charging strategy for lithium-ion traction battery[J]. Energy Storage Science and Technology, 2019, 8(6): 1182-1189. DOI: 10.12028/j.issn.2095-4239.2019.0139.
11	马进红, 王正仕, 苏秀蓉. 锂离子动力电池大电流脉冲充电特性研究[J]. 电源学报, 2013, 11(1): 30-33, 38. DOI: 10.13234/j.issn.2095-2805.2013.1.30.
	MA J H, WANG Z S, SU X R. Study on charging characteristics of Li-ion battery using high-current pulse charging method[J]. Journal of Power Supply, 2013, 11(1): 30-33, 38. DOI: 10.13234/j.issn.2095-2805.2013.1.30.
12	JI D Y, CHEN L D, MA T Y, et al. Research on adaptability of charging strategy for electric vehicle power battery[J]. Journal of Power Sources, 2019, 437: 226911. DOI: 10.1016/j.jpowsour. 2019.226911.
13	CHEN G J, LIU Y H, WANG S C, et al. Searching for the optimal current pattern based on grey wolf optimizer and equivalent circuit model of Li-ion batteries[J]. Journal of Energy Storage, 2021, 33: 101933. DOI: 10.1016/j.est.2020.101933.
14	DOTOLI M, MILO E, GIULIANO M, et al. Development of an innovative procedure for lithium plating limitation and characterization of 18650 cycle aged cells for DCFC automotive applications[J]. Batteries, 2022, 8(8): 88. DOI: 10.3390/batteries8080088.
15	邓林旺, 冯天宇, 舒时伟, 等. 锂离子电池快充策略技术研究进展[J]. 储能科学与技术, 2022, 11(9): 2879-2890. DOI: 10.19799/j.cnki. 2095-4239.2021.0635.
	DENG L W, FENG T Y, SHU S W, et al. Review of a fast-charging strategy and technology for lithium-ion batteries[J]. Energy Storage Science and Technology, 2022, 11(9): 2879-2890. DOI: 10.19799/j.cnki.2095-4239.2021.0635.
16	杲齐新, 赵景腾, 李国兴. 锂离子电池快速充电研究进展[J]. 储能科学与技术, 2023, 12(7): 2166-2184. DOI: 10.19799/j.cnki.2095-4239.2023.0287.
	GAO Q X, ZHAO J T, LI G X. Research progress on fast-charging lithium-ion batteries[J]. Energy Storage Science and Technology, 2023, 12(7): 2166-2184. DOI: 10.19799/j.cnki.2095-4239. 2023. 0287.
17	袁臣虎, 李海杰, 王岁, 等. 锂电池四阶段智能充电方法的研究[J]. 电源技术, 2019, 43(3): 402-404, 414. DOI: 10.3969/j.issn.1002-087X.2019.03.015.
	YUAN C H, LI H J, WANG S, et al. Research of four-stage intelligent charging way for lithium battery[J]. Chinese Journal of Power Sources, 2019, 43(3): 402-404, 414. DOI: 10.3969/j.issn. 1002-087X.2019.03.015.
18	闻有为, 滕安琪, 李勇琦, 等. 不同放电倍率下钠离子电池的电性能与产热行为[J/OL]. 储能科学与技术, 2024: 1-13. (2024-12-25). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=CNKX202412⁃23004&dbname=CJFD&dbcode=CJFQ.
	WEN Y W, TENG A Q, LI Y Q, et al. Electrical properties and heat generation behavior of sodium ion batteries at different discharge rates[J/OL]. China Industrial Economics, 2024: 1-13. (2024-12-25). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=CNKX2024122⁃3004&dbname=CJFD&dbcode=CJFQ.
19	郭宏榆, 姜久春, 王吉松, 等. 功率型锂离子动力电池的内阻特性[J]. 北京交通大学学报, 2011, 35(5): 119-123. DOI: 10.3969/j.issn. 1673-0291.2011.05.022.
	GUO H Y, JIANG J C, WANG J S, et al. Characteristic on internal resistance of lithium-ion power battery[J]. Journal of Beijing Jiaotong University, 2011, 35(5): 119-123. DOI: 10.3969/j.issn. 1673-0291.2011.05.022.
20	MATHIEU R, BRIAT O, GYAN P, et al. Fast charging for electric vehicles applications: Numerical optimization of a multi-stage charging protocol for lithium-ion battery and impact on cycle life[J]. Journal of Energy Storage, 2021, 40: 102756. DOI: 10.1016/j.est.2021.102756.
21	周江, 于宝军. 锂离子电池阶梯充电制式与循环衰减机制[J]. 电源技术, 2023, 47(6): 741-744. DOI: 10.3969/j.issn.1002-087X.2023.06. 011.
	ZHOU J, YU B J. Step charging system and cycle capacity fade mechanism of lithium ion battery[J]. Chinese Journal of Power Sources, 2023, 47(6): 741-744. DOI: 10.3969/j.issn.1002-087X. 2023.06.011.
22	DUBARRY M, TRUCHOT C, LIAW B Y. Synthesize battery degradation modes via a diagnostic and prognostic model[J]. Journal of Power Sources, 2012, 219: 204-216. DOI: 10.1016/j.jpowsour.2012.07.016.
23	HESS M. Kinetics and stage transitions of graphite for lithium-ion batteries[D]. Switzerland: Swiss Federal Institute of Technology of Zurich, 2013.

约束指标	数值范围
时间	<45 min
温升	<5 ℃
充入比	>99%

名称	数值
尺寸/mm	65.30±0.10(高度)
尺寸/mm	18.40±0.10(直径)
标称容量/mAh	1400
标称电压/V	3.10
质量/g	38
交流内阻/mΩ	≤18

名称	数值范围
容量/mAh	1370~1375
交流内阻/mΩ	18.2~18.4
恒流充入比	0.980~0.985

充电方法	10%~80% SOC用时	节省用时	同比缩短
CCCV	45 min 26 s	0	0
3SOC-MSCC	41 min 54 s	3 min 32 s	7.78%
5SOC-MSCC	41 min 11 s	4 min 15 s	9.35%
10SOC-MSCC	43 min 00 s	2 min 26 s	5.36%
9V-MSCC	38 min 10 s	7 min 16 s	16.0%

循环	2峰电压/V	2峰高度 /(mAh/V)	3峰电压/V	3峰高度 /(mAh/V)
CCCV	2.8721	1478.7664	2.9251	2309.6649
3SOC-MSCC	2.8635	1598.3846	2.9235	2327.6817
5SOC-MSCC	2.8578	1649.1074	2.9194	2446.5064
10SOC-MSCC	2.8584	1649.4737	1.9197	2460.5657
9V-MSCC	2.8580	1704.7926	2.9199	2502.1320
