Simulation of immersion thermal performance regulation and thermal safety experimental study for energy storage lithium batteries

doi:10.19799/j.cnki.2095-4239.2024.1056

Abstract

Abstract:

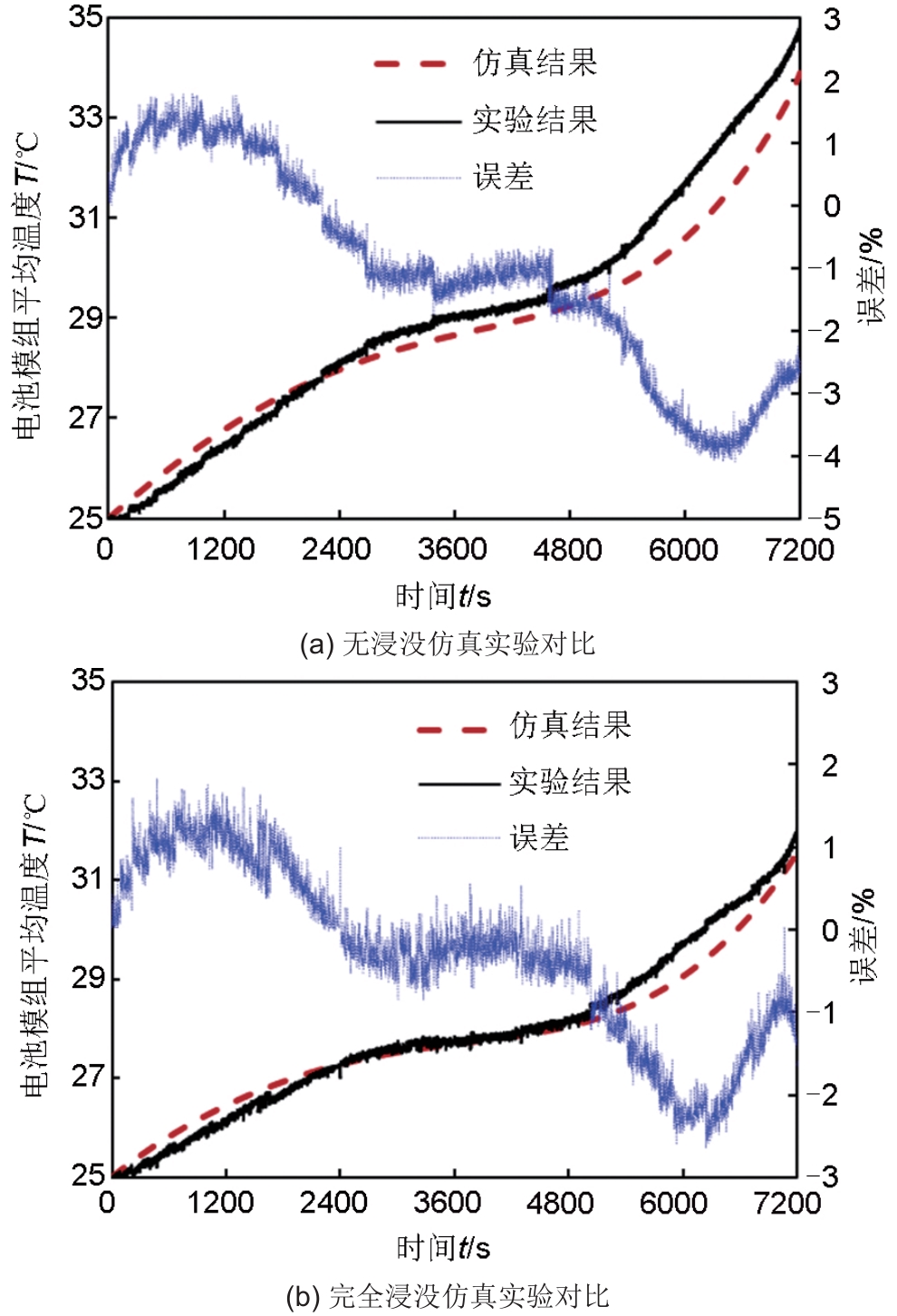

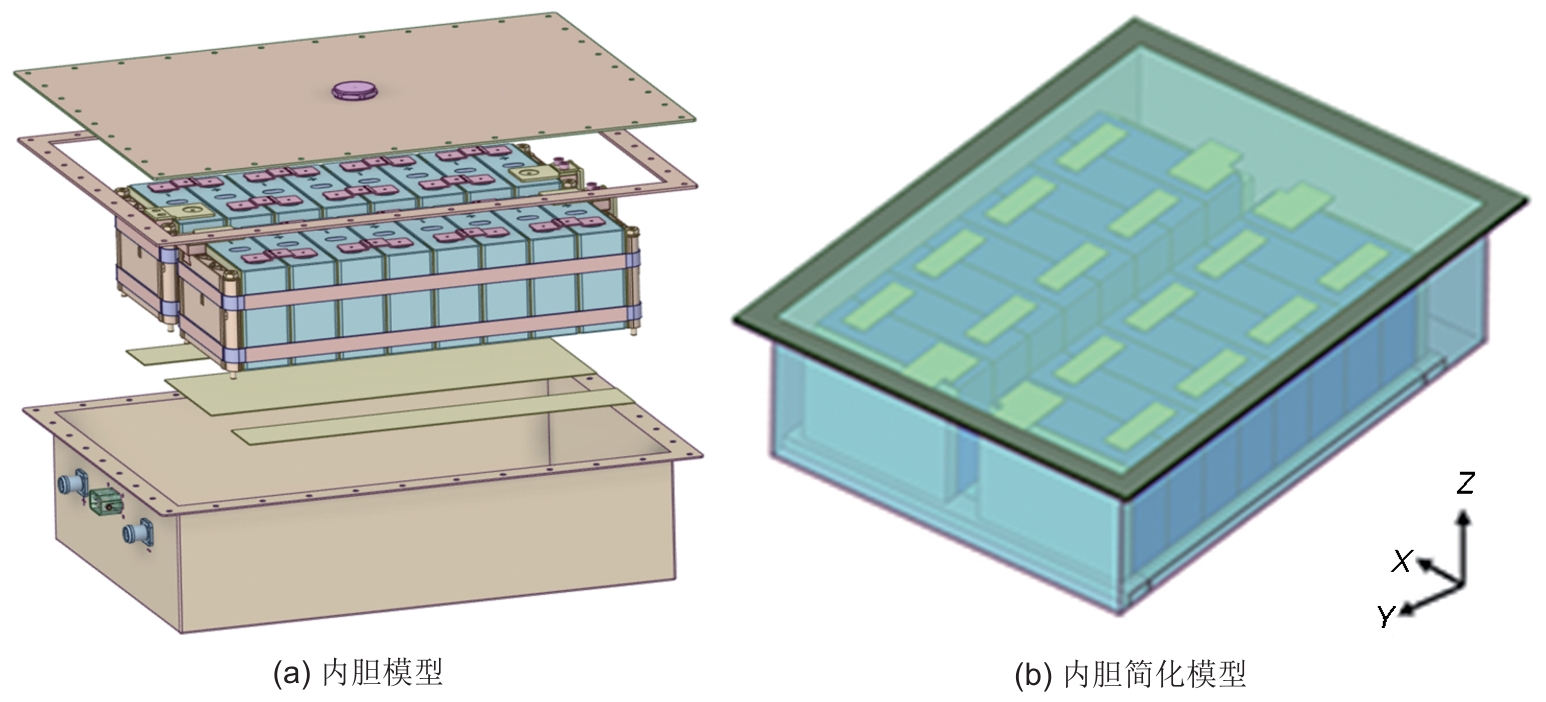

To address the challenges of temperature rise and excessive temperature differences during the operation of a 5 kWh household storage battery plug-in box, a submerged inner tank model was designed. The model allows the batteries to be directly immersed in a cooling medium, while maintaining electrical connectivity to an external battery pack. The study investigated how battery spacing, immersion height ratio, and discharge rate impact cooling performance during static immersion in the inner tank. In addition, the thermal safety performance of the model was experimentally analyzed. Results revealed that a battery spacing of 2.5 mm significantly improves temperature uniformity within the battery module. Optimal cooling performance was achieved when the batteries were 100% submerged. Discharging the fully immersed battery module at 0.5 C, 1.0 C, and 1.5 C notably reduced the maximum temperature compared to non-immersed conditions, while also greatly improving temperature uniformity. Subsequently, the accuracy of the conventional liquid cooling model was verified through experiments, with the simulation results closely aligning with experimental data, showing a maximum deviation of only 1.29 ℃. Finally, overcharge thermal runaway diffusion experiments demonstrated that this cooling method effectively suppresses the spread of thermal runaway.

Key words: lithium-ion battery, immersion thermal management, numerical simulation, thermal propagation suppression

CLC Number:

TM 912

Haiyang ZHOU, Zhendong ZHANG, Lei SHENG, Zehua ZHU, Xiaojun ZHANG, Chunfeng ZHANG. Simulation of immersion thermal performance regulation and thermal safety experimental study for energy storage lithium batteries[J]. Energy Storage Science and Technology, 2025, 14(5): 1866-1874.

Figures/Tables 15

Table 1

Fig. 1

Table 2

Fig. 2

Table 3

Table 4

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

References 18

1	吕杰, 王敬翰, 宋文吉, 等. 储能用锂离子电池电热耦合模型研究进展[J]. 电池, 2023, 53(6): 668-672. DOI: 10.19535/j.1001-1579. 2023.06.018.
	LYU J, WANG J H, SONG W J, et al. Advances in electro-thermal coupling models for energy storage Li-ion battery[J]. Battery Bimonthly, 2023, 53(6): 668-672. DOI: 10.19535/j.1001-1579. 2023.06.018.
2	刘青, 梁新龙, 韦鹏, 等. 某三元锂离子电池挤压安全阈值试验研究[J]. 电源技术, 2023, 47(10): 1286-1289.
	LIU Q, LIANG X L, WEI P, et al. Experimental study on extrusion safety threshold of ternary lithium ion battery[J]. Chinese Journal of Power Sources, 2023, 47(10): 1286-1289.
3	ELALFY D A, GOUDA E, KOTB M F, et al. Comprehensive review of energy storage systems technologies, objectives, challenges, and future trends[J]. Energy Strategy Reviews, 2024, 54: 101482. DOI: 10.1016/j.esr.2024.101482.
4	ZHU J T, FENG G Z, ZHOU W M, et al. Simulation analysis and optimization of containerized energy storage battery thermal management system[J]. Journal of Energy Storage, 2024, 97: 112870. DOI: 10.1016/j.est.2024.112870.
5	LI Z, ZHANG H, SHENG L, et al. Liquid-immersed thermal management to cylindrical lithium-ion batteries for their pack applications[J]. Journal of Energy Storage, 2024, 85: 111060. DOI: 10.1016/j.est.2024.111060.
6	全球锂电池行业发展分析预测[J]. 资源再生, 2018(11): 31-33.
	Global lithium battery industry development analysis forecast[J]. Resource Recycling, 2018(11): 31-33.
7	XU Y B, WANG Y J, CHEN X Z, et al. Thermal runaway and soot production of lithium-ion batteries: Implications for safety and environmental concerns[J]. Applied Thermal Engineering, 2024, 248: 123193. DOI: 10.1016/j.applthermaleng.2024.123193.
8	E J Q, XIAO H X, TIAN S C, et al. A comprehensive review on thermal runaway model of a lithium-ion battery: Mechanism, thermal, mechanical, propagation, gas venting and combustion[J]. Renewable Energy, 2024, 229: 120762. DOI: 10.1016/j.renene.2024.120762.
9	LAKHOTIA V K, SENTHIL KUMAR R. Review on various types of battery thermal management systems[J]. Journal of Thermal Analysis and Calorimetry, 2023, 148(22): 12335-12368. DOI: 10.1007/s10973-023-12561-y.
10	DU J L, TAO H L, CHEN Y X, et al. Thermal management of air-cooling lithium-ion battery pack[J]. Chinese Physics Letters, 2021, 38(11): 118201. DOI: 10.1088/0256-307X/38/11/118201.
11	LI Z C, ZHANG Y A, ZHANG S F, et al. Phase change materials for lithium-ion battery thermal management systems: A review[J]. Journal of Energy Storage, 2024, 80: 110259. DOI: 10.1016/j.est.2023.110259.
12	李嘉鑫, 李鹏钊, 王苗, 等. 锂离子电池热管理技术研究进展[J]. 过程工程学报, 2023, 23(8): 1102-1117.
	LI J X, LI P Z, WANG M, et al. Research progress of thermal management technology for lithium-ion batteries[J]. The Chinese Journal of Process Engineering, 2023, 23(8): 1102-1117.
13	TANG X W, GUO Q, LI M, et al. Performance analysis on liquid-cooled battery thermal management for electric vehicles based on machine learning[J]. Journal of Power Sources, 2021, 494: 229727. DOI: 10.1016/j.jpowsour.2021.229727.
14	ANISHA, KUMAR A. Identification and mitigation of shortcomings in direct and indirect liquid cooling-based battery thermal management system[J]. Energies, 2023, 16(9): 3857. DOI: 10.3390/en16093857.
15	王紫啸, 张振东, 盛雷. 锂离子电池浸没式热管理性能仿真研究[J]. 低温与超导, 2023, 51(12): 64-72. DOI: 10.16711/j.1001-7100.2023.12.010.
	WANG Z X, ZHANG Z D, SHENG L. Simulation study on the performance of submerged thermal management of lithium-ion batteries[J]. Cryogenics & Superconductivity, 2023, 51(12): 64-72. DOI: 10.16711/j.1001-7100.2023.12.010.
16	KANG R X, JIA C X, ZHAO J L, et al. Effects of capacity on the thermal runaway and gas venting behaviors of large-format lithium iron phosphate batteries induced by overcharge[J]. Journal of Energy Storage, 2024, 87: 111523. DOI: 10.1016/j.est.2024.111523.
17	郭豪文. 纯电动汽车浸没式液体冷却电池包的模拟与实验研究[D]. 杭州: 浙江大学, 2022.
18	盛雷. 车用锂离子电池的热物性、热行为与液冷式热管理研究[D]. 上海: 上海理工大学, 2020.

参数	数值
质量/g	1992.0
尺寸(长×宽×高)/(mm×mm×mm)	159.5×50.6×115.7
额定容量/Ah	100
额定电压U/V	3.65
比热容/[J/(kg·℃)]	1023.6
密度/(kg/m³)	2143.7

导热系数/[W/(m·℃)]	X方向(宽度)	13.2
	Y方向(厚度)	3.7
	Z方向(高度)	9.6

放电倍率	q(t)=k₀+k₁t+k₂t²+k₃t³+k₄t⁴
放电倍率	K₀	K₁	K₂	K₃	K₄
0.5 C	2.83	9.341×10^-4	-7.641×10^-7	1.101×10^-10	-4.619×10^-16
1.0 C	5.559	1.579×10^-2	-1.686×10^-5	5.692×10^-9	-5.098×10^-13
1.5 C	47.67	-2.057×10^-3	-1.373×10^-5	8.622×10^-9	-8.69×10^-13

零配件	材料	参数
内胆	不锈钢304	比热容：502 J/(kg·℃) 导热率：16.2 W/(m·℃) 密度：7850 kg/m³
密封垫圈	EVA泡沫棉	比热容：1100 J/(kg·℃) 导热率：0.127 W/(m·℃) 密度：974 kg/m³
Busbar	Al 3003	比热容：1014 J/(kg·℃) 导热率：155 W/(m·℃) 密度：2700 kg/m³
侧板固定件	Al 6061	比热容：900 J/(kg·℃) 导热率：155 W/(m·℃) 密度：2720 kg/m³
隔板	环氧板	比热容：1581 J/kg·℃ 导热率：0.2 W/(m·℃) 密度：1800 kg/m³
