石墨与锂金属负极对混合固液锂离子电池短路与针刺安全性的影响

doi:10.19799/j.cnki.2095-4239.2025.0298

摘要/Abstract

摘要：

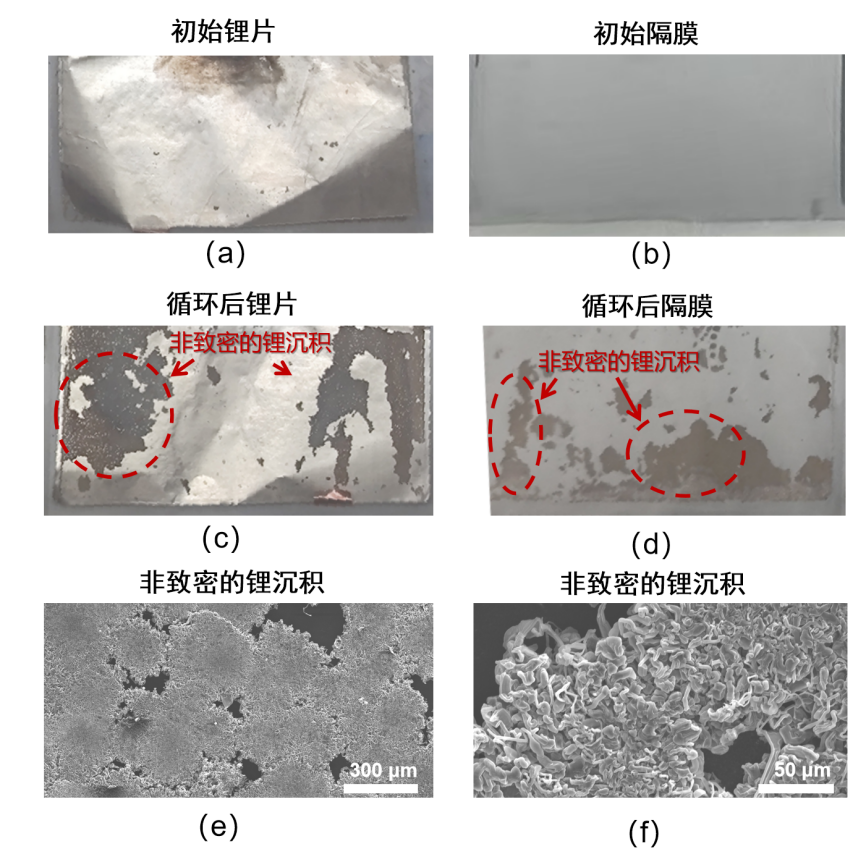

锂离子电池已广泛应用，但其安全性仍是制约其性能提升和应用拓展的关键。本研究聚焦负极材料对三元软包电池热失控路径的影响，对比石墨与锂金属负极在针刺及外部短路测试中的安全响应。通过同步监测温度、电压、电流等关键参数并结合电池拆解分析，研究发现负极特性从根本上决定了电池的失效机制。在外部短路中，锂金属负极的高反应活性及其循环后表面形成的粉末状沉积锂加剧了副反应放热，导致其瞬时电流（148.7 A vs. 100.9 A）和最高温度（273 ℃ vs. 104 ℃）远超石墨负极，表现出更高的热失控风险。然而，在针刺测试中，锂金属负极却展现出安全优势。针刺造成的局部熔融，以及伴随的物理脱离与快速化学钝化，共同使接触电阻上升至超过40 Ω，有效阻断了持续短路，从而避免热失控。相反，石墨负极因其刚性结构维持短路通路，引发剧烈放热，温度变化速率峰值超过420 ℃/s。本研究揭示了负极材料与热失效行为的构效关系，为通过负极改性开发兼具高能量密度和高安全性的金属锂负极二次电池提供新思路。

关键词: 锂离子电池, 锂金属, 针刺, 短路, 热失控

Abstract:

While lithium-ion batteries are widely adopted, their safety remains a critical bottleneck hindering further advancements. This study investigates how anode materials dictate the thermal runaway pathways of ternary pouch cells, by comparing the safety responses of graphite and lithium metal anodes to nail penetration and external short-circuit tests. By simultaneously monitoring key parameters including temperature, voltage, current and analyzing electrode interface morphology/contact status, this study reveals that anode properties fundamentally dictate the battery's failure mechanisms. In external short-circuit tests, the highly reactive lithium metal anode, combined with powdery lithium deposits formed on its surface after cycling, exacerbates exothermic side reactions, resulting in significantly higher peak currents (148.7 A vs. 100.9 A) and maximum temperatures (273°C vs. 104°C) compared to the graphite anode, indicating a greater thermal runaway risk. Conversely, lithium metal anodes demonstrated safety advantages in nail penetration tests. Localized melting caused by penetration, and the accompanying physical detachment and rapid chemical passivation, together cause the contact resistance to rise above 40 Ω, effectively interrupting the internal short circuit and preventing thermal runaway. In contrast, the rigid graphite structure of graphite anodes maintains the short-circuit path, leading to drastic heat release with a peak temperature rate exceeding 420 °C/s. This study reveals the structure-property-failure relationship between the anode material and thermal failure behavior, providing valuable insights for developing batteries with both high energy density and high safety through anode modification.

Key words: lithium-ion battery, lithium metal, nail penetration, short circuit, thermal runaway

中图分类号:

TM 912

乔荣涵, 桑林, 张中洋, 姚霞银, 刘兴江, 俞海龙. 石墨与锂金属负极对混合固液锂离子电池短路与针刺安全性的影响[J]. 储能科学与技术, doi: 10.19799/j.cnki.2095-4239.2025.0298.

Ronghan Qiao, Lin Sang, zhongyang Zhang, Xiayin Yao, Xingjiang Liu, Hailong Yu. Graphite vs. Lithium Metal Anodes: Safety of Hybrid Solid-Liquid Lithium Batteries under Short Circuit and Nail Penetration[J]. Energy Storage Science and Technology, doi: 10.19799/j.cnki.2095-4239.2025.0298.

图/表 12

表1

图1

图2

图3

图4（a）

图5

图6

图7

图8（a）

图9

表2

图10

参考文献 25

1	中国汽车工业协会,中国汽车技术研究中心有限公司,北京汽车集团有限公司. 中国汽车产业发展报告2024[M].社会科学文献出版社,2024.
2	GOODENOUGH J B, KIM Y. Challenges for Rechargeable Li Batteries[J]. Chemistry of Materials, 2010, 22(3): 587-603.
3	王莉, 谢乐琼, 田光宇, 何向明. 锂离子电池安全事故:安全性问题,还是可靠性问题[J]. 储能科学与技术, 2021, 10(1): 1-6.
	WANG L, XIE L, TIAN G, HE X. Safety accidents of Li-ion batteries: Reliability issues or safety issues[J]. Energy Storage Science and Technology, 2021, 10(1): 1-6.
4	FENG X, OUYANG M, LIU X, LU L, XIA Y, HE X. Thermal runaway mechanism of lithium ion battery for electric vehicles: A review[J]. Energy Storage Materials, 2018, 10: 246-267.
5	靳欣, 张建茹, 王其钰, 张锐, 王碧童, 张中洋, 俞海龙, 禹习谦, 李泓. 混合固液锂离子电池的热失控行为研究[J]. 储能科学与技术, 2024, 13(1): 48-56.
	JIN X, ZHANG J, WANG Q, ZHANG R, WANG B, ZHANG Z, YU H, YU X, LI H. Study on thermal runaway of hybrid solid-liquid batteries[J]. Energy Storage Science and Technology, 2024, 13(1): 48-56.
6	OUYANG D, CHEN M, HUANG Q, WENG J, WANG Z, WANG J. A Review on the Thermal Hazards of the Lithium-Ion Battery and the Corresponding Countermeasures[J]. Applied Sciences, 2019, 9(12):2483.
7	SPOTNITZ R, FRANKLIN J. Abuse behavior of high-power, lithium-ion cells[J]. Journal of Power Sources, 2003, 113(1): 81-100.
8	田君, 田崔钧, 王一拓, 佟蕾, 赵鼎, 胡道中, 高洪波, 陈芬, 高申, 王子冬, 刘家亮. 锂离子电池安全性测试与评价方法分析[J]. 储能科学与技术, 2018, 7(6): 1128-1134.
	TIAN J, TIAN C, WANG Y, TONG L, ZHAO D, HU D, GAO H, CHEN F, GAO S, WANG Z, LIU J. Safety test and evaluation method of lithium ion battery[J]. Energy Storage Science and Technology, 2018, 7(6): 1128-1134.
9	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 电动汽车用动力蓄电池安全要求: GB/T 31485-2015[S]. 北京: 中国标准出版社, 2015.
10	CHENG X B, ZHANG R, ZHAO C Z, ZHANG Q. Toward Safe Lithium Metal Anode in Rechargeable Batteries: A Review[J]. Chem Rev, 2017, 117(15): 10403-10473.
11	ZHANG H,YANG Y,REN D,et al.Graphite as anode materials: fundamental mechanism,recent progress and advances[J].Energy Stor Mater,2021,36:147-170.
12	李启全.锂电池安全测试分析[J].电池工业, 2017(2):3,4-6.
	LI, Q. Safety test of lithium battery [J]. Chinese Battery Industry, 2017(2): 3, 4-6.
13	LIU B, ZHANG J-G, XU W. Advancing Lithium Metal Batteries[J]. Joule, 2018, 2(5): 833-845.
14	GAO M, LI H, XU L, XUE Q, WANG X, BAI Y, WU C. Lithium metal batteries for high energy density: Fundamental electrochemistry and challenges[J]. Journal of Energy Chemistry, 2021, 59: 666-687.
15	ZHANG S S. A review on electrolyte additives for lithium-ion batteries[J]. Journal of Power Sources, 2006, 162(2): 1379-1394.
16	YUE X, MA C, BAO J, YANG S, CHEN D, WU X, ZHOU Y. Failure Mechanisms of Lithium Metal Anode and Their Advanced Characterization Technologies[J]. Acta Physico Chimica Sinica, 2020, 37(2): 2005012.
17	LAMB J, ORENDORFF C J, ROTH E P, LANGENDORF J. Studies on the Thermal Breakdown of Common Li-Ion Battery Electrolyte Components[J]. Journal of the Electrochemical Society, 2015, 162(10): A2131-A2135.
18	张世超, 沈泽宇, 陆盈盈. 金属锂电池的热失控与安全性研究进展[J]. 物理化学学报, 2021, 37(1): 2008065. ZHANG S, SHEN Z, LU Y. Research Progress of Thermal Runaway and Safety for Lithium Metal Batteries[J]. Acta Phys. -Chim. Sin. 2021, 37(1), 2008065.
19	CAI T, PANNALA S, STEFANOPOULOU A G, SIEGEL J B. Battery Internal Short Detection Methodology Using Cell Swelling Measurements[C]. American Control Conference (ACC), 2020: 1143-1148.
20	JIA L, WANG D, YIN T, LI X, LI L, DAI Z, ZHENG L. Experimental Study on Thermal-Induced Runaway in High Nickel Ternary Batteries[J]. Acs Omega, 2022, 7(17): 14562-14570.
21	ZHANG Y, HEIM F M, SONG N, BARTLETT J L, LI X. New Insights into Mossy Li Induced Anode Degradation and Its Formation Mechanism in Li-S Batteries[J]. Acs Energy Letters, 2017, 2(12): 2696-2705.
22	乔亚军, 任怡茂, 谭子健, 张袆柔, 吴伟雄. 锂离子电池单层电芯内短路建模与热失控触发特性[J]. 储能科学与技术, 2024, 13(10): 3491-3503.
	QIAO Y, REN Y, TAN Z, ZHANG H, WU W. Modeling internal short circuit and thermal runaway triggers in single-layer lithium-ion battery cells[J]. Energy Storage Science and Technology, 2024, 13(10): 3491-3503.
23	HILDEBRAND J H, LAMOREAUX R H. VISCOSITY OF LIQUID-METALS - INTERPRETATION[J]. Proceedings of the National Academy of Sciences of the United States of America, 1976, 73(4): 988-989.
24	LI Z, HUANG J, YANN LIAW B, METZLER V, ZHANG J. A review of lithium deposition in lithium-ion and lithium metal secondary batteries[J]. Journal of Power Sources, 2014, 254: 168-182.
25	BAI W, XIAO L, LONG T, WANG Z, WANG J, Richard Y K K, Lu Y. Fire-retardant and thermally conductive polyacrylonitrile-based separators enabling the safety of lithium-ion batteries[J]. Journal of Colloid and Interface Science, 2025, 684: 377-387.

样品	正极	负极	电压	容量	内阻	测试方法
石墨-短路	NCM811	石墨	2.8~4.2 V	3.6 Ah	7.87 mΩ	短路测试
锂金属-短路	NCM811	锂金属	2.8~4.3 V	3.6 Ah	12.35 mΩ	短路测试
石墨-针刺	NCM811	石墨	2.8~4.2 V	3.6 Ah	11.38 mΩ	针刺测试
锂金属-针刺	NCM811	锂金属	2.8~4.3 V	3.6 Ah	15.14 mΩ	针刺测试

	正极-负极	正极-钢针	钢针-负极
石墨-针刺电池电压	0	0	0
石墨-针刺电池电阻	19.78 Ω	24.52 Ω	4.33 Ω
金属锂-针刺电池电压	4.19 V	4.08 V	0.11 V
金属锂-针刺电池电阻	0.07 Ω	43.57 Ω	42.47 Ω
